13AL605H057 - Brute Lawn Tractor (2009) (Walmart) Steering & Front Axle Assembly Parts Diagram

Lawn Tractor

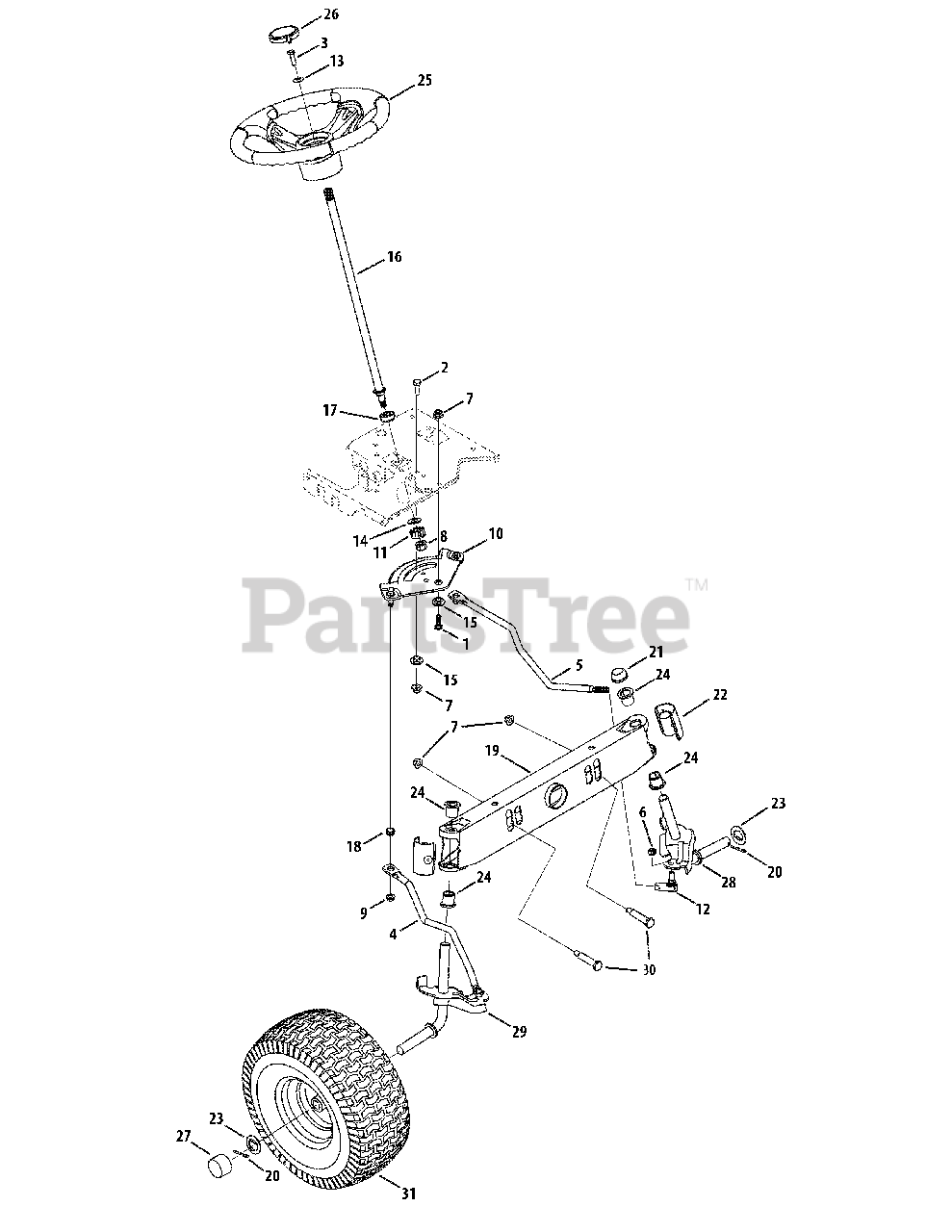

Steering & Front Axle Assembly Parts Diagram

  • Title

1

MTD 710-04095

Hex Screw, 3/8-16, 1.00, Gr5

$5.49

$

In Stock, Qty 20+

0

2

MTD 710-0514

Hex Screw, 3/8-16, 1.00, Gr5

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0643

Hex Screw, 5/16-18, 1.00, Gr5

$6.99

$

In Stock, Qty 5

0

4

MTD 711-1408

Link, Drag, RH

$

$

Not available

5

MTD 711-1409A

Link, Drag, LH

$

$

Not available

6

MTD 912-0214

Nut, Hex Lock, 3/8-24
(Superseded to 712-0214)

$6.49

$

In Stock, only 2 left!

0

7

MTD 712-04065

Nut, Flange Lock, 3/8-16, Grf

$3.99

$

In Stock, Qty 20+

0

8

MTD 712-0459

Nut, Flange Lock, 7/16-20

$4.99

$

In Stock, Qty 20+

0

9

MTD 712-3004A

Nut, Flange Lock, 5/16-18, Gr5

$3.99

$

In Stock, Qty 20+

0

10

MTD 917-1550E

Gear, Steering, 11/90 Ratio
(Superseded to 717-1550F)

$70.99

$

In Stock, Qty 20+

0

11

MTD 717-1554

Gear, Pinion, Steering

$10.99

$

In Stock, Qty 20+

0

12

MTD 923-0448A

Ball Joint, 7/16-20, Lock

$24.99

$

In Stock, Qty 20+

0

13

MTD 936-3004

Washer, Flat, .406 x .875 x .105
(Superseded to 736-3004)

$

$

Not available

14

MTD 736-3084

Washer, Flat, .51 x 1.12 x .06

$4.99

$

In Stock, Qty 20+

0

15

MTD 738-04154

Spacer, Shoulder, .38 x 1.00 x .31

$5.49

$

In Stock, Qty 11

0

16

MTD 738-04263

Shaft, Steering, .625 OD x 24.25

$68.99

$

In Stock, Qty 7

0

17

MTD 741-04237A

Hex Flange Bearing
(Superseded to 741-04237B)

$6.99

$

In Stock, Qty 15

0

18

MTD 941-0475

Plastic Bushing .380 ID

$4.49

$

In Stock, Qty 20+

0

19

MTD 683-0128B-0637

Pivot Bar Axle Assembly

$97.99

$

In Stock, only 2 left!

0

20

MTD 714-0162

Cotter Pin, 5/32 x 1.25 (Cast Axle)

$4.99

$

In Stock, Qty 20+

0

21

MTD 726-0341

Push Cap (Stamped Axle)

$4.99

$

In Stock, Qty 20+

0

22

MTD 931-1291A

Pivot Bar End Cap w/ fitting

$15.99

$

In Stock, Qty 9

0

23

MTD 736-04228A

Flat Washer, .781 x 1.59
(Superseded to 736-04228B)

$5.49

$

In Stock, Qty 20+

0

24

MTD 741-0660A

Flange Bearing

$3.49

$

In Stock, Qty 20+

0

25

MTD 631-04028

Steering Wheel

$69.99

$

In Stock, only 1 left!

0

26

MTD 731-04039

Steering Wheel Cap

$8.49

$

Usually ships in 3-6 days

0

27

MTD 731-05674

Push Cap, 3/4

$5.49

$

In Stock, Qty 20+

0

28

MTD 638-04003AP

LH Axle Assembly, .750 (46" & 50")

$

$

Not available

29

MTD 938-04004A

RH Axle Assembly, .750 (46" & 50")

$71.99

$

In Stock, only 2 left!

0

30

MTD 738-04128

Shoulder Bolt, .5 x 2.38, 3/8-16

$7.99

$

Usually ships in 3-6 days

0

31

MTD 634-04086-0941

Wheel Assembly Complete, 15x6
(Superseded to 634-05067-0941)

$172.99

$

Usually ships in 3-6 days

0

31

MTD 734-1731-0901

Tire Only 15 x 6 x 6

Note: Not shown

$49.99

$

Usually ships in 3-6 days

0

31

MTD 934-04081-0674

Rim Only w/ Valve Stem
(Superseded to 634-05066-0674)

Note: Not shown

$105.99

$

Usually ships in 3-6 days

0

MTD 934-0255

Valve Stem

Note: Not shown

$4.49

$

In Stock, Qty 20+

0
