13AL605H057 - Brute Lawn Tractor (2009) (Walmart) Hood & Dash Assembly Parts Diagram

Lawn Tractor

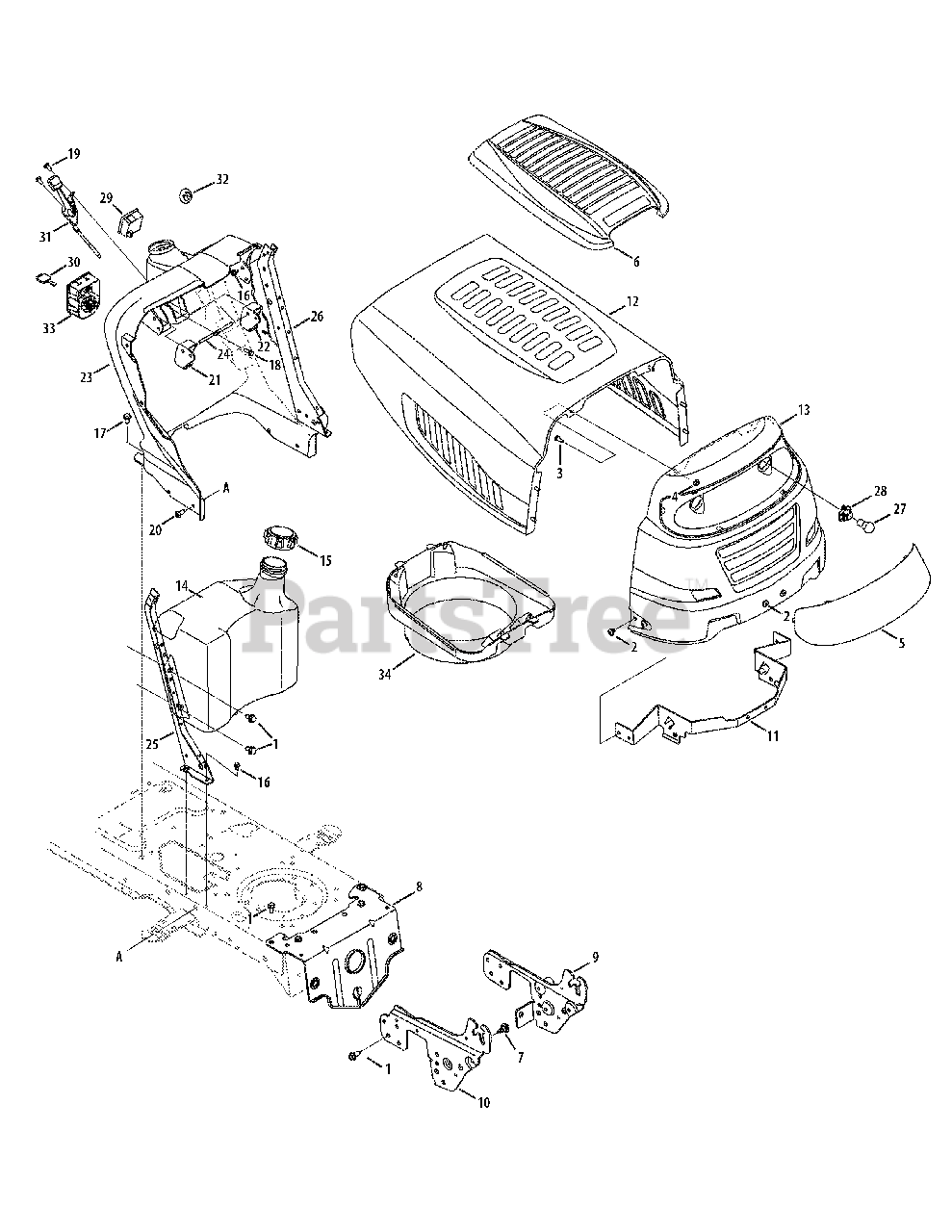

Hood & Dash Assembly Parts Diagram

  • Title

1

MTD 710-04484

Screw, 5/16-18, 0.625

$3.99

$

In Stock, Qty 20+

0

2

MTD 710-04593

Screw, 5/16-18, .375

$4.49

$

In Stock, only 3 left!

0

3

MTD 710-0751

Screw, 1/4-20, 0.620

$3.99

$

In Stock, Qty 20+

0

4

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

5

MTD 731-04949A

1/5-Style Lens

$26.99

$

In Stock, only 1 left!

0

6

MTD 731-05522A

Hood Cover/Scoop

$49.99

$

Usually ships in 3-6 days

0

7

MTD 738-04091A

Screw, Shldr, .43 x .29, 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

MTD 783-05326-0637

Pivot Bar Bracket
(Superseded to 783-05326D-0637)

$33.99

$

In Stock, only 1 left!

0

9

MTD 783-05327B-0637

Pivot Bracket Support LH

$40.99

$

Usually ships in 3-6 days

0

10

MTD 783-05328A-0637

Pivot Bracket Support RH
(Superseded to 783-05328B-0637)

$42.99

$

Usually ships in 3-6 days

0

11

MTD 783-05454-0637

Hood Pivot Bracket

$31.99

$

Usually ships in 3-6 days

0

12

MTD 783-05683-0691

1/5-Style Hood

$159.99

$

Usually ships in 3-6 days

0

13

MTD 783-05685-0691

1/5-Style Grill
(Superseded to 783-05685A-0691)

$130.99

$

In Stock, only 1 left!

0

14

MTD 751-0659D

Fuel Tank, 2.0 gal.

$84.99

$

In Stock, Qty 5

0

15

MTD 751-0603A

Fuel Tank Cap
(Superseded to 751-0603B)

$23.99

$

Usually ships in 3-6 days

0

16

MTD 710-0599

Screw, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

17

MTD 710-0607

Screw, 5/16-18 x 0.500

$6.99

$

In Stock, Qty 11

0

18

MTD 710-0895

Screw, 1/4-15, .750

$6.49

$

Usually ships in 3-6 days

0

19

MTD 710-1017

Screw, 1/4-14, 0.625

$8.49

$

In Stock, Qty 9

0

20

MTD 710-1611B

Screw, 5/16-18, 0.750

$6.99

$

In Stock, only 2 left!

0

21

MTD 931-04215

Dash Cruise Lever

$

$

Not available

22

MTD 931-04217

Dash Brake Lever

$11.99

$

In Stock, only 1 left!

0

23

MTD 731-06167

Dash Panel, w/ Manual PTO

$109.99

$

Usually ships in 3-6 days

0

24

MTD 747-1196

Bent Lever Rod

$15.99

$

Usually ships in 3-6 days

0

25

MTD 783-04323F-0637

Dash Support, RH

$34.99

$

Usually ships in 3-6 days

0

26

MTD 783-04285F-0637

Dash Support, LH

$

$

Not available

27

MTD 925-0963

Headlamp, 12V

$7.49

$

In Stock, only 1 left!

0

28

MTD 925-1649

Lamp Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

29

MTD 925-04156

Systems Ind. Monitor w/ Amtr.

$29.99

$

In Stock, only 1 left!

0

30

MTD 925-1745A

Key w/ Plastic Grip

$17.99

$

In Stock, Qty 20+

0

31

MTD 746-1084

Throttle/Choke Control, 25.0
(Superseded to 946-1084)

$32.99

$

Usually ships in 3-6 days

0

32

MTD 731-1999

Choke Plug

$10.99

$

Usually ships in 3-6 days

0

33

MTD 925-04659

3-Position Key Switch

$44.99

$

In Stock, Qty 20+

0

34

MTD 731-05147A

Hood Plenum

$49.99

$

Usually ships in 3-6 days

0

MTD 725-04863

Wire Harness, Main

Note: Not Shown

$

$

Not available

MTD 777X41984

Headlight Lens Reflector

Note: Not Shown

$7.49

$

Usually ships in 3-6 days

0
