13AL605H057 - Brute Lawn Tractor (2009) (Walmart) Fender, Deck Lift & Seat Parts Diagram

Lawn Tractor

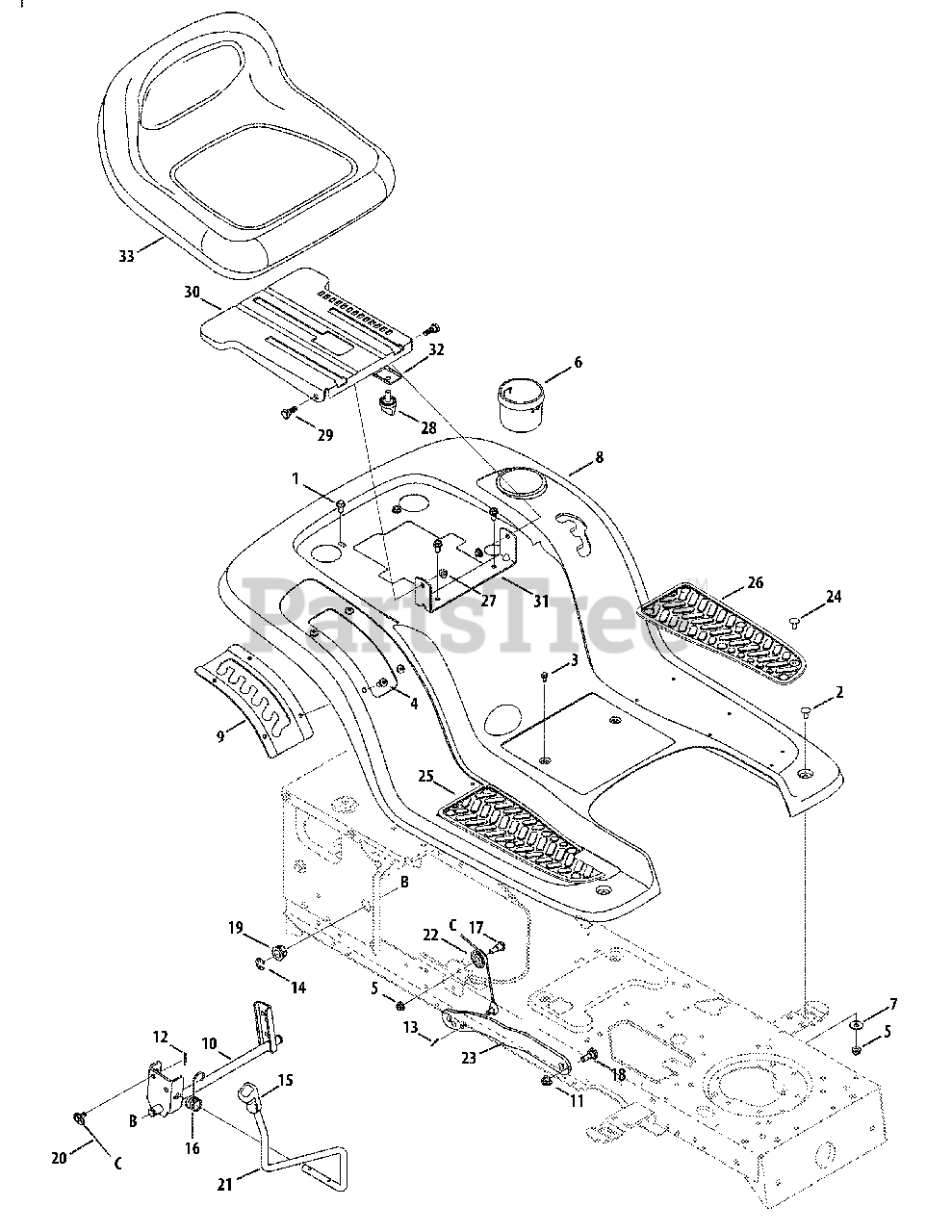

Fender, Deck Lift & Seat Parts Diagram

  • Title

1

MTD 710-04484

Screw, 5/16-18, 0.750x

$3.99

$

In Stock, Qty 20+

0

2

MTD 710-0451

Carriage Bolt, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0599

Screw, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-1611B

Screw, 5/16-18, 0.750

$6.99

$

In Stock, only 2 left!

0

5

MTD 712-04063

Nut, Flange Lock, 5/16-18, GrF

$3.99

$

In Stock, Qty 20+

0

6

MTD 731-04591A

Cup Holder

$15.99

$

In Stock, only 1 left!

0

7

MTD 736-3078

Washer, Flat,.344 x 1.0 x.063

$4.49

$

In Stock, only 4 left!

0

8

MTD 783-06248-0691

Fender (10-Style)

$

$

Not available

9

MTD 783-1010A-0637

Deck Lift Plate (10-Style)

$34.99

$

Usually ships in 3-6 days

0

10

MTD 683-04223-0637

Deck Lift Shaft Assembly

$

$

Not available

11

MTD 712-04065

Nut, Flange Lock, 3/8-16, GrF

$3.99

$

In Stock, Qty 20+

0

12

MTD 914-0104

Pin, Cotter,.072 Dia. x 1.13
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

13

MTD 914-0111

Pin, Cotter, 3/32, 1.0
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

14

MTD 716-0106A

Ring, E Type,.625 Dia.

$5.49

$

In Stock, only 2 left!

0

15

MTD 720-0311

Grip, Handle, 1/2

$15.99

$

In Stock, only 2 left!

0

16

MTD 732-0874

Spring, Torsion

$4.99

$

In Stock, Qty 6

0

17

MTD 738-0138A

Screw, 5/16-18 x.620 Gr2

$6.99

$

Usually ships in 3-6 days

0

18

MTD 938-0380

Screw, Shld,.50 x.27, (46" & 50" Deck)
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

19

MTD 941-0225

Bearing, Hex Flange

$7.49

$

In Stock, Qty 20+

0

20

MTD 746-0968

Cable, Lift, 16.16

$19.99

$

In Stock, Qty 20+

0

21

MTD 747-04447

Handle, Lift

$44.99

$

In Stock, only 3 left!

0

22

MTD 756-1154

Pulley, Roller

$7.99

$

In Stock, only 1 left!

0

23

MTD 783-04963A-0637

Arm, Lift (46" Deck)

$26.99

$

Usually ships in 3-6 days

0

24

MTD 726-3046

Ratchet Clip

$3.99

$

In Stock, Qty 16

0

25

MTD 735-0672

RH Foot Pad

$

$

Not available

26

MTD 735-0673

LH Foot Pad

$

$

Not available

27

MTD 712-3004A

Nut, Flange Lock, 5/16-18, Gr5

$3.99

$

In Stock, Qty 20+

0

28

MTD 720-04061

Knob, 3/8-16

$5.49

$

In Stock, Qty 20+

0

29

MTD 938-0296

Screw, Shoulder,.437 x.268
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

30

MTD 783-06049-0637

Seat Mounting Bracket

$68.99

$

Usually ships in 3-6 days

0

31

MTD 783-06088-0637

Seat Pivot Bracket
(Superseded to 783-06088A-0637)

$21.99

$

Usually ships in 3-6 days

0

32

MTD 783-06266-0637

Seat Adjustment Knob Bracket

$8.99

$

Usually ships in 3-6 days

0

33

MTD 757-04081

Medium Back Seat
(Superseded to 757-05242)

$260.99

$

Usually ships in 3-6 days

0
