13AL605H057 - Brute Lawn Tractor (2009) (Walmart) Engine Accessories Parts Diagram

Lawn Tractor

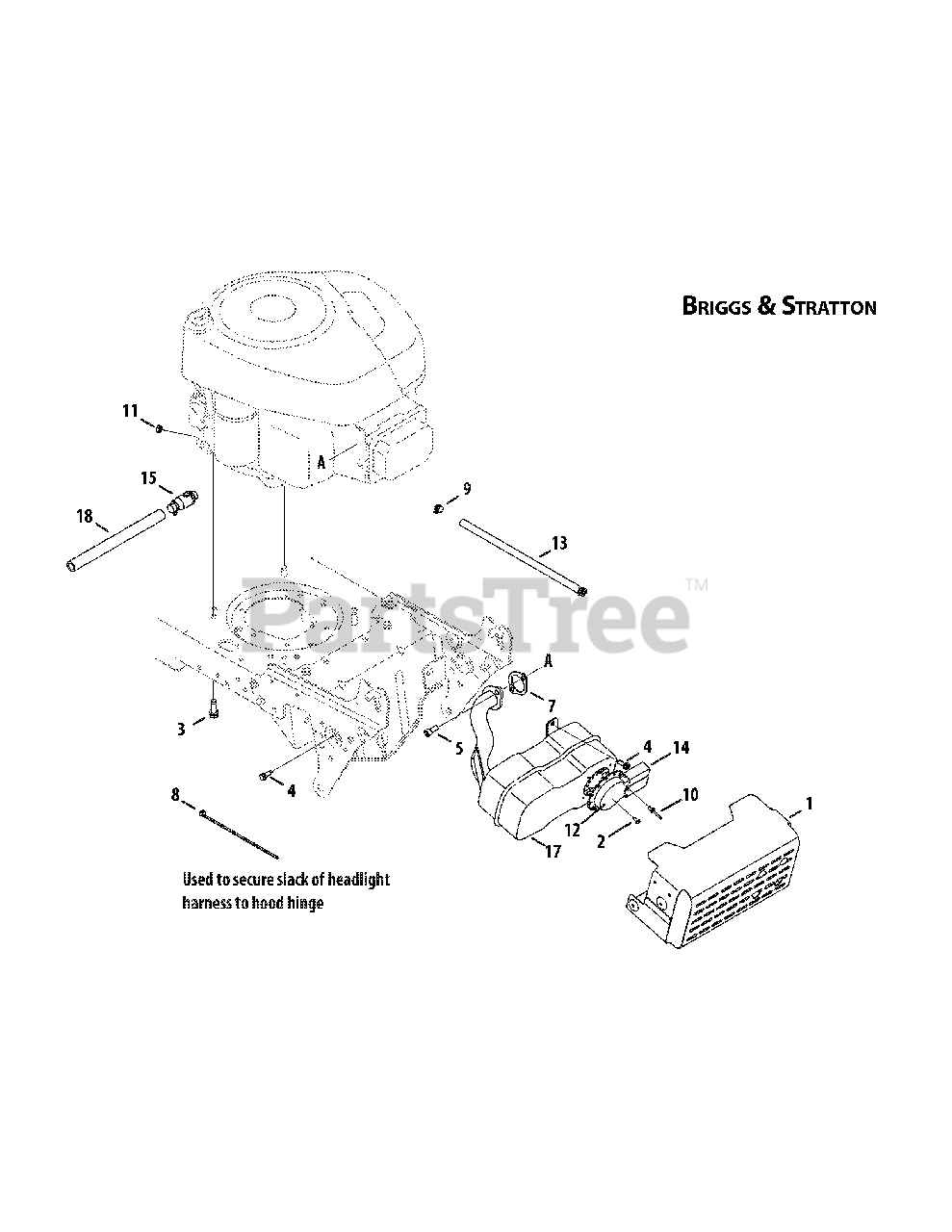

Engine Accessories Parts Diagram

  • Title

1

MTD 683-04549-0637

Shield, Muffler
(Superseded to 683-05460A-0637)

$80.99

$

Usually ships in 3-6 days

0

2

MTD 710-0227

Screw, #8-18, 0.500

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-04683

Screw, Hex, 3/8-16 x 1.00
(Superseded to 710-04683C)

$6.49

$

In Stock, Qty 5

0

4

MTD 710-0599

Screw, Hex, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0642

Screw, Hex, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

7

MTD BS-692236

Exhaust Gasket

$5.49

$

In Stock, Qty 20+

0

8

MTD 725-0157

Cable, Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

9

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 18

0

10

MTD 728-04000

Rivet, Pop, .188 x .325

$6.99

$

In Stock, Qty 8

0

11

MTD 712-0271

Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

12

MTD 751-0564B

Deflector, Muffler

$13.99

$

In Stock, Qty 5

0

13

MTD 751-10349

Fuel Line, Low Permeation

$9.49

$

Usually ships in 3-6 days

0

14

MTD 751-10353

Extension, Deflector
(Superseded to 751-11053B)

$5.49

$

In Stock, Qty 20+

0

15

MTD 951-10517A

Drain, Oil

$24.99

$

In Stock, only 3 left!

0

17

MTD 751-10448A

Muffler, Single Inlet
(Superseded to 951-10448D)

$

$

Not available

18

MTD 751-3141-14

Extension Hose, Oil Drain

$11.99

$

In Stock, Qty 8
