13AL605H057 - Brute Lawn Tractor (2009) (Walmart) Drive System Parts Diagram

Lawn Tractor

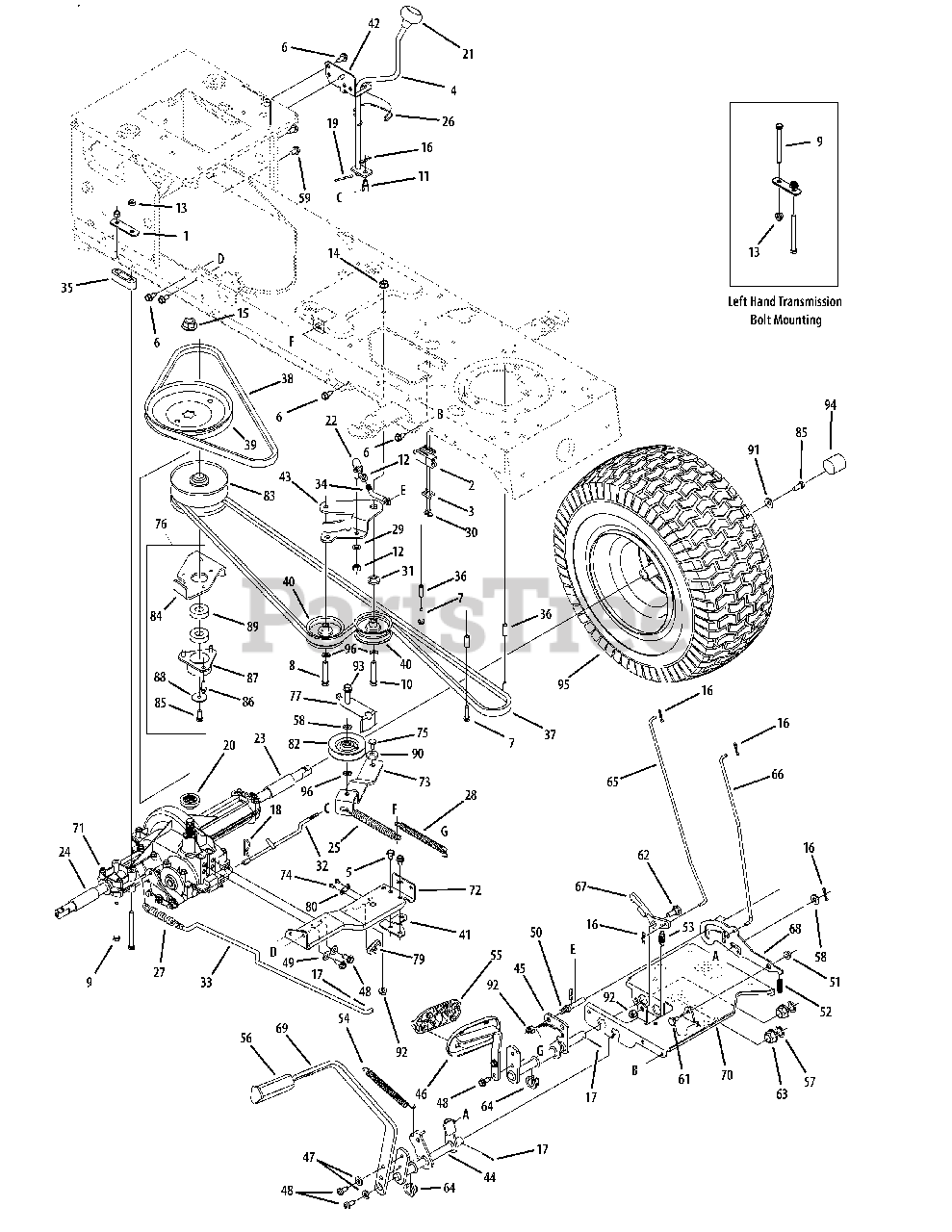

Drive System Parts Diagram

  • Title

1

MTD 17840-0637

Mounting Bracket, Transaxle

$11.99

$

Usually ships in 3-6 days

0

2

MTD 925-04039

Switch, Interlock

$24.99

$

In Stock, Qty 8

0

3

MTD 17962

Plate, Switch

$4.99

$

In Stock, only 3 left!

0

4

MTD 647-04020

Lever Assembly, Shift

$29.99

$

Usually ships in 3-6 days

0

5

MTD 710-0607

Screw, 5/16-18, 0.500

$6.99

$

In Stock, Qty 11

0

6

MTD 710-04484

Screw, 5/16-12, 0.750

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-0809

Screw, 1/4-20, 1.250

$6.99

$

In Stock, Qty 19

0

8

MTD 710-1007

Screw, Sems, 3/8-16, 1.500

$6.49

$

In Stock, only 1 left!

0

9

MTD 710-1266

Screw, 5/16-18, 3.50, Gr5

$9.99

$

Usually ships in 3-6 days

0

10

MTD 710-3144

Screw, 3/8-16, 2.00, Gr5

$4.49

$

In Stock, Qty 20+

0

11

MTD 711-0736

Adjustment Ferrule 1/4-20 x 1.

$13.99

$

In Stock, only 2 left!

0

12

MTD 712-0241

Nut, Hex, 3/8-24, Gr5

$4.49

$

In Stock, Qty 13

0

13

MTD 712-04063

Nut, Flange Lock, 5/16-18, GrF

$3.99

$

In Stock, Qty 5

0

14

MTD 912-0431

Nut, Flange Lock, 3/8-16, GrF

$4.99

$

In Stock, Qty 20+

0

15

MTD 712-0700

Nut, Flange, 9/16-18, Gr2

$10.99

$

In Stock, only 1 left!

0

16

MTD 914-0104

Pin, Cotter,.072 Dia. x 1.13
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

17

MTD 914-0111

Pin, Cotter, 3/32, 1.0
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

18

MTD 914-0209

Cotter .Pin, Internal,.125 Dia.

$3.99

$

In Stock, only 2 left!

0

19

MTD 914-0470

Pin, Cotter, 1/8 x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

20

MTD 718-04407

Pulley Hub, 5/8 Spline

$12.99

$

In Stock, Qty 20+

0

21

MTD 720-04028

Knob, Shift

$10.99

$

In Stock, only 4 left!

0

22

MTD 923-3018

Ball Joint

$16.99

$

In Stock, Qty 20+

0

23

MTD 731-04602

Sleeve,.758 x.821 x 3.3125

$6.49

$

In Stock, only 1 left!

0

24

MTD 731-04604

Sleeve,.758 x.821 x 2.4375

$6.99

$

In Stock, only 3 left!

0

25

MTD 932-04370A

Spring, Extension,.62 Dia x 6.12

$12.99

$

In Stock, only 2 left!

0

26

MTD 732-0525

Spring Clip, Shifter

$10.99

$

In Stock, only 1 left!

0

27

MTD 732-0716D

Spring, Extension,.59 OD x 4.00

$13.99

$

In Stock, only 1 left!

0

28

MTD 732-0963

Spring, Extension,.50 Dia x 6.37

$9.99

$

In Stock, only 4 left!

0

29

MTD 936-0169

Washer, Lock, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

30

MTD 910-0224

Screw, #10-16,.50

$3.99

$

In Stock, Qty 20+

0

31

MTD 738-0372B

Spacer, Shoulder, 1.00 x.38 x.38

$9.49

$

In Stock, Qty 20+

0

32

MTD 747-04146C

Rod, Shift

$22.99

$

In Stock, only 1 left!

0

33

MTD 747-04164

Rod, Brake

$

$

Not available

34

MTD 747-1127

Idler Rod, Adjustable, 3/8

$42.99

$

Usually ships in 3-6 days

0

35

MTD 948-0334

Spacer,.68

$10.99

$

In Stock, only 1 left!

0

36

MTD 750-0566A

Spacer,.260 x.372 x 1.030

$9.99

$

In Stock, only 1 left!

0

37

MTD 954-0467

Belt, V-Type
(Superseded to 954-0467A)

$50.99

$

In Stock, Qty 20+

0

38

MTD 954-0468

Belt, V-Type

$30.99

$

In Stock, Qty 13

0

39

MTD 956-04002

Pulley, V-Type, 7.25 Dia.

$27.99

$

In Stock, Qty 20+

0

40

MTD 756-04224

Idler Pulley, Flat 2.75 OD

$26.99

$

In Stock, Qty 20+

0

41

MTD 783-04283A

Bracket, Shift

$

$

Not available

42

MTD 783-04360

Bracket, Shift, F-N-R

$

$

Not available

43

MTD 783-04442-0637

Idler Bracket, Center Double

$35.99

$

In Stock, only 1 left!

0

44

MTD 647-04100-0637

Control Assembly, Brake

$

$

Not available

45

MTD 647-0032A-0637

Control Assembly, Speed

$

$

Not available

46

MTD 683-0266

Pedal Assembly

$

$

Not available

47

MTD 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

48

MTD 710-1260A

Screw,5/16-18, 0.750

$3.99

$

In Stock, Qty 20+

0

49

MTD 936-0264

Washer, Flat, .330 x .630 x .0635

$6.99

$

In Stock, only 3 left!

0

50

MTD 711-04159B

Pin, 3/8-16 x 2.68

$7.99

$

Usually ships in 3-6 days

0

51

MTD 712-3004A

Nut, Flange Lock, 5/16-18, Gr5

$3.99

$

In Stock, Qty 20+

0

52

MTD 732-0335

Spring, Compression.,.405 x 1.17

$

$

Not available

53

MTD 732-0955

Spring, Extension,.50 OD x 1.41

$9.99

$

In Stock, only 1 left!

0

54

MTD 732-0963

Spring, Extension,.50 OD x 6.37

$9.99

$

In Stock, only 4 left!

0

55

MTD 735-0662

Pad

$11.99

$

Usually ships in 3-6 days

0

56

MTD 735-3049A

Pad, Brake

$12.99

$

In Stock, only 1 left!

0

57

MTD 736-0187

Washer, Flat,.64 x 1.24 x.06, Ht

$4.49

$

In Stock, Qty 20+

0

58

MTD 736-0262

Washer, Flat,.385 x.870 x.092

$3.99

$

In Stock, Qty 10

0

59

MTD 710-04598

Hex Screw

$3.99

$

Usually ships in 3-6 days

0

61

MTD 938-0155

Screw, Shoulder.437 Dia x.162

$6.99

$

Usually ships in 3-6 days

0

62

MTD 938-0380

Screw, Shoulder,.50 x.27 Lg,
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

63

MTD 941-0225

Bearing, Hex Flange

$7.49

$

In Stock, Qty 20+

0

64

MTD 741-3065B

Split Bearing, Hex Flange

$8.49

$

In Stock, Qty 11

0

65

MTD 747-04093A

Rod, Brake Lock

$

$

Not available

66

MTD 747-04096

Rod, Cruise Control

$15.99

$

Usually ships in 3-6 days

0

67

MTD 748-04039C

Latch, Cruise Control

$

$

Not available

68

MTD 783-0732A

Bracket, Lockout

$34.99

$

Usually ships in 3-6 days

0

69

MTD 747-04641A-0637

Pedal, Brake

$31.99

$

Usually ships in 3-6 days

0

70

MTD 783-04612-0637

Bracket, Steering Support

$89.99

$

In Stock, only 3 left!

0

71

MTD 918-04566

Transmission, Single Speed
(Superseded to 918-04566B)

$718.99

$

In Stock, only 1 left!

0

72

MTD 683-04287

Bracket Assembly, Torque

$30.99

$

Usually ships in 3-6 days

0

73

MTD 783-05904-0637

Bracket, Idler
(Superseded to 783-05904)

$22.99

$

Usually ships in 3-6 days

0

74

MTD 710-0227

Screw, #8-18 x.50

$4.49

$

In Stock, Qty 20+

0

75

MTD 710-3005

Hex Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 10

0

76

MTD 918-04423A

Variable Speed Pulley Assembly

$177.99

$

In Stock, only 2 left!

0

77

MTD 732-1013A

Belt Guard

$10.99

$

In Stock, only 1 left!

0

79

MTD 725-1644

Switch Spring, Short

$9.99

$

In Stock, Qty 11

0

80

MTD 926-0320

Plate, Insulator

$6.99

$

In Stock, Qty 11

0

82

MTD 756-04324

Idler Pulley, V-Type, 5L x 3.06

$28.99

$

In Stock, only 3 left!

0

83

MTD 956-04015

Pulley, Variable Speed
(Superseded to 956-04015B)

$103.99

$

In Stock, Qty 20+

0

84

MTD 683-04296

Bracket, Pulley

$25.99

$

Usually ships in 3-6 days

0

85

MTD 710-0627

Screw, 5/16-24,.750

$4.49

$

In Stock, Qty 20+

0

86

MTD 710-0778

Screw, 1/4-20, 1.500

$4.49

$

In Stock, only 1 left!

0

87

MTD 718-04261

Cup, Bearing

$20.99

$

In Stock, only 1 left!

0

88

MTD 736-0362

Washer, Flat

$4.49

$

In Stock, Qty 7

0

89

MTD 941-0124

Ball Bearing
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

90

MTD 738-04162A

Shoulder Spacer, .8840 x .190
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

91

MTD 736-0242

Washer, Bell,.340 x.872 x.060

$4.49

$

In Stock, Qty 20+

0

92

MTD 712-04065

Nut, Flange Lock, 3/8-16, GrF

$3.99

$

In Stock, Qty 20+

0

93

MTD 710-04467

Screw, Sems, 3/8-16, 2.500
(Superseded to 710-06045)

$5.49

$

In Stock, only 3 left!

0

94

MTD 731-2290A

Hub Cap
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

95

MTD 634-0104-0941

Wheel Assy Comp, 20 x 8 x 8

$509.99

$

Usually ships in 3-6 days

0

95

MTD 734-1730-0901

Tire Only 20 x 8 x 8

Note: Not shown

$99.99

$

In Stock, only 1 left!

0

95

MTD 634-04369-0674

Rim Only
(Superseded to 634-04369-0662)

Note: Not shown

$165.99

$

Usually ships in 3-6 days

0

95

MTD 934-0255

Valve Stem

Note: Not shown

$4.49

$

In Stock, Qty 20+

0

96

MTD 736-3010

Flat Washer, .407 x .812 x .135

$4.99

$

In Stock, only 1 left!

0
