13AJ795S059 - MasterCut by MTD Lawn Tractor (2011) (Blain Supply) Engine Accessories Briggs Parts Diagram

Lawn Tractor

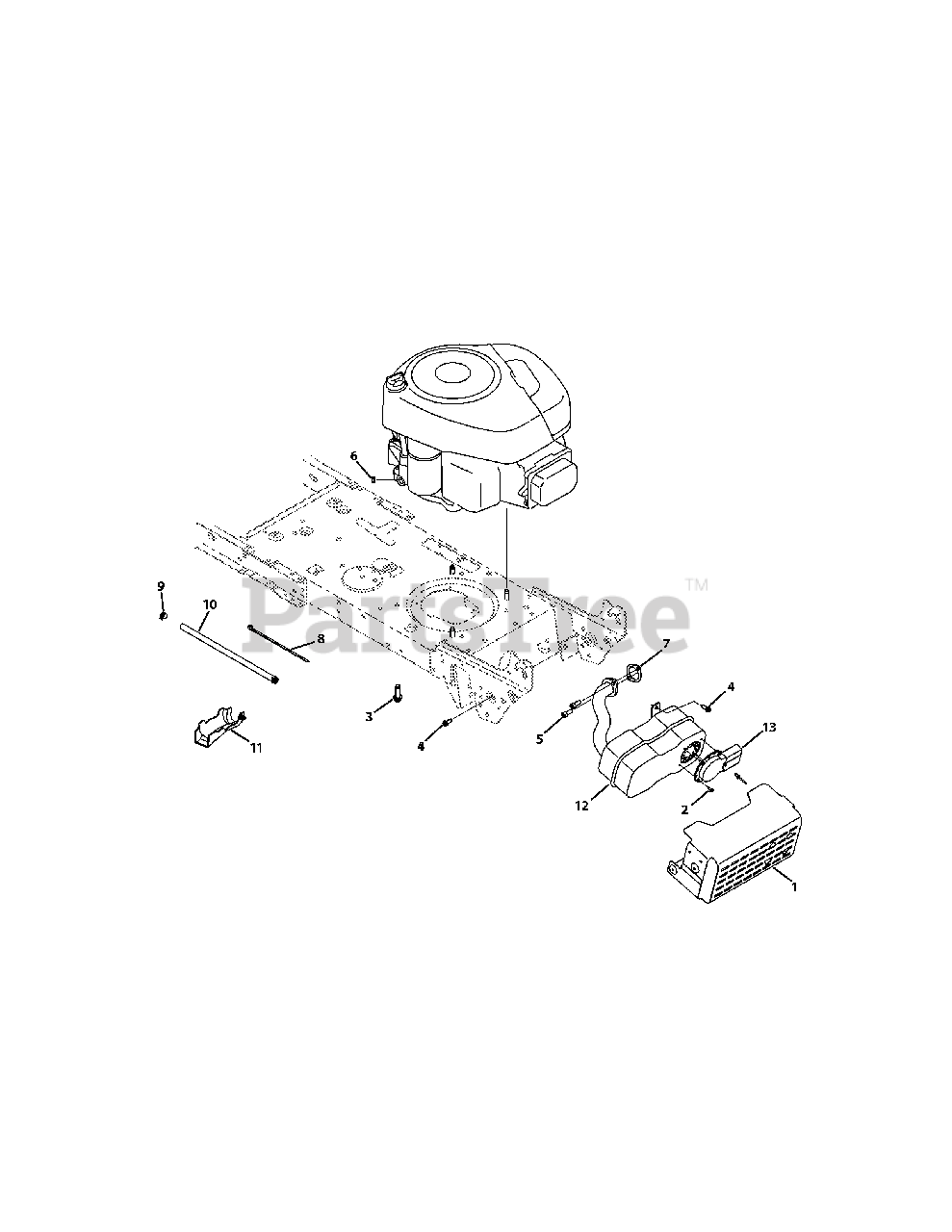

Engine Accessories Briggs Parts Diagram

  • Title

1

MTD 683-04549

Muffler Shield Assembly with Weld
(Superseded to 683-05460A)

Variations

MTD 683-04549-0637

Muffler Shield - POWDER BLACK (0637)

$80.99

$

Usually ships in 3-6 days

0

MTD 683-04549-0606

SHIELD-MUFFLER - MAJESTIC ORANGE (0606)

$80.99

$

Usually ships in 3-6 days

0

$64.99

$

Usually ships in 3-6 days

0

2

MTD 710-0227

Screw, 8-18 x .500

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-04683

Screw, 3/8-16 x 1.0
(Superseded to 710-04683C)

$6.49

$

In Stock, only 4 left!

0

4

MTD 710-0642

Screw, 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-1314A

Socket Screw, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

6

MTD 712-0271

Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 19

0

7

MTD BS-692236

Exhaust Gasket, 10 HP Briggs

$5.49

$

In Stock, Qty 20+

0

8

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

9

MTD 726-0205

Clamp Hose, .490 diameter

$3.99

$

In Stock, Qty 20+

0

10

MTD 751-10349

Fuel Hose, Low Permeation

$9.49

$

Usually ships in 3-6 days

0

11

MTD 731-05628

Oil Drain Sleeve

$8.49

$

In Stock, only 1 left!

0

12

MTD 751-10448C

Muffler, Single Inlet
(Superseded to 951-10448D)

$

$

Not available

13

MTD 751-11053

Muffler Deflector Long
(Superseded to 751-11053B)

$5.49

$

In Stock, Qty 20+

0
