13AJ795S004 - MTD Gold Lawn Tractor (2012) Transmission Parts Diagram

Gold Lawn Tractor

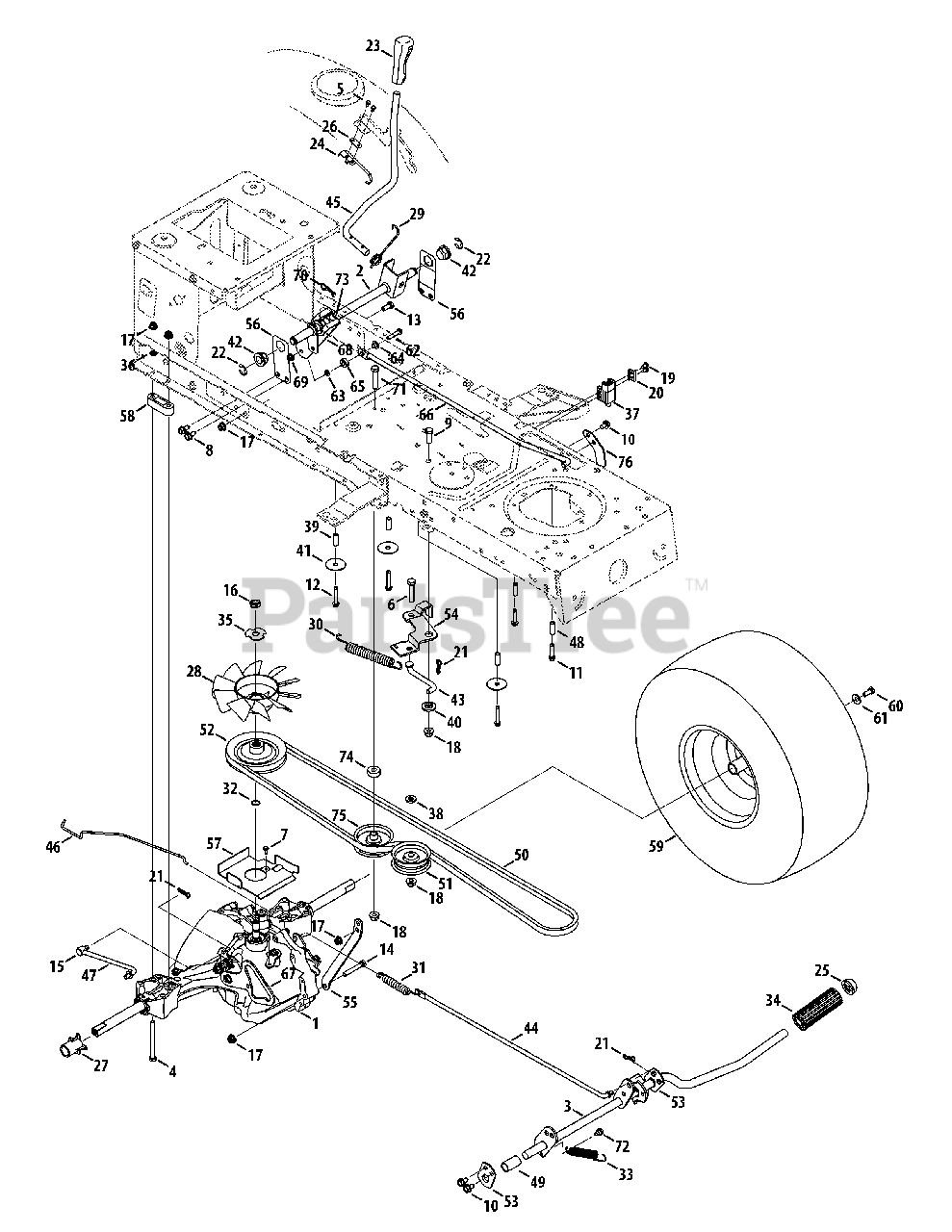

Transmission Parts Diagram

  • Title

1

MTD 918-04892A

Hydro Transmission
(Superseded to 918-04892C)

$1108.99

$

Usually ships in 3-6 days

0

1

MTD 918-04925B

Hydro Transmission, 18" Tires

Note: (13AJ795S004 Only)

$

$

Not available

2

MTD 647-04200A

Hydro Handle Control Assembly

$24.99

$

Usually ships in 3-6 days

0

3

MTD 647-04261-0637

Hydro Pedal Assembly
(Superseded to 647-04261A-0637)

$37.99

$

Usually ships in 3-6 days

0

4

MTD 710-1266

Hex Screw, 5/16-18 x 3.5

$9.99

$

Usually ships in 3-6 days

0

5

MTD 710-0227

Screw, #8-18x0.500

$4.49

$

In Stock, Qty 15

0

6

MTD 710-0347

Hex Screw, 3/8-16x1.75

$5.49

$

In Stock, Qty 20+

0

7

MTD 910-0224

Screw, #10-16x0.500

$3.99

$

In Stock, only 2 left!

0

8

MTD 710-04484

Screw, 5/16-18x.750

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-0514

Hex Screw, 3/8-16x1.00

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0604A

Screw, 5/16-18x0.625

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-0809

Screw, 1/4-20x1.250

$6.99

$

In Stock, Qty 19

0

12

MTD 710-1026

Screw, 1/4-20 x 1.75

$6.99

$

In Stock, Qty 13

0

13

MTD 710-3008

Hex Screw, 5/16-18x.75

$4.49

$

In Stock, Qty 20+

0

14

MTD 710-3103

Screw, 5/16-18 x 2.00

$4.49

$

In Stock, only 4 left!

0

15

MTD 711-04448

Ferrule, 5/16-24 X .312 DIA.

$10.99

$

In Stock, only 2 left!

0

16

MTD 912-0346

Jamlock Nut, 1/2-20
(Superseded to 712-0346)

$4.99

$

In Stock, Qty 8

0

17

MTD 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

18

MTD 712-04065

Flangelock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

19

MTD 728-04021

Rivet

$3.99

$

In Stock, only 1 left!

0

20

MTD 17962

Plate Switch

$4.99

$

In Stock, only 3 left!

0

21

MTD 714-04040

Cotter Pin, Bow Tie

$1.49

$

In Stock, Qty 20+

0

22

MTD 716-0106A

E Ring, .625 DIA

$5.49

$

In Stock, only 2 left!

0

23

MTD 720-0311

Handle Grip

$15.99

$

In Stock, only 2 left!

0

24

MTD 725-04249

Hydro Spring Switch

$10.99

$

Usually ships in 3-6 days

0

25

MTD 726-0214

Push Cap, 5/8

$10.99

$

Usually ships in 3-6 days

0

26

MTD 926-0320

Insulator Plate Nut

$6.99

$

In Stock, Qty 9

0

27

MTD 731-08237

Sleeve, .765 ID X 2.11 LG

$3.99

$

In Stock, only 3 left!

0

28

MTD 731-06098

Hydro Fan

$19.99

$

In Stock, Qty 20+

0

29

MTD 732-04225

Torsion Spring

$12.99

$

Usually ships in 3-6 days

0

30

MTD 732-04229

Extension Spring, .75 DIA. X 6.02

$20.99

$

Usually ships in 3-6 days

0

31

MTD 732-0716D

Extension Spring, .59 OD X 4.00 LG

$13.99

$

In Stock, only 2 left!

0

32

MTD 732-0729

Wire Ring

$4.99

$

In Stock, Qty 5

0

33

MTD 732-04587

Extension Spring, .63 DIA X 4.95 LG

$7.49

$

In Stock, Qty 12

0

34

MTD 735-0239

Foot Pad, 4.0
(Superseded to 735-0239A)

$12.99

$

Usually ships in 3-6 days

0

35

MTD 736-04263

Lock Washer, TRANS HYDRO

$6.99

$

In Stock, only 3 left!

0

36

MTD 736-0607

Lock Washer, 5/16 EXT TOOTH

$3.99

$

In Stock, Qty 20+

0

37

MTD 925-04039

Switch Interlock

$24.99

$

In Stock, Qty 9

0

38

MTD 736-3010

Flat Washer, .407X.812X.135:HT

$4.99

$

In Stock, only 2 left!

0

39

MTD 750-04456

Spacer, .260 x .372 x 1.420

$7.49

$

In Stock, only 4 left!

0

40

MTD 738-04430

Shldr Spacer, 1.375 ID X .380 x 1.54

$4.49

$

Usually ships in 3-6 days

0

41

MTD 736-0430

Flat Washer, .350 x 1.59 x .062

$4.49

$

In Stock, Qty 10

0

42

MTD 941-0225

Hex Flange Bearing

$7.49

$

In Stock, Qty 20+

0

43

MTD 747-05603

Declutching Rod

$11.99

$

Usually ships in 3-6 days

0

44

MTD 747-05242

Brake Rod
(Superseded to 747-05242A)

$17.99

$

Usually ships in 3-6 days

0

45

MTD 747-04296A

Hydro Control Handle

$41.99

$

Usually ships in 3-6 days

0

46

MTD 747-05245

Hydro Bypass Rod

$9.99

$

In Stock, only 1 left!

0

47

MTD 747-04407A

Hydro Control Rod

$17.99

$

Usually ships in 3-6 days

0

48

MTD 750-0566A

Spacer, .260 x .375 x 1.030 LG

$9.99

$

In Stock, only 1 left!

0

49

MTD 750-05593

Spacer, .640 ID X .76 OD X 1.60

$3.99

$

Usually ships in 3-6 days

0

50

MTD 954-04252

V Belt, 4L SEC X 84.17

$45.99

$

Usually ships in 3-6 days

0

51

MTD 756-04224

Flat Idler Pulley 2.75 OD

$26.99

$

In Stock, Qty 20+

0

52

MTD 756-04308

Input Pulley

$31.99

$

In Stock, only 3 left!

0

53

MTD 783-04536B-0637

Support Pedal Bracket

$6.49

$

Usually ships in 3-6 days

0

54

MTD 783-04570B-0637

Idler Arm

$19.99

$

In Stock, Qty 5

0

55

MTD 783-06551

Torque Bracket

Variations

MTD 783-06551-0637

BRACKET - TORQUE H - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

56

MTD 783-04585A

Handle Bracket

$5.99

$

Usually ships in 3-6 days

0

57

MTD 783-06558-0637

Belt Support Bracket

$6.99

$

Usually ships in 3-6 days

0

58

MTD 948-0334

Spacer, T-Axle

$10.99

$

In Stock, only 1 left!

0

59

MTD 634-0104-0911

Wheel, 20 x 8 x 8 - Grey

$144.99

$

Usually ships in 3-6 days

0

59

MTD 634-0104-0941

Wheel, 20 x 8 x 8 - Yellow

$509.99

$

Usually ships in 3-6 days

0

59

MTD 634-04641-0911

Wheel, 18 x 9.5 x 8 Grey

$

$

Not available

60

MTD 710-0627

Hex Screw, 5/16-24 x .750

$4.49

$

In Stock, Qty 20+

0

61

MTD 736-0242

Bell Washer, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

62

MTD 710-0106

Hex Screw, 1/4-20 x 1.25

$3.99

$

In Stock, only 2 left!

0

63

MTD 936-0142

Flat Washer, .281 x .500 x .063
(Superseded to 736-0142)

$4.99

$

In Stock, only 4 left!

0

64

MTD 738-04483

Shoulder Spacer, .375 x .625 x .20

$3.99

$

Usually ships in 3-6 days

0

65

MTD 741-04280

Ball Bearing, .25 x .6875 x .25

$15.99

$

In Stock, only 1 left!

0

66

MTD 747-05598-0637

Hydro Rod, RTN
(Superseded to 747-05598A-0637)

$16.99

$

Usually ships in 3-6 days

0

67

MTD 783-06750A-0637

Cam Bracket, RTN

$8.49

$

Usually ships in 3-6 days

0

68

MTD 783-06756-0637

Pivot Bracket, RTN

$9.99

$

Usually ships in 3-6 days

0

69

MTD 712-04064

Nut, Flange Lock, 1/4-20, GrF

$3.99

$

In Stock, Qty 20+

0

70

MTD 914-0145

Click Pin, .092 x 1.64 LG
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

71

MTD 710-3144

Hex Screw, 3/8-16 x 2.00

$4.49

$

In Stock, only 4 left!

0

72

MTD 738-04278

Shoulder Screw, 1/4-20 x 0.50

$6.99

$

In Stock, Qty 7

0

73

MTD 741-3065B

Hex Flange Bearing, .628 ID

$8.49

$

In Stock, Qty 11

0

74

MTD 750-3119

Spacer, .406 ID x 1.00 OD x .38

$11.99

$

In Stock, Qty 5

0

75

MTD 756-04325

V Pulley 3.06 OD

$24.99

$

In Stock, Qty 20+

0

76

MTD 783-06807-0637

Stop Pedal Plate
(Superseded to 783-06807A-0637)

$4.49

$

Usually ships in 3-6 days

0

MTD 725-04990

Harness, Jumper, Hydro

Note: Not Shown

$6.99

$

Usually ships in 3-6 days

0
