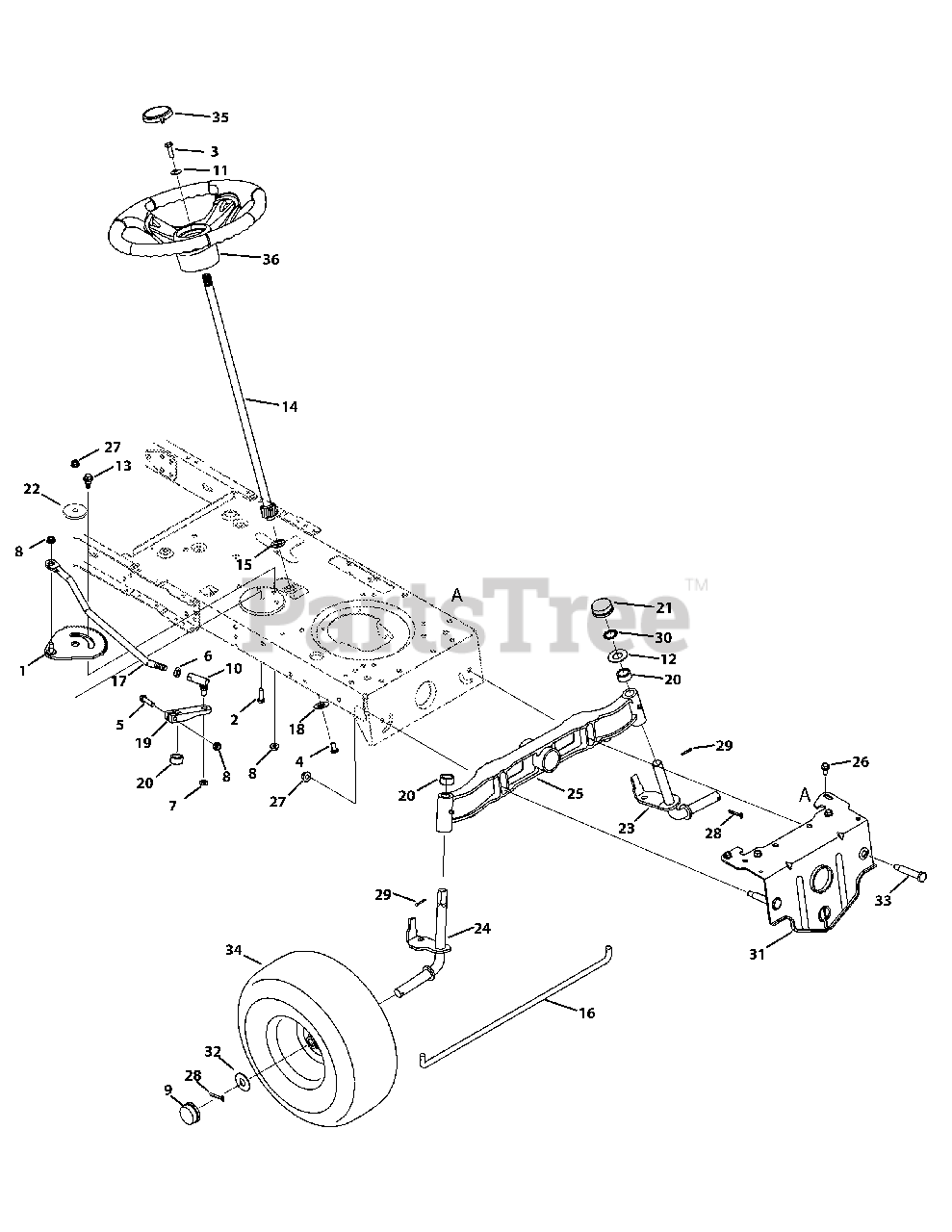

13AJ795S004 - MTD Gold Lawn Tractor (2012) Front End Steering Parts Diagram

Gold Lawn Tractor

Front End Steering Parts Diagram

  • Title

1

MTD 617-04094

Front Steering Gear Assembly

$29.99

$

In Stock, Qty 20+

0

2

MTD 710-0514

Hex Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0643

Screw, 5/16-18, 1.00, Gr5, Lock

$6.99

$

In Stock, Qty 5

0

4

MTD 710-1309

Screw, Mach, 5/16-18, 0.750

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-3180

Screw, 5/16-18, 1.75, Gr5

$5.49

$

In Stock, Qty 15

0

6

MTD 912-0240

Nut, Jam, 7/16-20, Gr2

$4.49

$

In Stock, Qty 20+

0

7

MTD 912-0214

Nut, Hex Lock, 3/8-24
(Superseded to 712-0214)

$6.49

$

In Stock, only 3 left!

0

8

MTD 712-04063

Nut, Flange Lock, 5/16-18, Grf

$3.99

$

In Stock, Qty 20+

0

9

MTD 931-0484A

Hub Cap

$6.49

$

In Stock, Qty 20+

0

10

MTD 923-0448A

Ball Joint, 7/16-20, Lock

$24.99

$

In Stock, Qty 20+

0

11

MTD 736-0242

Washer, Bell, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

12

MTD 936-0316

Washer, Flat, .78 x 1.59 x .60
(Superseded to 736-0316)

$4.49

$

In Stock, Qty 20+

0

13

MTD 738-04141

Shoulder Screw, .435 x .3485, 5/16-18

$5.49

$

In Stock, Qty 20+

0

14

MTD 738-0919A

Steering Shaft, 5/8 Spline x 21.86
(Superseded to 738-0919B)

$59.99

$

In Stock, Qty 20+

0

15

MTD 941-04124

Bearing, Flange, Hex 5/8
(Superseded to 741-04124)

$5.49

$

In Stock, Qty 20+

0

16

MTD 747-04299A

Tie Rod

$30.99

$

In Stock, only 1 left!

0

17

MTD 747-05385

Steering Link
(Superseded to 747-05385A)

$20.99

$

Usually ships in 3-6 days

0

18

MTD 948-0389

Cap, 1.25 x .16

$5.49

$

In Stock, Qty 20+

0

19

MTD 748-04065-0637

Steering, Block
(Superseded to 748-04278-0637)

$21.99

$

In Stock, only 3 left!

0

20

MTD 748-04068

Spacer, .710 ID x .125 OD x .56

$4.49

$

In Stock, Qty 20+

0

21

MTD 731-04693

Push Cap, Cast

$4.99

$

In Stock, only 1 left!

0

22

MTD 738-04162A

Shoulder Spacer, .884 x .190
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

23

MTD 938-04007A-0637

Axle Assmbly LH (38" & 42" Deck)

$46.99

$

Usually ships in 3-6 days

0

23

MTD 938-04014A-0637

Axle Assembly, LH (46" Deck)

$56.99

$

In Stock, only 1 left!

0

24

MTD 638-04008P

Axle Assmbly RH (38" & 42" Deck)

$51.99

$

Usually ships in 3-6 days

0

24

MTD 938-04013

Axle Assembly, RH (46" Deck)

$56.99

$

In Stock, only 1 left!

0

25

MTD 919-04177A

Pivot Bar, Cast
(Superseded to 919-04177E)

$248.99

$

In Stock, only 1 left!

0

26

MTD 710-04484

Screw, 5/16-18, 0.750

$3.99

$

In Stock, Qty 20+

0

27

MTD 712-04065

Nut, Flange Lock, 3/8-16, GrF

$3.99

$

In Stock, Qty 20+

0

28

MTD 714-04039A

Pin, Cotter, 5/32, 1.25
(Superseded to 714-0162)

$4.99

$

In Stock, Qty 20+

0

29

MTD 914-0474

Pin, Cotter, 1/8 x 0.75
(Superseded to 714-0474)

$

$

Not available

30

MTD 726-04035

Push Nut 3/4 Dia.

$6.99

$

In Stock, only 2 left!

0

31

MTD 783-05326B-0637

Pivot Bar Bracket
(Superseded to 783-05326D-0637)

$33.99

$

In Stock, only 1 left!

0

32

MTD 736-04228A

Washer, Flat, .781 x 1.59
(Superseded to 736-04228B)

$5.49

$

In Stock, Qty 20+

0

33

MTD 738-04128

Scr., Shlder, .500 x 2.380, 3/8-16

$7.99

$

Usually ships in 3-6 days

0

34

MTD 634-04639-0911

Wheel Ass’y, Sq. Shldr., 15 x 6 x 6.5
(Superseded to 634-05067-0911)

Note: 46" Models

$185.99

$

In Stock, only 4 left!

0

34

MTD 634-04086-0911

Wheel Ass’y, 15 x 6 x 6 - Grey
(Superseded to 634-05067-0911)

Note: 42" Models

$185.99

$

In Stock, only 4 left!

0

34

MTD 634-04086-0941

Wheel Ass’y, 15 x 6 x 6 - Yellow
(Superseded to 634-05067-0941)

Note: 42" Models

$172.99

$

Usually ships in 3-6 days

0

35

MTD 731-04040

Cap, Steering Wheel (Sprig Logo)

$9.99

$

In Stock, only 1 left!

0

36

MTD 631-04028

Steering Wheel, Standard Grip

$69.99

$

In Stock, only 1 left!

0
