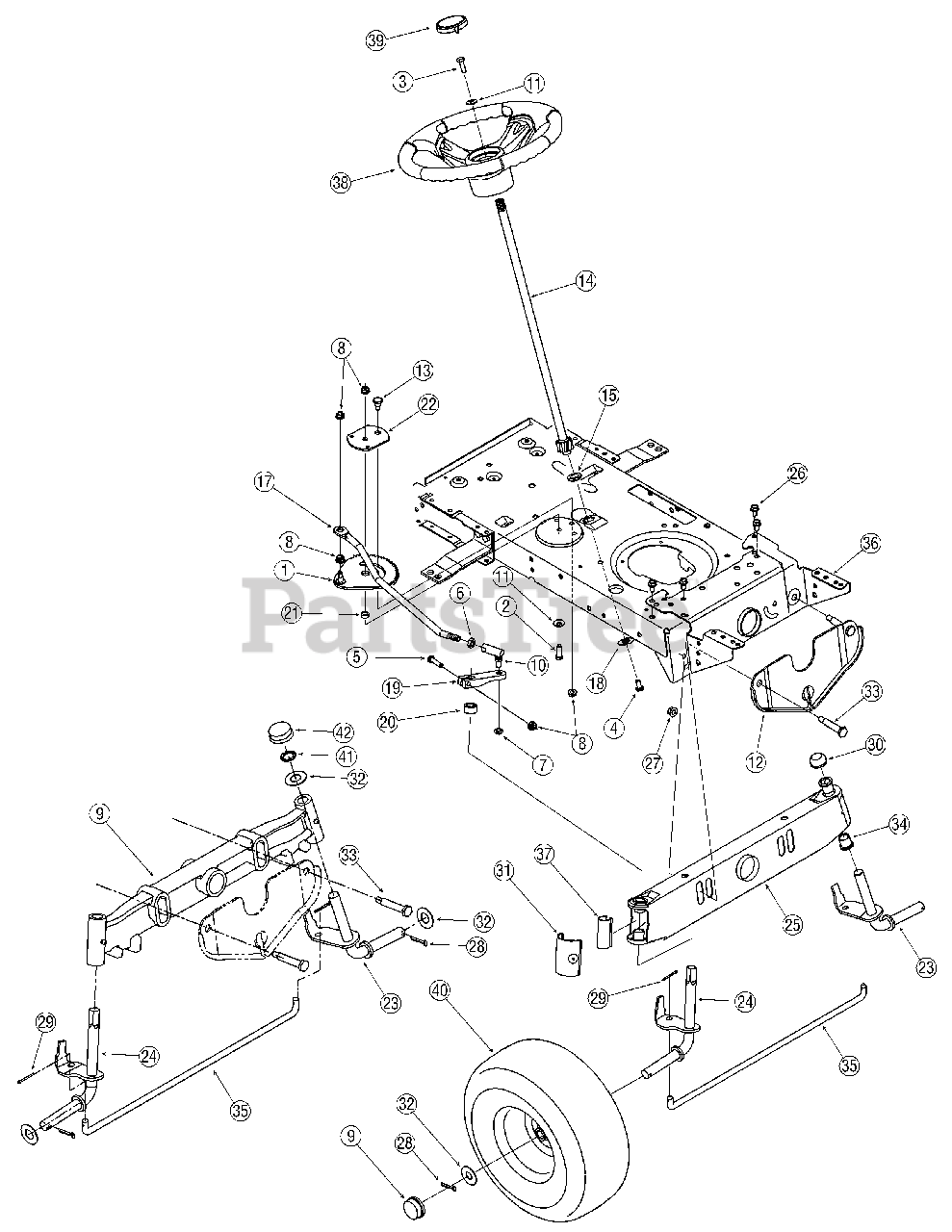

13AJ795G730 - Huskee Lawn Tractor (2006) (Tractor Supply) Steering Parts Diagram

Lawn Tractor

Steering Parts Diagram

  • Title

1

MTD 617-04024

Gear Assembly, Steering
(Superseded to 617-04024A)

$53.99

$

In Stock, Qty 11

0

2

MTD 710-0376

Screw, 5/16-18, 1.00, Gr5

$3.99

$

In Stock, Qty 20+

0

3

MTD 710-0643

Screw, 5/16-18, 1.00, Gr5, Lock

$6.99

$

In Stock, Qty 5

0

4

MTD 710-1309

Screw, Mach, 5/16-18, 0.750

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-3180

Screw, 5/16-18, 1.75, Gr5

$5.49

$

In Stock, Qty 20+

0

6

MTD 712-0240

Nut, Jam, 7/16-20, Gr2
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

7

MTD 712-0262

Nut, Jam Lock, 3/8-24, Gr2

$4.49

$

In Stock, Qty 20+

0

8

MTD 712-04063

Nut, Flange Lock, 5/16-18, Grf, Nylon

$3.99

$

In Stock, Qty 20+

0

9

MTD 731-0484A

Hub Cap
(Superseded to 931-0484A)

$6.49

$

In Stock, Qty 20+

0

10

MTD 723-0448A

Ball Joint, 7/16-20, Lock
(Superseded to 923-0448A)

$24.99

$

In Stock, Qty 20+

0

11

MTD 736-0242

Washer, Bell, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

12

MTD 783-04568

Front Hanger Bracket, Deck

Variations

MTD 783-04568-0637

Deck Hanger Bracket - POWDER BLACK (0637)

$51.99

$

Usually ships in 3-6 days

0

MTD 783-04568-4008

Deck Hanger Bracket - WINE RED (4008)

$51.99

$

Usually ships in 3-6 days

0

MTD 783-04568-0691

BRACKET:DECK HANGE - BLACK JACK (0691)

$51.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

13

MTD 738-04141

Screw, Shoulder, .435 x .3485, 5/16-18

$5.49

$

In Stock, Qty 20+

0

14

MTD 738-0919

Steering Shaft, 5/8 Spline x 21.86
(Superseded to 738-0919B)

$59.99

$

In Stock, Qty 20+

0

15

MTD 741-04124

Bearing, Flange, Hex 5/8

$5.49

$

In Stock, Qty 20+

0

16

MTD 741-0475

Plastic Bushing .380 ID
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

17

MTD 747-04298

Drag Link, Steering
(Superseded to 747-05385A)

$20.99

$

In Stock, only 4 left!

0

18

MTD 748-0389

Cap, 1.25 x .16
(Superseded to 948-0389)

$5.49

$

In Stock, Qty 20+

0

19

MTD 748-04065

Steering, Block
(Superseded to 748-04278-0637)

Variations

MTD 748-04065-0637

Steering Block - POWDER BLACK (0637)

$21.99

$

In Stock, only 1 left!

0

$21.99

$

In Stock, only 1 left!

0

20

MTD 748-04068

Spacer, .710 ID x .125 OD x .56

$4.49

$

In Stock, Qty 20+

0

21

MTD 750-04418

Spacer, .322 ID x .625 OD x .21

$6.99

$

In Stock, only 2 left!

0

22

MTD 783-04644

Stabilizer Plate, Gear Segment
(Superseded to 783P08577A)

$7.49

$

In Stock, Qty 20+

0

23

MTD 638-04007

Axle Assembly, LH
(Superseded to 938-04007A-0637)

Variations

MTD 638-04007-0637

Front Axle Assembly, LH Black - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

24

MTD 638-04008

Axle Assembly, RH
(Superseded to 638-04008P)

Variations

MTD 638-04008-0637

Front Axle Assembly, RH - POWDER BLACK (0637)

$51.99

$

In Stock, only 1 left!

0

$51.99

$

In Stock, only 1 left!

0

25

MTD 683-0128B

Pivot Bar

Variations

MTD 683-0128B-0498

Steel Axle Pivot Bar Assembly - OLD CUB YELLOW (0498)

$97.99

$

In Stock, only 2 left!

0

MTD 683-0128B-0637

Steel Axle Pivot Bar Assembly - POWDER BLACK (0637)

$97.99

$

In Stock, only 2 left!

0

MTD 683-0128B-0691

Steel Axle Pivot Bar Assembly - BLACK JACK (0691)

$97.99

$

In Stock, only 2 left!

0

MTD 683-0128B-0606

Pivot Bar - MAJESTIC ORANGE (0606)

$97.99

$

In Stock, only 2 left!

0

MTD 683-0128B-0638

Pivot Bar - MTD/TROY-BILT RED (0638)

$97.99

$

In Stock, only 2 left!

0

MTD 683-0128B-0650

Steel Axle Pivot Bar Assembly - RED METALLIC (0650)

$97.99

$

In Stock, only 2 left!

0

MTD 683-0128B-0665

Steel Axle Pivot Bar Assembly - YARDMAN GREEN (0665)

$97.99

$

In Stock, only 2 left!

0

MTD 683-0128B-0709

Steel Axle Pivot Bar Assembly - MASTERCRAFT GREEN (0709)

$97.99

$

In Stock, only 2 left!

0

MTD 683-0128B-4062

Steel Axle Pivot Bar Assembly - COOL GRAY (4062)

$97.99

$

In Stock, only 2 left!

0

$90.99

$

Usually ships in 3-6 days

0

26

MTD 710-0726

Screw, 5/16-12, 0.750

$4.49

$

In Stock, Qty 20+

0

27

MTD 712-04065

Nut, Flange Lock, 3/8-16, GrF, Nylon

$3.99

$

In Stock, Qty 20+

0

28

MTD 714-04039

Pin, Cotter, 5/32, 1.25
(Superseded to 714-0162)

$4.99

$

In Stock, Qty 20+

0

29

MTD 714-0470

Pin, Cotter, 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

30

MTD 726-0341

Push Cap, 3/4

$4.99

$

In Stock, Qty 20+

0

31

MTD 731-1291A

End Cap, Pivot Bar (w/ Fitting)
(Superseded to 931-1291A)

$15.99

$

In Stock, Qty 9

0

32

MTD 736-0316

Washer, Flat, .78 x 1.59 x .060

$4.49

$

In Stock, Qty 20+

0

33

MTD 738-04128

Screw, Shoulder, .500 x 2.380, 3/8-16

$7.99

$

Usually ships in 3-6 days

0

34

MTD 741-0660A

Bearing, Flange, .760 x .941 x 1.0

$3.49

$

In Stock, Qty 20+

0

35

MTD 747-04299A

Tie Rod

$30.99

$

In Stock, only 1 left!

0

36

MTD 783-04601B

Bracket, Pivot
(Superseded to 783-04601C)

Variations

MTD 783-04601B-0637

BRACKET-PIVOT BAR - POWDER BLACK (0637)

$56.99

$

Usually ships in 3-6 days

0

MTD 783-04601B-0638

BRACKET PIVOT BAR - MTD/TROY-BILT RED (0638)

$52.99

$

Usually ships in 3-6 days

0

MTD 783-04601B-0650

BRACKET-PIVOT BAR - RED METALLIC (0650)

$52.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

37

MTD 731-04057A

Axle End Cap, Standard

$5.49

$

In Stock, Qty 20+

0

38

MTD 631-04028

Steering Wheel, Standard Grip

$69.99

$

In Stock, only 1 left!

0

38

MTD 631-04008

Steering Wheel, Soft Grip
(Superseded to 631-04008B)

$94.99

$

In Stock, only 3 left!

0

39

MTD 731-04039

Cap, Steering Wheel (no logo)

$8.49

$

Usually ships in 3-6 days

0

39

MTD 731-04040

Cap, Steering Wheel (sprig logo)

$9.99

$

In Stock, only 1 left!

0

39

MTD 731-04681

Cap, Steering Wheel (tine logo)

$14.99

$

In Stock, only 4 left!

0

40

MTD 634-04086

Wheel Assembly
(Superseded to 634-05067)

Variations

MTD 634-04086-0911

Wheel Assembly Complete - Carlisle Gray (0911)

$185.99

$

In Stock, only 4 left!

0

MTD 634-04086-0941

Wheel Assembly, Complete - Carlisle Yellow (0941)

$172.99

$

Usually ships in 3-6 days

0

MTD 634-04086-0961

Wheel Assembly Complete - Carlisle Gray (0961)

$84.99

$

Usually ships in 3-6 days

0

MTD 634-04086-0991

WHEEL ASM COMPLETE - Carlisle White (0991)

$185.99

$

Usually ships in 3-6 days

0

MTD 634-04086-4009

WHEEL ASM COMPLETE - TEE WHITE (4009)

$185.99

$

Usually ships in 3-6 days

0

MTD 634-04086-0931

WHEEL ASM COMPLETE - Carlisle Beige (0931)

$172.99

$

Usually ships in 3-6 days

0

$150.99

$

Usually ships in 3-6 days

0

40

MTD 734-1731

Tire Only, 15 x 6 x 6

Variations

MTD 734-1731-0901

Tire, 15 X 6 Square Tread - Carlisle (0901)

$49.99

$

Usually ships in 3-6 days

0

MTD 734-1731-0902

TIRE-MULTI TRAC 15 - Dico (0902)

$44.99

$

In Stock, only 2 left!

0

MTD 734-1731-0904

Tire, 15 X 6 Square Tread - Cheng (0904)

$49.99

$

Usually ships in 3-6 days

0

MTD 734-1731-0905

Tire, 15 X 6 Square Tread - Duro (0905)

$49.99

$

Usually ships in 3-6 days

0

MTD 734-1731-0906

Tire, 15 X 6 Square Tread - Kenda (0906)

$49.99

$

Usually ships in 3-6 days

0

$111.99

$

In Stock, only 1 left!

0

40

MTD 634-04081

Rim Assembly (Incl. bearings and valve stem)
(Superseded to 934-04081)

Variations

MTD 634-04081-0499

Rim Assembly, Front - CUB BEIGE (0499)

$105.99

$

Usually ships in 3-6 days

0

MTD 634-04081-0662

Rim Assembly, Front - OYSTER GRAY (0662)

$105.99

$

Usually ships in 3-6 days

0

MTD 634-04081-0674

RIM ASM-FRONT - YARDMAN YELLOW (0674)

$105.99

$

Usually ships in 3-6 days

0

MTD 634-04081-4009

Rim Assembly, Front Tee White - TEE WHITE (4009)

$105.99

$

Usually ships in 3-6 days

0

MTD 634-04081-4042

RIM ASM-FRONT - CRAFTSMAN GRAY (4042)

$105.99

$

Usually ships in 3-6 days

0

$85.99

$

Usually ships in 3-6 days

0

41

MTD 726-04035

Push Nut (Optional)

$6.99

$

In Stock, only 2 left!

0

42

MTD 731-04693

Hub Cap (Optional)

$4.99

$

In Stock, only 2 left!

0

43

MTD 719-04105

Pivot Axle (Optional)
(Superseded to 919-04177E)

$248.99

$

In Stock, only 1 left!

0
