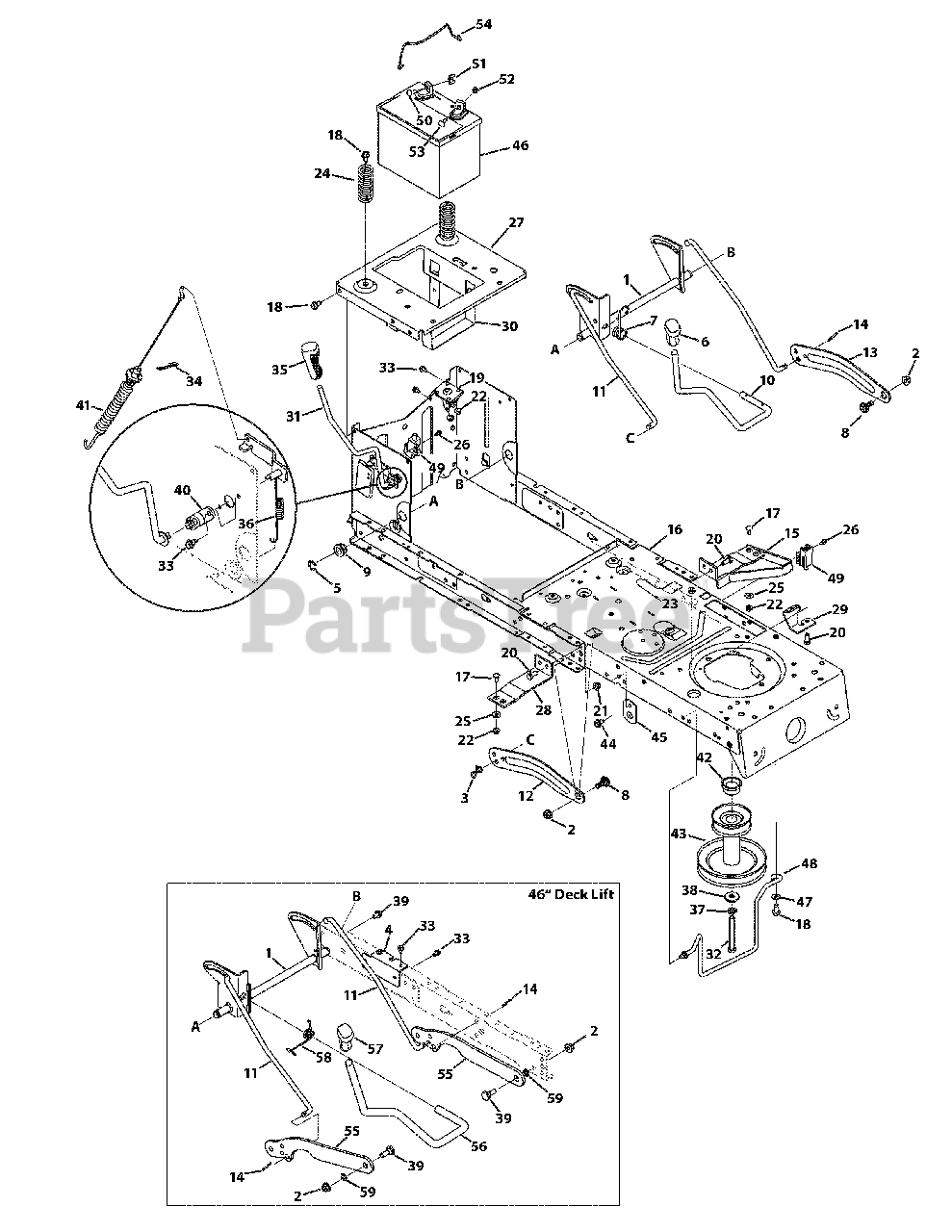

13AJ795G059 - MasterCut by MTD Lawn Tractor (2009) Frame and PTO Lift Parts Diagram

Lawn Tractor

Frame and PTO Lift Parts Diagram

  • Title

1

MTD 683-04155A-0637

Shaft Assembly Lift 42"

$55.99

$

Usually ships in 3-6 days

0

1

MTD 683-04334-0637

Deck Shaft Assembly Lift 46" Deck

$54.99

$

In Stock, only 2 left!

0

2

MTD 712-04065

Nut, Flange Lock, 3/8-16, GrF

$3.99

$

In Stock, Qty 20+

0

3

MTD 714-04043

Pin, Cotter .08 x 1.56 Intern. RH

$4.99

$

In Stock, Qty 18

0

4

MTD 783-05389-0637

Frame Brace Bracket
(Superseded to 783-05389A-0637)

$8.49

$

Usually ships in 3-6 days

0

5

MTD 716-0106A

Ring, E-Type, .625 Dia.

$5.49

$

In Stock, only 2 left!

0

6

MTD 720-0311

Grip, Handle, 1/2

$15.99

$

In Stock, only 1 left!

0

7

MTD 732-04225

Spring, Torsion 42" Deck

$12.99

$

Usually ships in 3-6 days

0

8

MTD 738-04130

Screw, Shoulder, .625 x .175, 3/8-16
(Superseded to 738-04130A)

$9.49

$

In Stock, Qty 10

0

9

MTD 941-0225

Bearing, Hex Flange

$7.49

$

In Stock, Qty 20+

0

10

MTD 747-04282

Deck Handle, Lift, 42" Deck

$35.99

$

Usually ships in 3-6 days

0

11

MTD 747-04393

Rod, Lift

$23.99

$

In Stock, Qty 9

0

12

MTD 783-04494B-0637

Lift Arm, Deck - RH
(Superseded to 783-04494C-0637)

$21.99

$

In Stock, Qty 12

0

13

MTD 783-04711B-0637

Lift Arm, Deck - LH
(Superseded to 783-04711C-0637)

$24.99

$

In Stock, Qty 13

0

14

MTD 914-0115

Cotter Pin
(Superseded to 714-0115)

$3.99

$

In Stock, Qty 20+

0

15

MTD 683-04195-0637

Support Bracket Assembly

$42.99

$

Usually ships in 3-6 days

0

16

MTD 683-04450-0691

Frame Assembly

$

$

Not available

17

MTD 710-0134

Carriage Screw, 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

18

MTD 710-04484

Screw, 5/16-18, .750

$3.99

$

In Stock, Qty 20+

0

19

MTD 725-04439

Solenoid
(Superseded to 725-04439B)

$39.99

$

In Stock, Qty 20+

0

20

MTD 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

21

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 5

0

22

MTD 712-04064

Nut, Flange Lock, 1/4-20, GrF

$3.99

$

In Stock, Qty 20+

0

23

MTD 912-0429

Hex Lock Nut, 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

24

MTD 732-04035

Spring, Compr. , 1.28 OD x 3.125

$10.99

$

In Stock, only 4 left!

0

25

MTD 736-0173

Flat Washer, .28 x .74 x .063

$4.49

$

In Stock, Qty 20+

0

26

MTD 738-04237A

Shoulder Screw, #10-32 x .500

$6.49

$

In Stock, Qty 7

0

27

MTD 783-04548C-0637

Seat Bracket, Frame
(Superseded to 783-04548D-0637)

$58.99

$

Usually ships in 3-6 days

0

28

MTD 783-04637-0637

Bracket, Runing Board

$16.99

$

Usually ships in 3-6 days

0

29

MTD 783-04753-0637

Frame Support Bracket

$79.99

$

Usually ships in 3-6 days

0

30

MTD 783-04869A-0637

Bracket, Battery

$9.49

$

In Stock, Qty 20+

0

31

MTD 647-04096-0637

Handle Assembly, PTO
(Superseded to 647-04096A-0637)

$41.99

$

In Stock, only 1 left!

0

32

MTD 710-04608

Screw, 7/16-20, 3.25 42" Deck

$6.99

$

In Stock, Qty 7

0

32

MTD 710-04607

Screw, 7/16-20, 2.75 46" Deck

$6.99

$

In Stock, only 3 left!

0

33

MTD 710-0599

Screw, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

34

MTD 914-0145

Pin, Click, .092 x 1.64
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

35

MTD 720-04049A

Grip, Handle, 3/8

$16.99

$

In Stock, only 1 left!

0

36

MTD 732-04276A

Spring, Extension

$9.99

$

In Stock, only 1 left!

0

37

MTD 936-0171

Washer, Lock, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

38

MTD 736-0322

Washer, Flat, .450 x 1.250 x .164

$9.49

$

In Stock, Qty 8

0

39

MTD 938-0380

Bolt, Shldr. .500 x .270 3/8-16
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

40

MTD 741-04119

Bearing, PTO
(Superseded to 741-04119A)

$4.99

$

In Stock, Qty 10

0

41

MTD 746-04173B

Cable, Deck Engagement
(Superseded to 946-04173E)

$59.99

$

In Stock, Qty 15

0

42

MTD 750-0956

Spacer, 1.010 x 1.400 x .825 (42" Deck.)

$19.99

$

In Stock, only 2 left!

0

43

MTD 956-04067A

Engine Pulley, 38" & 42"
(Superseded to 956-04067B)

$81.99

$

In Stock, only 1 left!

0

43

MTD 756-04208A

Deck Engine Pulley, 46" Deck

$71.99

$

Usually ships in 3-6 days

0

44

MTD 710-0604A

Screw, 5/16-18, 0.625

$4.49

$

In Stock, Qty 20+

0

45

MTD 783-04536B-0637

Pedal Support Bracket

$6.49

$

Usually ships in 3-6 days

0

46

MTD 925-1707D

Battery, 155 CCA

$

$

Not available

47

MTD 936-0300

Washer, Flat, .406 x .875 x .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

48

MTD 747-04857

Rod, Belt Keeper (42" Deck)

$22.99

$

In Stock, Qty 11

0

48

MTD 683-04414-0637

Rod, Belt Keeper (46" Deck)

$25.99

$

Usually ships in 3-6 days

0

49

MTD 725-04363

Switch, Interlock

$15.99

$

In Stock, Qty 14

0

50

MTD 738-1132

Shoulder Screw, .250 x .150;1/4-20

$5.49

$

In Stock, only 2 left!

0

51

MTD 712-3087

Wing Nut 1/4-20

$3.99

$

In Stock, Qty 20+

0

52

MTD 712-0271

Nut, Sems, 1/4-20

$4.49

$

In Stock, Qty 20+

0

53

MTD 710-04666

Screw, Carriage, 1/4-20, .75, Gr5

$6.99

$

In Stock, only 3 left!

0

54

MTD 683-04448-0637

Battery Hold Down Rod

$10.99

$

In Stock, Qty 14

0

55

MTD 783-0678C-0637

Deck Lift Link

$29.99

$

In Stock, only 1 left!

0

56

MTD 747-04653

Deck Handle, Lift, 46" Deck
(Superseded to 747-04653A)

$45.99

$

In Stock, only 4 left!

0

57

MTD 720-0298

Grip, Handle, 5/8

$43.99

$

Usually ships in 3-6 days

0

58

MTD 732-04438

Spring, Torsion 46" Deck

$10.99

$

Usually ships in 3-6 days

0

59

MTD 936-0140

Washer, Flat, .385 x .62 x .063
(Superseded to 736-0140)

$

$

Not available
