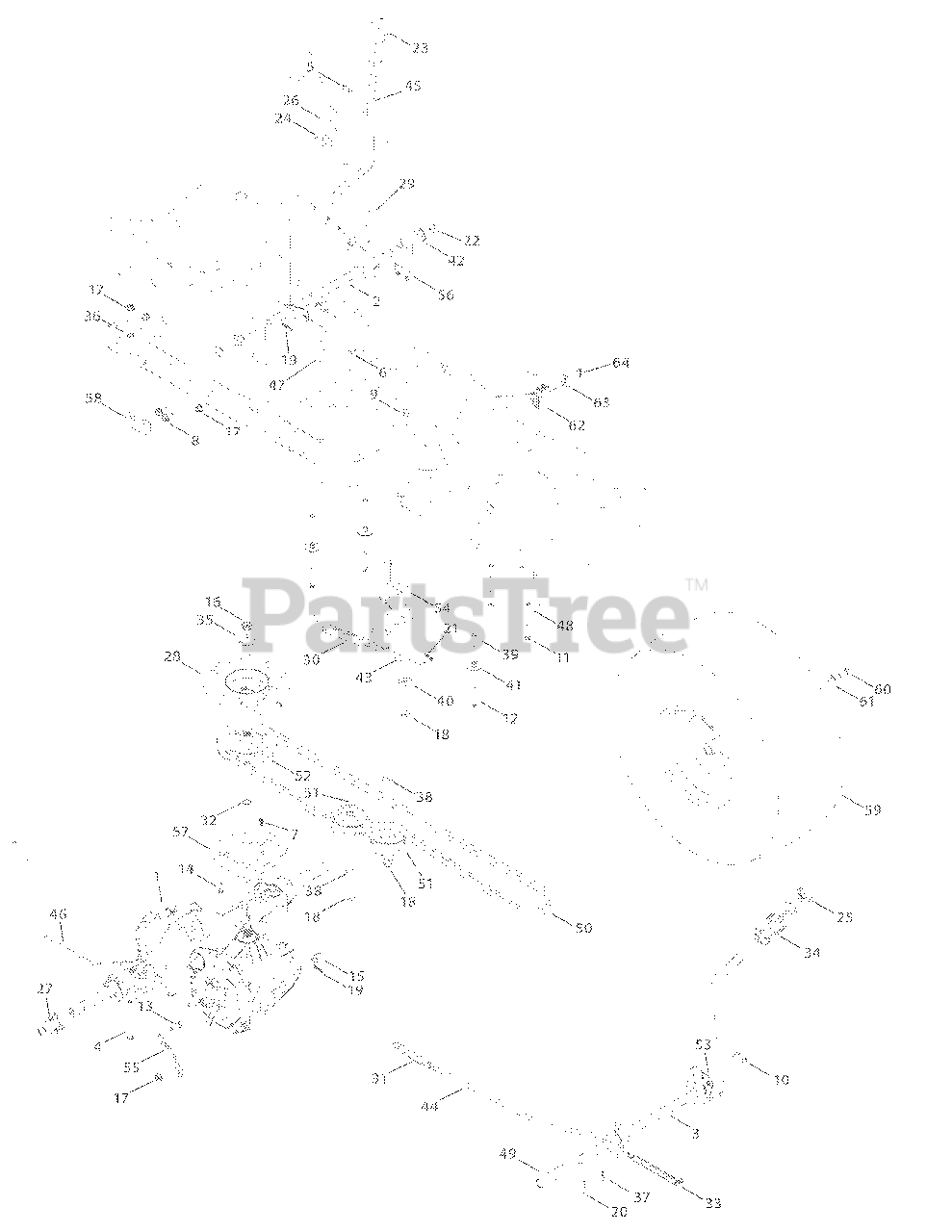

13AJ795G004 - MTD Gold Lawn Tractor (2009) Transmission 918-04198 Parts Diagram

Gold Lawn Tractor

Transmission 918-04198 Parts Diagram

  • Title

1

MTD 918-04198

Hydro Transmission

$1109.99

$

Usually ships in 3-6 days

0

2

MTD 647-04038A

Hydro Handle Control Assembly

$

$

Not available

3

MTD 647-04054A-0637

Hydro Pedal Assembly

$

$

Not available

4

MTD 710-0176

Hex Screw, 5/16-18:2.75

$4.49

$

In Stock, only 2 left!

0

4

MTD 710-1266

Hex Screw, 5/16-18 x 3.5

$9.99

$

Usually ships in 3-6 days

0

5

MTD 710-0227

Screw, #8-18:0.500

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0347

Hex Screw, 3/8-16:1.75

$5.49

$

In Stock, Qty 20+

0

7

MTD 710-0351

Screw, #10-16:0.500

$4.49

$

Usually ships in 3-6 days

0

8

MTD 710-04484

Screw, 5/16-18:.750

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-0514

Hex Screw, 3/8-16:1.00

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0604A

Screw, 5/16-18:0.625

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-0809

Screw, 1/4-20:1.250

$6.99

$

In Stock, Qty 19

0

12

MTD 710-1325

Screw, 1/4-20:1.625

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-1026

Screw, 1/4-20 x 1.75

$6.99

$

In Stock, Qty 13

0

13

MTD 710-3008

Hex Screw, 5/16-18:.75

$4.49

$

In Stock, Qty 20+

0

14

MTD 710-3009

Screw, #10-24:0.750

$7.49

$

Usually ships in 3-6 days

0

15

MTD 711-04448

Ferrule, 5/16-24 X .312 DIA.

$10.99

$

In Stock, only 2 left!

0

16

MTD 912-0346

Jamlock Nut, 1/2-20
(Superseded to 712-0346)

$4.99

$

In Stock, Qty 6

0

17

MTD 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

18

MTD 712-04065

Flangelock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

19

MTD 914-0104

Cotter Pin, .072 DIA. X 1.13 LG
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

20

MTD 914-0111

Cotter Pin, 3/32:1.0
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

21

MTD 714-3004

Cotter Pin, 3/32 X 1.25

$4.99

$

In Stock, Qty 9

0

22

MTD 716-0106A

E Rign, .625 DIA

$5.49

$

In Stock, only 2 left!

0

23

MTD 720-0311

Handle Grip

$15.99

$

In Stock, only 1 left!

0

24

MTD 725-04249

Hydro Spring Switch

$10.99

$

Usually ships in 3-6 days

0

25

MTD 726-0214

Push Cap, 5/8

$10.99

$

In Stock, only 4 left!

0

26

MTD 926-0320

Insulator Plate Nut

$6.99

$

In Stock, Qty 11

0

27

MTD 731-05299

Sleeve, .765 ID X 1.500 LG
(Superseded to 731-05299A)

$4.49

$

In Stock, only 3 left!

0

28

MTD 731-06098

Hydro Fan

$19.99

$

In Stock, Qty 20+

0

29

MTD 732-04225

Torsion Spring

$12.99

$

Usually ships in 3-6 days

0

30

MTD 732-04229

Extension Spring, .75 DIA. X 6.02

$20.99

$

Usually ships in 3-6 days

0

31

MTD 732-0716D

Extension Spring, .59 OD X 4.00 LG

$13.99

$

Usually ships in 3-6 days

0

32

MTD 732-0729

Wire Ring

$4.99

$

In Stock, only 4 left!

0

33

MTD 732-0963

Extension Spring, .50 DIA X 6.37 LG

$9.99

$

In Stock, only 4 left!

0

34

MTD 735-0239

Foot Pad, 4.0
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

35

MTD 736-04263

Lock Washer, TRANS HYDRO

$6.99

$

In Stock, Qty 20+

0

36

MTD 736-0607

Lock Washer, 5/16 EXT TOOTH

$3.99

$

In Stock, Qty 20+

0

37

MTD 936-3008

Flat Washer, .344 X .750 X .120

$6.99

$

Usually ships in 3-6 days

0

38

MTD 736-3010

Flat Washer, .407X.812X.135:HT

$4.99

$

In Stock, Qty 20+

0

39

MTD 750-0566A

Spacer, .260 x .375 x 1.030 LG

$9.99

$

In Stock, only 1 left!

0

39

MTD 750-04456

Spacer, .260 x .372 x 1.420

$7.49

$

In Stock, only 3 left!

0

40

MTD 938-0347

Shoulder Spacer, .625 ID X .169

$10.99

$

Usually ships in 3-6 days

0

41

MTD 738-04178

Shoulder Spacer, .375 ID X .284 THK
(Superseded to 938-04178)

$

$

Not available

41

MTD 936-0211

Flat Washer, .285 x 1.25 x .06
(Superseded to 736-0211)

$6.99

$

In Stock, Qty 7

0

42

MTD 941-0225

Hex Flange Bearing

$7.49

$

In Stock, Qty 20+

0

43

MTD 747-04283A

Declutching Rod
(Superseded to 747-04283B)

$

$

Not available

44

MTD 747-04286

Brake Rod

$

$

Not available

44

MTD 747-04679

Brake Rod, 46"

$

$

Not available

45

MTD 747-04296

Hydro Control Handle
(Superseded to 747-04296A)

$41.99

$

Usually ships in 3-6 days

0

46

MTD 747-04316

Hydro Bypass Rod

$

$

Not available

46

MTD 747-04621

Hydro Bypass Rod, 46"

$

$

Not available

47

MTD 747-04407A

Hydro Control Rod

$17.99

$

Usually ships in 3-6 days

0

48

MTD 750-0566A

Spacer, .260 x .375 x 1.030 LG

$9.99

$

In Stock, only 1 left!

0

49

MTD 750-0802

Spacer, .640 ID X .76 OD X 2.63

$6.99

$

Usually ships in 3-6 days

0

50

MTD 954-04074A

V Belt, 4L SEC X 78.2 LG

$55.99

$

In Stock, only 1 left!

0

51

MTD 756-04224

Flat Idler Pulley2.75 OD

$26.99

$

In Stock, Qty 20+

0

52

MTD 756-04309

Input Pulley

$32.99

$

Usually ships in 3-6 days

0

53

MTD 783-04536B-0637

Support Pedal Bracket

$6.49

$

Usually ships in 3-6 days

0

54

MTD 783-04570A-0637

Idler Arm
(Superseded to 783-04570B-0637)

$19.99

$

In Stock, Qty 5

0

55

MTD 783-04579A-0637

Torque Bracket

$

$

Not available

56

MTD 783-04585A

Handle Bracket

$5.99

$

Usually ships in 3-6 days

0

57

MTD 783-04600A-0637

Belt Disengage Support Bracket

$

$

Not available

58

MTD 948-0334

Spacer, T-Axle, 46" only

$10.99

$

In Stock, only 1 left!

0

59

MTD 634-0104-0941

Wheel, 20 x 8 x 8 - Yellow

Note: MTD Gold

$509.99

$

Usually ships in 3-6 days

0

59

MTD 634-0104-0911

Wheel, 20 x 8 x 8 - Gray

Note: MasterCut

$144.99

$

In Stock, only 1 left!

0

59

MTD 634-04369-0674

Rim-Wheel, Rear - Yellow
(Superseded to 634-04369-0662)

Note: Not shown

$165.99

$

Usually ships in 3-6 days

0

59

MTD 634-04369-0662

Rim-Wheel, Rear - Gray

Note: Not shown

$165.99

$

Usually ships in 3-6 days

0

59

MTD 734-1730

Tire, 20 x 8 x 8 Sq. Shoulder

Note: Not shown

Variations

MTD 734-1730-0901

Tire, 20 X 8 X 8 - Carlisle (0901)

$99.99

$

In Stock, only 1 left!

0

MTD 734-1730-0904

Tire, 20 X 8 X 8 - Cheng (0904)

$99.99

$

In Stock, only 1 left!

0

MTD 734-1730-0905

Tire, 20 X 8 X 8 - Duro (0905)

$99.99

$

In Stock, only 1 left!

0

MTD 734-1730-0902

TIRE 20 X 8-DICO M - Dico (0902)

$87.99

$

Usually ships in 3-6 days

0

MTD 734-1730-0906

TIRE 20 X 8 KENDA - Kenda (0906)

$99.99

$

In Stock, only 1 left!

0

$99.99

$

In Stock, only 1 left!

0

59

MTD 934-0255

Valve-Air, Tubeless

Note: Not shown

$4.49

$

In Stock, Qty 20+

0

60

MTD 710-0627

Hex Screw, 5/16-24 x .750

$4.49

$

In Stock, Qty 20+

0

61

MTD 736-0242

Bell Washer, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

62

MTD 725-04363

Switch Interlock

$15.99

$

In Stock, Qty 13

0

63

MTD 17962

Plate Switch

$4.99

$

In Stock, only 3 left!

0

64

MTD 728-04021

Rivot

$3.99

$

In Stock, only 1 left!
