13AJ795G004 - MTD Gold Lawn Tractor (2008) (Ace Hardware) Hood & Control Assembly Parts Diagram

Gold Lawn Tractor

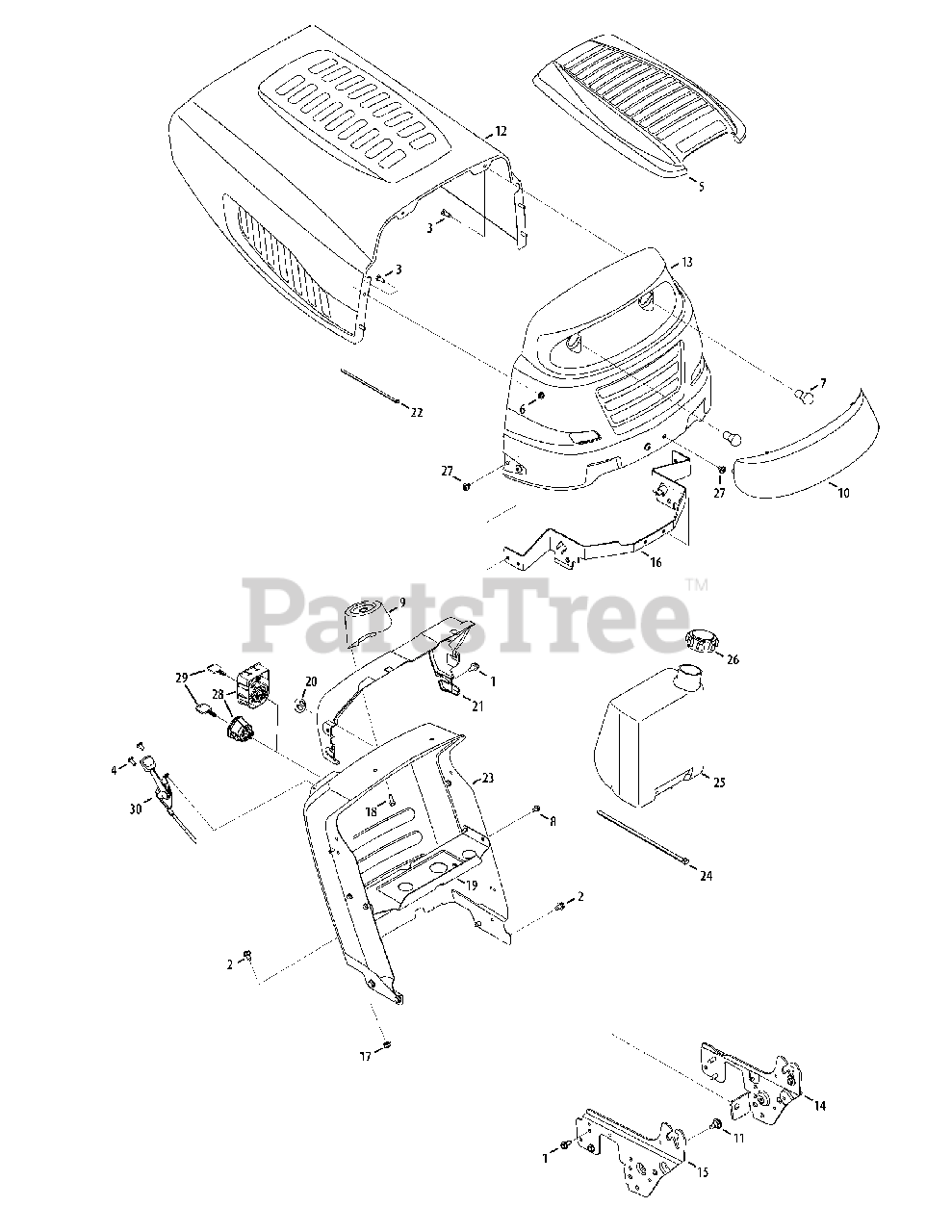

Hood & Control Assembly Parts Diagram

  • Title

1

MTD 710-04484

Self-Tapping Screw 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

2

MTD 710-0604A

Screw, 5/16-18, 0.625

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0751

Screw, 1/4-20, .620, Gr5

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-04483

Screw, 1/4-20, .500

$6.99

$

Usually ships in 3-6 days

0

5

MTD 731-05522A

5-Style Hood Cover

$49.99

$

Usually ships in 3-6 days

0

6

MTD 712-04064

Nut, Flange Lock, 1/4-20, Gr5

$3.99

$

In Stock, Qty 20+

0

7

MTD 725-0963

Headlamp, 12V
(Superseded to 925-0963)

$7.49

$

In Stock, Qty 5

0

8

MTD 710-0599

Screw, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

9

MTD 731-04945

Support, Steering

$18.99

$

In Stock, only 1 left!

0

10

MTD 731-04949A

Lens

$26.99

$

In Stock, only 3 left!

0

11

MTD 738-04091A

Screw, Shoulder, .43 x.29, 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

MTD 783-05683

Hood Style 5

Variations

MTD 783-05683-0629

HOOD-5 STYLE - SILVER FLAKE (0629)

$159.99

$

Usually ships in 3-6 days

0

MTD 783-05683-0638

HOOD-5 STYLE - MTD/TROY-BILT RED (0638)

$171.99

$

Usually ships in 3-6 days

0

MTD 783-05683-0662

HOOD-5 STYLE - OYSTER GRAY (0662)

$171.99

$

Usually ships in 3-6 days

0

MTD 783-05683-0674

HOOD-5 STYLE - YARDMAN YELLOW (0674)

$159.99

$

Usually ships in 3-6 days

0

MTD 783-05683-0691

HOOD-5 STYLE - BLACK JACK (0691)

$159.99

$

Usually ships in 3-6 days

0

MTD 783-05683-0709

HOOD-5 STYLE - MASTERCRAFT GREEN (0709)

$138.99

$

Usually ships in 3-6 days

0

$138.99

$

Usually ships in 3-6 days

0

13

MTD 783-05685

Grille Style 1

Variations

MTD 783-05685-0662

Grille 1 Style - OYSTER GRAY (0662)

$140.99

$

Usually ships in 3-6 days

0

MTD 783-05685-0638

Grille, 1 Style - MTD/TROY-BILT RED (0638)

$140.99

$

Usually ships in 3-6 days

0

MTD 783-05685-0709

Grille, 1 Style - MASTERCRAFT GREEN (0709)

$130.99

$

In Stock, only 1 left!

0

MTD 783-05685-0629

GRILLE-1 STYLE LT- - SILVER FLAKE (0629)

$130.99

$

Usually ships in 3-6 days

0

MTD 783-05685-0668

GRILLE-1 STYLE LT- - MOSS GREEN (0668)

$113.99

$

Usually ships in 3-6 days

0

MTD 783-05685-0674

GRILLE-1 STYLE LT- - YARDMAN YELLOW (0674)

$113.99

$

Usually ships in 3-6 days

0

MTD 783-05685-0691

GRILLE-1 STYLE LT- - BLACK JACK (0691)

$130.99

$

In Stock, only 1 left!

0

MTD 783-05685-0729

GRILLE-1 STYLE LT- - STORM GRAY (0729)

$113.99

$

Usually ships in 3-6 days

0

MTD 783-05685-4015

GRILLE-1 STYLE LT- - FIRE RED (4015)

$113.99

$

Usually ships in 3-6 days

0

MTD 783-05685-4043

GRILLE-1 STYLE LT- - CRAFTSMAN METALLIC GRAY (4043)

$121.99

$

Usually ships in 3-6 days

0

$105.99

$

Usually ships in 3-6 days

0

14

MTD 783-05327B

Pivot Bracket, LH

Variations

MTD 783-05327B-0606

BRACKET-SUPPORT PI - MAJESTIC ORANGE (0606)

$37.99

$

Usually ships in 3-6 days

0

MTD 783-05327B-0637

BRACKET-SUPPORT PI - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

MTD 783-05327B-0638

BRACKET-SUPPORT PI - MTD/TROY-BILT RED (0638)

$40.99

$

Usually ships in 3-6 days

0

MTD 783-05327B-0691

BRACKET-SUPPORT PI - BLACK JACK (0691)

$40.99

$

Usually ships in 3-6 days

0

MTD 783-05327B-0709

BRKT SUPT-PIVOT LH - MASTERCRAFT GREEN (0709)

$32.99

$

Usually ships in 3-6 days

0

MTD 783-05327B-4033

BRACKET SUPT-PIVOT LH - FLINT MICA (4033)

$40.99

$

Usually ships in 3-6 days

0

MTD 783-05327B-4062

BRACKET SUPT-PIVOT LH - COOL GRAY (4062)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

15

MTD 783-05328A

Pivot Bracket, RH

Variations

MTD 783-05328A-0606

BRACKET-SUPT PIVOT - MAJESTIC ORANGE (0606)

$39.99

$

Usually ships in 3-6 days

0

MTD 783-05328A-0637

BRACKET-SUPT PIVOT - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

MTD 783-05328A-0638

BRACKET-SUPT PIVOT - MTD/TROY-BILT RED (0638)

$42.99

$

Usually ships in 3-6 days

0

MTD 783-05328A-0691

BRACKET-SUPT PIVOT - BLACK JACK (0691)

$42.99

$

Usually ships in 3-6 days

0

MTD 783-05328A-4033

BRACKET SUPT-PIVOT LH - FLINT MICA (4033)

$42.99

$

Usually ships in 3-6 days

0

MTD 783-05328A-4062

BRACKET SUPT-PIVOT RH - COOL GRAY (4062)

$42.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

16

MTD 783-05454

Pivot Bracket, Grille
(Superseded to 783-05454-0637)

Variations

MTD 783-05454-0637

Hood Pivot Bracket - POWDER BLACK (0637)

$31.99

$

Usually ships in 3-6 days

0

$31.99

$

Usually ships in 3-6 days

0

17

MTD 712-04063

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

18

MTD 710-0895

Screw, 1/4-15, 0.750

$6.49

$

In Stock, Qty 10

0

19

MTD 783-04584

Gas Tank Support Bracket
(Superseded to 783-04584B-0637)

Variations

MTD 783-04584-0637

Support Bracket, Black - POWDER BLACK (0637)

$19.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

20

MTD 731-05265

Dash Plug

$5.99

$

Usually ships in 3-6 days

0

21

MTD 731-05078C

Collar, Dash

$18.99

$

In Stock, only 2 left!

0

22

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

23

MTD 783-04873

Dash Assembly (No RMC)
(Superseded to 783-04873B)

Variations

MTD 783-04873-0637

DASH NO RMC - POWDER BLACK (0637)

$214.99

$

Usually ships in 3-6 days

0

MTD 783-04873-0691

DASH NO RMC - BLACK JACK (0691)

$214.99

$

Usually ships in 3-6 days

0

$173.99

$

Usually ships in 3-6 days

0

23

MTD 783-04892

Dash Assembly (RMC)
(Superseded to 783-04892B)

Note: (Not Shown)

Variations

MTD 783-04892-0637

DASH W/RMC - POWDER BLACK (0637)

$139.99

$

Usually ships in 3-6 days

0

MTD 783-04892-0650

DASH RMC - RED METALLIC (0650)

$

$

Not available

MTD 783-04892-0606

DASH RMC - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-04892-0638

DASH RMC - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-04892-0665

DASH RMC - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-04892-0691

DASH W/RMC - BLACK JACK (0691)

$

$

Not available

MTD 783-04892-0716

DASH RMC - CUB YELLOW-99 (0716)

$

$

Not available

$113.99

$

Usually ships in 3-6 days

0

24

MTD 726-0230

Cable Tie, 34.75

$27.99

$

In Stock, only 1 left!

0

25

MTD 751-0555B

Fuel Tank, 1.5 gal.
(Superseded to 751-0555D)

$89.99

$

In Stock, only 1 left!

0

26

MTD 751-0603

Fuel Tank Cap
(Superseded to 751-0603B)

$23.99

$

In Stock, only 3 left!

0

27

MTD 710-04593

Self-Tapping Screw 5/16-18 x .375

$4.49

$

In Stock, only 3 left!

0

28

MTD 725-04659

Igntion, Switch (No RMC) 3 Pos.
(Superseded to 925-04659)

$44.99

$

In Stock, Qty 20+

0

28

MTD 725-1741

Igntion, Switch (No RMC) 4 Pos.
(Superseded to 925-1741)

Note: (Not Shown)

$45.99

$

Usually ships in 3-6 days

0

28

MTD 725-04227B

Igntion, Switch (RMC)
(Superseded to 925-06119C)

Note: (Not Shown)

$116.99

$

In Stock, Qty 20+

0

29

MTD 725-1744A

Key
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

30

MTD 746-04364

Throttle/Choke Control, 25"

$48.99

$

In Stock, only 3 left!

0

MTD 725-04566

Wire Harness (No RMC) 3 Pos.
(Superseded to 725-04566D)

Note: (Not Shown)

$

$

Not available

MTD 725-04433A

Wire Harness (No RMC) 4 Pos.
(Superseded to 925-04433H)

Note: (Not Shown)

$156.99

$

Usually ships in 3-6 days

0

MTD 777X41984

Headlight Lens Reflector (5 Style)

Note: (Not Shown)

$7.49

$

Usually ships in 3-6 days

0

MTD 777X42188

Headlight Lens Reflector RH (T Style)

Note: (Not Shown)

$9.49

$

In Stock, only 1 left!

0

MTD 777X42187

Headlight Lens Reflector LH (T Style)

Note: (Not Shown)

$

$

Not available
