13AJ78BT066 (46 T) - Troy-Bilt Bronco 46" Lawn Tractor, Auto (2019) Fuel Tank Parts Diagram

Bronco 46" Lawn Tractor, Auto

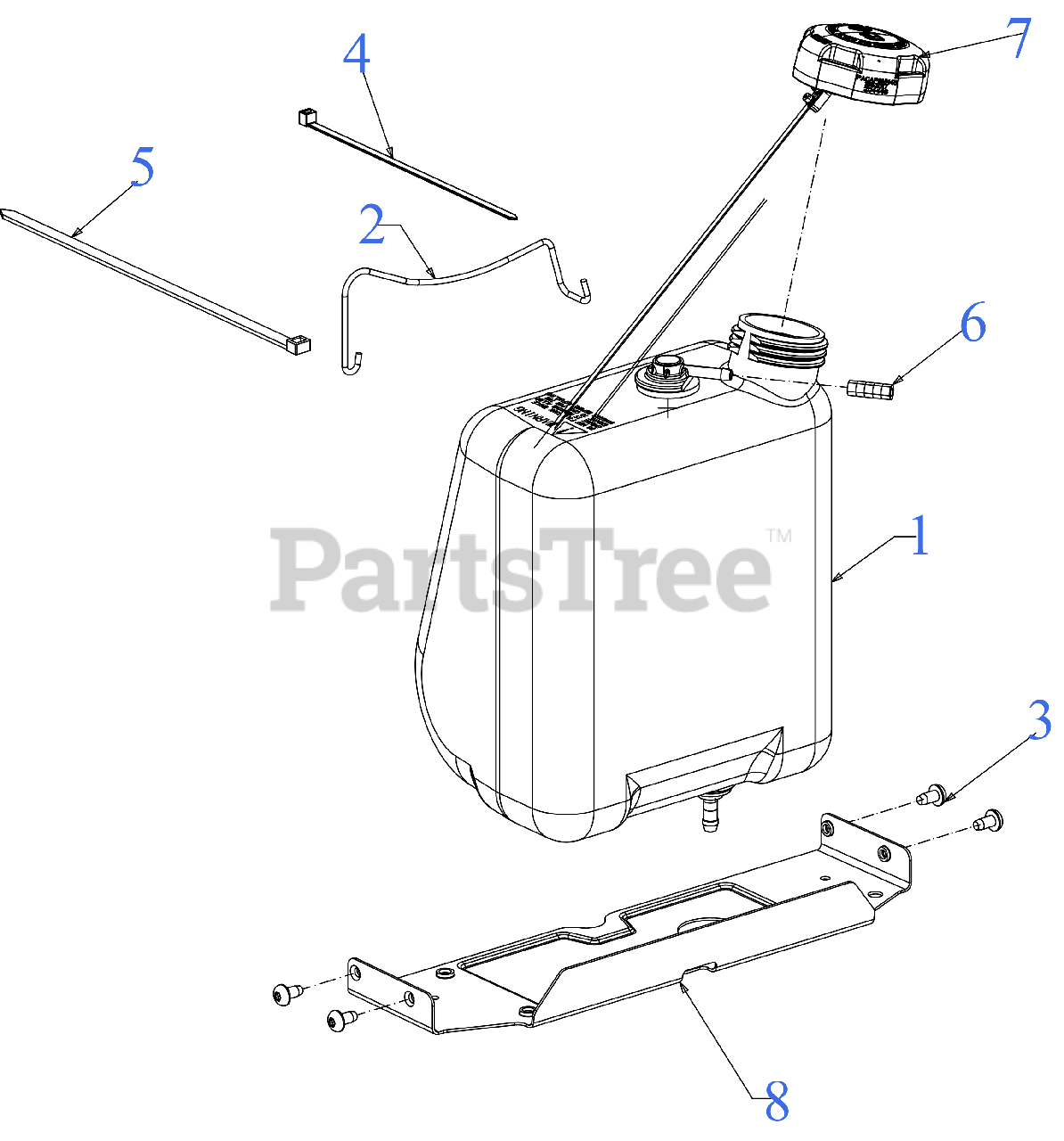

Fuel Tank Parts Diagram

  • Title
1

Troy-Bilt 951-04304

FUEL TANK ASSEMBLY
(Superseded to 951-04304B)

$111.99

$

In Stock, only 1 left!

0

1

Troy-Bilt 735-04081

RUBBER GROMMET 23.0 ID x 35.5 OD

Note: (Not Shown)

$4.99

$

In Stock, Qty 20+

0

1

Troy-Bilt 751-12118

ROLLOVER FUEL VALVE

Note: (Not Shown)

$35.99

$

In Stock, only 2 left!

0

2

Troy-Bilt 683-04448-0637

BATTERY ROD ASSEMBLY (POWDER BLACK)

$10.99

$

In Stock, Qty 14

0

3

Troy-Bilt 710-05070A

SCREW 1/4-20 x .5

$6.99

$

In Stock, Qty 7

0

4

Troy-Bilt 725-0157

7" CABLE TIE

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 726-0230

CABLE TIE 36"

$27.99

$

In Stock, only 1 left!

0

6

Troy-Bilt 751-12089-45

VENT HOSE 3/16 ID 45"LG

$12.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 951-12179C

FUEL CAP W/TETHER

$38.99

$

In Stock, only 2 left!

0

8

Troy-Bilt 783-07083A-0637

FUEL TANK BRACKET POWDER BLACK()

$28.99

$

Usually ships in 3-6 days

0
