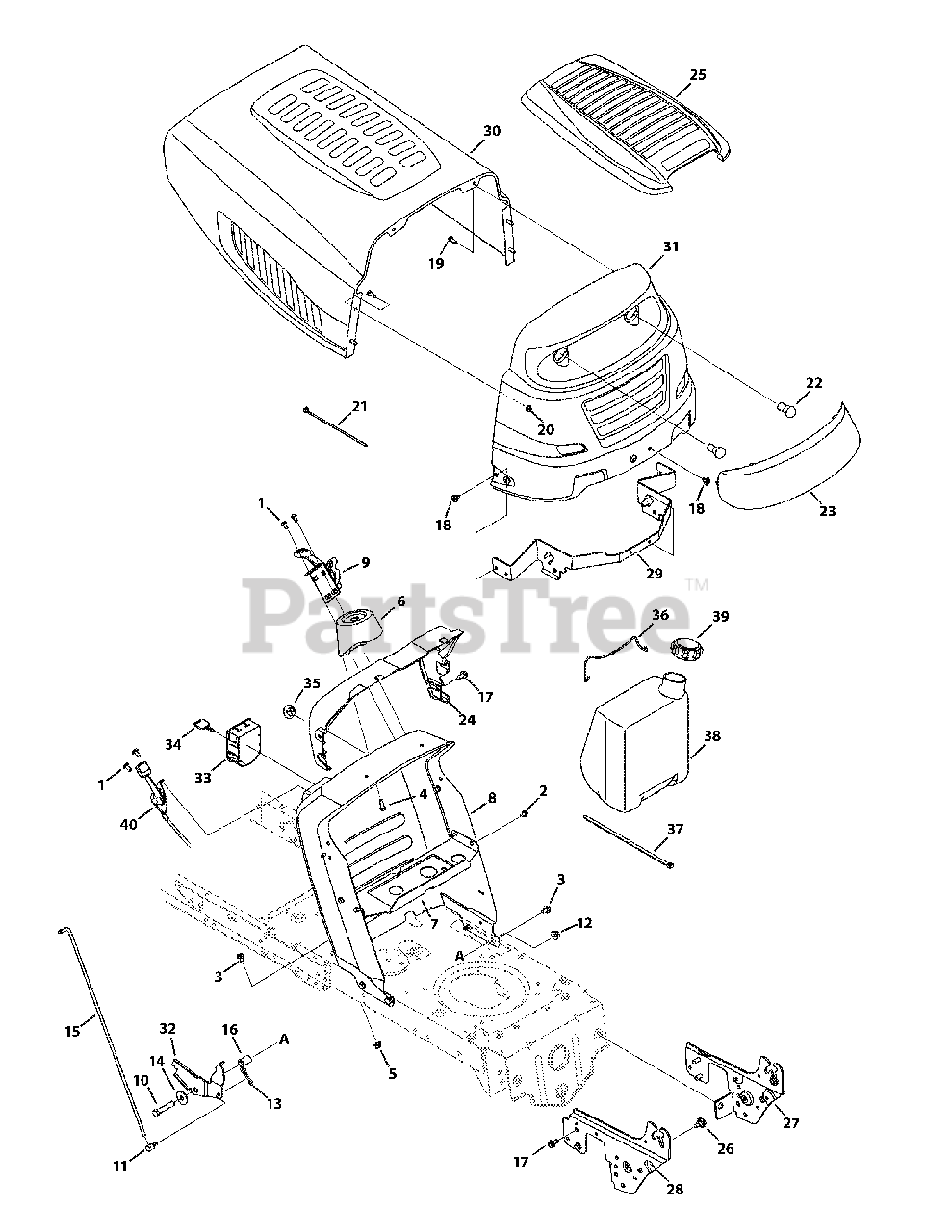

13AJ775S059 - MasterCut by MTD Lawn Tractor (2010) Hood Style 5 Parts Diagram

Lawn Tractor

Hood Style 5 Parts Diagram

  • Title

1

MTD 710-04483

Screw, 1/4-20 x .500

$6.99

$

Usually ships in 3-6 days

0

2

MTD 710-0599

Hex Index Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0604A

Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0895

Screw, 1/4-15 x .750

$6.49

$

In Stock, Qty 10

0

5

MTD 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

6

MTD 731-04945

Steering Support

$18.99

$

In Stock, only 1 left!

0

7

MTD 783-04584A-0637

Gas Tank Support Bracket
(Superseded to 783-04584B-0637)

$19.99

$

Usually ships in 3-6 days

0

8

MTD 783-04873B-0691

Dash, No RMC
(Superseded to 783-04873B-0637)

$214.99

$

Usually ships in 3-6 days

0

9

MTD 983-04274

7-speed Control Assembly

$

$

Not available

10

MTD 710-3144

Hex Screw, 3/8-16 x 2.0

$4.49

$

In Stock, Qty 20+

0

11

MTD 711-0736

Ferrule, 1/4-20 x 1.0

$13.99

$

In Stock, only 1 left!

0

12

MTD 712-04065

Flangelock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

13

MTD 714-04040

Bow Tie Cotter Pin, 72

$1.49

$

In Stock, Qty 20+

0

14

MTD 936-0133

Flat Washer, .411 x 1.25 x .100
(Superseded to 736-0133)

$

$

Not available

15

MTD 747-04430

Speed Selector Control Rod

$21.99

$

Usually ships in 3-6 days

0

16

MTD 750-04465

Flange Spacer, .390 x .671 x 1.095
(Superseded to 750-04465B)

$4.49

$

In Stock, only 2 left!

0

17

MTD 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

18

MTD 710-04593

Screw, 5/16-18 x .375

$4.49

$

In Stock, only 3 left!

0

19

MTD 710-0751

Hex Screw, 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

20

MTD 712-04064

Flangelock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

21

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

22

MTD 925-0963

Miniature Lamp, 12V

$7.49

$

In Stock, Qty 5

0

23

MTD 731-04949A

Grill Lens

$26.99

$

In Stock, only 3 left!

0

24

MTD 731-05078C

Dash Collar

$18.99

$

In Stock, only 2 left!

0

25

MTD 731-05522A

Hood Cover

$49.99

$

Usually ships in 3-6 days

0

26

MTD 738-04091A

Shoulder Screw, 5/16-18, .43 x .29

$3.99

$

In Stock, Qty 20+

0

27

MTD 783-05327B-0637

Left-hand Support Pivot Bracket

$40.99

$

Usually ships in 3-6 days

0

28

MTD 783-05328A-0637

Right-hand Support Pivot Bracket
(Superseded to 783-05328B-0637)

$42.99

$

Usually ships in 3-6 days

0

29

MTD 783-05454-0637

Hood Pivot Bracket

$31.99

$

Usually ships in 3-6 days

0

30

MTD 783-05683-0691

Hood

$159.99

$

Usually ships in 3-6 days

0

31

MTD 783-05685-0691

Grill
(Superseded to 783-05685A-0691)

$130.99

$

In Stock, only 1 left!

0

32

MTD 783-04903

Speed Latch, No RMC

Variations

MTD 783-04903-0637

Latch Speed Bracket - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

33

MTD 925-04659

Key Switch

$44.99

$

In Stock, Qty 20+

0

34

MTD 925-1745A

Key

$17.99

$

In Stock, Qty 20+

0

35

MTD 731-05265

Choke Plug

$5.99

$

Usually ships in 3-6 days

0

36

MTD 683-04448-0637

Battery Rod

$10.99

$

In Stock, Qty 13

0

37

MTD 726-0230

Cable Tie

$27.99

$

In Stock, only 1 left!

0

38

MTD 751-0555B

Fuel Tank, 1.5 Gallon
(Superseded to 751-0555D)

$89.99

$

In Stock, only 1 left!

0

39

MTD 751-0603A

Fuel Cap
(Superseded to 751-0603B)

$23.99

$

In Stock, only 3 left!

0

40

MTD 746-04364

Throttle/Choke Cable

$48.99

$

In Stock, only 3 left!
