13AJ693G755 - Yard Machines Lawn Tractor (2004) (Walmart) Seat, Fender Assembly Parts Diagram

Lawn Tractor

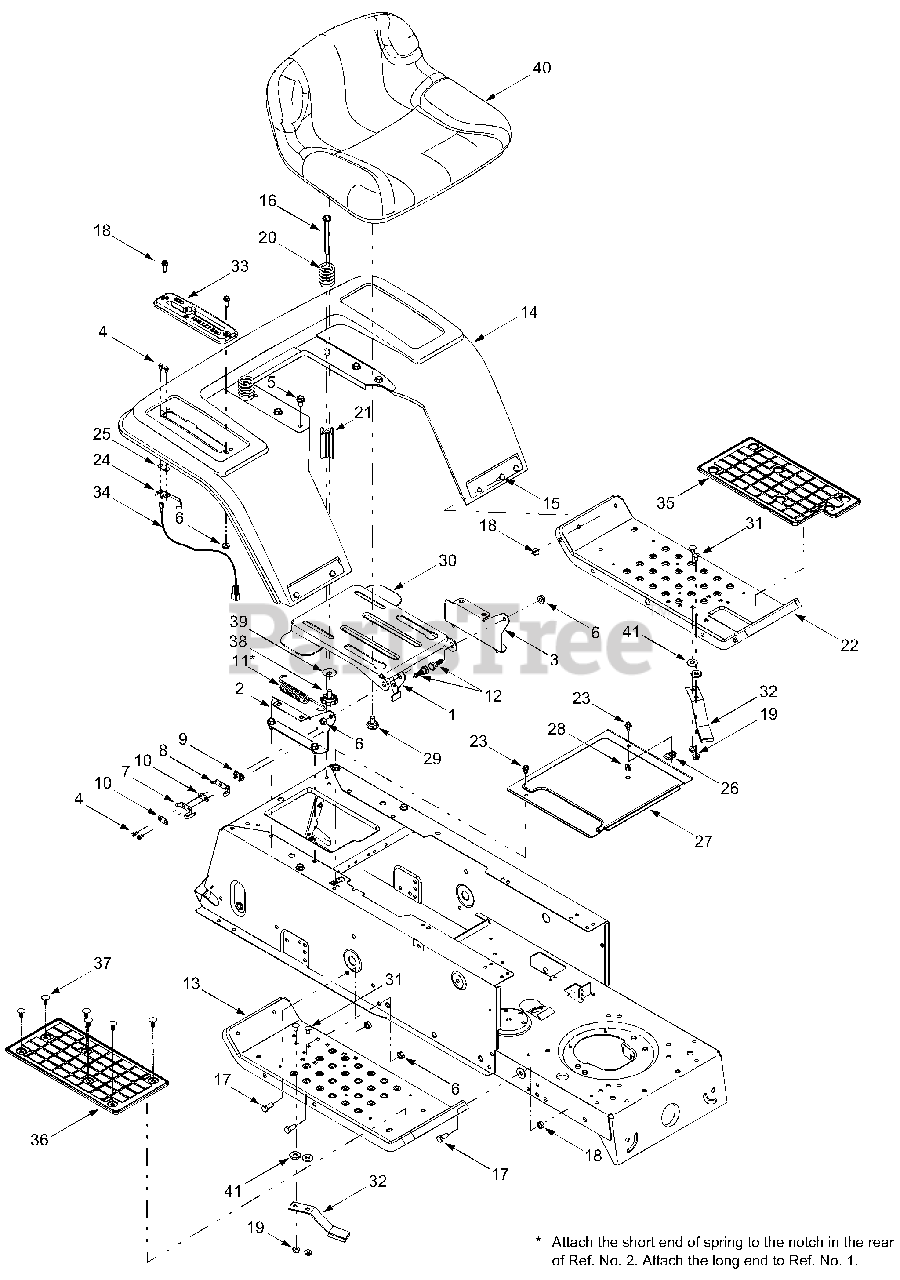

Seat, Fender Assembly Parts Diagram

  • Title

1

MTD 17239C

Seat Lift Bracket

$

$

Not available

2

MTD 17950A

RH Pivot Support Bracket, Seat
(Superseded to 17950A-0637)

Variations

MTD 17950A-0637

Seat Support Bracket, RH - POWDER BLACK (0637)

$23.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

3

MTD 17951A

LH Pivot Support Bracket, Seat
(Superseded to 17951A-0637)

Variations

MTD 17951A-0637

Seat Support Bracket, LH - POWDER BLACK (0637)

$26.99

$

In Stock, only 1 left!

0

$26.99

$

In Stock, only 1 left!

0

4

MTD 710-0227

Self-tapping Screw, #8-18 x .50

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0726

Self-tapping Screw, 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

6

MTD 712-0429

Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

7

MTD 725-1303

Outer Seat Spring Switch
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

8

MTD 725-1439

Inner Seat Spring Switch

$8.49

$

In Stock, Qty 10

0

9

MTD 726-0278

Insulator Plate Boss

$6.99

$

In Stock, Qty 10

0

10

MTD 726-0279

Insulator Plate

$3.99

$

In Stock, Qty 8

0

11

MTD 732-0581B

Extension Spring, .75 x 5.31
(Superseded to 932-0581B)

$14.99

$

In Stock, only 1 left!

0

12

MTD 738-0296

Shoulder Screw, .437 x .286

$4.49

$

In Stock, Qty 20+

0

13

MTD 17770H

Running Board

Variations

MTD 17770H-0637

BOARD-RUNNING - POWDER BLACK (0637)

$

$

Not available

MTD 17770H-0665

BOARD-RUNNING - YARDMAN GREEN (0665)

$

$

Not available

MTD 17770H-0638

No Longer Available BOARD-RUNNING - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17770H-0650

No Longer Available BOARD-RUNN - RED METALLIC (0650)

$

$

Not available

MTD 17770H-0691

No Longer Available BOARD-RUNN - BLACK JACK (0691)

$

$

Not available

MTD 17770H-0709

No Longer Available BOARD-RUNN - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

14

MTD 17871D

Fender

Variations

MTD 17871D-0638

No Longer Available FENDER-REA - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17871D-0650

No Longer Available FENDER-REA - RED METALLIC (0650)

$

$

Not available

MTD 17871D-0665

No Longer Available FENDER-REA - YARDMAN GREEN (0665)

$

$

Not available

MTD 17871D-0691

No Longer Available FENDER-REA - BLACK JACK (0691)

$

$

Not available

MTD 17871D-0709

No Longer Available FENDER-REA - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

15

MTD 710-0751

Hex Screw, 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

16

MTD 710-1208

Self-tapping Screw, 5/16-18 x 3.5

$6.99

$

In Stock, only 2 left!

0

17

MTD 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

18

MTD 710-0642

Self-tapping Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

19

MTD 712-0324

Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 16

0

20

MTD 732-04038

Compression Spring, 1.314 x 1.8
(Superseded to 932-04038)

$

$

Not available

21

MTD 750-04212

Spacer

$

$

Not available

22

MTD 783-04139A

LH Running Board

Variations

MTD 783-04139A-0637

No Longer Available BOARD-RUNN - POWDER BLACK (0637)

$

$

Not available

MTD 783-04139A-0638

No Longer Available BOARD-RUNN - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-04139A-0650

No Longer Available BOARD-RUNN - RED METALLIC (0650)

$

$

Not available

MTD 783-04139A-0662

No Longer Available BOARD-RUNN - OYSTER GRAY (0662)

$

$

Not available

MTD 783-04139A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-04139A-0691

No Longer Available BOARD-RUNN - BLACK JACK (0691)

$

$

Not available

MTD 783-04139A-0709

No Longer Available BOARD-RUNN - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

23

MTD 710-0599

Self-tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

24

MTD 725-1713

Spring Switch, Long

$12.99

$

Usually ships in 3-6 days

0

25

MTD 726-0320

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

26

MTD 726-3054

U-Clip Nut, 1/4-20

$4.99

$

In Stock, only 2 left!

0

27

MTD 783-04094A

Cover Panel

Variations

MTD 783-04094A-0637

No Longer Available COVER-SHIF - POWDER BLACK (0637)

$

$

Not available

MTD 783-04094A-0638

No Longer Available COVER-SHIF - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-04094A-0650

No Longer Available COVER-SHIF - RED METALLIC (0650)

$

$

Not available

MTD 783-04094A-0665

No Longer Available COVER-SHIF - YARDMAN GREEN (0665)

$

$

Not available

$

$

28

MTD 731-0405

Snap Bushing

$

$

Not available

29

MTD 738-04012

Shoulder Screw, .625 x .175, 3/8-16
(Superseded to 738-04012C)

$5.49

$

In Stock, Qty 12

0

30

MTD 783-04081A

Seat Pivot Bracket, Manual Adjust

Variations

MTD 783-04081A-0637

Seat Pivot Bracket - POWDER BLACK (0637)

$41.99

$

In Stock, only 1 left!

0

MTD 783-04081A-4008

Seat Pivot Bracket - WINE RED (4008)

$41.99

$

In Stock, only 1 left!

0

$33.99

$

Usually ships in 3-6 days

0

31

MTD 710-0167

Carriage Screw, 1/4-20 x .50
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

32

MTD 761-0168B

Blade Spindle Brake Assembly
(Superseded to 961-0168D)

$31.99

$

In Stock, only 1 left!

0

33

MTD 731-1734

Speed Index Bracket
(Superseded to 931-1734)

$

$

Not available

34

MTD 725-1399

Wire Extension, Reverse

$

$

Not available

35

MTD 735-04009

LH Rubber Foot Pad

$

$

Not available

36

MTD 735-0689A

RH Rubber Foot Pad

$

$

Not available

37

MTD 726-3046

Ratchet Clip, .250 Dia

$3.99

$

In Stock, only 4 left!

0

38

MTD 720-04009

Knob, 3/8-16 x .625
(Superseded to 720-04009A)

$16.99

$

In Stock, only 2 left!

0

39

MTD 736-0219

Bell Washer, .389 x 1.120 x .030
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

40

MTD 757-04011B

Medium Back Seat, Yellow
(Superseded to 957-04011)

$

$

Not available

41

MTD 736-3008

Flat Washer, .344 x .750 x .120
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0
