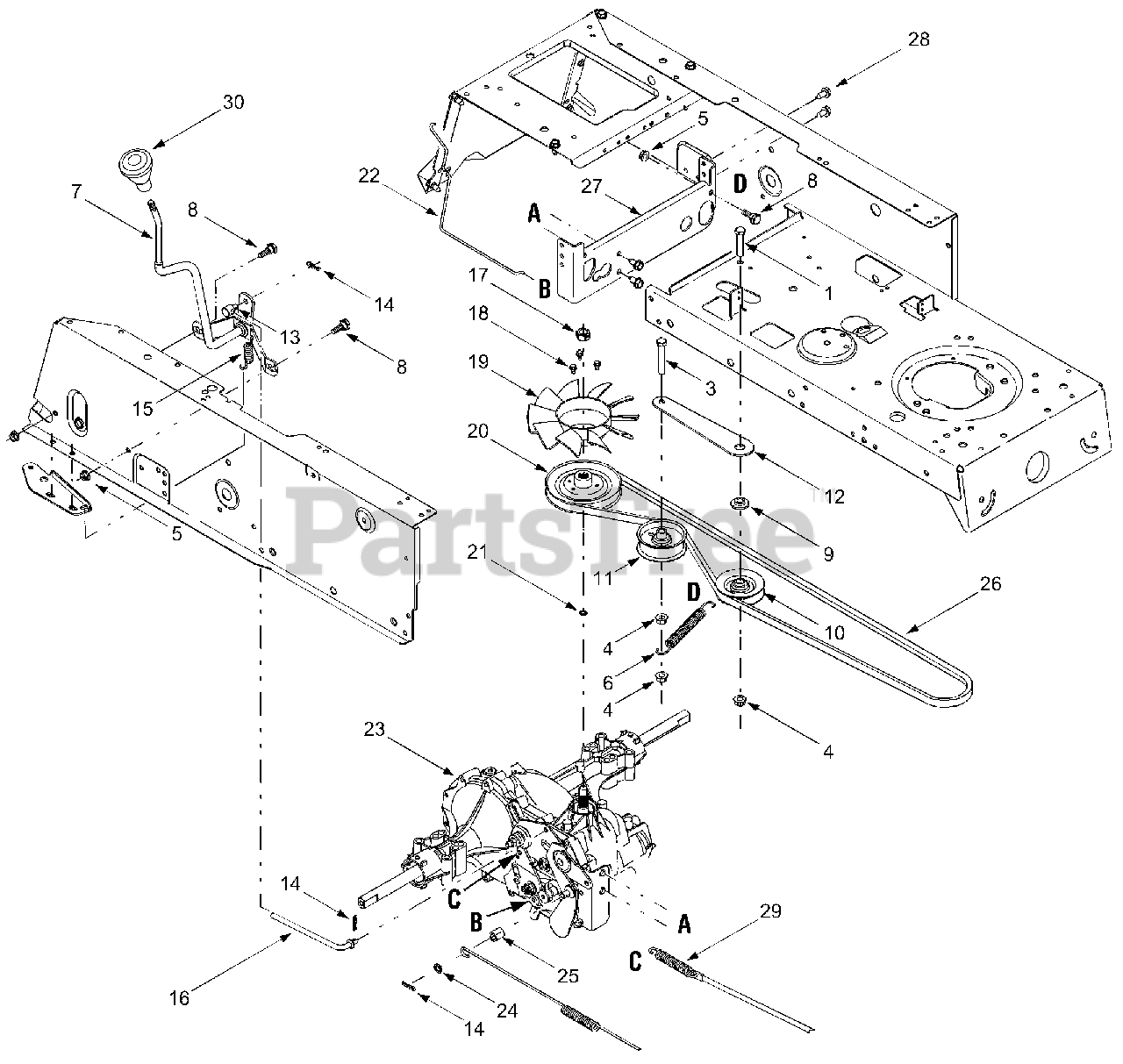

13AJ693G755 - Yard Machines Lawn Tractor (2004) (Walmart) Drive Parts Diagram

Lawn Tractor

Drive Parts Diagram

  • Title

1

MTD 710-0347

Hex Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

2

MTD 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-3011

Hex Screw, 3/8-16 x 2.25

$6.99

$

In Stock, Qty 19

0

4

MTD 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

5

MTD 712-0429

Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

6

MTD 732-04053

Extension Spring, .62 x 6.38
(Superseded to 932-04053)

$9.99

$

In Stock, Qty 5

0

7

MTD 647-04007

Hydro Speed Selector

$

$

Not available

8

MTD 738-0296

Shoulder Screw, .437 x .286

$4.49

$

In Stock, Qty 20+

0

9

MTD 738-0347

Shoulder Spacer, .625 x 1.16
(Superseded to 938-0347)

$10.99

$

Usually ships in 3-6 days

0

10

MTD 756-0116

V-Type Idler Pulley, 3.06
(Superseded to 756-04209)

$22.99

$

In Stock, Qty 20+

0

11

MTD 756-0981A

Flat Idler Pulley, 2.75
(Superseded to 756-04224)

$26.99

$

In Stock, Qty 20+

0

12

MTD 783-04165

Idler Bracket
(Superseded to 783-04165-0637)

Variations

MTD 783-04165-0637

Idler Flat Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

13

MTD 711-0677

Ferrule, 5/16-18 x .312
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

14

MTD 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

15

MTD 732-0568

Extension Spring, .50 x 2.54
(Superseded to 932-0568)

$

$

Not available

16

MTD 747-04052

Hydrostatic Control Rod

$

$

Not available

17

MTD 712-0239

Hex Lock Nut, 1/2-20

$5.99

$

In Stock, Qty 20+

0

18

MTD 710-3007

Screw, #12-24 x .375

$4.49

$

In Stock, Qty 20+

0

19

MTD 731-1449A

Fan Blade, 10
(Superseded to 931-1449A)

$35.99

$

In Stock, Qty 8

0

20

MTD 756-1166

Transmission Pulley, 5.0

$

$

Not available

21

MTD 732-0729

Ring Wire

$4.99

$

In Stock, only 4 left!

0

22

MTD 747-1277B

Hydrostatic Bypass Rod

$

$

Not available

23

MTD 618-04027

Hydrostatic Transmission
(Superseded to 918-04027)

$

$

Not available

24

MTD 736-0140

Flat Washer, .385 x .62 x .063

$7.49

$

In Stock, Qty 6

0

25

MTD 750-0807

Spacer, .385 x .625 x .700

$6.49

$

Usually ships in 3-6 days

0

26

MTD 754-0338

Belt
(Superseded to 954-0338)

$61.99

$

In Stock, only 1 left!

0

27

MTD 783-0810B

Transmission Torque Bracket
(Superseded to 783-0810B-0637)

Variations

MTD 783-0810B-0637

BRACKET-TRANS TORQUE - POWDER BLACK (0637)

$

$

Not available

$

$

28

MTD 710-0726

Self-tapping Screw, 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

29

MTD 732-0716

Extension Spring, .59 x 4.0
(Superseded to 732-0716D)

$13.99

$

In Stock, only 1 left!

0

30

MTD 720-0218

Knob

$19.99

$

Usually ships in 3-6 days

0
