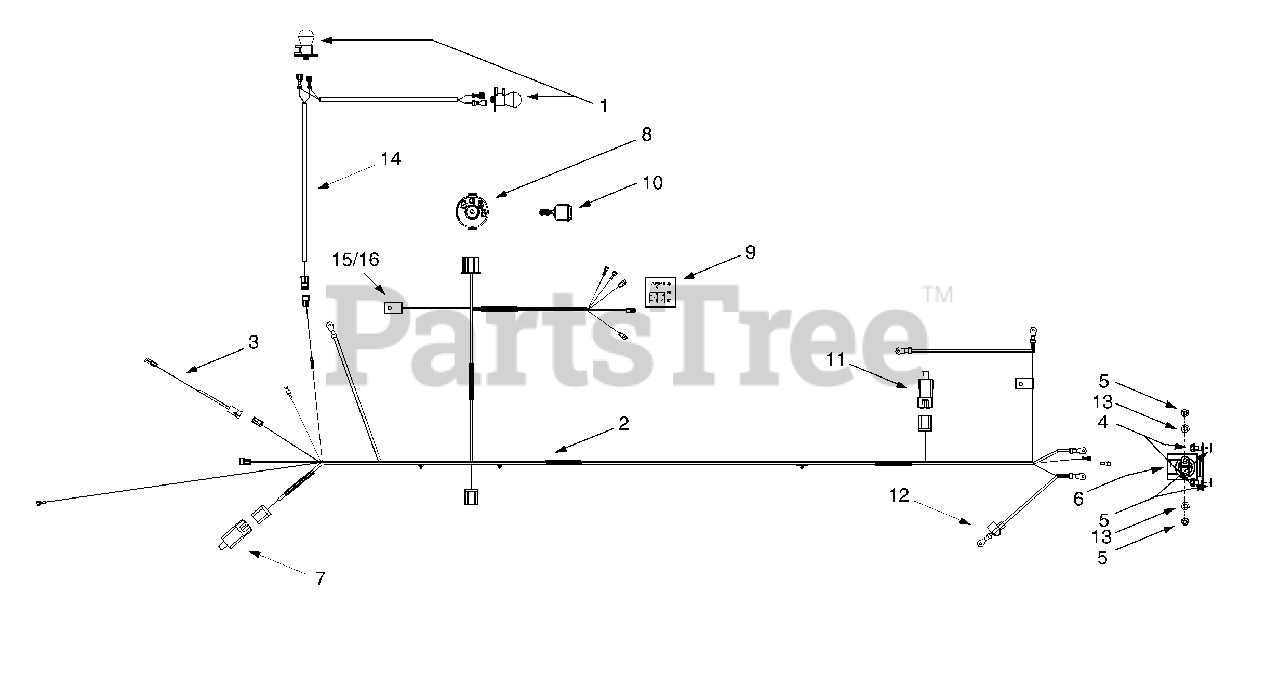

13AI618H205 - Ranch King Lawn Tractor (2000) Electrical Parts Diagram

Lawn Tractor

Electrical Parts Diagram

  • Title

1

MTD 625-0051

Bulb/Socket Headlight Assembly
(Superseded to 925-0051)

$16.99

$

Usually ships in 3-6 days

0

2

MTD 629-0944

Wiring Harness w/o Ref. 14

$

$

Not available

3

MTD 629-0126

Harness Adapter, #18 x 5

$

$

Not available

4

MTD 710-0599

Self-tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

5

MTD 712-3006

Hex Nut, 1/4-20

$4.99

$

In Stock, Qty 19

0

6

MTD 725-1426

Solenoid, 12-volt, 100 Amp
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

7

MTD 725-1657A

Snap Mount Safety Interlock Switch (Brake)
(Superseded to 925-1657A)

$24.99

$

In Stock, Qty 5

0

8

MTD 725-1741

Ignition Switch
(Superseded to 925-1741)

$45.99

$

In Stock, Qty 7

0

9

MTD 725-1758

Systems Indicator Monitor

$39.99

$

In Stock, only 1 left!

0

10

MTD 725-1745

Ignition Key w/ plastic cover
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

MTD 725-1744

Ignition Key w/o plastic cover
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

11

MTD 725-1747

Safety Plunger Switch (Seat)
(Superseded to 925-1747)

$40.99

$

Usually ships in 3-6 days

0

12

MTD 725-3007A

Positive Terminal Cover (Boot)

$

$

Not available

13

MTD 736-0329

Lock Washer, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

14

MTD 629-0309

Headlight Harness
(Superseded to 929-0469B)

$55.99

$

Usually ships in 3-6 days

0

15

MTD 729-0357

Fuse Holder

$

$

Not available

16

MTD 725-1381

20-amp Fuse
(Superseded to 925-1381)

$6.49

$

In Stock, Qty 11

0
