13AI609H131 - Huskee Lawn Tractor (1999) (Tractor Supply) Frame/Battery/Power Take-Off System Parts Diagram

Lawn Tractor

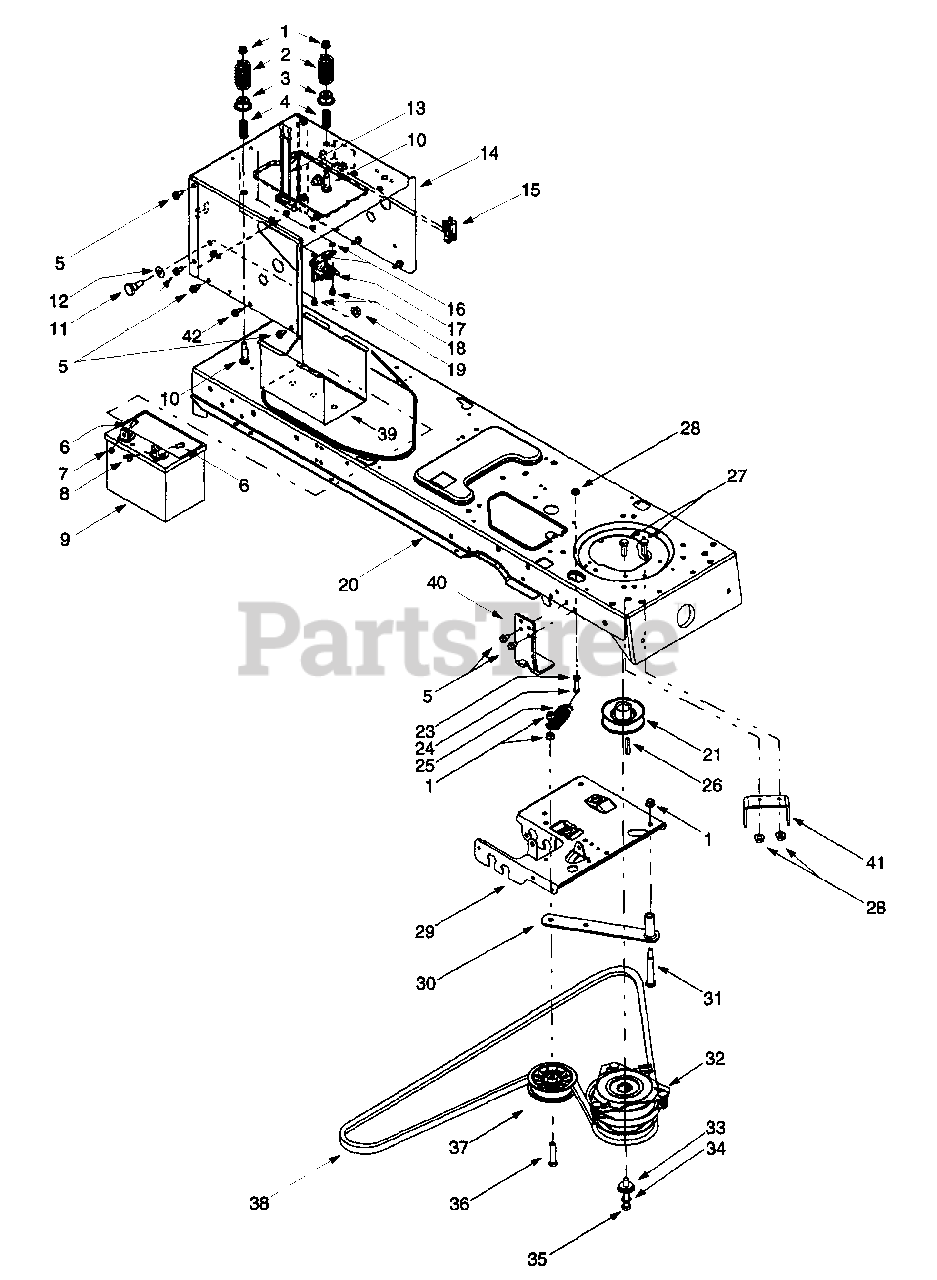

Frame/Battery/Power Take-Off System Parts Diagram

  • Title

1

MTD 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

2

MTD 732-0735

Compression Spring, 1.318 x 2.37
(Superseded to 732-0735A)

$29.99

$

In Stock, Qty 5

0

3

MTD 783-0733

Spacer Cup, 1.5 OD

$

$

Not available

4

MTD 732-0956

Compression Spring, .66 OD x 1.5

$

$

Not available

5

MTD 710-0604A

Self Tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

7

MTD 712-0271

Hex Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

8

MTD 712-3044

Wing Nut, 1/4-20

$

$

Not available

9

MTD 725-1706

12-volt Battery, 270 CCA
(Superseded to 925-1707D)

$

$

Not available

10

MTD 738-1014

Shoulder Screw, .5 x 1.25, 3/8-16

$4.49

$

In Stock, only 1 left!

0

11

MTD 738-1020

Shoulder Screw, .625 x .5, 7/16-20

$7.49

$

Usually ships in 3-6 days

0

12

MTD 736-0407

Bell Washer, .45 x 1.0 x .062

$3.99

$

In Stock, Qty 12

0

13

MTD 723-0444

Battery Strap

$22.99

$

Usually ships in 3-6 days

0

14

MTD 783-0668

Hitch Plate

Variations

MTD 783-0668-0498

No Longer Available PLATE-HITC - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0668-0637

No Longer Available PLATE-HITC - POWDER BLACK (0637)

$

$

Not available

MTD 783-0668-0665

No Longer Available PLATE-HITC - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0668-0691

No Longer Available PLATE-HITC - BLACK JACK (0691)

$

$

Not available

$

$

15

MTD 725-1747

Safety Interlock Plunger Switch
(Superseded to 925-1747)

$40.99

$

Usually ships in 3-6 days

0

16

MTD 736-0222

Lock Washer, 1/4

$5.99

$

In Stock, only 3 left!

0

17

MTD 725-1426

Solenoid, 12-Volt, 100 Amp
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

18

MTD 710-0599

Self Tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

19

MTD 712-0459

Flange Lock Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

20

MTD 683-0263B

Lower Frame Assembly

Variations

MTD 683-0263B-0498

No Longer Available FRAME-LOWE - OLD CUB YELLOW (0498)

$

$

Not available

MTD 683-0263B-0637

No Longer Available FRAME-LOWE - POWDER BLACK (0637)

$

$

Not available

MTD 683-0263B-0665

No Longer Available FRAME-LOWE - YARDMAN GREEN (0665)

$

$

Not available

MTD 683-0263B-0691

No Longer Available FRAME-LOWE - BLACK JACK (0691)

$

$

Not available

$

$

21

MTD 756-0639

Engine Pulley, 3.56 OD
(Superseded to 756-0639A)

$76.99

$

In Stock, only 1 left!

0

?22

MTD 711-0640

Stud, 3/8-16 x 2.68

$7.99

$

Usually ships in 3-6 days

0

23

MTD 712-3010

Hex Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

24

MTD 710-3180

Hex Cap Screw, 5/16-18 x 1.75 (Grade 5)

$5.49

$

In Stock, Qty 20+

0

25

MTD 732-0978

Extension Spring, 1.2 OD x 3.638

$10.99

$

Usually ships in 3-6 days

0

26

MTD 714-0118

Square Key, 1/4 x 1.5

$6.99

$

In Stock, only 4 left!

0

27

MTD 710-3025

Hex Cap Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 8

0

28

MTD 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

29

MTD 783-0653A

Steering Support Bracket
(Superseded to 783-04612-0637)

Variations

MTD 783-0653A-0498

Steering Support Bracket - OLD CUB YELLOW (0498)

$89.99

$

In Stock, only 3 left!

0

MTD 783-0653A-0637

Steering Support Bracket - POWDER BLACK (0637)

$89.99

$

In Stock, only 3 left!

0

MTD 783-0653A-0665

Steering Support Bracket - YARDMAN GREEN (0665)

$89.99

$

In Stock, only 3 left!

0

MTD 783-0653A-0691

Steering Support Bracket - BLACK JACK (0691)

$89.99

$

In Stock, only 3 left!

0

$89.99

$

In Stock, only 3 left!

0

30

MTD 683-0293

Idler Bracket Assembly

Note: (42-inch Decks)

Variations

MTD 683-0293-0637

No Longer Available BRACKETASM - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 683-0297

Idler Bracket Assembly

Note: (46-inch Decks)

Variations

MTD 683-0297-0637

Idler Bracket Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

31

MTD 738-3056

Shoulder Screw, 1/2 Diameter x 2.5
(Superseded to 938-3056)

$9.49

$

In Stock, Qty 20+

0

32

MTD 717-1709

Electric PTO Clutch
(Superseded to 917-1709)

$609.99

$

Usually ships in 3-6 days

0

33

MTD 738-0785

Shoulder Spacer, 1.38 x .445 x .36
(Superseded to 938-0785)

$25.99

$

In Stock, Qty 9

0

34

MTD 736-0171

Lock Washer, 7/16

$4.49

$

In Stock, only 4 left!

0

35

MTD 710-3157

Hex Cap Screw, 7/16-20 x 3.25 (Grade 5)
(Superseded to 710-3157A)

$10.99

$

In Stock, Qty 20+

0

36

MTD 710-3011

Hex Cap Screw, 3/8-16 x 2.25 (Grade 5)

$6.99

$

In Stock, Qty 20+

0

37

MTD 756-0627

Flat Idler Pulley, 3.5 OD
(Superseded to 756-0627D)

$30.99

$

In Stock, Qty 20+

0

38

MTD 754-0472

PTO Belt
(Superseded to 954-0472)

Note: (42-inch Decks)

$47.99

$

In Stock, only 4 left!

0

MTD 754-0474

PTO Belt
(Superseded to 954-0474)

Note: (46-inch Decks)

$80.99

$

In Stock, Qty 8

0

39

MTD 783-0349

Battery Tray

Variations

MTD 783-0349-4008

TRAY-BATTERY 400 - WINE RED (4008)

$

$

Not available

MTD 783-0349-0606

TRAY-BATTERY 400 S - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-0349-0637

Battery Tray, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

40

MTD 783-0891

Deck Stop

Variations

MTD 783-0891-0637

Deck Up-Stop Bracket - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

MTD 783-0891-0691

BRACKET-DECK STOP - BLACK JACK (0691)

$34.99

$

Usually ships in 3-6 days

0

MTD 783-0891-0498

BRACKET-DECK-UP ST - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0891-0665

No Longer Available BRACKET-DE - YARDMAN GREEN (0665)

$

$

Not available

$

$

41

MTD 783-1003

PTO Clutch Bracket
(Superseded to 783-1003-0637)

Variations

MTD 783-1003-0637

Clutch Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

42

MTD 710-0607

Self Tapping Screw, 5/16-18 x .5

$6.99

$

In Stock, Qty 11

0
