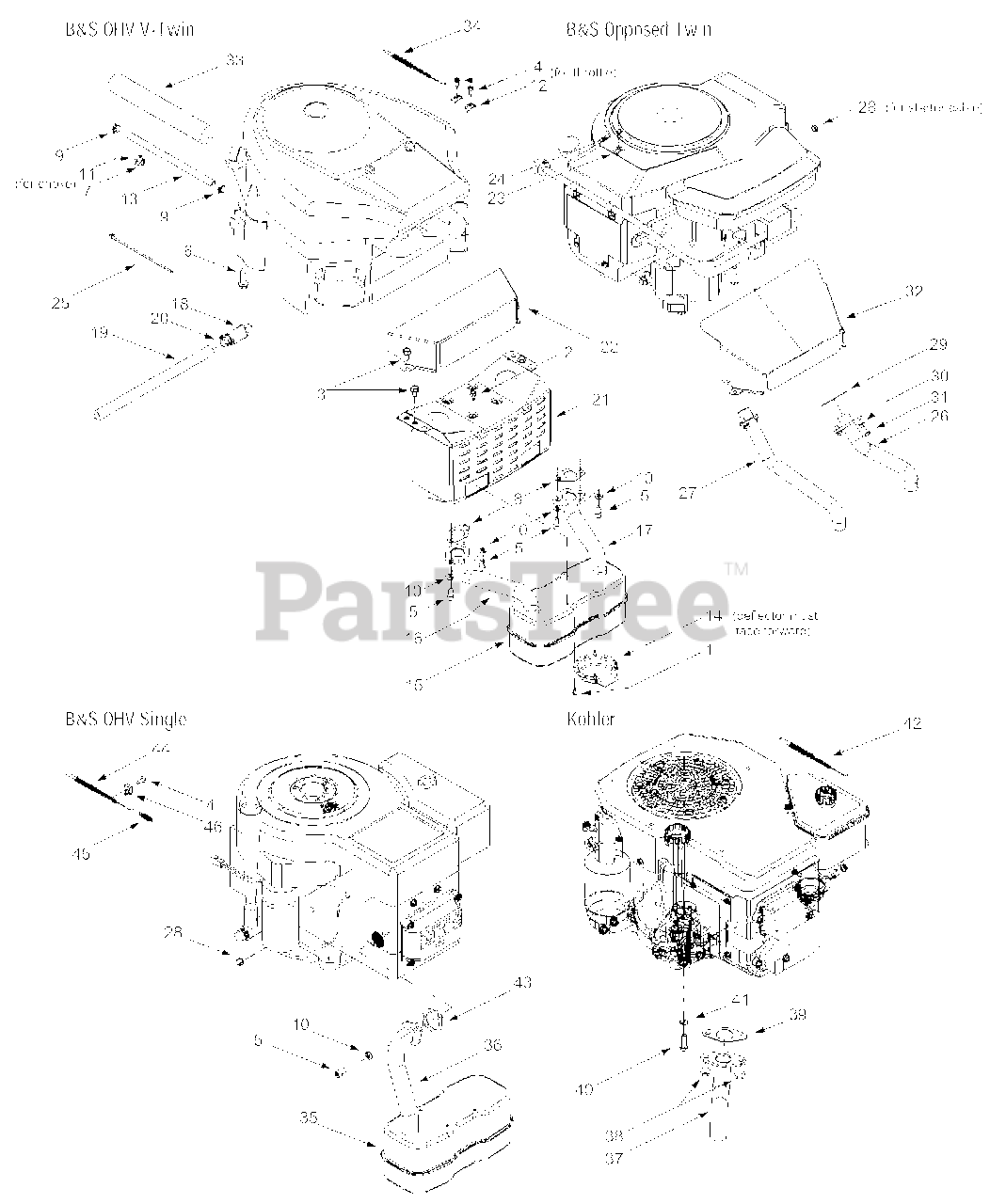

13AI608H352 - Yard Machines Lawn Tractor (2002) (Walmart) Engine Accessories Parts Diagram

Lawn Tractor

Engine Accessories Parts Diagram

  • Title

1

MTD 710-0227

Self-tapping Screw, #8-18 x .50

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-0599

Self-tapping Screw, 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0604A

Self-tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-1237

Screw, #10-32 x .625 (B&S OHV V-Twin)

$4.49

$

Usually ships in 3-6 days

0

5

MTD 710-1314A

Socket Cap Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-1315

Self-tapping Screw, 3/8-16 x 1.25

$4.49

$

In Stock, only 3 left!

0

7

MTD 712-3017

Hex Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

8

MTD 721-0460

Exhaust Gasket (B&S OHV V-Twin)
(Superseded to 721P0460)

$6.99

$

In Stock, only 2 left!

0

9

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 18

0

10

MTD 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

11

MTD 736-0300

Lock Washer, .406 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

12

MTD 751B221535

Casing Clamp (B&S OHV V-Twin)

$10.99

$

In Stock, Qty 10

0

13

MTD 751-0535

Fuel Line Hose

$

$

Currently unavailable

14

MTD 751-0564

Muffler Deflector
(Superseded to 751-0564B)

$13.99

$

In Stock, Qty 5

0

15

MTD 751-0616

Muffler, Twin Inlet (B&S Opposed Twin & OHV V-Twin)
(Superseded to 951-0616B)

$163.99

$

In Stock, Qty 16

0

16

MTD 751-0650

RH Exhaust Pipe (B&S OHV V-Twin)
(Superseded to 751-0650B)

$63.99

$

In Stock, only 1 left!

0

17

MTD 751-0651

LH Exhaust Pipe (B&S OHV V-Twin)
(Superseded to 751-0651B)

$60.99

$

In Stock, only 1 left!

0

18

MTD 751-3140

Oil Drain Valve
(Superseded to 951-10517A)

$24.99

$

Usually ships in 3-6 days

0

19

MTD 751-3141

Oil Drain Hose
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 8

0

20

MTD 751-3142

Oil Drain Cap

$4.49

$

In Stock, only 4 left!

0

21

MTD 783-0615B

Muffler Heat Shield
(Superseded to 783-0615E-0637)

Variations

MTD 783-0615B-0637

Muffler Bracket - POWDER BLACK (0637)

$64.99

$

In Stock, only 1 left!

0

$64.99

$

In Stock, only 1 left!

0

22

MTD 783-0625C

Engine Heat Shield (B&S OHV V-Twin)

$111.99

$

Usually ships in 3-6 days

0

23

MTD 726-0272

Clamp, 9/16 (B&S Opposed Twin)

$7.49

$

Usually ships in 3-6 days

0

24

MTD 712-0779A

Screw, #10-16 x .5 (B&S Opposed Twin)

$

$

Currently unavailable

25

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

26

MTD 751-0623

LH Exhaust Pipe (B&S Opposed Twin)

$

$

Not available

27

MTD 751-0624

RH Exhaust Pipe (B&S Opposed Twin)

$

$

Not available

28

MTD 712-0271

Hex Sems Nut, 1/4-20 (B&S Opposed Twin & OHV Single)

$4.49

$

In Stock, Qty 10

0

29

MTD 721-0346

Exhaust Gasket (B&S Opposed Twin)

$8.49

$

Usually ships in 3-6 days

0

30

MTD 736-0329

Lock Washer, 1/4 (B&S Opposed Twin)
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

31

MTD 710-3015

Hex Screw, 1/4-20 x .750 (B&S Opposed Twin)

$3.99

$

In Stock, Qty 20+

0

32

MTD 783-0357B

Heat Shield (B&S Opposed Twin)
(Superseded to 783-0357B-0637)

Variations

MTD 783-0357B-0637

Heat Shield - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

$37.99

$

Usually ships in 3-6 days

0

33

MTD 722-0263

Foam, .625 x 1.5 x 10 (fits over fuel line)
(Superseded to 723-3066-24)

$16.99

$

In Stock, only 3 left!

0

34

MTD 746-1086

Throttle Cable (B&S Opposed Twin & OHV V-Twin)
(Superseded to 946-1086)

$33.99

$

Usually ships in 3-6 days

0

35

MTD 751-0617

Muffler, Single Inlet (B&S OHV Single & Kohler)
(Superseded to 951-0617C)

$149.99

$

In Stock, Qty 5

0

36

MTD 751-0619

Exhaust Pipe (B&S OHV Single)
(Superseded to 751-0619B)

$76.99

$

In Stock, only 2 left!

0

37

MTD 751-0621

Exhaust Pipe (Kohler)
(Superseded to 751-0621A)

$

$

Not available

38

MTD 712-3086

Flange Nut, 8mm (Kohler)

$4.49

$

In Stock, only 2 left!

0

39

MTD 721-0375

Exhaust Gasket (Kohler)
(Superseded to KH-12-041-03)

$

$

Not available

40

MTD 710-3206A

Hex Cap Screw, 8mm (Kohler)

$3.99

$

In Stock, Qty 13

0

41

MTD 736-0607

External Lock Washer (Kohler)

$3.99

$

In Stock, Qty 20+

0

42

MTD 746-1087

Throttle Cable (Kohler)
(Superseded to 946-1087)

$35.99

$

In Stock, only 1 left!

0

43

MTD 721-0208

Exhaust Gasket (B&S OHV Single)
(Superseded to BS-692236)

$5.49

$

In Stock, Qty 20+

0

44

MTD 746-1084

Throttle Cable (B&S OHV Single)
(Superseded to 946-1084)

$32.99

$

Usually ships in 3-6 days

0

45

MTD 732-0966

Extension Spring, .275 x 1.25 (B&S OHV Single)

$

$

Not available

46

MTD 751B213146

Casing Clamp (B&S OHV Single)
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0
