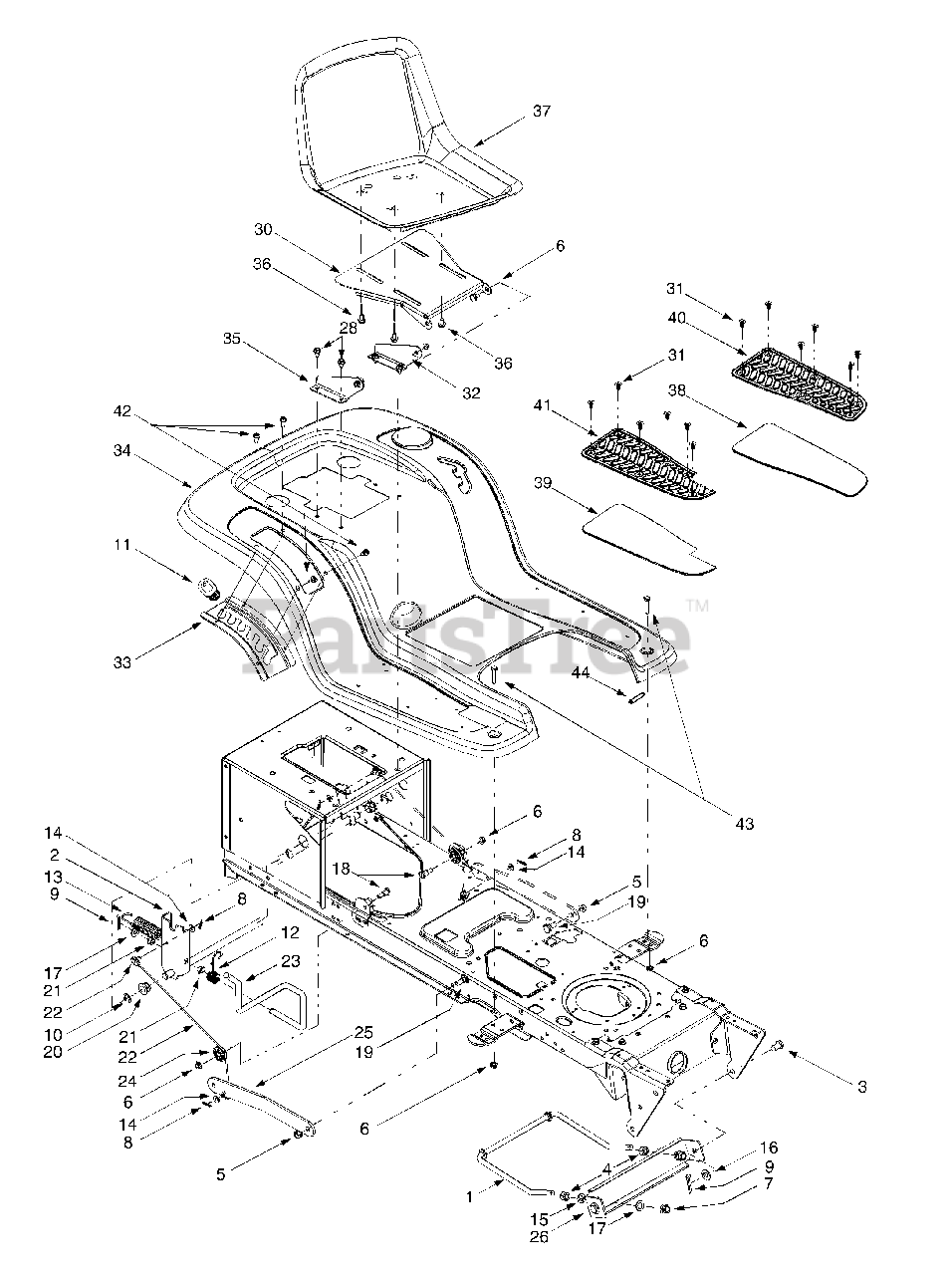

13AI607H019 - Yard Machines Lawn Tractor (2000) (Agway) Seat, Fender, Frame Components Parts Diagram

Lawn Tractor

Seat, Fender, Frame Components Parts Diagram

  • Title

1

MTD 747-1130

Deck Stabilizer Rod
(Superseded to 747-1130B)

Variations

MTD 747-1130-0637

Front Adjust Deck Rod - POWDER BLACK (0637)

$41.99

$

In Stock, only 3 left!

0

$41.99

$

In Stock, only 3 left!

0

2

MTD 683-0197

Lift Shaft Assembly
(Superseded to 983-0197)

Variations

MTD 683-0197-0637

SHAFT-LIFT ASM - POWDER BLACK (0637)

$51.99

$

In Stock, only 1 left!

0

$51.99

$

In Stock, only 1 left!

0

3

MTD 711-0332

Clevis Pin, .5 x .78
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 14

0

?4

MTD 712-0206

Hex Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

5

MTD 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

6

MTD 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

MTD 712-3083

Hex Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

8

MTD 714-0104

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

9

MTD 714-0111

Cotter Pin

$4.99

$

In Stock, Qty 13

0

10

MTD 716-0106

E-ring

$4.49

$

In Stock, Qty 12

0

11

MTD 720-0311

Handle Grip

$15.99

$

In Stock, only 1 left!

0

12

MTD 732-0874

Torsion Spring

$4.99

$

In Stock, Qty 6

0

13

MTD 732-0934

Lift-assist Spring, 1.15 x 5.99

Note: (Found on Units w/ 46-inch Deck Only)

$11.99

$

In Stock, only 1 left!

0

14

MTD 736-0275

Flat Washer, 5/16

$6.99

$

Usually ships in 3-6 days

0

15

MTD 736-0921

Lock Washer, 1/2

$4.49

$

In Stock, Qty 6

0

16

MTD 736-3019

Flat Washer, .31 x 1.062 x .134

$5.99

$

In Stock, Qty 11

0

17

MTD 736-3084

Flat Washer, .51 x 1.12 x .06

$4.99

$

In Stock, Qty 20+

0

18

MTD 738-0138

Hex Cap Screw, 5/16-18 x .62
(Superseded to 738-0138A)

$6.99

$

In Stock, only 2 left!

0

19

MTD 738-0380

Shoulder Screw, .5 x .27, 3/8-16

$7.99

$

In Stock, only 1 left!

0

20

MTD 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 19

0

21

MTD 741-0715

Snap Flange Bearing
(Superseded to 941-0715)

$

$

Not available

22

MTD 746-0968

Lift Cable, 16.16

$19.99

$

In Stock, Qty 20+

0

23

MTD 747-1111

Lift Handle
(Superseded to 747-1111A)

$

$

Not available

24

MTD 756-1154

Roller Pulley

$7.99

$

In Stock, only 2 left!

0

25

MTD 783-0678

Arm Lift
(Superseded to 783-0678C)

Variations

MTD 783-0678-0637

Lift Deck Link - POWDER BLACK (0637)

$29.99

$

In Stock, only 1 left!

0

$24.99

$

Usually ships in 3-6 days

0

26

MTD 783-0720A

Deck Stabilizer Bracket
(Superseded to 783-0720C)

Variations

MTD 783-0720A-0637

Deck Adjustment Bracket, Front - POWDER BLACK (0637)

$45.99

$

In Stock, only 2 left!

0

MTD 783-0720A-4008

BRACKET-ADJ:FRT DE - WINE RED (4008)

$36.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

?27

MTD 710-0260

Carriage Bolt, 5/16-18 x .62
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

28

MTD 710-0604A

Self-tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

?29

MTD 710-0895

Self-tapping Screw, 1/4-15 x .75

$6.49

$

In Stock, Qty 10

0

30

MTD 783-0740

Seat Pivot Bracket

Variations

MTD 783-0740-0498

No Longer Available BRACKET PI - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0740-0637

No Longer Available BRACKET PI - POWDER BLACK (0637)

$

$

Not available

MTD 783-0740-0665

No Longer Available BRACKET PI - YARDMAN GREEN (0665)

$

$

Not available

$

$

31

MTD 726-3046

Foot Pad Clips

$3.99

$

In Stock, Qty 15

0

32

MTD 738-0155

Shoulder Screw, .437 x 1.62
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

33

MTD 783-1010

Lift Adjustment Bracket
(Superseded to 783-1010A-0637)

Variations

MTD 783-1010-0637

PLATE-DECK LIFT - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

34

MTD 783-0839

Fender

Variations

MTD 783-0839-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0839-0662

FENDER-SINGLE SPD - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0839-0665

No Longer Available FENDER-SIN - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0839-0691

No Longer Available Fender - BLACK JACK (0691)

$

$

Not available

MTD 783-0839-0709

No Longer Available - MASTERCRAFT GREEN (0709)

$

$

Not available

$307.99

$

Usually ships in 3-6 days

0

35

MTD 783-0715

Seat Mounting Bracket
(Superseded to 783-1489D)

Variations

MTD 783-0715-0637

BRACKET-MOUNT:SEAT - POWDER BLACK (0637)

$19.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

36

MTD 710-0870

Hex Washer Head Screw, 3/8-16 x .625

$6.49

$

In Stock, only 1 left!

0

37

MTD 757-0360A

Seat, Medium Back
(Superseded to 957-0360A)

$

$

Not available

MTD 757-0348A

Seat, High Back

Note: (If so equipped)

$

$

Not available

MTD 757-0350

Seat, High Back w/ Drain Holes
(Superseded to 957-0350)

Note: (If so equipped)

$588.99

$

Usually ships in 3-6 days

0

38

MTD 723-0483

LH Abrasive Foot Pad

$

$

Not available

39

MTD 723-0484

RH Abrasive Foot Pad

$

$

Not available

40

MTD 735-0657

LH Rubber Foot Pad

Note: (If so equipped)

$26.99

$

Usually ships in 3-6 days

0

41

MTD 735-0656

RH Rubber Foot Pad

Note: (If so equipped)

$25.99

$

Usually ships in 3-6 days

0

42

MTD 710-1611

Self-tapping Screw, 5/16-18 x .75
(Superseded to 710-1611B)

$6.99

$

In Stock, only 2 left!

0

43

MTD 710-0260

Hex Cap Screw, 5/16-18 x .62
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

44

MTD 731-0511-5

Trim Strip, 1.5

$13.99

$

Usually ships in 3-6 days

0
