13AH662F098 - Wizard Lawn Tractor (2002) (Western Auto) Hood Style 2 Parts Diagram

Lawn Tractor

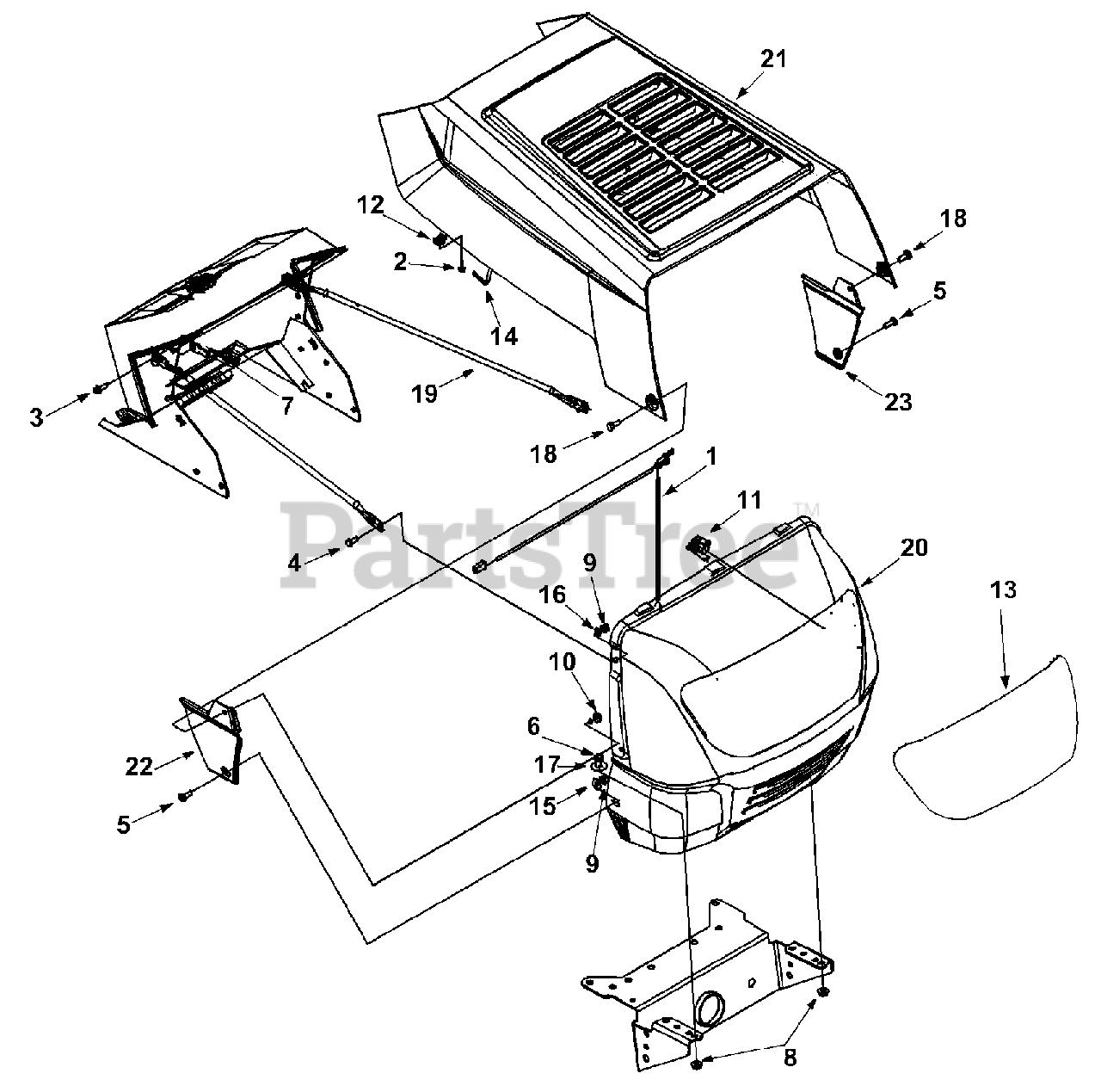

Hood Style 2 Parts Diagram

  • Title

1

MTD 629-0469A

Headlight Harness Assembly
(Superseded to 929-0469B)

$55.99

$

Usually ships in 3-6 days

0

2

MTD 710-0589

Truss. Mach. Scr. #10-24 x .75"

$6.99

$

Usually ships in 3-6 days

0

3

MTD 710-0642

Hex TT-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0751

Hex Bolt 1/4-20 x .5/8" Lg.

$3.99

$

In Stock, Qty 20+

0

5

MTD 710-0924

Pan Hd. Mach. Scr. 1/4-20 x .75"

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

7

MTD 712-0185

Speed Nut 1/4-20 Thd.

$

$

Not available

8

MTD 712-3004A

Flange L-Nut 5/16-18 Thd.

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-3006

Hex Sems Nut 1/4-20 Thd.

$4.99

$

In Stock, Qty 19

0

10

MTD 712-3027

Hex Flange L-Nut 1/4-20 Thd.
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0

11

MTD 725-1651

Socket
(Superseded to 925-1651)

$

$

Not available

MTD 725-0963

Lamp
(Superseded to 925-0963)

Note: (Not Shown)

$7.49

$

In Stock, only 1 left!

0

12

MTD 726-0130

Speed Nut
(Superseded to 926-0130)

$

$

Not available

13

MTD 731-1503A

Lens
(Superseded to 753-06310)

$143.99

$

Usually ships in 3-6 days

0

14

MTD 732-0699

Hood Spring

$

$

Not available

15

MTD 736-0270

Bell Wash. .265" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 20+

0

16

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

17

MTD 736-3078

Fl-Wash. .349" I.D. x 1.0" O.D.

$4.49

$

In Stock, Qty 20+

0

18

MTD 738-0952A

Shldr Bolt. .375" I.D. x 1.25" O.D.
(Superseded to 938-0952A)

$7.49

$

In Stock, Qty 10

0

19

MTD 749-0722B

Grille Support Rod

Variations

MTD 749-0722B-0637

Grille Support - POWDER BLACK (0637)

$

$

Not available

$

$

20

MTD 783-0156A

Grill
(Superseded to 783-04979)

Variations

MTD 783-0156A-0499

GRILL:2 STYLE - CUB BEIGE (0499)

$

$

Not available

MTD 783-0156A-0483

GRILL:2 STYLE - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0156A-0629

GRILL:2 STYLE - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0156A-0638

GRILL:2 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0156A-0662

GRILL:2 STYLE - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0156A-0665

GRILL:2 STYLE - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0156A-0667

No Longer Available USE 783-04979-0667 GRILL:2 ST - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0156A-0674

GRILL:2 STYLE - YARDMAN YELLOW (0674)

$

$

Not available

MTD 783-0156A-0687

GRILL:2 STYLE - PINE GREEN (0687)

$

$

Not available

MTD 783-0156A-0688

No Longer Available GRILLE-STY - SPRING GREEN (0688)

$

$

Not available

MTD 783-0156A-0689

GRILL:2 STYLE - POLO GREEN (0689)

$

$

Not available

MTD 783-0156A-0691

GRILL:2 STYLE - BLACK JACK (0691)

$

$

Not available

MTD 783-0156A-0709

GRILL:2 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-0156A-0717

GRILL:2 STYLE - SILVER MIST (0717)

$

$

Not available

$94.99

$

Usually ships in 3-6 days

0

21

MTD 783-0250

Hood

Variations

MTD 783-0250-0480

HOOD-O STY LOUVER - BRILLIANT GREEN (0480)

$

$

Not available

MTD 783-0250-0483

HOOD-O STY LOUVER - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0250-0498

HOOD-STY O W/LOUVE - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0250-0499

No Longer Available HOOD-STY O - CUB BEIGE (0499)

$

$

Not available

MTD 783-0250-0629

HOOD-O STY LOUVER - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0250-0638

HOOD-O STY LOUVER - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0250-0640

HOOD-O STY LOUVER - CO-OP GREEN (0640)

$

$

Not available

MTD 783-0250-0648

HOOD-S - TECH GRAY (0648)

$

$

Not available

MTD 783-0250-0650

HOOD-O STY LOUVER - RED METALLIC (0650)

$

$

Not available

MTD 783-0250-0660

No Longer Available HOOD-STY O - TEAL (0660)

$

$

Not available

MTD 783-0250-0662

HOOD-O STY LOUVER - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0250-0663

No Longer Available - CAYMEN GREEN (0663)

$

$

Not available

MTD 783-0250-0665

HOOD-O STY LOUVER - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0250-0667

HOOD-STY O W/LOUVE - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0250-0668

No Longer Available HOOD-STY O - MOSS GREEN (0668)

$

$

Not available

MTD 783-0250-0674

HOOD-STY O W/LOUVE - YARDMAN YELLOW (0674)

$

$

Not available

MTD 783-0250-0677

No Longer Available HOOD-O STY - GRASS GREEN (0677)

$

$

Not available

MTD 783-0250-0686

No Longer Available HOOD-STY O - SIMPLICITY ORANGE (0686)

$

$

Not available

MTD 783-0250-0687

No Longer Available USE 783-0250A-0687 HOOD-O STY - PINE GREEN (0687)

$

$

Not available

MTD 783-0250-0688

No Longer Available HOOD-STY O - SPRING GREEN (0688)

$

$

Not available

MTD 783-0250-0691

HOOD-STY O W/LOUVE - BLACK JACK (0691)

$

$

Not available

MTD 783-0250-0692

No Longer Available - AGWAY BLUE (0692)

$

$

Not available

MTD 783-0250-0709

HOOD-O STY LOUVER - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-0250-0717

No Longer Available - SILVER MIST (0717)

$

$

Not available

$

$

22

MTD 783-0366

R.H. Side Panel

Variations

MTD 783-0366-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

MTD 783-0366-0629

No Longer Available PANEL-SIDE - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0366-0638

No Longer Available PANEL-SIDE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0366-0662

Side Panel - R.H. - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0366-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0366-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0366-0668

No Longer Available PANEL-SIDE - MOSS GREEN (0668)

$

$

Not available

MTD 783-0366-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

MTD 783-0366-0687

PANEL-SIDE RH STY - PINE GREEN (0687)

$

$

Not available

MTD 783-0366-0691

No Longer Available PANEL-SIDE - BLACK JACK (0691)

$

$

Not available

MTD 783-0366-0709

No Longer Available PANEL-SIDE - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

23

MTD 783-0367

L.H. Side Panel

Variations

MTD 783-0367-0480

PANEL-SIDE LH STY - BRILLIANT GREEN (0480)

$

$

Not available

MTD 783-0367-0629

No Longer Available PANEL-SIDE - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0367-0638

No Longer Available PANEL-SIDE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0367-0662

Side Panel - L.H. - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0367-0665

No Longer Available PANEL-SIDE - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0367-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0367-0668

No Longer Available PANEL-SIDE - MOSS GREEN (0668)

$

$

Not available

MTD 783-0367-0674

No Longer Available PANEL-SIDE - YARDMAN YELLOW (0674)

$

$

Not available

MTD 783-0367-0687

PANEL-SIDE LH STY - PINE GREEN (0687)

$

$

Not available

MTD 783-0367-0691

No Longer Available PANEL-SIDE - BLACK JACK (0691)

$

$

Not available

MTD 783-0367-0709

No Longer Available PANEL-SIDE - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$
