13AH661F196 - Turf Pro Lawn Tractor (1998) (Helig Meyers) Muffler (Single Cylinder) Parts Diagram

Lawn Tractor

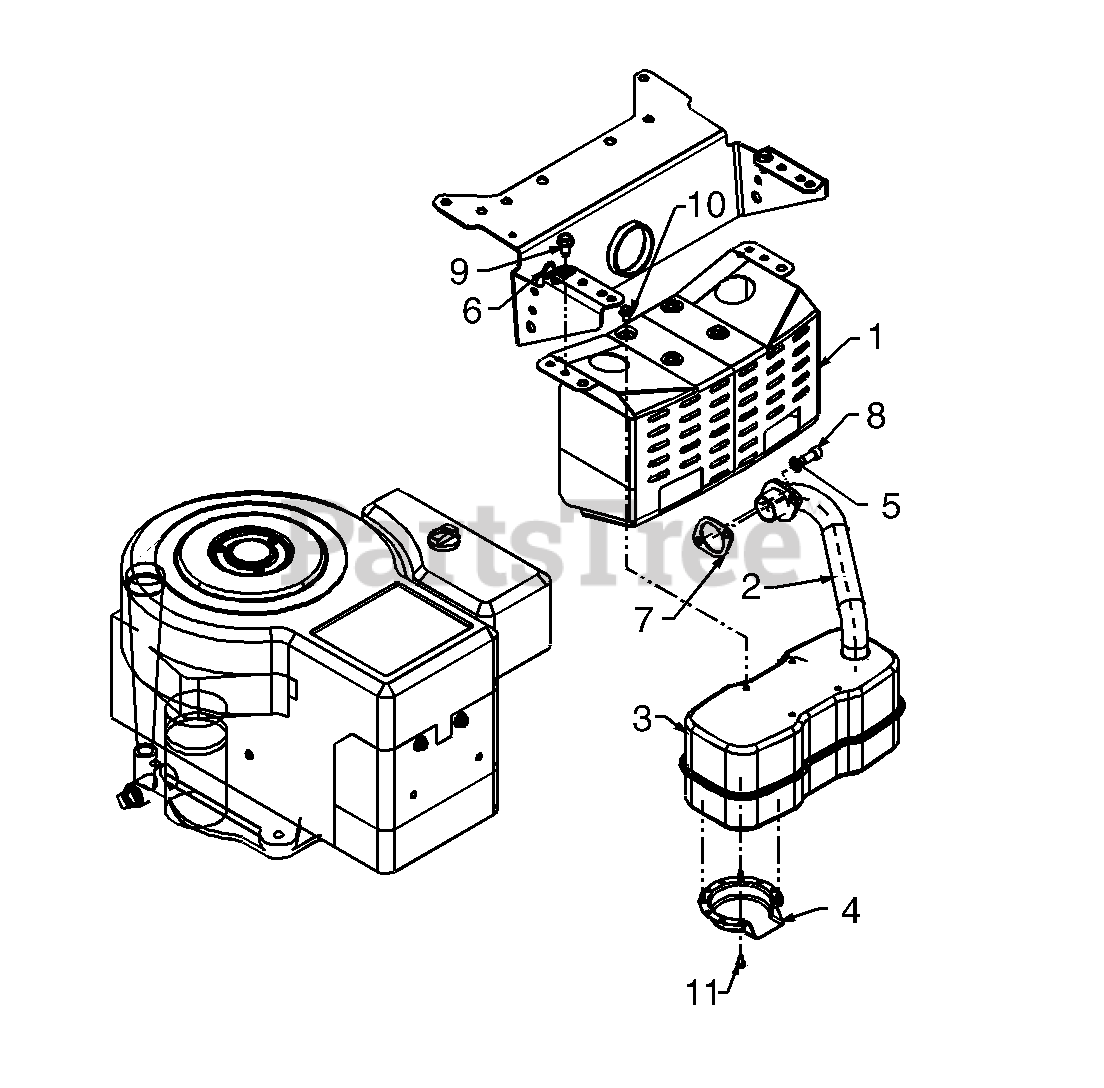

Muffler (Single Cylinder) Parts Diagram

  • Title

1

MTD 783-0615

Muffler Bracket
(Superseded to 783-0615E-0637)

Note: Code N

Variations

MTD 783-0615-0637

Muffler Bracket - POWDER BLACK (0637)

$64.99

$

In Stock, only 1 left!

0

$64.99

$

In Stock, only 1 left!

0

2

MTD 751-0618

Exhaust Pipe
(Superseded to 751-0618A)

$90.99

$

Usually ships in 3-6 days

0

3

MTD 751-0617

Muffler
(Superseded to 951-0617C)

$149.99

$

In Stock, Qty 5

0

4

MTD 751-0564

Muffler Deflector
(Superseded to 751-0564B)

$13.99

$

In Stock, Qty 5

0

5

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

6

MTD 726-0272

Clamp

$7.49

$

Usually ships in 3-6 days

0

7

MTD 721-0208

Exhaust Gasket
(Superseded to BS-692236)

$5.49

$

In Stock, Qty 20+

0

8

MTD 710-1314

Socket Hd. Bolt 5/16-18 x .62" Lg.
(Superseded to 710-1314A)

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0604

Hex Wash Hd. TT-Tap Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0599

Hex Wash. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-0148

Hex Slot Scr. #8-32 x .38" Lg.

$4.49

$

In Stock, Qty 16

0
