13AH661F196 - Turf Pro Lawn Tractor (1998) (Helig Meyers) Electrical/Switches (Single Cylinder) Parts Diagram

Lawn Tractor

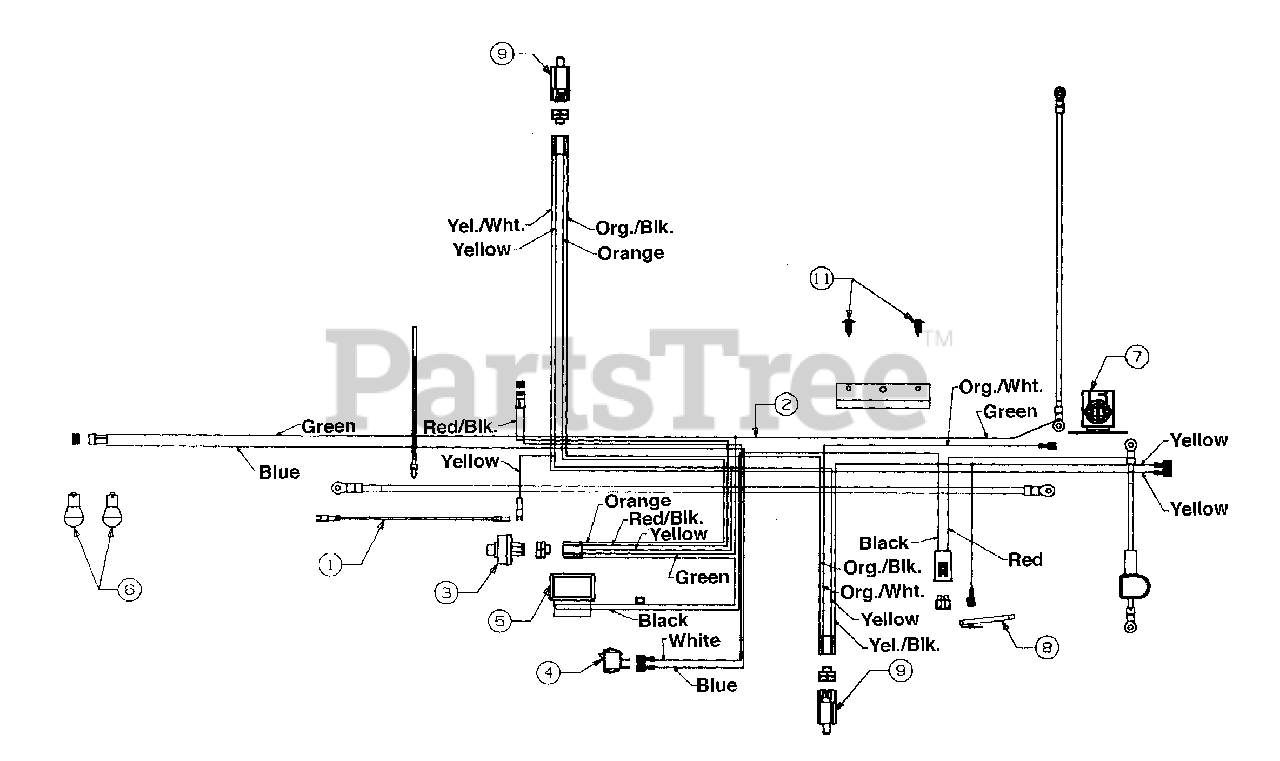

Electrical/Switches (Single Cylinder) Parts Diagram

  • Title
1

MTD 629-0207

Harness Adapter (Mag.)

$10.99

$

In Stock, only 1 left!

0

2

MTD 629-0302B

Wire Harness w/Light Switch and Amp
(Superseded to 929-0302E)

Note: Code N

$183.99

$

Usually ships in 3-6 days

0

MTD 629-0301B

Wire Harness w/o Light Switch and Amp
(Superseded to 629-0301E)

Note: Code N

$

$

Not available

3

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

4

MTD 725-0634

Light Switch
(Superseded to 925-0634)

Note: (Optional)

$17.99

$

In Stock, only 4 left!

0

5

MTD 725-0925

Ammeter
(Superseded to 925-0925)

Note: (Optional)

$31.99

$

In Stock, Qty 6

0

6

MTD 725-0963

Bulb (Headlight)
(Superseded to 925-0963)

$7.49

$

In Stock, only 3 left!

0

7

MTD 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

8

MTD 725-1643

Safety Switch (Reverse)

$10.99

$

In Stock, only 1 left!

0

9

MTD 725-1657A

Safety Switch
(Superseded to 925-1657A)

$24.99

$

In Stock, Qty 5

0

11

MTD 726-3046

Ratchet

$3.99

$

In Stock, Qty 16

0
