13AH650F752 - Yard Machines Lawn Tractor (2004) (Walmart) Axle, Wheels Front, Steering Parts Diagram

Lawn Tractor

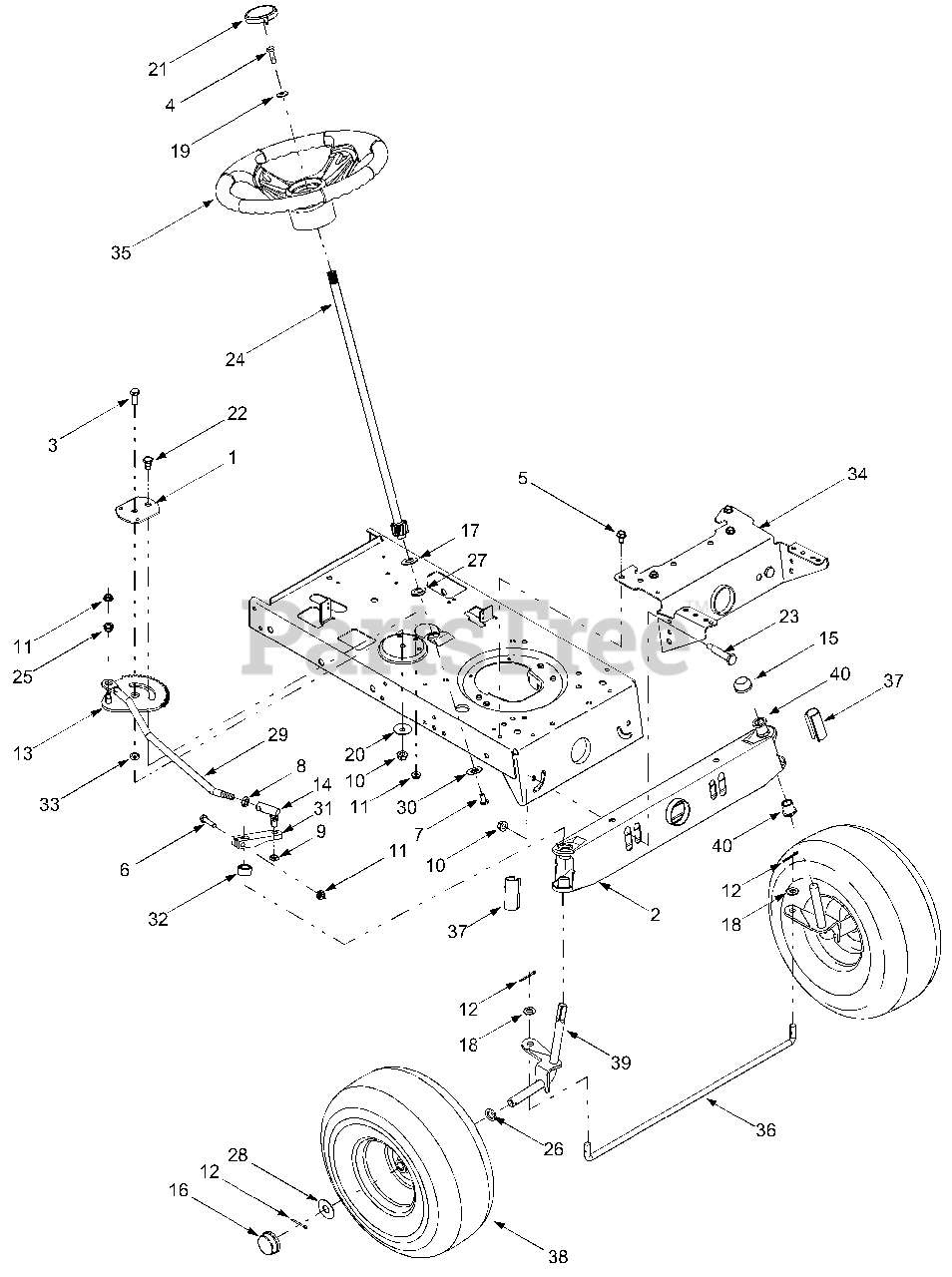

Axle, Wheels Front, Steering Parts Diagram

  • Title

1

MTD 17198A

Retainer Gear Segment Plate
(Superseded to 783P08577A)

$7.49

$

In Stock, Qty 20+

0

2

MTD 683-0002A

Steel Pivot Bar, .625
(Superseded to 683-0002B-0637)

Variations

MTD 683-0002A-0637

Pivot Bar, Steel - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 710-0514

Hex Cap Screw, 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0643

Hex Cap Screw, 5/16-18 x 1.0

$6.99

$

In Stock, Qty 5

0

5

MTD 710-0726

Self-tapping Screw, 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0805

Hex Cap Screw, 5/16-18 x 1.5
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-1309

Machine Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

8

MTD 712-0240

Jam Nut, 7/16-20 (Grade 2)
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

9

MTD 712-0262

Jam Nut, 3/8-24

$4.49

$

In Stock, Qty 20+

0

10

MTD 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

11

MTD 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

MTD 714-0470

Cotter Pin, 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

13

MTD 717-1757A

Stearing Segment Gear

$53.99

$

In Stock, only 1 left!

0

14

MTD 723-0448A

Ball Joint, 7/16 -20
(Superseded to 923-0448A)

$24.99

$

In Stock, Qty 20+

0

15

MTD 726-0214

Push Cap, .625

$10.99

$

In Stock, only 4 left!

0

16

MTD 731-0484A

Hub Cap
(Superseded to 931-0484A)

$6.49

$

In Stock, Qty 20+

0

17

MTD 736-0187

Flat Washer, .64 x 1.24 x .060

$4.49

$

In Stock, Qty 20+

0

18

MTD 736-0226

Flat Washer, .474 x .879 x .064
(Superseded to 936-0226)

$3.99

$

In Stock, only 1 left!

0

19

MTD 736-0242

Bell Washer, .34 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

20

MTD 736-0356

Bell Washer, .391 x .380 x .062
(Superseded to 936-0356)

$

$

Not available

21

MTD 731-04039

Steering Wheel Cap, Small

$8.49

$

In Stock, only 1 left!

0

21

MTD 731-04040

Steering Wheel Cap, Small, w/ Spring

$9.99

$

In Stock, only 1 left!

0

22

MTD 738-0141

Shoulder Screw, .435 x .350, 5/16-18
(Superseded to 938-0141)

$7.49

$

In Stock, Qty 7

0

23

MTD 738-0527

Shoulder Screw, .498 x 2.045

$8.49

$

In Stock, Qty 6

0

24

MTD 738-0919

Steering Shaft, 21.86
(Superseded to 738-0919B)

$59.99

$

In Stock, Qty 20+

0

25

MTD 741-0475

Plastic Bushing, .38 ID
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

26

MTD 736-0162

Flat Washer, .64 x 1.0 x .12

$4.49

$

In Stock, Qty 20+

0

27

MTD 741-0656

Hex Flange Bearing, 5/8
(Superseded to 941-0656A)

$5.49

$

In Stock, Qty 20+

0

28

MTD 736-0285

Flat Washer, .635 x 1.589 x .06

$4.49

$

In Stock, Qty 20+

0

29

MTD 747-1268B

Steering Drag Link, 7/16-20

$

$

Not available

30

MTD 748-0389

Cap, 1.25 x .16
(Superseded to 948-0389)

$5.49

$

In Stock, Qty 20+

0

31

MTD 748-04014B

Steering Arm
(Superseded to 948-04014B)

$26.99

$

Usually ships in 3-6 days

0

32

MTD 748-04020

Spacer, 1.0 x .645 x .56
(Superseded to 948-04020)

$7.49

$

In Stock, only 1 left!

0

33

MTD 750-0535

Spacer, .380 x .625 x .21
(Superseded to 950-0535)

$4.49

$

In Stock, Qty 20+

0

34

MTD 783-0041D

Pivot Bar Bracket

Variations

MTD 783-0041D-0483

BRACKET-PIVOT BAR - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0041D-0637

BRACKET-PIVOT BAR - POWDER BLACK (0637)

$

$

Not available

MTD 783-0041D-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0041D-0638

No Longer Available BRACKET-PI - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0041D-0648

No Longer Available BRACKET-PI - TECH GRAY (0648)

$

$

Not available

MTD 783-0041D-0650

BRACKET-PIVOT BAR - RED METALLIC (0650)

$

$

Not available

$

$

35

MTD 631-04028

Steering Wheel, Three Spoke

$69.99

$

In Stock, only 1 left!

0

36

MTD 747-04008

Tie Rod, Non-adjustable

$21.99

$

In Stock, only 1 left!

0

36

MTD 747-04057

Tie Rod, Adjustable

$

$

Not available

MTD 711-04059

Ferrule, 3/8-24 x .437 Dia (use with adjustable tie rod)
(Superseded to 911-04059)

$11.99

$

Usually ships in 3-6 days

0

37

MTD 731-04057A

Axle End Cap, Standard

$5.49

$

In Stock, Qty 20+

0

38

MTD 634-0097B

Wheel Ass'y Complete
(Superseded to 634-0097B-0911)

Variations

MTD 634-0097B-0911

WHEEL ASM W/TIRE - Carlisle Gray (0911)

$173.99

$

Usually ships in 3-6 days

0

$173.99

$

Usually ships in 3-6 days

0

38

MTD 634-0171B

Rim Assembly
(Superseded to 934-0171B-0662)

Variations

MTD 634-0171B-0662

RIM ASM - OYSTER GRAY (0662)

$45.99

$

Usually ships in 3-6 days

0

$45.99

$

Usually ships in 3-6 days

0

38

MTD 741-0706

Inner Bearing (Flange w/ Fitting)
(Superseded to 941-0706)

$8.49

$

In Stock, Qty 7

0

38

MTD 741-0487A

Outer Bearing (Plastic Flange)
(Superseded to 741-0487C)

$7.49

$

Usually ships in 3-6 days

0

38

MTD 734-0298

Tire Only (13 x 5 x 6)
(Superseded to 734-0298-0901)

Variations

MTD 734-0298-0901

Tubeless Tire, 13 - Carlisle (0901)

$41.99

$

In Stock, Qty 6

0

MTD 734-0298-0902

Tubeless Tire, 13 - Dico (0902)

$41.99

$

In Stock, Qty 6

0

MTD 734-0298-0905

Tubeless Tire, 13 - Duro (0905)

$41.99

$

In Stock, Qty 6

0

$41.99

$

In Stock, Qty 6

0

38

MTD 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

39

MTD 683-04014

RH Axle Assembly

Variations

MTD 683-04014-0637

No Longer Available AXLE ASM- - POWDER BLACK (0637)

$

$

Not available

$

$

39

MTD 683-04013

LH Axle Assembly
(Superseded to 683-04013-0637)

Variations

MTD 683-04013-0637

AXLE ASM-FRONT LH - POWDER BLACK (0637)

$

$

Not available

$

$

40

MTD 741-0487A

Flange Bearing
(Superseded to 741-0487C)

$7.49

$

Usually ships in 3-6 days

0
