13AH650F352 - Yard Machines Lawn Tractor (2004) (Walmart) Hood, Fuel Tank, Electrical Parts Diagram

Lawn Tractor

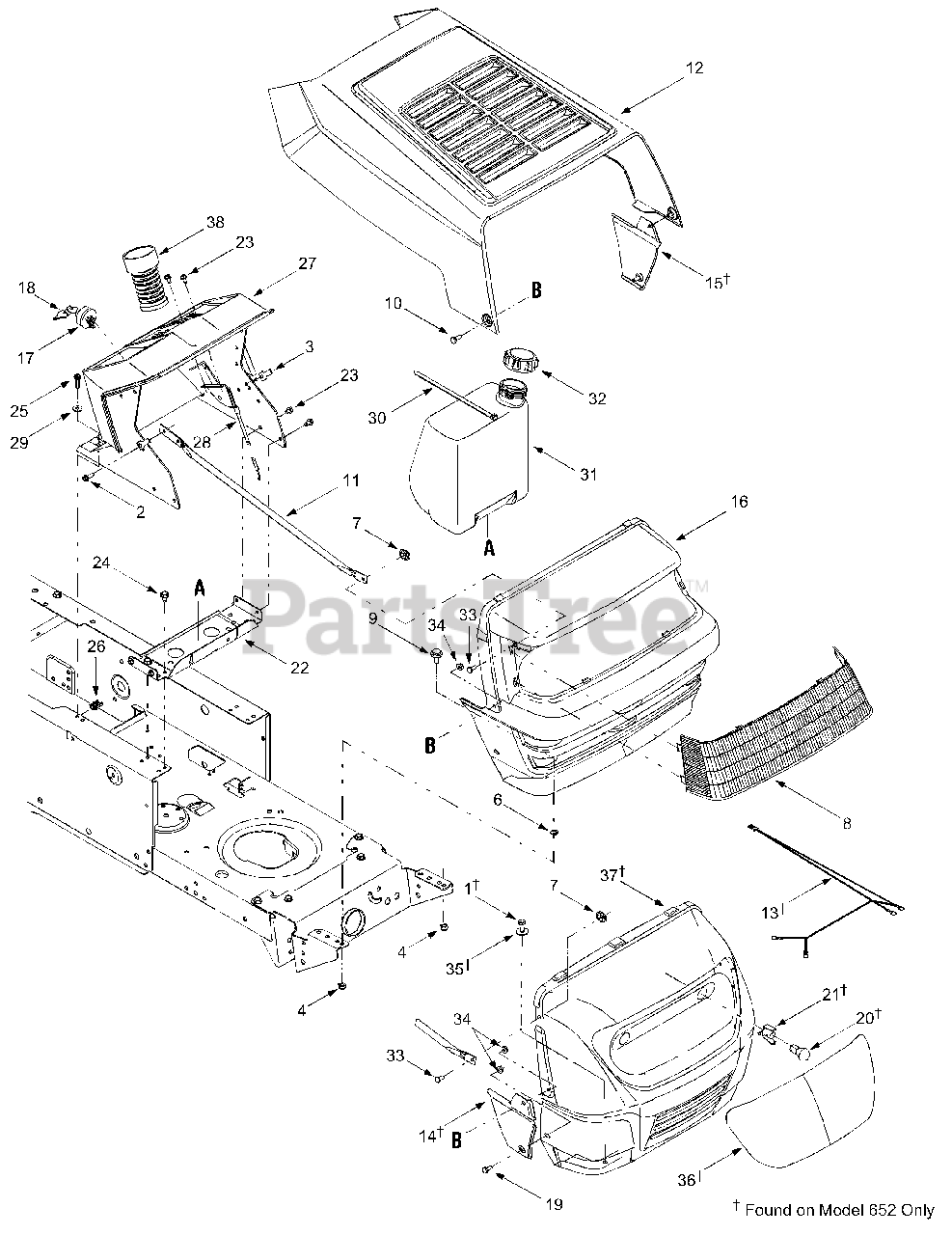

Hood, Fuel Tank, Electrical Parts Diagram

  • Title

1

MTD 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-0642

Self-tapping Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

3

MTD 712-0185

U-type Speed Nut, 1/4-20

$

$

Not available

4

MTD 712-0429

Hex Lock Nut, Nylon, 5/16-18

$4.49

$

In Stock, Qty 20+

0

5

MTD 712-3027

Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

6

MTD 726-0201

Speed Nut, .3125

$6.99

$

Usually ships in 3-6 days

0

7

MTD 726-04012

Push-on Nut, .25

$7.49

$

In Stock, Qty 9

0

8

MTD 731-1601

Lens, Black

$

$

Not available

9

MTD 738-04015

Shoulder Screw, 5/16-18 x .625
(Superseded to 938-04015)

$6.49

$

Usually ships in 3-6 days

0

10

MTD 738-0952A

Shoulder Screw, 1/4-20 x .375 /.125
(Superseded to 938-0952A)

$7.49

$

In Stock, Qty 10

0

11

MTD 749-0722C

Grille Support Rod
(Superseded to 749-0722C-0637)

Variations

MTD 749-0722C-0637

Support Grille Rod - POWDER BLACK (0637)

$21.99

$

In Stock, only 1 left!

0

$21.99

$

In Stock, only 1 left!

0

12

MTD 783-0250A

Hood w/ Louvers

Variations

MTD 783-0250A-0480

HOOD-O STY LOUVER - BRILLIANT GREEN (0480)

$

$

Not available

MTD 783-0250A-0483

HOOD-O STY LOUVER - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0250A-0498

No Longer Available HOOD-O STY - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0250A-0499

HOOD-O STY LOUVER - CUB BEIGE (0499)

$

$

Not available

MTD 783-0250A-0629

HOOD-O STY LOUVER - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0250A-0638

HOOD-O STY LOUVER - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0250A-0640

HOOD-O STY LOUVER - CO-OP GREEN (0640)

$

$

Not available

MTD 783-0250A-0648

HOOD-O STY LOUVER - TECH GRAY (0648)

$

$

Not available

MTD 783-0250A-0650

HOOD-O STY LOUVER - RED METALLIC (0650)

$

$

Not available

MTD 783-0250A-0660

No Longer Available HOOD-O STY - TEAL (0660)

$

$

Not available

MTD 783-0250A-0662

HOOD-O STY LOUVER - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0250A-0663

No Longer Available HOOD-O STY - CAYMEN GREEN (0663)

$

$

Not available

MTD 783-0250A-0665

HOOD-O STY LOUVER - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0250A-0667

No Longer Available HOOD-O STY - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0250A-0668

HOOD-O STY LOUVER - MOSS GREEN (0668)

$

$

Not available

MTD 783-0250A-0674

No Longer Available HOOD-O STY - YARDMAN YELLOW (0674)

$

$

Not available

MTD 783-0250A-0677

No Longer Available HOOD-O STY - GRASS GREEN (0677)

$

$

Not available

MTD 783-0250A-0686

No Longer Available HOOD-O STY - SIMPLICITY ORANGE (0686)

$

$

Not available

MTD 783-0250A-0687

No Longer Available HOOD-O STY LOUVER - PINE GREEN (0687)

$

$

Not available

MTD 783-0250A-0688

No Longer Available HOOD-O STY - SPRING GREEN (0688)

$

$

Not available

MTD 783-0250A-0691

HOOD-O STY LOUVER - BLACK JACK (0691)

$

$

Not available

MTD 783-0250A-0692

No Longer Available HOOD-O STY - AGWAY BLUE (0692)

$

$

Not available

MTD 783-0250A-0709

HOOD-O STY LOUVER - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-0250A-0717

No Longer Available - SILVER MIST (0717)

$

$

Not available

$

$

13

MTD 629-0469B

Headlamp Harness Assembly
(Superseded to 929-0469B)

$55.99

$

Usually ships in 3-6 days

0

14

MTD 783-0366

RH Side Panel (Insert)

Variations

MTD 783-0366-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

MTD 783-0366-0629

No Longer Available PANEL-SIDE - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0366-0638

No Longer Available PANEL-SIDE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0366-0662

Side Panel - R.H. - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0366-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0366-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0366-0668

No Longer Available PANEL-SIDE - MOSS GREEN (0668)

$

$

Not available

MTD 783-0366-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

MTD 783-0366-0687

PANEL-SIDE RH STY - PINE GREEN (0687)

$

$

Not available

MTD 783-0366-0691

No Longer Available PANEL-SIDE - BLACK JACK (0691)

$

$

Not available

MTD 783-0366-0709

No Longer Available PANEL-SIDE - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

15

MTD 783-0367

LH Side Panel (Insert)

Variations

MTD 783-0367-0480

PANEL-SIDE LH STY - BRILLIANT GREEN (0480)

$

$

Not available

MTD 783-0367-0629

No Longer Available PANEL-SIDE - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0367-0638

No Longer Available PANEL-SIDE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0367-0662

Side Panel - L.H. - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0367-0665

No Longer Available PANEL-SIDE - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0367-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0367-0668

No Longer Available PANEL-SIDE - MOSS GREEN (0668)

$

$

Not available

MTD 783-0367-0674

No Longer Available PANEL-SIDE - YARDMAN YELLOW (0674)

$

$

Not available

MTD 783-0367-0687

PANEL-SIDE LH STY - PINE GREEN (0687)

$

$

Not available

MTD 783-0367-0691

No Longer Available PANEL-SIDE - BLACK JACK (0691)

$

$

Not available

MTD 783-0367-0709

No Longer Available PANEL-SIDE - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

16

MTD 731-04612

Grille
(Superseded to 931-04089)

$

$

Not available

17

MTD 725-1396

Ignition Switch, 6-pin
(Superseded to 925-1396A)

$43.99

$

In Stock, Qty 5

0

18

MTD 725-0201

Keys (pair)
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

19

MTD 710-0751

Hex Screw, 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

20

MTD 725-0963

Headlamp, 12V
(Superseded to 925-0963)

$7.49

$

In Stock, only 4 left!

0

21

MTD 725-1651

Headlamp Socket
(Superseded to 925-1651)

$

$

Not available

22

MTD 17632D

Support Bracket

Variations

MTD 17632D-0637

Battery Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

23

MTD 710-0599

Self-tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

24

MTD 710-0607

Self-tapping Screw, 5/16-18 x .5

$6.99

$

In Stock, Qty 11

0

25

MTD 710-0788

Self-tapping Screw, 1/4-20 x 1.0

$7.49

$

In Stock, only 4 left!

0

26

MTD 726-3054

U-type Speed Nut, 1/4-20

$4.99

$

Usually ships in 3-6 days

0

27

MTD 731-04179

Dash Panel
(Superseded to 931-04179)

$97.99

$

Usually ships in 3-6 days

0

28

MTD 746-04020A

Throttle / Choke Control, 18.5"

$39.99

$

In Stock, only 1 left!

0

29

MTD 736-3090

Flat Washer, .260 x .720 x .060

$6.99

$

In Stock, only 1 left!

0

30

MTD 726-0209

Cable Tie, 30.66
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

31

MTD 751-0555B

Fuel Tank, 1.5 gal.
(Superseded to 751-0555D)

$89.99

$

In Stock, only 1 left!

0

32

MTD 751-0603

Fuel Tank Cap
(Superseded to 751-0603B)

$23.99

$

In Stock, only 2 left!

0

33

MTD 728-0162

Rivet, 1/4"

$4.99

$

Usually ships in 3-6 days

0

34

MTD 712-0324

Hex Lock Nut, Nylon, 1/4-20

$3.99

$

In Stock, Qty 16

0

35

MTD 736-3078

Flat Washer, .344 x 1.0 x .063

$4.49

$

In Stock, only 3 left!

0

36

MTD 731-1503A

Lens
(Superseded to 753-06310)

$143.99

$

Usually ships in 3-6 days

0

37

MTD 783-0156B

Grille
(Superseded to 783-04979)

Variations

MTD 783-0156B-0499

GRILL:2 STYLE - CUB BEIGE (0499)

$

$

Not available

MTD 783-0156B-0483

GRILL:2 STYLE - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0156B-0629

GRILL:2 STYLE - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0156B-0638

GRILL:2 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0156B-0662

GRILL:2 STYLE - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0156B-0665

GRILL:2 STYLE - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0156B-0667

No Longer Available USE 783-04979-0667 GRILL:2 ST - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0156B-0674

GRILL:2 STYLE - YARDMAN YELLOW (0674)

$

$

Not available

MTD 783-0156B-0687

GRILL:2 STYLE - PINE GREEN (0687)

$

$

Not available

MTD 783-0156B-0689

GRILL:2 STYLE - POLO GREEN (0689)

$

$

Not available

MTD 783-0156B-0691

GRILL:2 STYLE - BLACK JACK (0691)

$

$

Not available

MTD 783-0156B-0709

GRILL:2 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-0156B-0717

GRILL:2 STYLE - SILVER MIST (0717)

$

$

Not available

$94.99

$

Usually ships in 3-6 days

0

38

MTD 731-04387

Steering Bellow

$

$

Not available
