13AH451F352 - Yard Machines Lawn Tractor (1997) (Walmart) Hood and Grille Assembly Parts Diagram

Lawn Tractor

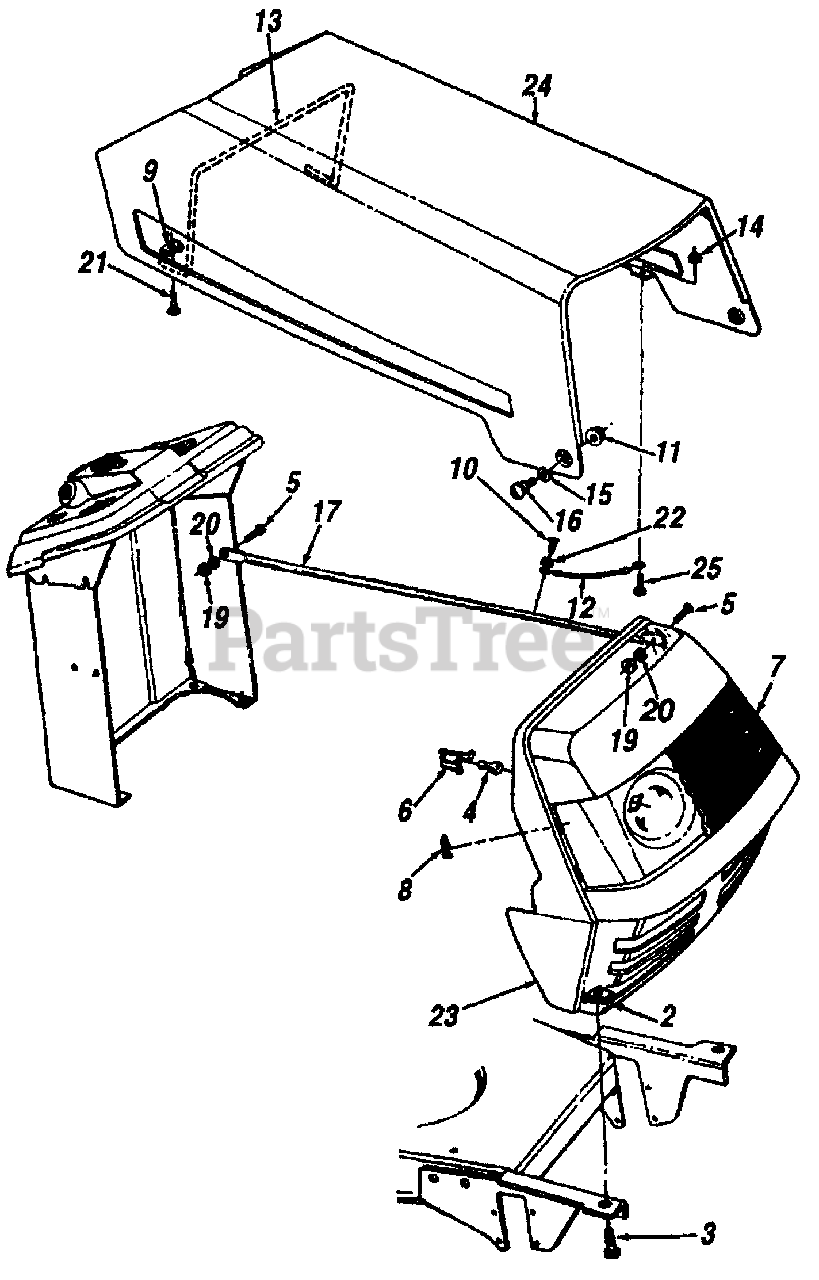

Hood and Grille Assembly Parts Diagram

  • Title

2

MTD 712-0211

U-Nut 5/16-18 Thd.

$

$

Currently unavailable

3

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

4

MTD 725-0963

Bulb
(Superseded to 925-0963)

$7.49

$

In Stock, only 3 left!

0

5

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

6

MTD 725-1651

Socket
(Superseded to 925-1651)

$

$

Not available

7

MTD 731-1099A

Lens
(Superseded to 931-1099A)

$92.99

$

In Stock, only 1 left!

0

8

MTD 714-0104

Int. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

9

MTD 726-0130

Speed Nut
(Superseded to 926-0130)

$

$

Not available

10

MTD 710-0351

Truss Mach. B-Tap Scr. #10 x .5"

$4.49

$

Usually ships in 3-6 days

0

11

MTD 712-3027

Lock Nut 1/4-20 Thd.
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 18

0

12

MTD 723-0302

Hood Stop

$12.99

$

Usually ships in 3-6 days

0

13

MTD 732-0699

Hood Spring

$

$

Not available

14

MTD 712-0272

Hex Sems Nut #10-24 Thd.

$3.99

$

In Stock, only 1 left!

0

15

MTD 736-0413

Spring Washer .39" I.D. x .62" O.D.

$6.99

$

In Stock, only 2 left!

0

16

MTD 738-0952

Shld. Bolt
(Superseded to 938-0952A)

$7.49

$

In Stock, Qty 10

0

17

MTD 749-0722B

Grille Support

Variations

MTD 749-0722B-0637

Grille Support - POWDER BLACK (0637)

$

$

Not available

$

$

19

MTD 712-3006

Hex Nut 1/4-20 Thd. (Gr. 5)

$4.99

$

In Stock, Qty 19

0

20

MTD 736-0329

Lock Washer 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

21

MTD 710-0589

Hex Tap Scr. #10-16 x .75" Lg.

$6.99

$

Usually ships in 3-6 days

0

22

MTD 736-0400

Fl-Washer .218" I.D. x .62"

$5.49

$

In Stock, Qty 12

0

23

MTD 17940B

Grille

Variations

MTD 17940B-0483

No Longer Available GRILLE-STY - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17940B-0499

No Longer Available GRILLE-STY - CUB BEIGE (0499)

$

$

Not available

MTD 17940B-0629

No Longer Available GRILLE-STY - SILVER FLAKE (0629)

$

$

Not available

MTD 17940B-0637

GRILLE-STYLE 1 - POWDER BLACK (0637)

$

$

Not available

MTD 17940B-0638

No Longer Available GRILLE-STY - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17940B-0648

No Longer Available GRILLE-STY - TECH GRAY (0648)

$

$

Not available

MTD 17940B-0650

No Longer Available GRILLE-STY - RED METALLIC (0650)

$

$

Not available

MTD 17940B-0662

No Longer Available GRILLE-STY - OYSTER GRAY (0662)

$

$

Not available

MTD 17940B-0665

No Longer Available GRILLE-STY - YARDMAN GREEN (0665)

$

$

Not available

MTD 17940B-0667

No Longer Available GRILLE-STY - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17940B-0674

No Longer Available GRILLE-STY - YARDMAN YELLOW (0674)

$

$

Not available

MTD 17940B-0691

GRILLE-STYLE 1 - BLACK JACK (0691)

$

$

Not available

$

$

24

MTD 17941

Hood

Variations

MTD 17941-0483

No Longer Available HOOD - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17941-0629

No Longer Available HOOD - SILVER FLAKE (0629)

$

$

Not available

MTD 17941-0638

No Longer Available HOOD - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17941-0648

No Longer Available HOOD - TECH GRAY (0648)

$

$

Not available

MTD 17941-0650

No Longer Available HOOD - RED METALLIC (0650)

$

$

Not available

MTD 17941-0662

No Longer Available HOOD - OYSTER GRAY (0662)

$

$

Not available

MTD 17941-0665

No Longer Available HOOD - YARDMAN GREEN (0665)

$

$

Not available

MTD 17941-0667

No Longer Available HOOD - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17941-0686

No Longer Available HOOD - SIMPLICITY ORANGE (0686)

$

$

Not available

$

$

25

MTD 710-0473

Truss Mach. Scr. #10-24 x .5"

$4.49

$

In Stock, only 2 left!

0
