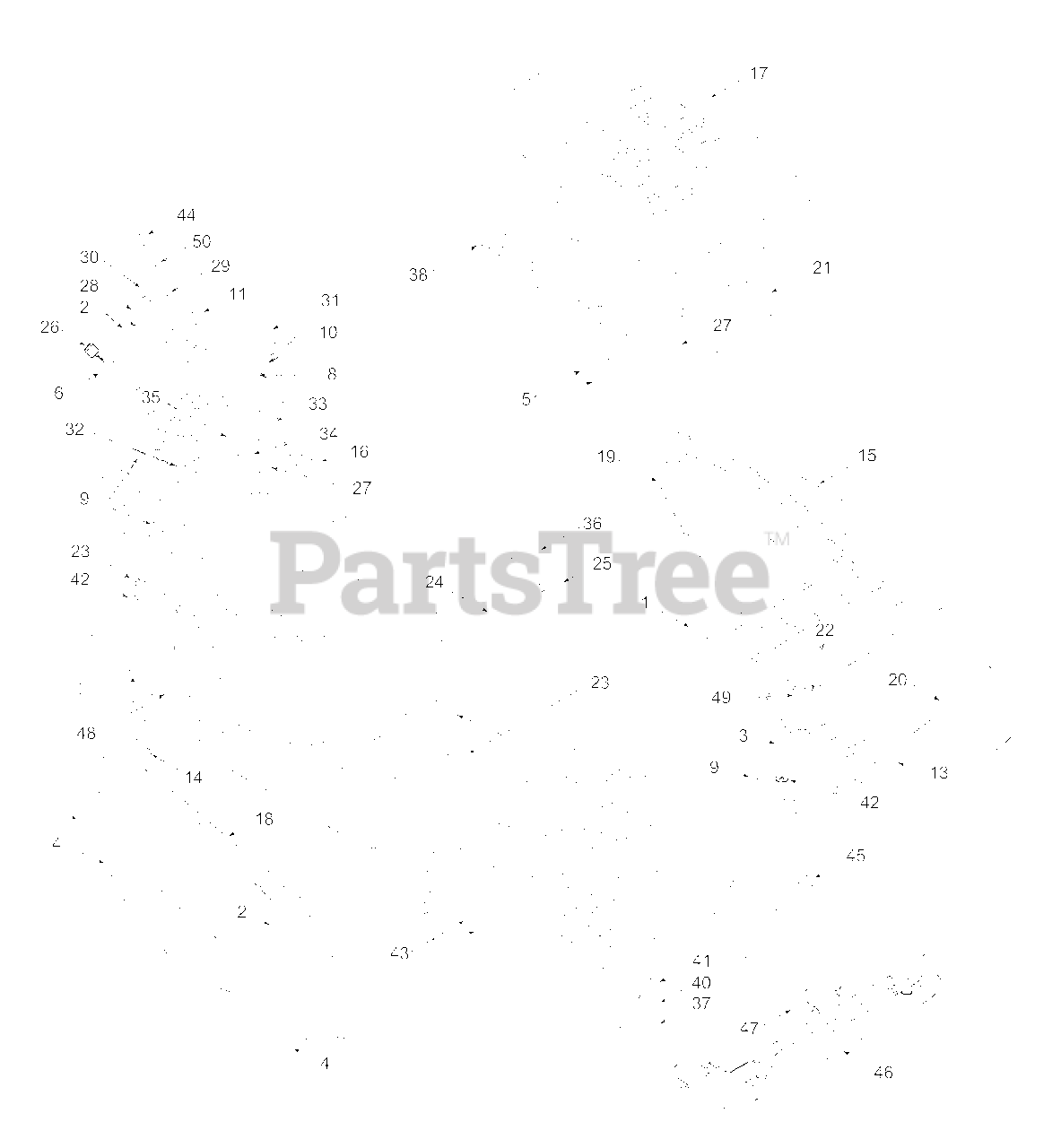

13AG619H022 - Yard Machines Lawn Tractor (2003) (Cotter & Company) Hood Style 9 Parts Diagram

Lawn Tractor

Hood Style 9 Parts Diagram

  • Title

1

MTD 783-1346

Grill Support Bracket (9-style)
(Superseded to 783-1346A-0637)

Variations

MTD 783-1346-0637

Support Bracket, Grill - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

2

MTD 710-0599

Self-tapping Screw, 1/4-20 x.5

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0528

Hex Cap Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0924

Phillips Pan Screw, 1/4-20 x.75

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-1017

Truss Phillips Screw, 1/4-20 x.625

$8.49

$

In Stock, Qty 9

0

6

MTD 725-1741

Ignition Switch
(Superseded to 925-1741)

$45.99

$

In Stock, Qty 6

0

8

MTD 710-0642

Self-tapping Screw, 1/4-20 x.75

$4.49

$

In Stock, Qty 20+

0

9

MTD 712-0292

U-type Speed Nut, 1/4-20

$10.99

$

In Stock, only 2 left!

0

10

MTD 736-0270

Bell Washer,.265 x.75 x.062

$3.99

$

In Stock, Qty 20+

0

11

MTD 725-04036

Systems Indicator Monitor w/ Hour Meter
(Superseded to 925-06170B)

$70.99

$

Usually ships in 3-6 days

0

MTD 725-1758

Systems Indicator Monitor w/ Ammeter

$39.99

$

In Stock, only 1 left!

0

13

MTD 731-2119A

Grille (9-style)
(Superseded to 731P2119A)

$

$

Not available

14

MTD 731-0511

Trim Strip, 4

$3.99

$

Usually ships in 3-6 days

0

15

MTD 725-0157

Cable Tie, 3/16 x.05 x 7.4

$3.99

$

In Stock, Qty 20+

0

16

MTD 746-1085

Choke Knob/Cable (Models with any B&S Twin)
(Superseded to 946-1085A)

$30.99

$

In Stock, only 1 left!

0

MTD 746-1088

Choke Knob/Cable (Models with Kohler)
(Superseded to 946-1088)

$29.99

$

In Stock, only 1 left!

0

17

MTD 783-0783

Hood (9-style)
(Superseded to 783-0783A)

Variations

MTD 783-0783-0638

HOOD:3 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0783-0691

HOOD:3 STYLE - BLACK JACK (0691)

$

$

Not available

MTD 783-0783-0709

HOOD:3 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

18

MTD 783-0784

RH Side Panel (9-style)
(Superseded to 783-0784A)

Variations

MTD 783-0784-0638

PANEL-SIDE RH - MTD/TROY-BILT RED (0638)

$123.99

$

Usually ships in 3-6 days

0

MTD 783-0784-0691

PANEL-SIDE RH - BLACK JACK (0691)

$

$

Not available

MTD 783-0784-0709

PANEL-SIDE RH - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

19

MTD 783-0785

LH Side Panel (9-style)

Variations

MTD 783-0785-0638

PANEL:SD:LH 9 STYLE - MTD/TROY-BILT RED (0638)

$142.99

$

Usually ships in 3-6 days

0

MTD 783-0785-0691

PANEL:SD:LH 9 STYLE - BLACK JACK (0691)

$

$

Not available

MTD 783-0785-0709

PANEL:SD:LH 9 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

20

MTD 731-2118A

Headlight Lens (9-style)

$35.99

$

Usually ships in 3-6 days

0

21

MTD 747-2138

Hood Hinge Rod

$

$

Not available

22

MTD 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 1 left!

0

23

MTD 710-0726

Self-tapping Screw, 5/16-18 x.625

$4.49

$

In Stock, Qty 20+

0

24

MTD 751-0658D

Fuel Tank, Three Gallon (Shown)
(Superseded to 751-0658E)

$115.99

$

In Stock, only 3 left!

0

MTD 751-0659C

Fuel Tank, Two Gallon
(Superseded to 751-0659D)

$84.99

$

In Stock, Qty 5

0

25

MTD 751-0603

Fuel Cap
(Superseded to 751-0603B)

$23.99

$

Usually ships in 3-6 days

0

26

MTD 725-1745

Ignition Key w/ plastic cover
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

MTD 725-1744

Ignition Key w/o plastic cover
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

27

MTD 710-0895

Self-tapping Screw, 1/4-15 x.75

$6.49

$

In Stock, only 4 left!

0

28

MTD 710-3217

Truss Phillips Screw, #8-32 x.375

$6.99

$

In Stock, Qty 7

0

29

MTD 712-0142

Hex Nut, #8-32

$4.49

$

In Stock, Qty 10

0

30

MTD 731-1857

Throttle Control Knob

$14.99

$

In Stock, only 4 left!

0

31

MTD 731-2225C

Dash Panel (Models w/ Electric PTO)
(Superseded to 631-04038)

$

$

Not available

MTD 731-2122C

Dash Panel (Models w/ Manual PTO)

$

$

Not available

32

MTD 731-04215

Cruise Control Lever
(Superseded to 931-04215)

$

$

Not available

33

MTD 731-04217

Parking Brake Lever
(Superseded to 931-04217)

$11.99

$

In Stock, only 1 left!

0

34

MTD 736-0142

Flat Washer, 9/32 x 1/2 x 1/16

$4.99

$

In Stock, Qty 20+

0

35

MTD 747-1196

Brake/Cruise Pivot Rod

$15.99

$

Usually ships in 3-6 days

0

36

MTD 749-1087C

Dash Support Tube

Variations

MTD 749-1087C-0637

Dash Support Tube - POWDER BLACK (0637)

$

$

Not available

$

$

37

MTD 712-3010

Hex Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

38

MTD 731-2269A

Hood Plenum (Models with Kohler)

$

$

Not available

MTD 731-2270A

Hood Plenum (Models with B&S OHV V-Twin)

$

$

Not available

MTD 731-2271

Hood Plenum (Models with B&S Opposed Twin)

$

$

Not available

~N/A

Hood Plenum (Models with B&S OHV Single)

$

$

Not available

?39

MTD 726-3046

Ratchet Clip

$3.99

$

In Stock, Qty 16

0

40

MTD 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

41

MTD 726-0201

Speed Nut,.3125

$6.99

$

In Stock, only 2 left!

0

42

MTD 736-3078

Flat Washer,.349 x 1.0 x.063

$4.49

$

In Stock, Qty 20+

0

43

MTD 710-0650

Screw, 5/16-18 x.88 (Grade 5)

$3.99

$

In Stock, Qty 20+

0

44

MTD 725-1752

Electric PTO Switch
(Superseded to 925-04174A)

Note: If Equipped

$70.99

$

In Stock, only 2 left!

0

45

MTD 711-0332

Clevis Pin,.50 x.78
(Superseded to 911-0332)

Note: If Equipped

$16.99

$

In Stock, Qty 17

0

46

MTD 768-0010A

Bumper Assembly
(Superseded to OEM-190-679)

Note: If Equipped

$92.99

$

Usually ships in 3-6 days

0

47

MTD 714-0145

Internal Cotter Pin

Note: If Equipped

$4.99

$

In Stock, Qty 20+

0

48

MTD 710-1611B

Screw, 5/16-18 x.75

$6.99

$

In Stock, only 2 left!

0

49

MTD 725-1649

Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

50

MTD 731-1999

Choke Plug

$10.99

$

Usually ships in 3-6 days

0

MTD 629-0469B

Headlight Wire Harness
(Superseded to 929-0469B)

$55.99

$

Usually ships in 3-6 days

0

MTD 629-1067

Tractor Wire Harness (Models with Hour Meter & Electric PTO)

$347.99

$

Usually ships in 3-6 days

0

MTD 629-1068

Tractor Wire Harness (Kohler) (Models with Hour Meter & Electric PTO)

$

$

Not available

MTD 629-1071

Tractor Wire Harness (Models with Hour Meter & Manual PTO)
(Superseded to 929-1071)

$314.99

$

Usually ships in 3-6 days

0

MTD 629-04051

Tractor Wire Harness (Models with Ammeter & Manual PTO)
(Superseded to 929-04051)

$

$

Not available
