13AG619H022 - Yard Machines Lawn Tractor (2003) (Cotter & Company) Axle Front, Wheels, Steering Parts Diagram

Lawn Tractor

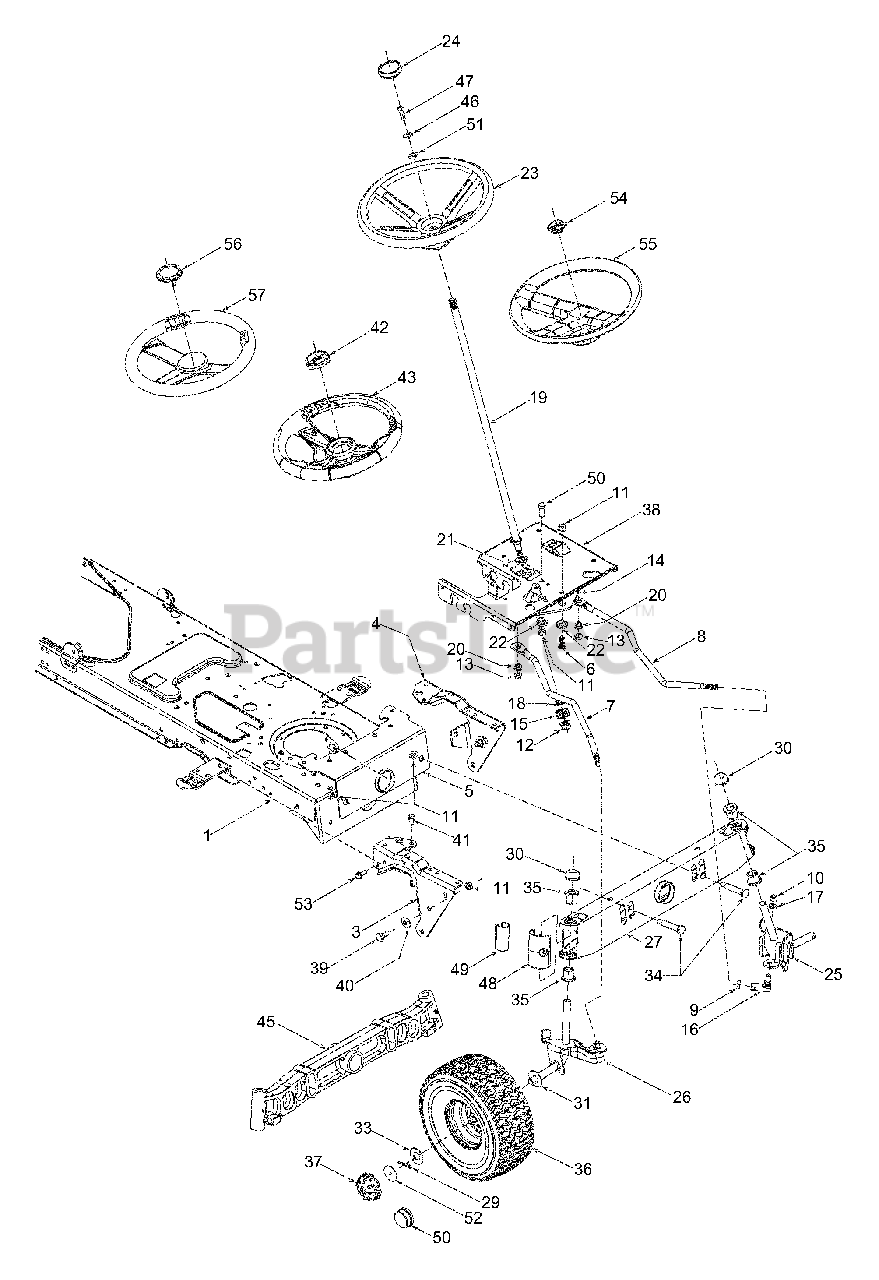

Axle Front, Wheels, Steering Parts Diagram

  • Title

1

MTD 683-0304C

Lower Frame Assembly

Variations

MTD 683-0304C-0606

No Longer Available FRAME ASM- - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 683-0304C-0637

Lower Frame Assembly - POWDER BLACK (0637)

$

$

Not available

MTD 683-0304C-0650

No Longer Available FRAME ASM- - RED METALLIC (0650)

$

$

Not available

MTD 683-0304C-0665

No Longer Available FRAME ASM- - YARDMAN GREEN (0665)

$

$

Not available

MTD 683-0304C-0691

No Longer Available FRAME ASM- - BLACK JACK (0691)

$

$

Not available

MTD 683-0304C-0716

No Longer Available FRAME ASM- - CUB YELLOW-99 (0716)

$

$

Not available

$

$

?2

MTD 710-1238

Self-tapping Screw, 16-18 x.625
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

3

MTD 783-0726B

RH Pivot Support Bracket
(Superseded to 783-0726E)

Variations

MTD 783-0726B-0606

Pivot Support Bracket, RH - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-0726B-0498

Pivot Support Bracket, RH - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0726B-0637

BRACKET:PIVOT:SUPT - POWDER BLACK (0637)

$

$

Not available

MTD 783-0726B-0650

BRACKET:PIVOT:SUPT - RED METALLIC (0650)

$

$

Not available

MTD 783-0726B-0691

BRACKET:PIVOT:SUPT - BLACK JACK (0691)

$

$

Not available

MTD 783-0726B-0716

Pivot Support Bracket, RH - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-0726B-0665

BRACKET:PIVOT:SUPT - YARDMAN GREEN (0665)

$

$

Not available

$

$

4

MTD 783-0727A

LH Pivot Support Bracket
(Superseded to 783-0727B)

Variations

MTD 783-0727A-0606

PIVOT SUPPORT BRACKET (LH) - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-0727A-0498

Pivot Support Bracket, LH - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0727A-0650

BRACKET:PIVOT:SUPT LH - RED METALLIC (0650)

$

$

Not available

MTD 783-0727A-0691

BRACKET:PIVOT:SUPT - BLACK JACK (0691)

$

$

Not available

MTD 783-0727A-0716

Pivot Support Bracket, LH - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-0727A-0637

USE 783-0727D BRACKET:PIVOT:S - POWDER BLACK (0637)

$

$

Not available

MTD 783-0727A-0665

BRACKET:PIVOT:SUPT - YARDMAN GREEN (0665)

$

$

Not available

$52.99

$

Usually ships in 3-6 days

0

5

MTD 783-0728

Pivot Bar Bracket
(Superseded to 783-0728B)

Variations

MTD 783-0728-0498

Pivot Bar Bracket - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0728-0716

Pivot Bar Bracket - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-0728-0637

Pivot Bar Bracket - POWDER BLACK (0637)

$

$

Not available

MTD 783-0728-0650

BRACKET-PIVOT BAR - RED METALLIC (0650)

$

$

Not available

MTD 783-0728-0665

BRACKET-PIVOT BAR - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0728-0691

BRACKET-PIVOT BAR - BLACK JACK (0691)

$

$

Not available

MTD 783-0728-4008

PIVOT BAR BRACKET - WINE RED (4008)

$

$

Not available

$38.99

$

Usually ships in 3-6 days

0

6

MTD 710-04095

Hex Cap Screw, 3/8-16 x 1.0 (Grade 5)

$5.49

$

In Stock, Qty 20+

0

7

MTD 711-1408

RH Drag Link

$

$

Not available

8

MTD 711-1409A

LH Drag Link

$

$

Not available

9

MTD 712-0240

Jam Nut, 7/16-20 (Grade 2)
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

10

MTD 712-0241

Hex Nut, 3/8-24 (Grade 2)

$4.49

$

In Stock, Qty 13

0

11

MTD 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

12

MTD 712-0459

Flange Lock Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

13

MTD 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

MTD 717-1550D

Steering Gear, 11/90 Ratio
(Superseded to 717-1550F)

$70.99

$

In Stock, Qty 20+

0

15

MTD 717-1554

Steering Pinion Gear

$10.99

$

In Stock, Qty 20+

0

16

MTD 723-0448A

Ball Joint, 7/16-20
(Superseded to 923-0448A)

$24.99

$

In Stock, Qty 20+

0

17

MTD 736-0169

Lock Washer, 3/8

$3.99

$

In Stock, Qty 20+

0

18

MTD 736-3084

Flat Washer,.51 x 1.12 x.06

$4.99

$

In Stock, Qty 20+

0

19

MTD 738-1001A

Steering Shaft,.625 OD x 24.4

$75.99

$

In Stock, Qty 5

0

20

MTD 741-0475

Plastic Bushing,.38 ID
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

21

MTD 741-0656

Hex Flange Bearing, 5/8
(Superseded to 941-0656A)

$5.49

$

In Stock, Qty 20+

0

22

MTD 738-0372B

Shoulder Spacer,.38 ID

$9.49

$

In Stock, Qty 20+

0

23

MTD 631-0027

Standard Steering Wheel, 13.25
(Superseded to 931-0027A)

$97.99

$

Usually ships in 3-6 days

0

24

MTD 731-0220

Steering Wheel Cap, Round
(Superseded to 931-0220)

$9.49

$

In Stock, only 2 left!

0

25

MTD 638-0019A

LH Axle Assy.,.625 Dia. - 42" Deck
(Superseded to 938-0019A)

$57.99

$

In Stock, Qty 10

0

25

MTD 638-0021

LH Axle Assy.,.625/.750 Dia. - 46" Deck
(Superseded to 938-0021)

$103.99

$

In Stock, Qty 5

0

26

MTD 638-0020A

RH Axle Assy.,.625 Dia. - 42" Deck
(Superseded to 938-0020A)

$

$

Not available

26

MTD 638-0022

RH Axle Assy.,.625/.750 Dia. - 46" Deck
(Superseded to 938-0022)

$99.99

$

In Stock, only 1 left!

0

27

MTD 683-0128A

Steel Pivot Bar
(Superseded to 683-0128B)

Variations

MTD 683-0128A-0498

Steel Axle Pivot Bar Assembly - OLD CUB YELLOW (0498)

$97.99

$

In Stock, only 2 left!

0

MTD 683-0128A-0637

Steel Axle Pivot Bar Assembly - POWDER BLACK (0637)

$97.99

$

In Stock, only 2 left!

0

MTD 683-0128A-0691

Steel Axle Pivot Bar Assembly - BLACK JACK (0691)

$97.99

$

In Stock, only 2 left!

0

MTD 683-0128A-0665

Steel Axle Pivot Bar Assembly - YARDMAN GREEN (0665)

$97.99

$

In Stock, only 2 left!

0

$90.99

$

Usually ships in 3-6 days

0

29

MTD 714-0162

Cotter Pin

$4.99

$

In Stock, Qty 20+

0

30

MTD 726-0214

Push Cap,.625 - 42" Deck

$10.99

$

In Stock, only 4 left!

0

30

MTD 726-0341

Push Cap,.75 - 46" Deck

$4.99

$

In Stock, Qty 20+

0

31

MTD 736-0162

Flat Washer,.64 x 1.0 x.12

$4.49

$

In Stock, Qty 20+

0

33

MTD 736-0285

Flat Washer,.635 x 1.589 x.06

$4.49

$

In Stock, Qty 20+

0

34

MTD 738-1011

Shoulder Screw,.5 x 2.2, 3/8-16
(Superseded to 738-1011A)

$8.49

$

In Stock, Qty 11

0

35

MTD 741-0659

Flange Brg,.632 ID x.937 OD - 42" Deck
(Superseded to 941-0659)

$5.49

$

In Stock, Qty 5

0

35

MTD 741-0660

Flange Brg,.76 ID x.937 OD - 46" Deck
(Superseded to 741-0660A)

$3.49

$

In Stock, Qty 20+

0

36

MTD 634-0105A

Wheel Assembly, 15 x 6 x 6 Square Shoulder, w/Plastic Flange …
(Superseded to 634-0105B)

Variations

MTD 634-0105A-0911

Wheel Assembly, Gray - Carlisle Gray (0911)

$249.99

$

In Stock, only 4 left!

0

MTD 634-0105A-0912

Wheel Assembly, Gray - Dico Gray (0912)

$249.99

$

In Stock, only 4 left!

0

MTD 634-0105A-0914

Wheel Assembly, Gray - Cheng Gray (0914)

$249.99

$

In Stock, only 4 left!

0

MTD 634-0105A-0915

Wheel Assembly, Gray - Duro Gray (0915)

$249.99

$

In Stock, only 4 left!

0

MTD 634-0105A-0916

Wheel Assembly, Gray - Kenda Gray (0916)

$249.99

$

In Stock, only 4 left!

0

MTD 634-0105A-0931

Wheel Assembly, Complete - Carlisle Beige (0931)

$

$

Not available

MTD 634-0105A-0941

WHEEL ASM-COMPLETE - Carlisle Yellow (0941)

$

$

Not available

MTD 634-0105A-0945

WHEEL ASM-COMPLETE - Duro Yellow (0945)

$

$

Not available

$202.99

$

Usually ships in 3-6 days

0

36

MTD 634-0115

Wheel Assembly, 15 x 6 x 6 Square Shoulder, w/Flange Ball Brg.

Variations

MTD 634-0115-0911

No Longer Available WHEEL ASM - Carlisle Gray (0911)

$

$

Not available

MTD 634-0115-0916

No Longer Available WHEEL ASM - Kenda Gray (0916)

$

$

Not available

MTD 634-0115-0914

No Longer Available -0911 WHE - Cheng Gray (0914)

$

$

Not available

MTD 634-0115-0931

No Longer Available WHEEL ASM - Carlisle Beige (0931)

$

$

Not available

$

$

36

MTD 634-0056A

Wheel Assembly,15 x 6 x 6 Round Shoulder
(Superseded to 634-0056B-0911)

Variations

MTD 634-0056A-0911

Tire and Wheel Assembly - Carlisle Gray (0911)

$249.99

$

In Stock, only 3 left!

0

MTD 634-0056A-0912

Tire and Wheel Assembly - Dico Gray (0912)

$249.99

$

In Stock, only 3 left!

0

MTD 634-0056A-0914

Tire and Wheel Assembly - Cheng Gray (0914)

$249.99

$

In Stock, only 3 left!

0

MTD 634-0056A-0916

Tire and Wheel Assembly - Kenda Gray (0916)

$249.99

$

In Stock, only 3 left!

0

MTD 634-0056A-0941

Tire and Wheel Assembly - Carlisle Yellow (0941)

$249.99

$

In Stock, only 3 left!

0

MTD 634-0056A-0981

Tire and Wheel Assembly - Carlisle Green (0981)

$249.99

$

In Stock, only 3 left!

0

MTD 634-0056A-0931

WHEEL ASM-W/TIRE - Carlisle Beige (0931)

$202.99

$

In Stock, only 1 left!

0

$249.99

$

In Stock, only 3 left!

0

36

MTD 634-0172

Rim Assembly Only (uses Flange Plastic Brg.)
(Superseded to 934-0172A)

Note: Not Shown

Variations

MTD 634-0172-0499

Rim Assembly, Beige - CUB BEIGE (0499)

$103.99

$

Usually ships in 3-6 days

0

MTD 634-0172-0662

Rim Assembly, Gray - OYSTER GRAY (0662)

$103.99

$

Usually ships in 3-6 days

0

MTD 634-0172-0674

Rim Assembly - YARDMAN YELLOW (0674)

$103.99

$

Usually ships in 3-6 days

0

MTD 634-0172-0688

Rim Assembly, Gray - SPRING GREEN (0688)

$103.99

$

Usually ships in 3-6 days

0

$84.99

$

Usually ships in 3-6 days

0

36

MTD 741-0706

Flange Bearing w/Fitting
(Superseded to 941-0706)

Note: Not Shown

$8.49

$

In Stock, Qty 7

0

36

MTD 741-0487C

Flange Bearing

Note: Not Shown

$7.49

$

Usually ships in 3-6 days

0

36

MTD 634-0051

Rim Assembly Only (uses Ball Brg.)

Note: Not Shown

Variations

MTD 634-0051-0629

No Longer Available USE 934-0051-0662 WHEEL RIM 6 - SILVER FLAKE (0629)

$

$

Not available

MTD 634-0051-0662

No Longer Available USE 934-0051-0662 WHEEL RIM 6 - OYSTER GRAY (0662)

$

$

Not available

MTD 634-0051-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 634-0051-0674

No Longer Available USE 934-0051-0674 WHEEL RIM 6 - YARDMAN YELLOW (0674)

$

$

Not available

$

$

36

MTD 741-0569

Ball Bearing
(Superseded to 941-0569)

Note: Not Shown

$34.99

$

In Stock, only 1 left!

0

36

MTD 734-0255

Air Valve
(Superseded to 934-0255)

Note: Not Shown

$4.49

$

In Stock, Qty 20+

0

36

MTD 734-1731

Tire Only, Square Shoulder

Note: Not Shown

Variations

MTD 734-1731-0901

Tire, 15 X 6 Square Tread - Carlisle (0901)

$49.99

$

Usually ships in 3-6 days

0

MTD 734-1731-0902

TIRE-MULTI TRAC 15 - Dico (0902)

$44.99

$

In Stock, only 2 left!

0

MTD 734-1731-0904

Tire, 15 X 6 Square Tread - Cheng (0904)

$49.99

$

Usually ships in 3-6 days

0

MTD 734-1731-0905

Tire, 15 X 6 Square Tread - Duro (0905)

$49.99

$

Usually ships in 3-6 days

0

MTD 734-1731-0906

Tire, 15 X 6 Square Tread - Kenda (0906)

$49.99

$

Usually ships in 3-6 days

0

$111.99

$

In Stock, only 1 left!

0

36

MTD 734-0864

Tire Only, Round Shoulder

Note: Not Shown

Variations

MTD 734-0864-0901

TIRE 15 X 6 - Carlisle (0901)

$136.99

$

Usually ships in 3-6 days

0

MTD 734-0864-0902

TIRE 15 X 6 DICO T - Dico (0902)

$136.99

$

Usually ships in 3-6 days

0

MTD 734-0864-0904

TIRE 15 X 6 - Cheng (0904)

$136.99

$

Usually ships in 3-6 days

0

MTD 734-0864-0905

Tire, 15 X 6 Square Tread - Duro (0905)

$49.99

$

Usually ships in 3-6 days

0

MTD 734-0864-0906

TIRE-15X6 KENDA - Kenda (0906)

$

$

Not available

$111.99

$

Usually ships in 3-6 days

0

37

MTD 731-2290A

Deluxe Hub Cap (Ref. 33 Required)
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

37

MTD 731-0484A

Standard Hub Cap
(Superseded to 931-0484A)

$6.49

$

In Stock, Qty 20+

0

38

MTD 783-0653F

Steering Support Bracket
(Superseded to 783-04612-0637)

Variations

MTD 783-0653F-0637

Steering Support Bracket - POWDER BLACK (0637)

$89.99

$

In Stock, only 3 left!

0

$89.99

$

In Stock, only 3 left!

0

39

MTD 738-0143

Shoulder Screw, 3/8-16

$4.49

$

In Stock, Qty 20+

0

40

MTD 736-0331

Bell Washer,.39 x 1.13 x.062

$3.99

$

In Stock, Qty 20+

0

41

MTD 710-1260A

Self-tapping Screw, 5/16-18 x.75

$3.99

$

In Stock, Qty 20+

0

42

MTD 731-04040

Steering Wheel Cap w/ Sprig

$9.99

$

In Stock, only 1 left!

0

42

MTD 731-04039

Steering Wheel Cap w/o Sprig

$8.49

$

In Stock, only 1 left!

0

43

MTD 631-04008

Steering Wheel, Soft Grip
(Superseded to 631-04008B)

$94.99

$

In Stock, only 4 left!

0

43

MTD 631-04028

Steering Wheel

$69.99

$

In Stock, only 1 left!

0

45

MTD 719-0399B

Cast Iron Pivot Bar - 42" Deck

$

$

Not available

45

MTD 719-0525B

Cast Iron Pivot Bar - 46" Deck
(Superseded to 919-04177E)

$248.99

$

In Stock, only 1 left!

0

46

MTD 736-0242

Bell Washer,.34 x.872

$4.49

$

In Stock, Qty 20+

0

47

MTD 710-0643

Hex Bolt, 5/16-18 X 1

$6.99

$

In Stock, Qty 5

0

48

MTD 731-1291A

Pivot Bar End Cap w/ Fitting
(Superseded to 931-1291A)

$15.99

$

In Stock, Qty 9

0

49

MTD 731-1649

Pivot Bar End Cap w/o Fitting

$

$

Not available

50

MTD 710-0514

Hex Screw, 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

51

MTD 736-3004

Flat Washer,.406 x.875 x.105

$4.99

$

In Stock, Qty 6

0

52

MTD 736-0430

Flat Washer,.35 x 1.59 x.062

$4.49

$

In Stock, Qty 10

0

53

MTD 710-1238

Screw, Hex Washer, 5/16-18 x.87
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

54

MTD 731-1459A

Steering Wheel Cap

$8.49

$

Usually ships in 3-6 days

0

55

MTD 731-1687

Steering Wheel
(Superseded to 931-1687)

$53.99

$

Usually ships in 3-6 days

0

56

MTD 731-2625

Steering Wheel Cap

$

$

Not available

57

MTD 731-2624

Steering Wheel, Soft Grip

$

$

Not available
