13AG601H729 - Yard Machines Lawn Tractor (2005) (Home Depot) Steering Parts Diagram

Lawn Tractor

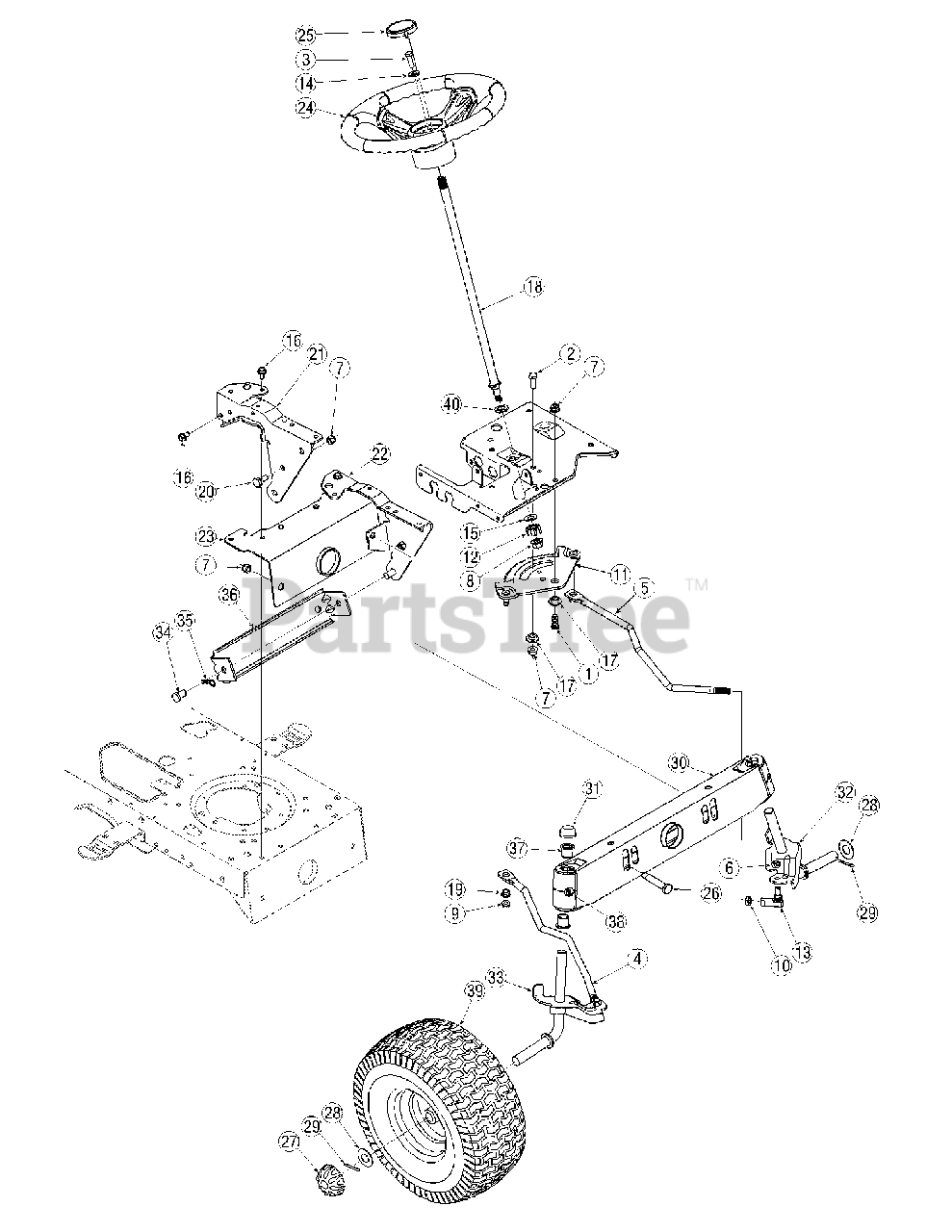

Steering Parts Diagram

  • Title

1

MTD 710-04095

Hex Screw, 3/8-16, 1.00, Gr5

$5.49

$

In Stock, Qty 20+

0

2

MTD 710-0514

Hex Screw, 3/8-16, 1.00, Gr5

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0643

Hex Screw, 5/16-18, 1.00, Gr5

$6.99

$

In Stock, Qty 5

0

4

MTD 711-1408

Link, Drag, RH

$

$

Not available

5

MTD 711-1409A

Link, Drag, LH

$

$

Not available

6

MTD 712-0214

Nut, Hex Lock, 3/8-24

$6.49

$

In Stock, only 3 left!

0

7

MTD 712-04065

Nut, Flange Lock, 3/8-16, Grf, Nylon

$3.99

$

In Stock, Qty 18

0

8

MTD 712-0459

Nut, Flange Lock, 7/16-20

$4.99

$

In Stock, Qty 20+

0

9

MTD 712-3004A

Nut, Flange Lock, 5/16-18, Gr5

$3.99

$

In Stock, Qty 20+

0

10

MTD 712-0240

Nut, Jam, 7/16-20, Gr2
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

11

MTD 717-1550E

Gear, Steering, 11/90 Ratio
(Superseded to 717-1550F)

$70.99

$

In Stock, Qty 20+

0

12

MTD 717-1554

Gear, Pinion, Steering

$10.99

$

In Stock, Qty 20+

0

13

MTD 723-0448A

Ball Joint, 7/16-20, Lock
(Superseded to 923-0448A)

$24.99

$

In Stock, Qty 20+

0

14

MTD 736-3004

Washer, Flat,.406 x.875 x.105

$4.99

$

In Stock, Qty 7

0

15

MTD 736-3084

Washer, Flat,.51 x 1.12 x.06

$4.99

$

In Stock, Qty 20+

0

16

MTD 710-0726

Screw, 5/16-12, 0.750

$4.49

$

In Stock, Qty 20+

0

17

MTD 738-04154

Spacer, Shoulder,.38 x 1.00 x.31

$5.49

$

In Stock, Qty 17

0

18

MTD 738-1001A

Shaft, Steering,.625 OD x 24.25 Lg

$75.99

$

In Stock, only 3 left!

0

19

MTD 741-0475

Plastic Bushing.380 ID
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

20

MTD 738-0143

Screw, Shoulder,.498 x.340, 3/8-16

$4.49

$

In Stock, Qty 20+

0

21

MTD 783-0726D-0637

Pivot Bracket, Support RH
(Superseded to 783-0726E-0637)

$

$

Not available

22

MTD 783-0727C-0637

Pivot Bracket, Support LH
(Superseded to 783-0727D-0637)

$

$

Not available

23

MTD 783-0728-0637

Pivot Bracket, Bar
(Superseded to 783-0728B-0637)

$

$

Not available

24

MTD 631-04028

Steering Wheel

$69.99

$

In Stock, only 1 left!

0

25

MTD 731-04040

Steering Wheel Cap

$9.99

$

In Stock, only 1 left!

0

26

MTD 738-1011A

Shoulder Screw,.5 x 2.2, 3/8-16

$8.49

$

In Stock, Qty 11

0

27

MTD 731-2290A

Deluxe Hub Cap
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

28

MTD 736-0316

Flat Washer,.78 x 1.589 x.06

$4.49

$

In Stock, Qty 20+

0

29

MTD 714-04039

Cotter Pin, 5/32 x 1.25
(Superseded to 714-0162)

$4.99

$

In Stock, Qty 20+

0

30

MTD 683-0128B-0637

Pivot Bar

$97.99

$

In Stock, only 3 left!

0

31

MTD 726-0341

Push Cap

$4.99

$

In Stock, Qty 20+

0

32

MTD 638-04003

LH Axle Assembly,.750
(Superseded to 638-04003AP)

$

$

Not available

33

MTD 938-04004

RH Axle Assembly,.750
(Superseded to 938-04004A)

$71.99

$

In Stock, only 2 left!

0

34

MTD 711-0332

Pin, Clevis,.50 x.78
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 17

0

35

MTD 714-04023

Cotter Pin, Internal,.080 x 1.5625

$4.49

$

In Stock, Qty 20+

0

36

MTD 783-0720A-0637

Adjustment Bracket, Front
(Superseded to 783-0720C-0637)

$45.99

$

In Stock, only 2 left!

0

37

MTD 741-0660A

Flange Bearing,.760 x.941 x 1.0

$3.49

$

In Stock, Qty 20+

0

38

MTD 731-1291A

Pivot Bar Endcap
(Superseded to 931-1291A)

$15.99

$

In Stock, Qty 11

0

39

MTD 634-04086-0911

Wheel Assembly Complete, 15 x 6
(Superseded to 634-05067-0911)

$185.99

$

In Stock, only 4 left!

0

39

MTD 734-1731

Tire Only, 15 x 6 x 6

Variations

MTD 734-1731-0901

Tire, 15 X 6 Square Tread - Carlisle (0901)

$49.99

$

Usually ships in 3-6 days

0

MTD 734-1731-0902

TIRE-MULTI TRAC 15 - Dico (0902)

$44.99

$

In Stock, only 2 left!

0

MTD 734-1731-0904

Tire, 15 X 6 Square Tread - Cheng (0904)

$49.99

$

Usually ships in 3-6 days

0

MTD 734-1731-0905

Tire, 15 X 6 Square Tread - Duro (0905)

$49.99

$

Usually ships in 3-6 days

0

MTD 734-1731-0906

Tire, 15 X 6 Square Tread - Kenda (0906)

$49.99

$

Usually ships in 3-6 days

0

$111.99

$

In Stock, only 1 left!

0

39

MTD 634-04081

Rim Only w/ Bearings & Valve Stem
(Superseded to 934-04081)

Variations

MTD 634-04081-0499

Rim Assembly, Front - CUB BEIGE (0499)

$105.99

$

Usually ships in 3-6 days

0

MTD 634-04081-0662

Rim Assembly, Front - OYSTER GRAY (0662)

$105.99

$

Usually ships in 3-6 days

0

MTD 634-04081-0674

RIM ASM-FRONT - YARDMAN YELLOW (0674)

$105.99

$

Usually ships in 3-6 days

0

MTD 634-04081-4009

Rim Assembly, Front Tee White - TEE WHITE (4009)

$105.99

$

Usually ships in 3-6 days

0

MTD 634-04081-4042

RIM ASM-FRONT - CRAFTSMAN GRAY (4042)

$105.99

$

Usually ships in 3-6 days

0

$85.99

$

Usually ships in 3-6 days

0

39

MTD 741-0990B

BEARING, FLANGE W/ZERK

Note: Not shown

$10.99

$

In Stock, Qty 20+

0

39

MTD 741-0516B

BEARING, FLANGE

Note: Not shown

$6.49

$

In Stock, Qty 20+

0

39

MTD 734-0255

Valve Stem
(Superseded to 934-0255)

Note: Not shown

$4.49

$

In Stock, Qty 20+

0

40

MTD 741-04237

Bearing-Hex Flange 5/8 ID PM
(Superseded to 741-04237B)

$6.99

$

In Stock, Qty 19

0
