13AF693G118 - Gardenway Lawn Tractor (2002) (Sam's Club) Engine Accessories Intek Twin Parts Diagram

Lawn Tractor

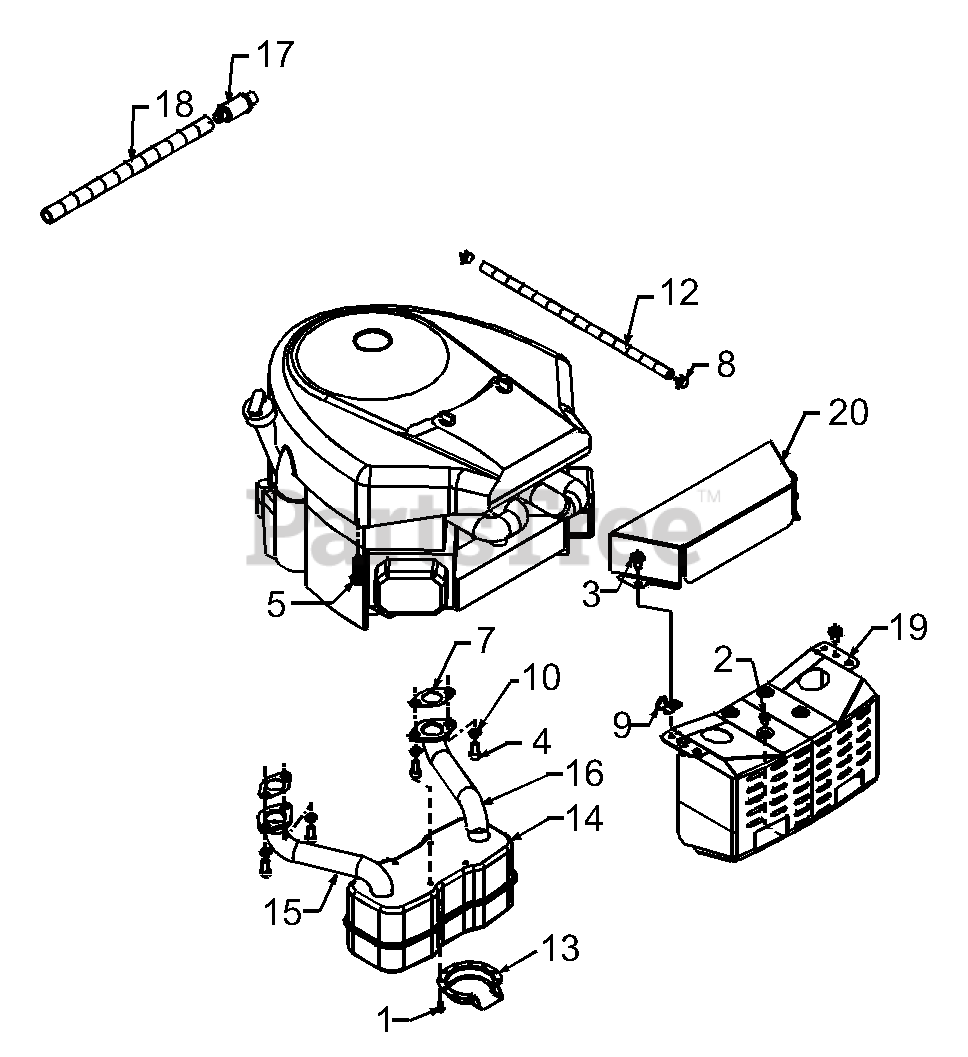

Engine Accessories Intek Twin Parts Diagram

  • Title

1

MTD 710-0148

Hex Tap Scr. #8-32 x .38" Lg.

$4.49

$

In Stock, Qty 16

0

2

MTD 710-0599

Hex Wash. TT-Tap Scr. 1/4-20 x 5" Lg.

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0604

Hex Wash. TT-Tap Scr. 5/16-18 x .62"
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-1314

Socket Head Scr. 5/16-18 x .62"
(Superseded to 710-1314A)

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-1315

Hex TT-Tap Scr. 3/8-16 x 1.25"

$4.49

$

In Stock, Qty 20+

0

7

MTD 721-0460

Exhaust Gasket
(Superseded to 721P0460)

$6.99

$

In Stock, only 2 left!

0

8

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

9

MTD 726-0272

Clamp

$7.49

$

Usually ships in 3-6 days

0

10

MTD 736-0119

Lock Washer 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

MTD 751-0535-12

Fuel Line 12" Lg.
(Superseded to 751-10349-13)

$17.99

$

In Stock, only 3 left!

0

13

MTD 751-0564

Muffler Deflector
(Superseded to 751-0564B)

$13.99

$

In Stock, only 4 left!

0

14

MTD 751-0616

Muffler
(Superseded to 951-0616B)

$163.99

$

In Stock, Qty 16

0

15

MTD 751-0650

Exhaust Pipe-RH
(Superseded to 751-0650B)

$63.99

$

In Stock, only 1 left!

0

16

MTD 751-0651

Exhaust Pipe-LH
(Superseded to 751-0651B)

$60.99

$

In Stock, only 1 left!

0

17

MTD 751-3140

Oil Drain
(Superseded to 951-10517A)

$24.99

$

In Stock, only 2 left!

0

18

MTD 751-3141

Oil Drain Hose
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 8

0

19

MTD 783-0615

Muffler Bracket
(Superseded to 783-0615E-0637)

Variations

MTD 783-0615-0637

Muffler Bracket - POWDER BLACK (0637)

$64.99

$

In Stock, only 1 left!

0

$64.99

$

In Stock, only 1 left!

0

20

MTD 783-0625

Heat Shield
(Superseded to 783-0625C)

$111.99

$

Usually ships in 3-6 days

0
