13AF675G062 - Yard Machines Lawn Tractor (2002) (Lowes) Deck Assembly "G" Parts Diagram

Lawn Tractor

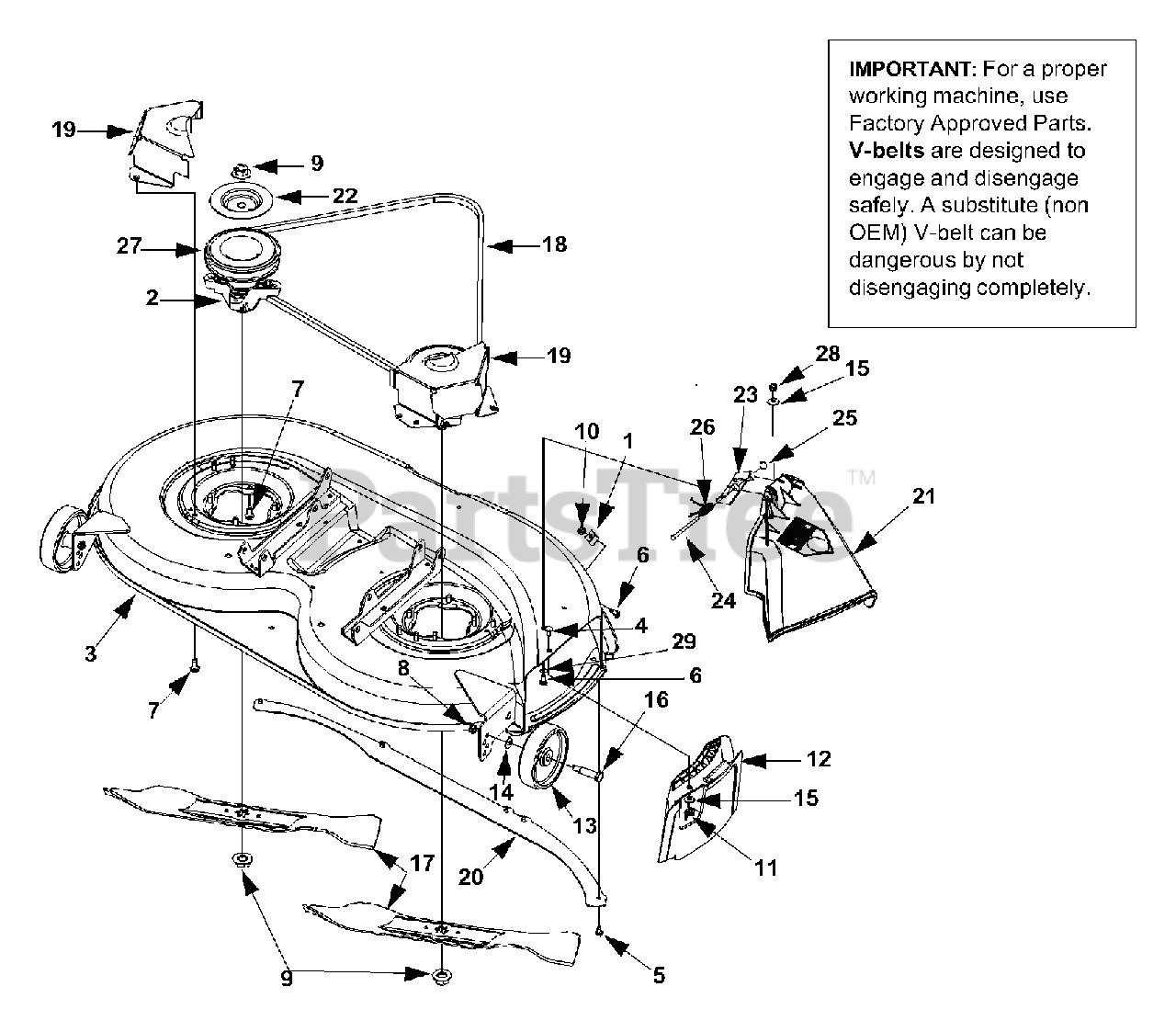

Deck Assembly "G" Parts Diagram

  • Title

1

MTD 16606

Retainer Hook Brkt.
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

2

MTD 618-0142A

Blade Spindle Ass'y
(Superseded to 918-0142C)

$134.99

$

In Stock, Qty 5

0

3

MTD 683-0141B

42" Deck Assembly
(Superseded to 983-0141B)

Variations

MTD 683-0141B-0483

USE 983-0141B-0637 DECK ASM- - CHARCOAL GRAY (0483)

$808.99

$

Usually ships in 3-6 days

0

MTD 683-0141B-0637

DECK ASM- 42" - POWDER BLACK (0637)

$808.99

$

Usually ships in 3-6 days

0

MTD 683-0141B-0638

USE 983-0141B-0637 DECK ASM- - MTD/TROY-BILT RED (0638)

$808.99

$

Usually ships in 3-6 days

0

MTD 683-0141B-0648

USE 983-0141B-0637 DECK ASM- - TECH GRAY (0648)

$808.99

$

Usually ships in 3-6 days

0

MTD 683-0141B-0650

DECK ASM- 42" - RED METALLIC (0650)

$808.99

$

Usually ships in 3-6 days

0

MTD 683-0141B-0665

USE 983-0141B-0637 DECK ASM- - YARDMAN GREEN (0665)

$808.99

$

Usually ships in 3-6 days

0

MTD 683-0141B-0667

DECK ASM- 42" - MIDNIGHT BLUE (0667)

$808.99

$

Usually ships in 3-6 days

0

$752.99

$

Usually ships in 3-6 days

0

MTD 753-0698

42" Deck Ass'y Comp.

Note: (For Service)

Variations

MTD 753-0698-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 753-0698-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 753-0698-0637

"No Longer Available KIT-DECK 42"" NEW S" - POWDER BLACK (0637)

$

$

Not available

MTD 753-0698-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 753-0698-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 753-0698-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 753-0698-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 753-0698-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 753-0698-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

4

MTD 710-0134

Carriage Bolt 1/4-20 Lg.

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0599

Hex Wash. Hd. TT-Tap Screw 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0751

Hex Bolt 1/4-20 x .62"

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-1260A

Hex Wash. TT-Tap Scr. 5/16-18 x .75"

$3.99

$

In Stock, Qty 20+

0

8

MTD 712-0181

Jam Nut 3/8-16

$4.49

$

In Stock, only 3 left!

0

9

MTD 712-0417A

Hex Flange Nut 5/8-18 Thd.

$6.99

$

In Stock, Qty 20+

0

10

MTD 712-3027

Hex Flange Nut 1/4-20 Thd.
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 18

0

11

MTD 712-3087

WIng Nut 1/4-20

Note: Optional

$3.99

$

In Stock, Qty 20+

0

12

MTD 731-2363

Mulch Plug

Note: Optional

$29.99

$

In Stock, only 4 left!

0

13

MTD 734-0973

Deck Wheel-5"

$12.99

$

In Stock, Qty 20+

0

14

MTD 736-0105

Bell-Wash. .40" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

15

MTD 736-0270

Bell-Wash. 1/4 I.D.

Note: Optional

$3.99

$

In Stock, Qty 20+

0

16

MTD 738-0373

Shoulder Screw
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

17

MTD 742-0616

3 in 1 blade
(Superseded to 942-0616A)

$31.99

$

In Stock, Qty 20+

0

MTD 742-0656

2 in 1 blade
(Superseded to 942-04308A)

Note: (For bagging and side dischrg)

$31.99

$

In Stock, Qty 20+

0

18

MTD 754-0371A

V Belt
(Superseded to 954-0371A)

$103.99

$

In Stock, only 2 left!

0

19

MTD 783-0149B

Belt Guard

Variations

MTD 783-0149B-0606

Belt Guard, G-Deck Black - MAJESTIC ORANGE (0606)

$40.99

$

In Stock, only 4 left!

0

MTD 783-0149B-0629

Belt Guard, G-Deck Black - SILVER FLAKE (0629)

$40.99

$

In Stock, only 4 left!

0

MTD 783-0149B-0637

Belt Guard, G-Deck Black - POWDER BLACK (0637)

$40.99

$

In Stock, only 4 left!

0

MTD 783-0149B-0638

Belt Guard, G-Deck Black - MTD/TROY-BILT RED (0638)

$40.99

$

In Stock, only 4 left!

0

MTD 783-0149B-0648

Belt Guard, G-Deck Black - TECH GRAY (0648)

$40.99

$

In Stock, only 4 left!

0

MTD 783-0149B-0650

Belt Guard, G-Deck Black - RED METALLIC (0650)

$40.99

$

In Stock, only 4 left!

0

MTD 783-0149B-0665

Belt Guard, G-Deck Black - YARDMAN GREEN (0665)

$40.99

$

In Stock, only 4 left!

0

MTD 783-0149B-0667

Belt Guard, G-Deck Black - MIDNIGHT BLUE (0667)

$40.99

$

In Stock, only 4 left!

0

MTD 783-0149B-0689

Belt Guard, G-Deck Black - POLO GREEN (0689)

$40.99

$

In Stock, only 4 left!

0

MTD 783-0149B-0709

Belt Guard, G-Deck Black - MASTERCRAFT GREEN (0709)

$40.99

$

In Stock, only 4 left!

0

MTD 783-0149B-0716

Belt Guard, G-Deck Black - CUB YELLOW-99 (0716)

$40.99

$

In Stock, only 4 left!

0

$40.99

$

In Stock, only 4 left!

0

20

MTD 783-1146A

Deck Skirt
(Superseded to 753-0884)

Variations

MTD 783-1146A-0637

Deck Skirt Kit, 42" - POWDER BLACK (0637)

$82.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0

21

MTD 731-1032B

Chute Ass'y
(Superseded to 631-05229)

Note: (Incl. Ref. 23,24,25,26)

$81.99

$

In Stock, Qty 6

0

MTD 731-1031B

Chute Deflector

$

$

Currently unavailable

22

MTD 783-0342

Brake Disc.
(Superseded to 783-0342A)

$

$

Not available

23

MTD 703-1693A

Hinge Mounting Brkt.

$23.99

$

In Stock, only 4 left!

0

24

MTD 711-0792

Hinge Pin
(Superseded to 911-0792)

$4.99

$

In Stock, only 1 left!

0

25

MTD 726-0106

Speed Nut Cap

$3.99

$

Usually ships in 3-6 days

0

26

MTD 732-0602A

Torsion Spring

$12.99

$

In Stock, Qty 5

0

27

MTD 756-1188

5.75" Dia. Pulley

$36.99

$

In Stock, Qty 8

0

28

MTD 712-3006

Hex Nut 1/4-20 Gr. 5

$4.99

$

In Stock, Qty 19

0

29

MTD 726-0233

Push Nut

$4.49

$

In Stock, Qty 20+

0
