13AE470F023 - Yard Machines Lawn Tractor (1997) (Andersons) Hood and Grille Parts Diagram

Lawn Tractor

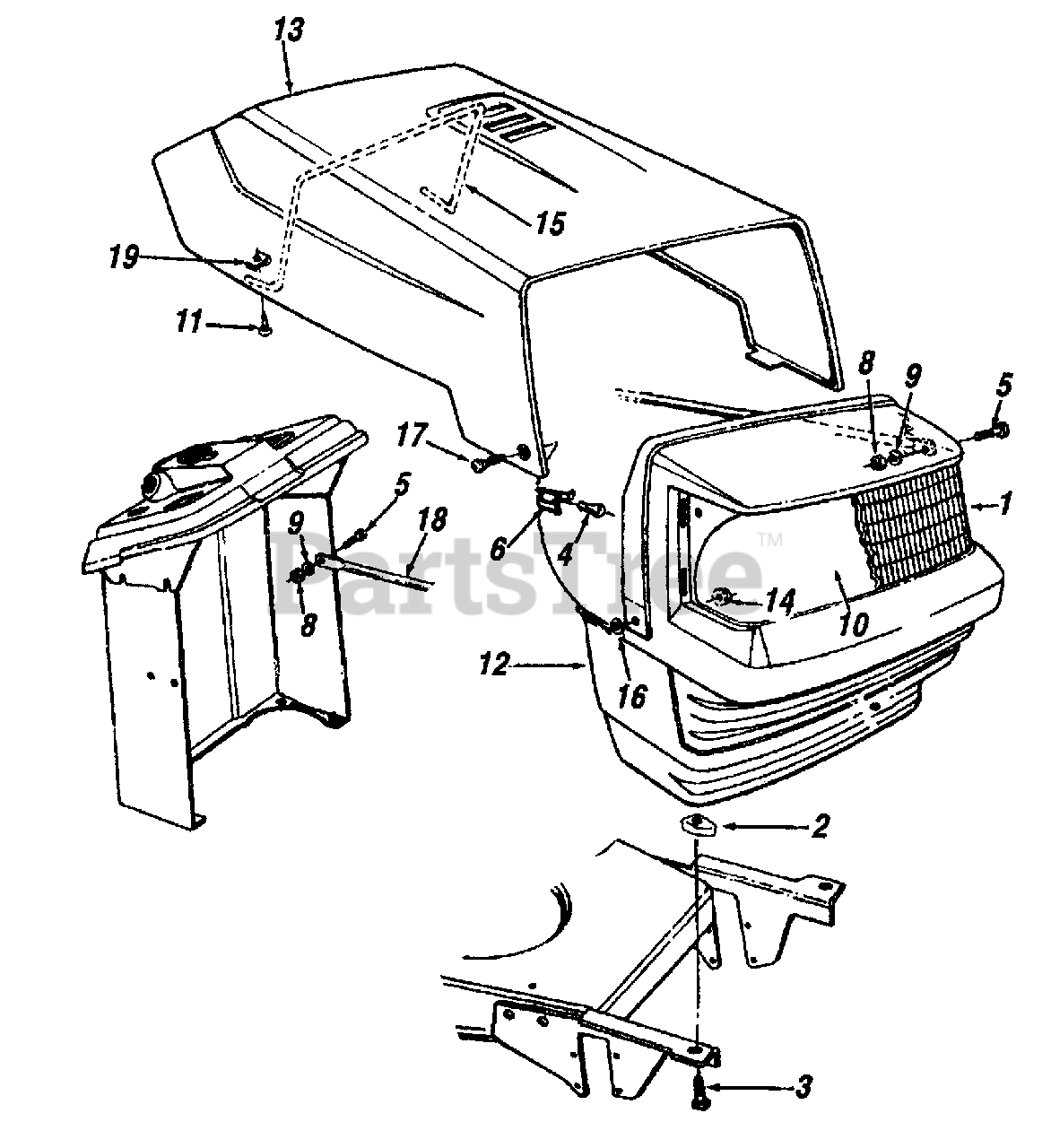

Hood and Grille Parts Diagram

  • Title

1

MTD 731-1099A

Lens
(Superseded to 931-1099A)

$92.99

$

Usually ships in 3-6 days

0

2

MTD 712-0211

U-Nut 5/16-18 Thd.

$

$

Currently unavailable

3

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

4

MTD 725-0693

Bulb

$

$

Currently unavailable

5

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

6

MTD 725-1649

Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

8

MTD 712-3006

Hex Nut 1/4-20 Thd. Gr.5

$4.99

$

In Stock, Qty 17

0

9

MTD 736-0329

Lock Washer 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

10

MTD 777-9206

Grille Reflector Label
(Superseded to 777X40318)

$

$

Not available

11

MTD 710-0589

Hex Tap Screw #10-16 x .75" Lg.

$6.99

$

Usually ships in 3-6 days

0

12

MTD 731-1097D

Grille
(Superseded to 931-1097G)

$192.99

$

Usually ships in 3-6 days

0

13

MTD 783-0250

Hood

Variations

MTD 783-0250-0480

HOOD-O STY LOUVER - BRILLIANT GREEN (0480)

$

$

Not available

MTD 783-0250-0483

HOOD-O STY LOUVER - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0250-0498

HOOD-STY O W/LOUVE - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0250-0499

No Longer Available HOOD-STY O - CUB BEIGE (0499)

$

$

Not available

MTD 783-0250-0629

HOOD-O STY LOUVER - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0250-0638

HOOD-O STY LOUVER - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0250-0640

HOOD-O STY LOUVER - CO-OP GREEN (0640)

$

$

Not available

MTD 783-0250-0648

HOOD-S - TECH GRAY (0648)

$

$

Not available

MTD 783-0250-0650

HOOD-O STY LOUVER - RED METALLIC (0650)

$

$

Not available

MTD 783-0250-0660

No Longer Available HOOD-STY O - TEAL (0660)

$

$

Not available

MTD 783-0250-0662

HOOD-O STY LOUVER - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0250-0663

No Longer Available - CAYMEN GREEN (0663)

$

$

Not available

MTD 783-0250-0665

HOOD-O STY LOUVER - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0250-0667

HOOD-STY O W/LOUVE - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0250-0668

No Longer Available HOOD-STY O - MOSS GREEN (0668)

$

$

Not available

MTD 783-0250-0674

HOOD-STY O W/LOUVE - YARDMAN YELLOW (0674)

$

$

Not available

MTD 783-0250-0677

No Longer Available HOOD-O STY - GRASS GREEN (0677)

$

$

Not available

MTD 783-0250-0686

No Longer Available HOOD-STY O - SIMPLICITY ORANGE (0686)

$

$

Not available

MTD 783-0250-0687

No Longer Available USE 783-0250A-0687 HOOD-O STY - PINE GREEN (0687)

$

$

Not available

MTD 783-0250-0688

No Longer Available HOOD-STY O - SPRING GREEN (0688)

$

$

Not available

MTD 783-0250-0691

HOOD-STY O W/LOUVE - BLACK JACK (0691)

$

$

Not available

MTD 783-0250-0692

No Longer Available - AGWAY BLUE (0692)

$

$

Not available

MTD 783-0250-0709

HOOD-O STY LOUVER - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-0250-0717

No Longer Available - SILVER MIST (0717)

$

$

Not available

$

$

14

MTD 712-3027

Lock Nut 1/4-20 Thd.
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

15

MTD 732-0704

Hood Spring

$

$

Not available

16

MTD 736-0342

Flat Washer .28" I.D. x .75" O.D.

$7.49

$

Usually ships in 3-6 days

0

17

MTD 738-0952

Shoulder Bolt
(Superseded to 938-0952A)

$7.49

$

In Stock, Qty 8

0

18

MTD 749-0914

Grille Support

Variations

MTD 749-0914-0637

No Longer Available ROD-GRILLE - POWDER BLACK (0637)

$

$

Not available

$

$

19

MTD 726-0130

Speed Nut
(Superseded to 926-0130)

$

$

Not available
