13AE450E353 - Yard Machines Lawn Tractor (1997) (Bud's) Deck and Spindle Assembly Parts Diagram

Lawn Tractor

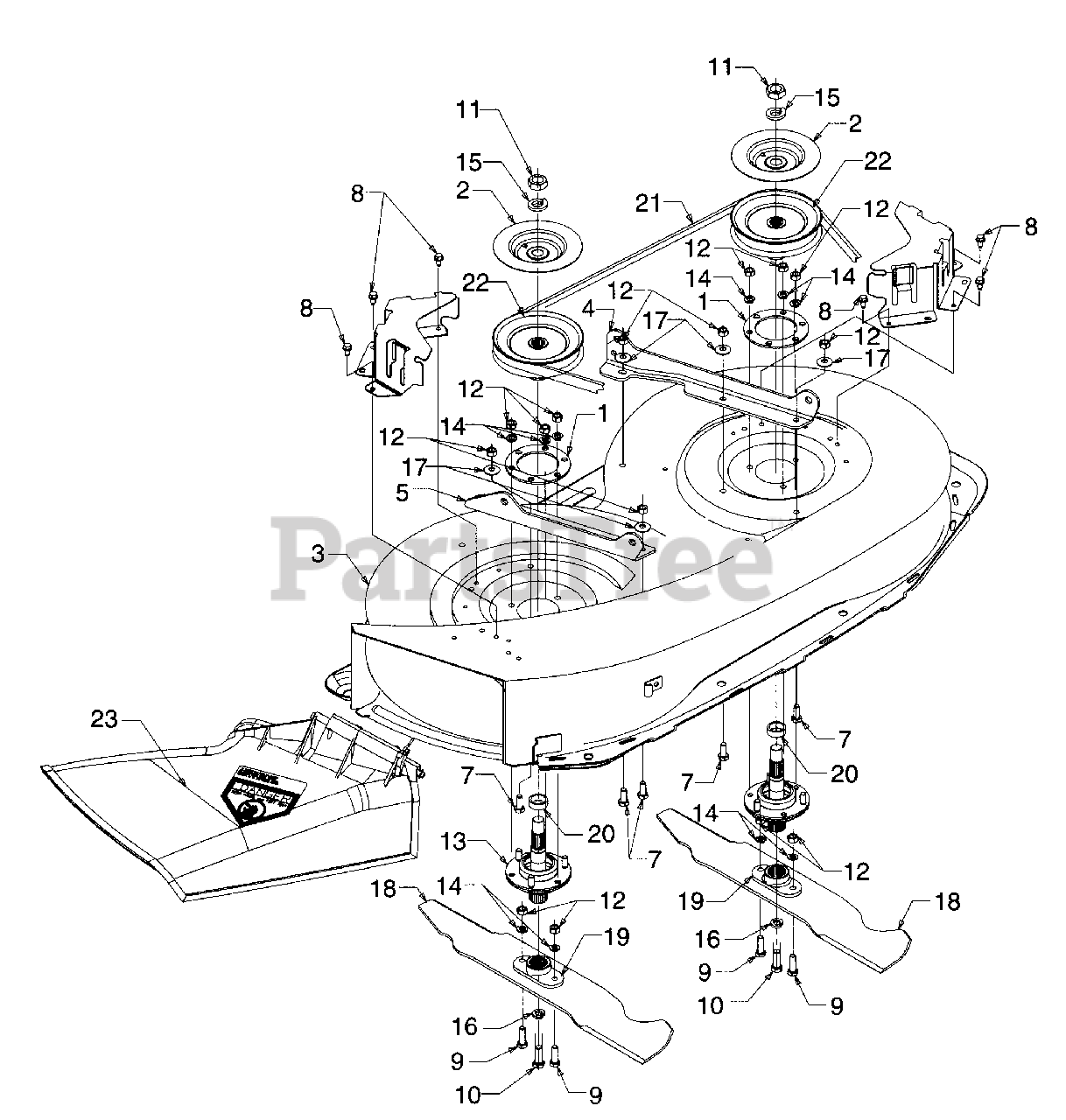

Deck and Spindle Assembly Parts Diagram

  • Title

1

MTD 09164A

Reinforcement Plate
(Superseded to 09164A-0637)

Variations

MTD 09164A-0637

Reinforcement Plate - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

2

MTD 09322

Brake Disc

$

$

Not available

3

MTD 16879B

Deck Assembly

Variations

MTD 16879B-0483

"No Longer Available DECKASM36""PWR" - CHARCOAL GRAY (0483)

$

$

Not available

MTD 16879B-0637

"No Longer Available DECKASM36""PWR" - POWDER BLACK (0637)

$

$

Not available

MTD 16879B-0638

"No Longer Available DECKASM36""PWR" - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

4

MTD 17571

Deck Bracket - L. H.
(Superseded to 17571-0637)

Variations

MTD 17571-0637

CHANNEL-DECK HANGE - POWDER BLACK (0637)

$

$

Not available

$

$

5

MTD 17572

Deck Bracket - R.H.
(Superseded to 17572-0637)

Variations

MTD 17572-0637

CHANNEL-DECK HANGE - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

$37.99

$

Usually ships in 3-6 days

0

?6

MTD 17665

Belt Cover
(Superseded to 17665-0637)

Variations

MTD 17665-0480

Belt Guard, Black - BRILLIANT GREEN (0480)

$48.99

$

In Stock, only 2 left!

0

MTD 17665-0483

Belt Guard, Black - CHARCOAL GRAY (0483)

$48.99

$

In Stock, only 2 left!

0

MTD 17665-0498

Belt Guard, Black - OLD CUB YELLOW (0498)

$48.99

$

In Stock, only 2 left!

0

MTD 17665-0637

Belt Guard, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 2 left!

0

MTD 17665-0638

Belt Guard, Black - MTD/TROY-BILT RED (0638)

$48.99

$

In Stock, only 2 left!

0

MTD 17665-0648

Belt Guard, Black - TECH GRAY (0648)

$48.99

$

In Stock, only 2 left!

0

MTD 17665-0650

Belt Guard, Black - RED METALLIC (0650)

$48.99

$

In Stock, only 2 left!

0

MTD 17665-0662

Belt Guard, Black - OYSTER GRAY (0662)

$48.99

$

In Stock, only 2 left!

0

MTD 17665-0665

Belt Guard, Black - YARDMAN GREEN (0665)

$48.99

$

In Stock, only 2 left!

0

$48.99

$

In Stock, only 2 left!

0

7

MTD 710-0157

Hex Cap Screw 5/16-24 x .75 Gr. 5

$4.49

$

In Stock, Qty 8

0

8

MTD 710-0599

Hex Hd. TT Screw 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0888

Hex Cap Screw 5/16-24 x 1.00 Gr. 5

$4.49

$

In Stock, Qty 5

0

10

MTD 710-1039

Hex Screw 3/8-24 x 1.0

$4.49

$

In Stock, only 3 left!

0

11

MTD 712-0318

Hex Jam Nut 5/8-18

$3.49

$

In Stock, Qty 13

0

12

MTD 712-3057

Hex Nut 5/16-24 Gr.5
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

13

MTD 717-0900A

Blade Spindle Assembly
(Superseded to 917-0900A)

$

$

Not available

14

MTD 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

15

MTD 736-0158

Lock Washer

$4.49

$

In Stock, only 1 left!

0

16

MTD 736-0217

Lock Washer 3/8

$4.49

$

In Stock, Qty 9

0

17

MTD 736-0242

Bell Washer .345 I.D. x .88 O.D. x .06

$4.49

$

In Stock, Qty 20+

0

18

MTD 742-0496

High lift blade

$

$

Not available

19

MTD 748-0300

Blade Adapter

$13.99

$

In Stock, only 4 left!

0

20

MTD 750-0456

Spacer

$4.49

$

In Stock, Qty 20+

0

21

MTD 754-0364

V-Belt
(Superseded to 954-0364)

$66.99

$

Usually ships in 3-6 days

0

22

MTD 756-0486

Deck Pulley

$54.99

$

In Stock, only 3 left!

0

23

MTD 831-1032

Chute Deflector

Note: (Deep Plastic)

$

$

Currently unavailable
