13AD775S059 - MasterCut by MTD Lawn Tractor (2016) Hood & Grille Parts Diagram

Lawn Tractor

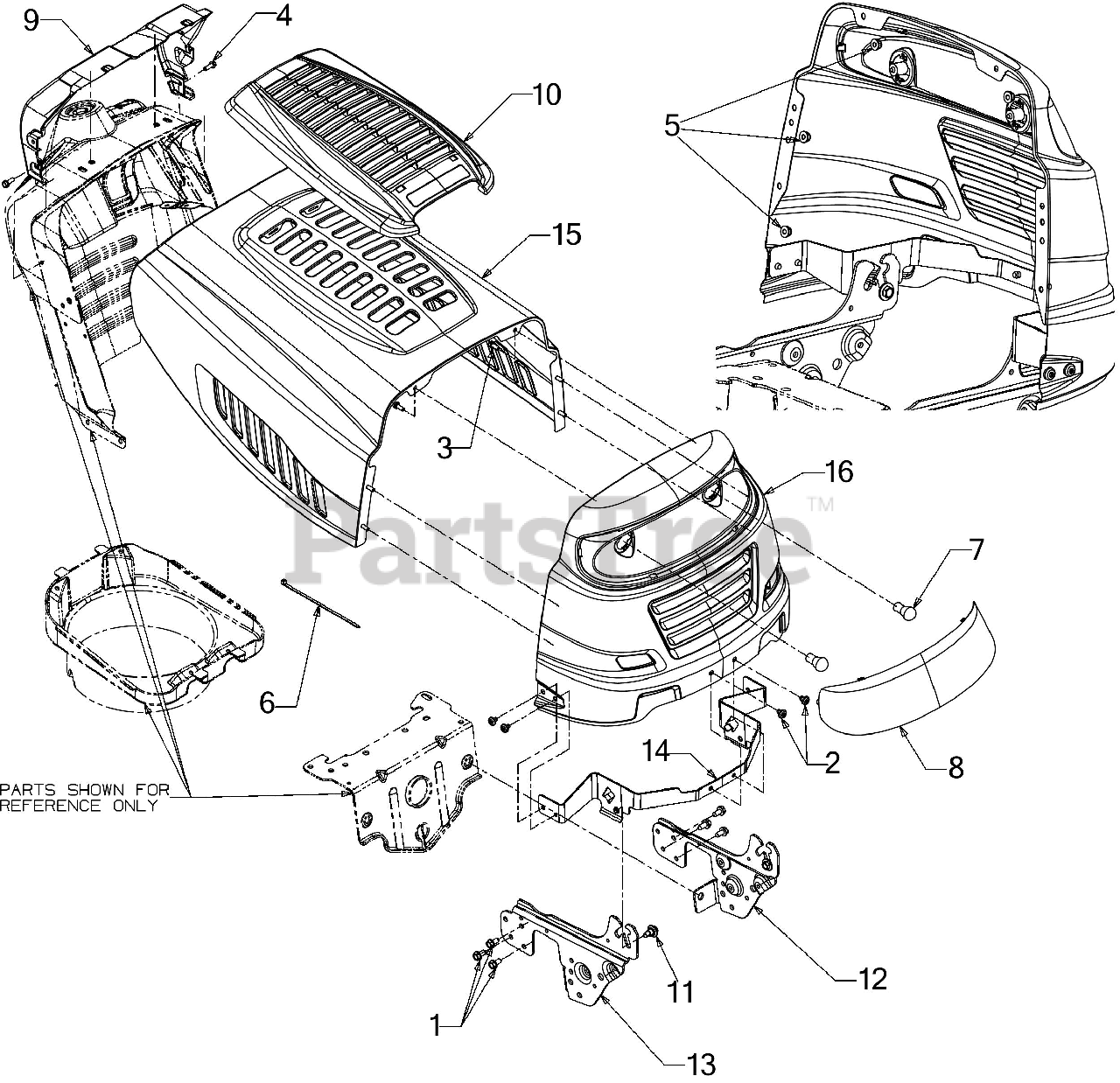

Hood & Grille Parts Diagram

  • Title

1

MTD 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

2

MTD 710-04593

SCREW 5/16-18 x .375

$4.49

$

In Stock, only 3 left!

0

3

MTD 710-0751

SCREW 1/4-20 x .620 GR5

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-0895

SCREW 1/4-15 x .750

$6.49

$

In Stock, Qty 10

0

5

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

6

MTD 725-0157

7" CABLE TIE

$3.99

$

In Stock, Qty 20+

0

7

MTD 925-0963

MINIATUURE BULB 12V

$7.49

$

In Stock, Qty 5

0

8

MTD 731-04949A

GRILL LENS

$26.99

$

In Stock, only 3 left!

0

9

MTD 731-05078C

DASH COLLAR

$18.99

$

In Stock, only 2 left!

0

10

MTD 731-05522A

HOOD COVER

$49.99

$

Usually ships in 3-6 days

0

11

MTD 738-04091A

SHOULDER SCREW .43X.29X5/16-18 TT

$3.99

$

In Stock, Qty 20+

0

12

MTD 783-05327B-0691

SUPPORT BRACKET (LH)
(Superseded to 783-05327B-0637)

$40.99

$

Usually ships in 3-6 days

0

13

MTD 783-05328B-0691

SUPPORT BRACKET (RH)
(Superseded to 783-05328B-0637)

$42.99

$

Usually ships in 3-6 days

0

14

MTD 783-05454-0637

HOOD PIVOT BRACKET

$31.99

$

Usually ships in 3-6 days

0

15

MTD 783-05683-0691

HOOD-5-STYLE

$159.99

$

Usually ships in 3-6 days

0

16

MTD 783-05685A-0691

GRILLE-1 STYLE

$130.99

$

In Stock, only 1 left!

0
