13AD775S059 - MasterCut by MTD Lawn Tractor (2016) Deck Parts Diagram

Lawn Tractor

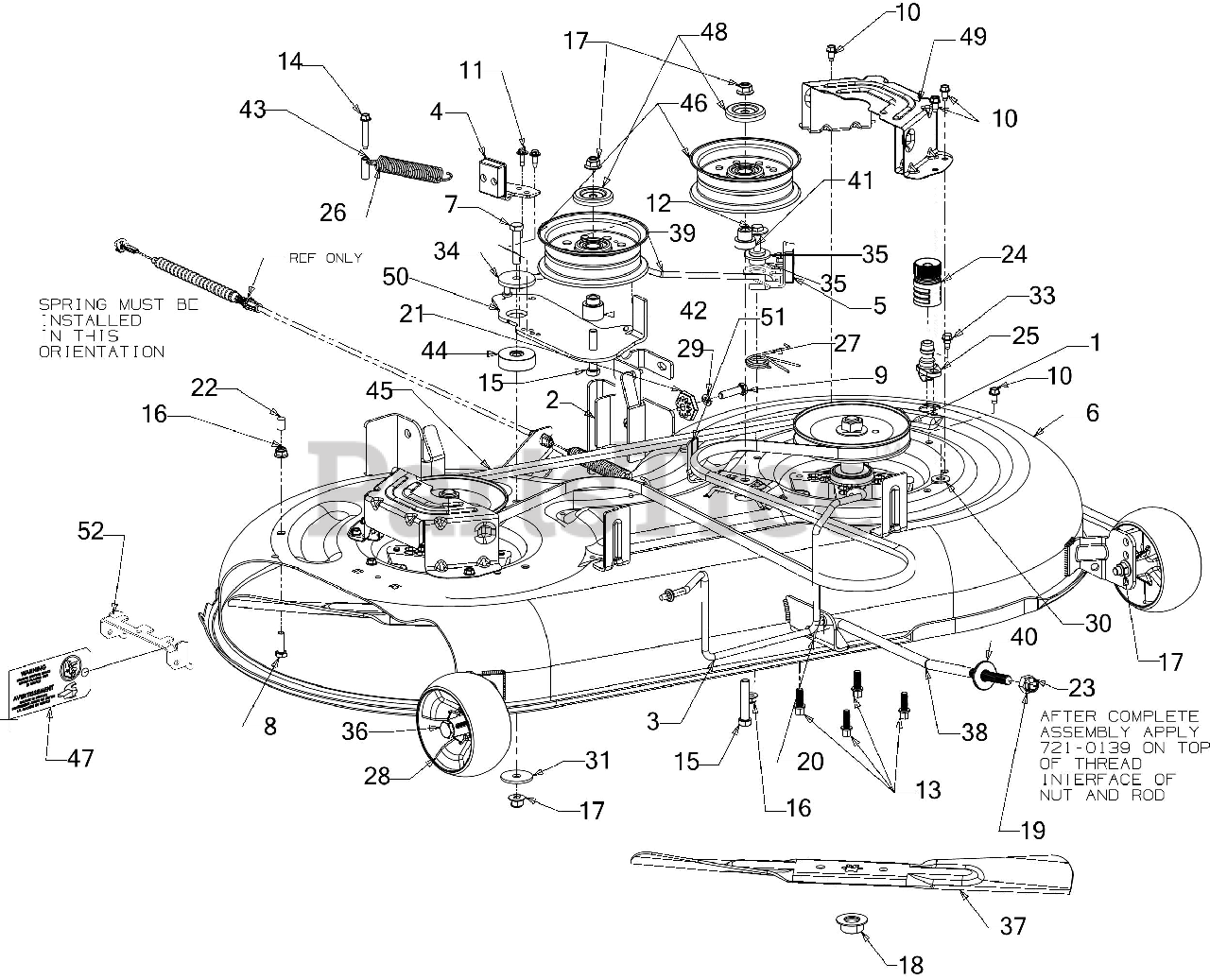

Deck Parts Diagram

  • Title

1

MTD 738-1186A

BLADE SPINDLE SHAFT STAR 6.11 LG

Note: Not Shown

$49.99

$

In Stock, Qty 14

0

1

MTD 750-04936

SPACER- .792 x 1.060 x 1.860

Note: Not Shown

$6.99

$

In Stock, Qty 20+

0

1

MTD 756-05031

DECK PULLEY 5.4" DIA

Note: Not Shown

$23.99

$

In Stock, only 3 left!

0

1

MTD 918-06991

SPINDLE ASSEMBLY

$103.99

$

In Stock, Qty 5

0

1

MTD 941-0919B

BALL BEARING

Note: Not Shown

$21.99

$

In Stock, Qty 20+

0

1

MTD 619-04183B

DECK SPINDLE HOUSING
(Superseded to 719-07293-M)

Note: Not Shown

$44.99

$

In Stock, only 4 left!

0

2

MTD 683-0254B-0691

DECK HANGER BRACKET ASSEMBLY (LH)
(Superseded to 683-06474-0637)

$36.99

$

In Stock, only 1 left!

0

3

MTD 747-04857

BELT KEEPER ROD

$22.99

$

In Stock, Qty 9

0

4

MTD 761-05007

DECK BRAKE PAD

Note: Not Shown

$10.99

$

In Stock, only 4 left!

0

4

MTD 983-05182

DECK BRAKE ASSEMBLY
(Superseded to 983-05182B)

$99.99

$

In Stock, Qty 20+

0

5

MTD 728-0175

RIVOT

Note: Not Shown

$4.99

$

In Stock, only 4 left!

0

5

MTD 761-05007

DECK BRAKE PAD

Note: Not Shown

$10.99

$

In Stock, only 4 left!

0

5

MTD 983-05183

DECK BRAKE ASSEMBLY
(Superseded to 753-09904A)

$106.99

$

In Stock, only 1 left!

0

4

MTD 728-0175

RIVOT

Note: Not Shown

$4.99

$

In Stock, only 4 left!

0

6

MTD 983-05184-0691

42" DECK ASSEMBLY
(Superseded to 983-05184A-0691)

$

$

Not available

7

MTD 710-0347

HEX SCREW 3/8-16 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

8

MTD 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 20+

0

10

MTD 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 10

0

12

MTD 710-0528

SCREW 5/16-18 x 1.25 GR5

$4.49

$

In Stock, Qty 19

0

12

MTD 710-06213

SCREW 5/16-18X1.25 GR 5

$6.49

$

In Stock, only 2 left!

0

12

MTD 736-3078

FLAT WASHER 344X1.00

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0528

SCREW 5/16-18 x 1.25 GR5

$4.49

$

In Stock, Qty 19

0

13

MTD 710-06322

SCREW 5/16-18 X .875

$5.49

$

In Stock, Qty 20+

0

14

MTD 710-0778

SCREW 1/4-20 x 1.50"

$4.49

$

In Stock, Qty 20+

0

15

MTD 710-3096

SCREW 3/8-16 x 2.0 GR 8

$7.99

$

In Stock, only 1 left!

0

16

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

17

MTD 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

18

MTD 712-0417A

HEX NUT

$6.99

$

In Stock, Qty 20+

0

1

MTD 712-0417A

HEX NUT

Note: Not Shown

$6.99

$

In Stock, Qty 20+

0

19

MTD 712-04243

NUT

$4.49

$

In Stock, Qty 20+

0

20

MTD 714-04043

PIN:COTTER

$4.99

$

In Stock, Qty 12

0

21

MTD 917-04074

DECK ADJUSTMENT

$13.99

$

In Stock, Qty 9

0

22

MTD 720-05010

VINYL CAP

$4.49

$

In Stock, Qty 7

0

23

N/A

LOCTITE SEALANT (NOT SERVICEABLE)

$

$

Not available

47

N/A

N/A

Note: Not Serviceable

$

$

Not available

52

N/A

N/A

Note: Not Serviceable

$

$

Not available

24

MTD 921-04041

WATER NOZZLE

$23.99

$

In Stock, Qty 20+

0

25

MTD 731-07487

DECK WASH NOZZLE

$4.49

$

In Stock, only 1 left!

0

26

MTD 732-04629

EXTENSION SPRING

$28.99

$

In Stock, only 3 left!

0

27

MTD 732-05151A

TORSION SPRING

$4.49

$

In Stock, Qty 20+

0

28

MTD 734-04155

DECK WHEEL

$20.99

$

In Stock, Qty 20+

0

29

MTD 936-0119

LOCK WASHER 5/16

$4.99

$

In Stock, Qty 20+

0

30

MTD 936-0300

FLAT WASHER
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

31

MTD 936-3039

FLAT WASHER .406X1.500X.105
(Superseded to 736-3039)

$

$

Not available

32

MTD 738-04184A

SHOULDER SCREW

$6.99

$

In Stock, Qty 5

0

33

MTD 738-04278

SHOULDER SCREW 1/4-20X.50 19"PSH

$6.99

$

In Stock, Qty 5

0

34

MTD 738-05082

SHOULDER SPACER

$8.49

$

In Stock, only 2 left!

0

35

MTD 738-05088

SHOULDER SPACER .750 x .145

$4.49

$

In Stock, only 1 left!

0

36

MTD 938-3056

SHOULDER BOLT

$9.49

$

In Stock, Qty 20+

0

37

MTD 942-04308

21.23" BLADE (2N1)
(Superseded to 942-04308A)

$31.99

$

In Stock, Qty 20+

0

38

MTD 747-05141B

DECK FRONT LIFT ROD

$22.99

$

In Stock, Qty 14

0

39

MTD 747-06538

DECK BRAKE ROD

$14.99

$

In Stock, Qty 11

0

40

MTD 748-04069

LIFT PIVOT CUP
(Superseded to 748-04069A)

$5.99

$

In Stock, Qty 10

0

41

MTD 748-05029A

SHOULDER SPACER

$4.99

$

In Stock, Qty 20+

0

42

MTD 748-05037B

SHOULDER SPACER

$5.49

$

In Stock, Qty 20+

0

43

MTD 750-0566A

SPACER

$9.99

$

In Stock, only 1 left!

0

44

MTD 750-06184

SPACER .385ID x 1.75OD x .585THK

$11.99

$

In Stock, only 1 left!

0

45

MTD 954-04060C

V-BELT A x 96.5

$50.99

$

In Stock, Qty 7

0

46

MTD 756-05034

IDLER PULLEY 4.50" DIA
(Superseded to 756-05034A)

$45.99

$

In Stock, Qty 20+

0

48

MTD 783-08389

IDLER PULLEY CAP

$5.99

$

In Stock, Qty 20+

0

49

MTD 783-08510-0691

DECK BELT COVER 42
(Superseded to 783-08510D-0637)

$13.99

$

In Stock, Qty 20+

0

50

MTD 783-08654C

DECK IDLER BRACKET

$71.99

$

In Stock, Qty 20+

0

51

MTD 783-08690-0637

BELT KEEPER
(Superseded to 783-08690A-0637)

$12.99

$

In Stock, Qty 20+

0
