13AD771G731 - Huskee Lawn Tractor (2006) (Tractor Supply) Hood Style 1 Parts Diagram

Lawn Tractor

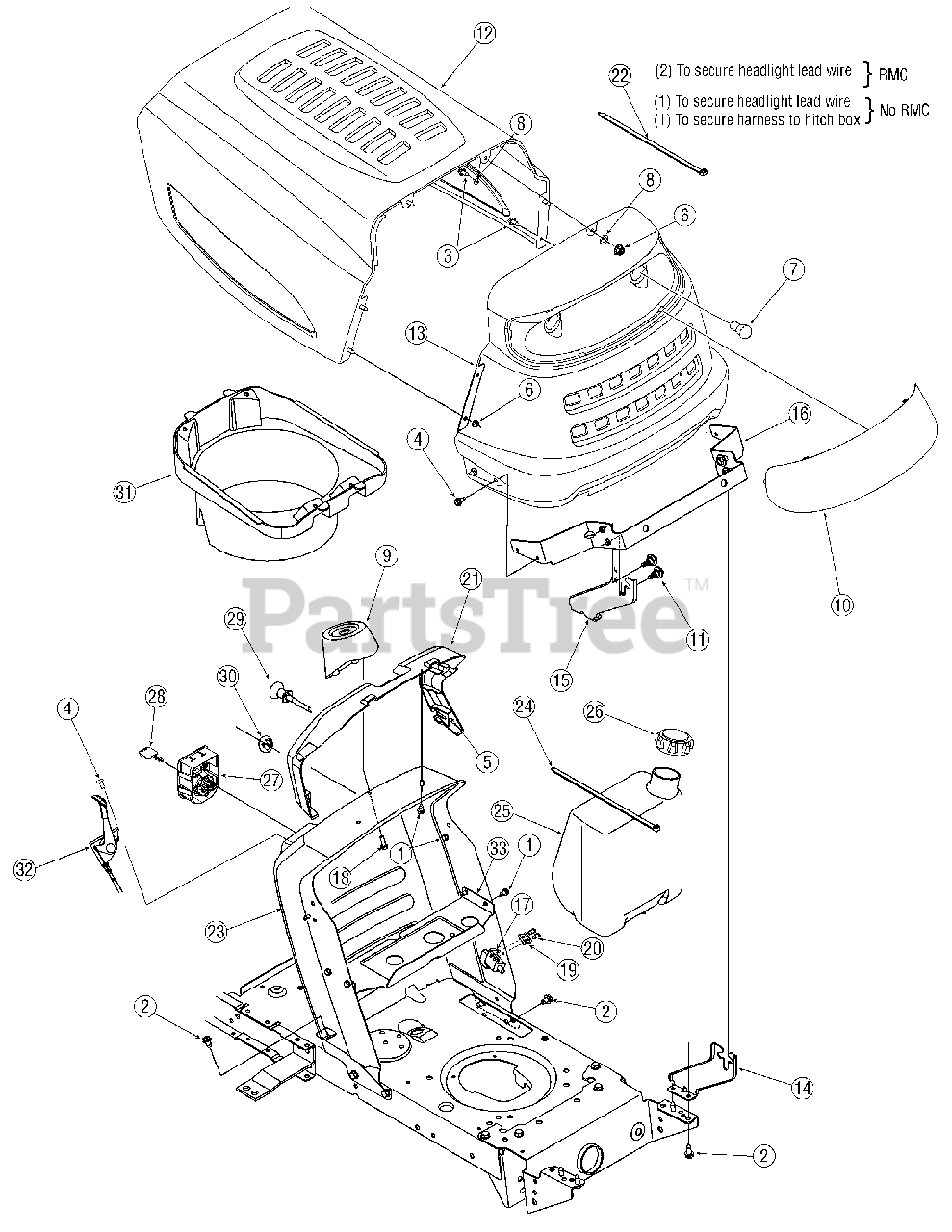

Hood Style 1 Parts Diagram

  • Title

1

MTD 710-0599

Screw, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-0604A

Screw, 5/16-18, 0.625

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0751

Screw, 1/4-20, .620, Gr5

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-04483

Screw, 1/4-20, .500

$6.99

$

Usually ships in 3-6 days

0

5

MTD 712-0185

Nut, 1/4-20, Speed U-type

$

$

Not available

6

MTD 712-04064

Nut, Flange Lock, 1/4-20, Gr5

$3.99

$

In Stock, Qty 20+

0

7

MTD 725-0963

Headlamp, 12V
(Superseded to 925-0963)

$7.49

$

In Stock, Qty 5

0

8

MTD 736-0176

Washer, Flat, .265 x .938 x .120

$4.99

$

In Stock, only 4 left!

0

9

MTD 731-04945

Support, Steering

$18.99

$

In Stock, only 1 left!

0

10

MTD 731-04949

Lens
(Superseded to 731-04949A)

$26.99

$

In Stock, only 3 left!

0

11

MTD 738-04091

Screw, Shoulder, .43 x.29, 5/16-18
(Superseded to 738-04091A)

$3.99

$

In Stock, Qty 20+

0

12

MTD 783-04551

Hood

Variations

MTD 783-04551-0499

HOOD-1 STYLE - CUB BEIGE (0499)

$

$

Not available

MTD 783-04551-0638

HOOD-1 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-04551-0640

No Longer Available HOOD-1 STY - CO-OP GREEN (0640)

$

$

Not available

MTD 783-04551-0662

HOOD-1 STYLE - OYSTER GRAY (0662)

$

$

Not available

MTD 783-04551-0674

HOOD-1 STYLE - YARDMAN YELLOW (0674)

$

$

Not available

MTD 783-04551-0691

HOOD-1 STYLE - BLACK JACK (0691)

$

$

Not available

MTD 783-04551-0709

HOOD-1 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-04551-0729

HOOD-1 STYLE - STORM GRAY (0729)

$

$

Not available

MTD 783-04551-4015

HOOD-1 STYLE - FIRE RED (4015)

$

$

Not available

$

$

13

MTD 783-04552

Grille

Variations

MTD 783-04552-0662

GRILLE 1 STYLE - OYSTER GRAY (0662)

$

$

Not available

MTD 783-04552-0674

GRILLE 1 STYLE - YARDMAN YELLOW (0674)

$

$

Not available

MTD 783-04552-0499

GRILLE 1 STYLE - CUB BEIGE (0499)

$

$

Not available

MTD 783-04552-0638

GRILL 1 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-04552-0640

GRILLE 1 STYLE - CO-OP GREEN (0640)

$

$

Not available

MTD 783-04552-0691

GRILLE 1 STYLE - BLACK JACK (0691)

$

$

Not available

MTD 783-04552-0709

GRILLE 1 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-04552-0729

GRILLE 1 STYLE - STORM GRAY (0729)

$

$

Not available

$

$

14

MTD 783-04577

Pivot Bracket, LH
(Superseded to 783-04577A-0637)

Variations

MTD 783-04577-0637

Pivot Bracket, LH - POWDER BLACK (0637)

$

$

Not available

$

$

15

MTD 783-04578

Pivot Bracket, RH
(Superseded to 783-04578A-0637)

Variations

MTD 783-04578-0637

Pivot Bracket, RH - POWDER BLACK (0637)

$17.99

$

In Stock, only 1 left!

0

$17.99

$

In Stock, only 1 left!

0

16

MTD 783-04621

Pivot Bracket, Grille

Variations

MTD 783-04621-0637

Grill Pivot Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

17

MTD 725-04039

Switch (for models equipped with Reverse Caution Mode)
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 7

0

18

MTD 710-0895

Screw, 1/4-15, 0.750

$6.49

$

In Stock, Qty 10

0

19

MTD 17962

Switch Plate (for models equipped with Reverse Caution Mode)

$4.99

$

In Stock, only 3 left!

0

20

MTD 728-04021

Pop Rivet (for models equipped with Reverse Caution Mode)

$3.99

$

In Stock, only 1 left!

0

21

MTD 731-04947

Collar, Dash
(Superseded to 731-04947A)

$

$

Not available

22

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

23

MTD 783-04892

Dash Assembly (Reverse Caution Mode - RMC)
(Superseded to 783-04892B)

Variations

MTD 783-04892-0637

DASH W/RMC - POWDER BLACK (0637)

$139.99

$

Usually ships in 3-6 days

0

MTD 783-04892-0650

DASH RMC - RED METALLIC (0650)

$

$

Not available

MTD 783-04892-0606

DASH RMC - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-04892-0638

DASH RMC - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-04892-0665

DASH RMC - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-04892-0691

DASH W/RMC - BLACK JACK (0691)

$

$

Not available

MTD 783-04892-0716

DASH RMC - CUB YELLOW-99 (0716)

$

$

Not available

$113.99

$

Usually ships in 3-6 days

0

23

MTD 783-04873

Dash Assembly (No RMC)
(Superseded to 783-04873B)

Variations

MTD 783-04873-0637

DASH NO RMC - POWDER BLACK (0637)

$214.99

$

Usually ships in 3-6 days

0

MTD 783-04873-0691

DASH NO RMC - BLACK JACK (0691)

$214.99

$

Usually ships in 3-6 days

0

$173.99

$

Usually ships in 3-6 days

0

24

MTD 726-0230

Cable Tie, 34.75

$27.99

$

In Stock, only 1 left!

0

25

MTD 751-0555B

Fuel Tank, 1.5 gal.
(Superseded to 751-0555D)

$89.99

$

In Stock, only 1 left!

0

26

MTD 751-0603

Fuel Tank Cap
(Superseded to 751-0603B)

$23.99

$

In Stock, only 3 left!

0

27

MTD 725-04227

Ignition Switch Module (Reverse Caution Mode - RMC)
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

27

MTD 725-1741

Igntion Switch (No RMC)
(Superseded to 925-1741)

$45.99

$

Usually ships in 3-6 days

0

28

MTD 725-1744

Key
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

29

MTD 746-1085A

Choke Control, 37.5"
(Superseded to 946-1085A)

$30.99

$

In Stock, only 1 left!

0

30

MTD 731-05265

Plug

$5.99

$

Usually ships in 3-6 days

0

31

MTD 731-05147A

Plenum (Single Cylinder

$49.99

$

Usually ships in 3-6 days

0

31

MTD 731-05165

Plenum (Twin Cylinder Engine)
(Superseded to 731-05165A)

$47.99

$

Usually ships in 3-6 days

0

32

MTD 746-04258

Throttle/Choke Control, 25" (Single Cylinder Engine)

$57.99

$

Usually ships in 3-6 days

0

32

MTD 746-1086

Throttle Control, 39" (Twin Cylinder Engine)
(Superseded to 946-1086)

$33.99

$

In Stock, only 1 left!

0

33

MTD 783-04584

Gas Tank Support Bracket
(Superseded to 783-04584B-0637)

Variations

MTD 783-04584-0637

Support Bracket, Black - POWDER BLACK (0637)

$19.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0
