13AD698G205 - Ranch King Lawn Tractor (2003) Controls, Battery Parts Diagram

Lawn Tractor

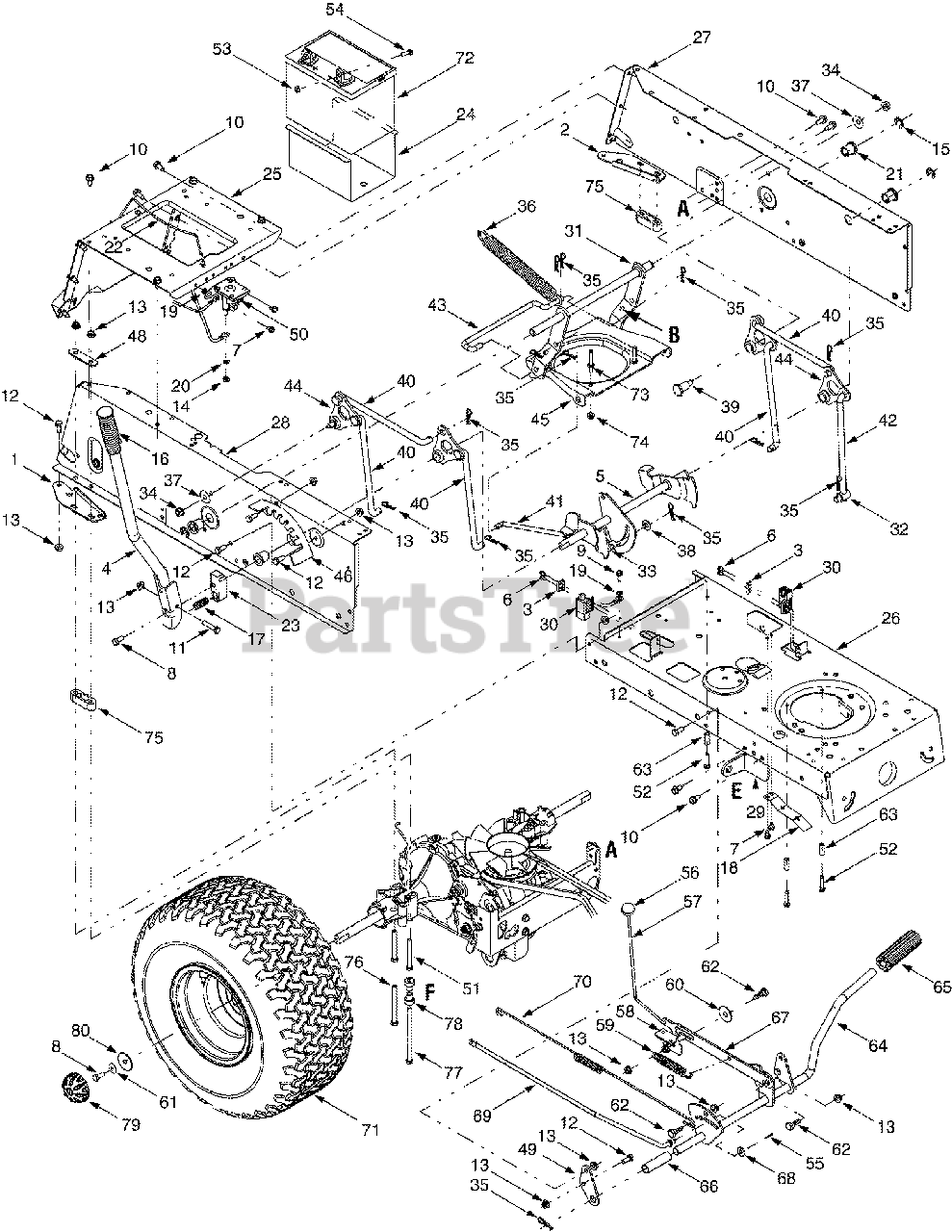

Controls, Battery Parts Diagram

  • Title

1

MTD 17668A

RH Axle Support Bracket
(Superseded to 17668A-0637)

Variations

MTD 17668A-0637

Axle Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 17669A

LH Axle Support Bracket
(Superseded to 17669A-0637)

Variations

MTD 17669A-0637

Axle Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 17962

Switch Plate

$4.99

$

In Stock, only 3 left!

0

4

MTD 683-04025

Lift Handle Assembly

Variations

MTD 683-04025-0637

Lift Handle Assembly, Black - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

MTD 683-04025-0638

HANDLE ASM-LIFT - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 683-04025-0650

HANDLE ASM-LIFT - RED METALLIC (0650)

$

$

Not available

$65.99

$

Usually ships in 3-6 days

0

5

MTD 683-04049

Lift Shaft Assembly
(Superseded to 683-04049A-0637)

Variations

MTD 683-04049-0637

Lift Shaft Assembly, Black - POWDER BLACK (0637)

$95.99

$

Usually ships in 3-6 days

0

$95.99

$

Usually ships in 3-6 days

0

6

MTD 710-0224

Self-tapping Screw, #10-16 x .5
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-0599

Self-tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0627

Hex Cap Screw, 5/16-24 x .75

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0642

Self-tapping Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0726

Self-tapping Screw, 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-0805

Hex Cap Screw, 5/16-18 x 1.5
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

13

MTD 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

MTD 712-3006

Hex Nut, 1/4-20

$4.99

$

In Stock, Qty 19

0

15

MTD 716-0106

E-Ring, .625 Dia Shaft

$4.49

$

In Stock, Qty 12

0

16

MTD 720-0233

Handle Grip
(Superseded to 920-0233)

$

$

Not available

17

MTD 732-0369

Compression Spring, .55 x 1.37
(Superseded to 932-0369)

$10.99

$

Usually ships in 3-6 days

0

18

MTD 732-0750A

Switch Actuator Spring
(Superseded to 932-0750A)

$21.99

$

Usually ships in 3-6 days

0

19

MTD 736-0222

External Lock Washer, 1/4

$5.99

$

In Stock, only 3 left!

0

20

MTD 736-0329

Lock Washer, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

21

MTD 741-0487A

Flange Bearing, .632 ID
(Superseded to 741-0487C)

$7.49

$

Usually ships in 3-6 days

0

22

MTD 747-04031

Battery Hold-down Rod

$10.99

$

Usually ships in 3-6 days

0

23

MTD 748-04011

Lift Shaft Connector
(Superseded to 948-04011A)

$24.99

$

In Stock, only 3 left!

0

24

MTD 783-0345

Battery Tray
(Superseded to 783-0345-0637)

Variations

MTD 783-0345-0637

Battery Tray - POWDER BLACK (0637)

$16.99

$

In Stock, only 1 left!

0

$16.99

$

In Stock, only 1 left!

0

25

MTD 783-0355C

Hitch Plate
(Superseded to 783-0355D)

Note: Attach the rear end of spring (Ref. 36) to the notch opening in the rear of Ref. 25

Variations

MTD 783-0355C-0483

PLATE-HITCH - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0355C-0637

PLATE-HITCH - POWDER BLACK (0637)

$

$

Not available

MTD 783-0355C-0638

PLATE-HITCH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0355C-0648

PLATE-HITCH - TECH GRAY (0648)

$

$

Not available

MTD 783-0355C-0650

PLATE-HITCH - RED METALLIC (0650)

$

$

Not available

MTD 783-0355C-0665

PLATE-HITCH - YARDMAN GREEN (0665)

$

$

Not available

$

$

26

MTD 783-04011

Lower Frame
(Superseded to 783-04011A)

Variations

MTD 783-04011-0637

FRAME-LOWER - POWDER BLACK (0637)

$

$

Not available

MTD 783-04011-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-04011-0650

No Longer Available FRAME:LWR: - RED METALLIC (0650)

$

$

Not available

MTD 783-04011-0665

No Longer Available FRM:LWR:6 - YARDMAN GREEN (0665)

$

$

Not available

$

$

27

MTD 783-04031

LH Upper Frame Side Panel
(Superseded to 783-04031A)

Variations

MTD 783-04031-0637

PANEL-SIDE LH - POWDER BLACK (0637)

$

$

Not available

MTD 783-04031-0638

No Longer Available USE 783-04031A-0638 PANEL-SID - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-04031-0650

PANEL-SIDE LH - RED METALLIC (0650)

$

$

Not available

MTD 783-04031-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

28

MTD 783-04032

RH Upper Frame Side Panel

Variations

MTD 783-04032-0483

No Longer Available PANEL-SIDE - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-04032-0637

PANEL-SIDE RH - POWDER BLACK (0637)

$

$

Not available

MTD 783-04032-0638

PANEL-SIDE RH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-04032-0650

PANEL-SIDE RH - RED METALLIC (0650)

$

$

Not available

MTD 783-04032-0665

No Longer Available PANEL-SIDE - YARDMAN GREEN (0665)

$

$

Not available

$

$

29

MTD 783-04213

Deck Anti-sway Bracket
(Superseded to 783-04213-0637)

Variations

MTD 783-04213-0637

BRACKET-FRAME - POWDER BLACK (0637)

$

$

Not available

$

$

30

MTD 725-04039

Screw-mount Interlock Switch
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 8

0

31

MTD 683-04048

Stabilizer Shaft Assembly
(Superseded to 683-04048A-0637)

Variations

MTD 683-04048-0637

Stabilizer Shaft Assembly, Black - POWDER BLACK (0637)

$

$

Not available

$

$

32

MTD 711-04036

Ferrule, 1/2-20 x .50
(Superseded to 911-04036)

$11.99

$

In Stock, only 1 left!

0

33

MTD 711-04075

Ferrule, 3/8-24 x .375
(Superseded to 911-04075A)

$11.99

$

In Stock, only 3 left!

0

34

MTD 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

35

MTD 714-04023

Internal Cotter Pin, .080 x 1.56

$4.49

$

In Stock, Qty 20+

0

36

MTD 732-04050A

Extension Spring, 1.07 x 9.52
(Superseded to 732-04050D)

Note: Attach the front end of spring (Ref. 36) to Reference B on tractor models with a 38- or 42-inch deck only. Also see reference 25.

$22.99

$

In Stock, only 1 left!

0

37

MTD 736-0219

Bell Washer, .389 x 1.12 x .030
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

38

MTD 736-0267

Flat Washer, .385 x .87 x .060

$4.49

$

In Stock, Qty 20+

0

39

MTD 738-0445A

Shoulder Bolt, 3/8-16 x .62 x .92
(Superseded to 938-0445A)

$

$

Not available

40

MTD 747-04018

Deck Hanger Link
(Superseded to 947-04018A)

$

$

Not available

41

MTD 747-04040A

Deck Disengagement Rod

$15.99

$

Usually ships in 3-6 days

0

42

MTD 747-04069

Deck Hanger Link
(Superseded to 747-04069A)

$16.99

$

Usually ships in 3-6 days

0

43

MTD 747-04115A

Rear Stabilizer Rod

$30.99

$

Usually ships in 3-6 days

0

44

MTD 748-04010

Lift Link
(Superseded to 948-04010)

$

$

Not available

45

MTD 783-04093

Deck Stabilizer Bracket
(Superseded to 783-04093-0637)

Variations

MTD 783-04093-0637

Deck Stabilizer Bracket, Black - POWDER BLACK (0637)

$

$

Not available

$

$

46

MTD 783-04113

Deck Lift Index Bracket
(Superseded to 783-04113P)

$25.99

$

In Stock, only 1 left!

0

47

MTD 17630A

Shift Lever Retainer
(Superseded to 17630A-0637)

Note: not shown

Variations

MTD 17630A-0637

Shift Lever Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

48

MTD 17840

Transaxle Mounting Bracket
(Superseded to 17840-0637)

Variations

MTD 17840-0637

Trans Mounting Bracket - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

49

MTD 17860

Pedal Mounting Bracket
(Superseded to 17860-0637)

Variations

MTD 17860-0637

Pedal Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

50

MTD 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

51

MTD 710-0176

Hex Cap Screw, 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

52

MTD 710-0809

Self-tapping Screw, 1/4-20 x 1.25

$6.99

$

In Stock, Qty 19

0

53

MTD 712-0271

Hex Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

54

MTD 710-3015

Hex Screw,1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

55

MTD 714-0111

Cotter Pin, 1.0

$4.99

$

In Stock, Qty 13

0

56

MTD 720-0166

Ball Knob

$

$

Not available

57

MTD 747-0608B

Brake Lockout Rod

$

$

Not available

58

MTD 17755A

Bracket

$

$

Not available

59

MTD 732-0728

Extension Spring, 4.31

$11.99

$

Usually ships in 3-6 days

0

60

MTD 736-0406

Flat Washer, .442 x 1.38 x .060
(Superseded to 936-0406)

$6.99

$

In Stock, Qty 11

0

61

MTD 736-0242

Bell Washer, .34 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

62

MTD 738-0296

Shoulder Screw, .437 x .286

$4.49

$

In Stock, Qty 20+

0

63

MTD 750-0566A

Spacer, .260 x .372 x 1.030

$9.99

$

In Stock, only 1 left!

0

64

MTD 683-04005A

Clutch / Brake Pedal Assembly

Variations

MTD 683-04005A-0637

No Longer Available PEDAL ASM-CLUTCH - POWDER BLACK (0637)

$

$

Not available

MTD 683-04005A-0638

No Longer Available PEDALASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 683-04005A-0650

No Longer Available PEDALASM - RED METALLIC (0650)

$

$

Not available

MTD 683-04005A-0665

No Longer Available PEDALASM - YARDMAN GREEN (0665)

$

$

Not available

$

$

65

MTD 735-0196

Foot Pad, 4.6
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

66

MTD 750-0802

Spacer, .640 x .76 x 2.63

$6.99

$

Usually ships in 3-6 days

0

67

MTD 783-04164

Brake Lockout Bracket

$

$

Not available

68

MTD 736-3008

Flat Washer, .344 x .750 x .120
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

69

MTD 747-04082

Brake Rod

$40.99

$

Usually ships in 3-6 days

0

70

MTD 732-04032A

Extension Spring, 22.16

$

$

Not available

71

MTD 734-1675

Round Shoulder Wheel Ass'y Complete

Variations

MTD 734-1675-0915

WHEEL ASSY 20X8 - Duro Gray (0915)

$144.99

$

In Stock, only 1 left!

0

MTD 734-1675-0911

WHEEL ASSY 20 X 8 - Carlisle Gray (0911)

$447.99

$

Usually ships in 3-6 days

0

MTD 734-1675-0945

WHEEL ASSY 20X12 - Duro Yellow (0945)

$509.99

$

Usually ships in 3-6 days

0

MTD 734-1675-0912

No Longer Available WHEEL ASM - Dico Gray (0912)

$

$

Not available

MTD 734-1675-0914

WHEEL ASSY 20 X 8 - Cheng Gray (0914)

$

$

Not available

MTD 734-1675-0931

WHEEL ASSY 20 X 8 - Carlisle Beige (0931)

$

$

Not available

MTD 734-1675-0941

WHEEL ASSY W/TIRE - Carlisle Yellow (0941)

$

$

Not available

MTD 734-1675-0944

No Longer Available WHEEL ASM - Cheng Yellow (0944)

$

$

Not available

MTD 734-1675-0981

WHEEL ASSY W/TIRE - Carlisle Green (0981)

$

$

Not available

MTD 734-1675-0985

No Longer Available WHEEL ASSY 20X8X8 - Duro Green (0985)

$

$

Not available

$420.99

$

Usually ships in 3-6 days

0

71

MTD 634-0104

Square Shoulder Wheel Ass'y Complete

Variations

MTD 634-0104-0911

WHEEL ASSY 20X8 - Carlisle Gray (0911)

$144.99

$

In Stock, only 1 left!

0

MTD 634-0104-0912

WHEEL ASSY 20X8 - Dico Gray (0912)

$144.99

$

In Stock, only 1 left!

0

MTD 634-0104-0914

WHEEL ASSY 20X8 - Cheng Gray (0914)

$144.99

$

In Stock, only 1 left!

0

MTD 634-0104-0915

WHEEL ASSY 20X8 - Duro Gray (0915)

$144.99

$

In Stock, only 1 left!

0

MTD 634-0104-0916

WHEEL ASSY 20X10 - Kenda Gray (0916)

$548.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0931

Wheel Assembly, 20 - Carlisle Beige (0931)

$144.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0941

WHEEL ASSY 20X12 - Carlisle Yellow (0941)

$509.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0942

WHEEL ASSY 20X12 - Dico Yellow (0942)

$509.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0945

WHEEL ASSY 20X12 - Duro Yellow (0945)

$509.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0961

WHEEL ASSY 20X13 - Carlisle Gray (0961)

$144.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0991

WHEEL ASSY 20X14 - Carlisle White (0991)

$155.99

$

Usually ships in 3-6 days

0

MTD 634-0104-4009

WHEEL ASSY 20X14 - TEE WHITE (4009)

$155.99

$

Usually ships in 3-6 days

0

MTD 634-0104-4028

WHEEL ASSY 20 X 8 - SEARS YELLOW (4028)

$550.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0981

No Longer Available WHEEL ASM - Carlisle Green (0981)

$

$

Not available

$445.99

$

Usually ships in 3-6 days

0

72

MTD 725-1706

Battery, 270 CCA
(Superseded to 925-1707D)

$

$

Not available

72

MTD 725-1750

Battery, 235 CCA
(Superseded to 925-1707D)

$

$

Not available

73

MTD 712-3027

Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0

74

MTD 711-0993

Belt Guard Pin, 1/4-20
(Superseded to 911-0993)

$4.49

$

In Stock, Qty 14

0

75

MTD 749-0334

Spacer

Note: Found on tractor models with 46-inch deck only.

$

$

Currently unavailable

76

MTD 710-1266

Hex Cap Screw, 5/16-18 x 3.25

Note: Found on tractor models with 46-inch deck only.

$9.99

$

Usually ships in 3-6 days

0

77

MTD 710-0833

Hex Cap Screw, 5/16-18 x 5.25

Note: Found on tractor models with 46-inch deck only.

$9.49

$

In Stock, only 1 left!

0

78

MTD 748-04021A

Shoulder Spacer
(Superseded to 948-04021A)

Note: Found on tractor models with 46-inch deck only.

$

$

Not available

79

MTD 731-2290A

Deluxe Hub Cap
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

80

MTD 736-0430

Flat Washer, .350 x 1.59 x .062

Note: Used on tractor models with Deluxe hub cap only.

$4.49

$

In Stock, Qty 10

0

Reference E and F, refer to Deck Assembly

$

$

Not available
