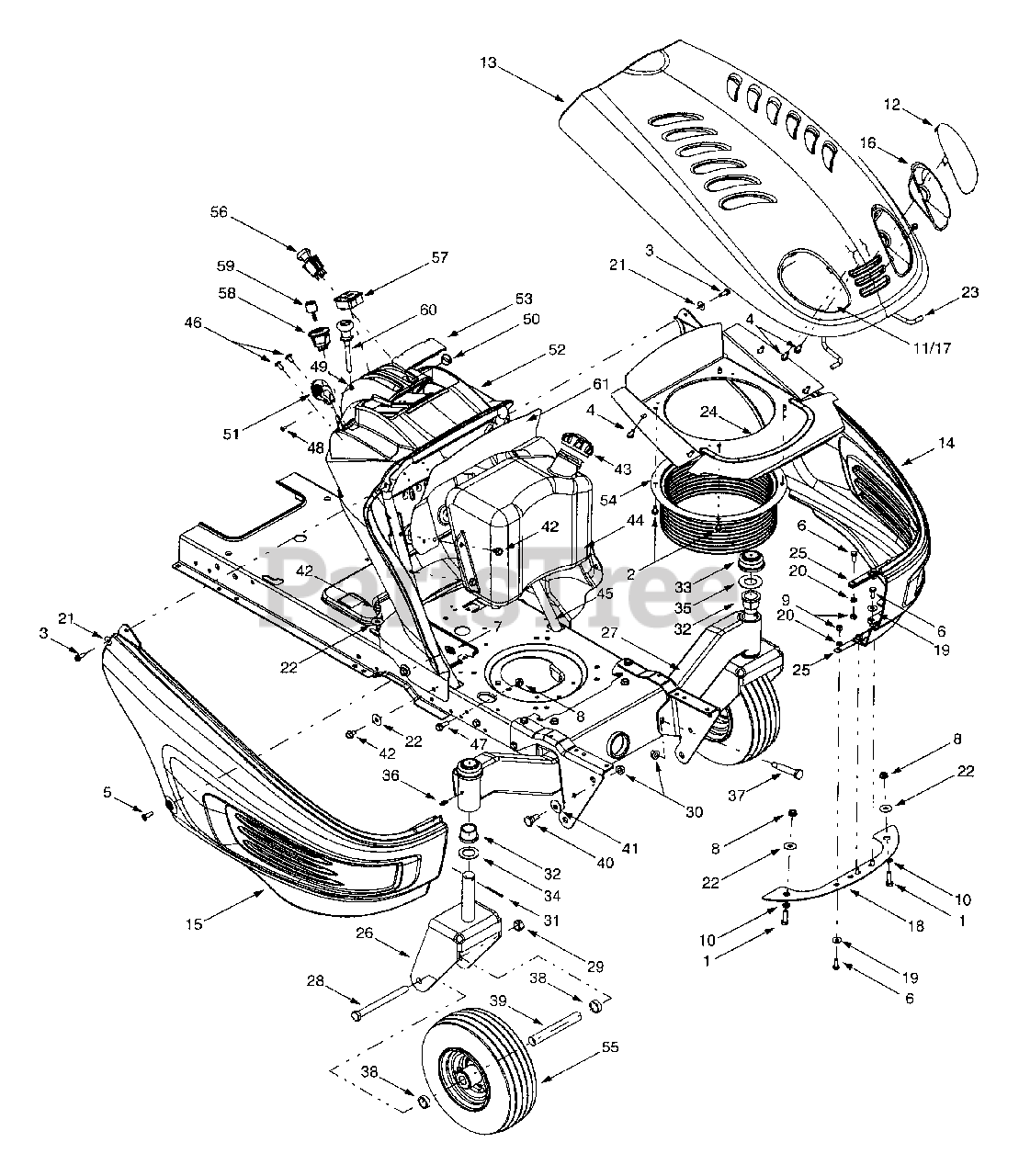

13AD624G401 - Yard-Man Lawn Tractor (2002) Hood & Electrical Parts Diagram

Lawn Tractor

Hood & Electrical Parts Diagram

  • Title

1

MTD 710-0376

Hex Cap Screw, 5/16-18 x 1.0

$3.99

$

In Stock, Qty 20+

0

2

MTD 710-0599

Self-tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0642

Self-tapping Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0895

Self-tapping Screw, 1/4-15 x .75

$6.49

$

In Stock, Qty 10

0

5

MTD 710-0924

Pan Phillips Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-3015

Hex Cap Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

7

MTD 712-0292

U-type Speed Nut, 1/4-20

$10.99

$

In Stock, only 2 left!

0

8

MTD 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-3006

Hex Nut, 1/4-20

$4.99

$

In Stock, Qty 17

0

10

MTD 726-0201

Speed Nut

$6.99

$

In Stock, only 2 left!

0

11

MTD 731-1978

RH Head Light Lens
(Superseded to 931-1978)

$17.99

$

Usually ships in 3-6 days

0

12

MTD 731-1979

LH Head Light Lens
(Superseded to 931-1979)

$17.99

$

Usually ships in 3-6 days

0

13

MTD 731-1980A

Hood, 4-style (Yellow)
(Superseded to 931-1980B)

$

$

Not available

14

MTD 731-1981A

LH Side Panel, 4-style (Yellow)
(Superseded to 931-04958)

$

$

Not available

15

MTD 731-1982A

RH Side Panel, 4-style (Yellow)
(Superseded to 931-1982C)

$

$

Not available

16

MTD 731-1995

LH Head Light Reflector
(Superseded to 777X41432)

$

$

Not available

17

MTD 731-1996

RH Head Light Reflector
(Superseded to 777X41432)

$

$

Not available

18

MTD 731-2272

Heat Shield

$

$

Not available

19

MTD 736-0173

Flat Washer, .28 x .74 x .063

$4.49

$

In Stock, Qty 20+

0

20

MTD 736-0329

Lock Washer, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

21

MTD 736-0342

Flat Washer, .283 x .75 x .030

$7.49

$

Usually ships in 3-6 days

0

22

MTD 736-3078

Flat Washer, .349 x 1.0 x .063

$4.49

$

In Stock, Qty 20+

0

23

MTD 747-1132A

Hood Support Rod

$

$

Not available

24

MTD 783-0808A

Heat Shield, 4-style
(Superseded to 783-0808A-0637)

Variations

MTD 783-0808A-0637

SHIELD-HEAT STYLE - POWDER BLACK (0637)

$70.99

$

Usually ships in 3-6 days

0

$70.99

$

Usually ships in 3-6 days

0

25

MTD 783-1000A

Grille Support Bracket

Variations

MTD 783-1000A-0637

BRACKET-GRILLE SUP - POWDER BLACK (0637)

$

$

Not available

$

$

26

MTD 683-0425

Castor Assembly

Variations

MTD 683-0425-0650

CASTER ASM - RED METALLIC (0650)

$

$

Not available

MTD 683-0425-0665

CASTER ASM - YARDMAN GREEN (0665)

$

$

Not available

$94.99

$

Usually ships in 3-6 days

0

27

MTD 683-0453

Pivot Bar Axle Assembly

Variations

MTD 683-0453-0650

No Longer Available AXLE ASM-P - RED METALLIC (0650)

$

$

Not available

MTD 683-0453-0665

No Longer Available AXLE ASM-P - YARDMAN GREEN (0665)

$

$

Not available

$

$

28

MTD 710-0506

Hex Cap Screw, 1/2-20 x 5.5

$10.99

$

In Stock, only 2 left!

0

29

MTD 712-0239

Hex Lock Nut, 1/2-20

$5.99

$

In Stock, Qty 20+

0

30

MTD 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

31

MTD 714-3001

Cotter Pin, .125 x 1.5
(Superseded to 914-3001)

$3.99

$

Usually ships in 3-6 days

0

32

MTD 731-0374

Flange Bearing
(Superseded to 931-0374)

$7.49

$

In Stock, only 3 left!

0

33

MTD 731-0556

Plastic Cap

$4.99

$

In Stock, only 4 left!

0

34

MTD 736-0277

Flat Washer, 1.031 x 1.620 x .095

$4.49

$

In Stock, Qty 20+

0

35

MTD 736-0345

Flat Washer, 1.010 x 2.0 x .065
(Superseded to 936-0345)

$4.49

$

In Stock, Qty 12

0

36

MTD 737-0280

Grease Fitting, 1/4-28

$7.99

$

In Stock, Qty 8

0

37

MTD 738-1011

Shoulder Screw, .50 x 2.23, 3/8-16
(Superseded to 738-1011A)

$8.49

$

In Stock, Qty 11

0

38

MTD 750-0456

Spacer, .790 x .347

$4.49

$

In Stock, Qty 20+

0

39

MTD 750-3197A

Wheel Spacer

$21.99

$

In Stock, Qty 13

0

40

MTD 738-0143

Shoulder Screw, 3/8-16

$4.49

$

In Stock, Qty 20+

0

41

MTD 736-0331

Bell Washer, .39 x 1.13 x .062

$3.99

$

In Stock, Qty 20+

0

42

MTD 710-0604A

Self-tapping Screw, 16-18 x .625

$4.49

$

In Stock, Qty 20+

0

43

MTD 751-0603

Fuel Tank Cap
(Superseded to 751-0603B)

Note: (Fits both fuel tanks)

$23.99

$

In Stock, only 3 left!

0

44

MTD 751-0659A

Fuel Tank, Two-gallon
(Superseded to 751-0659D)

Note: (Shown)

$84.99

$

In Stock, Qty 5

0

MTD 751-0658B

Fuel Tank, Three-gallon

Note: (Not shown)

$

$

Not available

45

MTD 683-0316

Dash Support Assembly

Variations

MTD 683-0316-0650

No Longer Available SUPPORT AS - RED METALLIC (0650)

$

$

Not available

MTD 683-0316-0665

No Longer Available SUPPORT AS - YARDMAN GREEN (0665)

$

$

Not available

$

$

46

MTD 710-1017

Torx Self-tapping Screw, 1/4-14 x .625

$8.49

$

In Stock, Qty 9

0

47

MTD 710-1238

Hex Head Washer Screw, 5/16-18 x .875
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

48

MTD 710-3217

Torx Screw, #8-32 x .375

$6.99

$

In Stock, Qty 7

0

49

MTD 712-0142

Hex Nut, 8-32

$4.49

$

In Stock, Qty 10

0

50

MTD 720-0425

Cap Plug, .812

$

$

Not available

51

MTD 731-1857

Throttle Control Lever

$14.99

$

In Stock, only 4 left!

0

52

MTD 731-2321

Dash Panel

$

$

Not available

53

MTD 731-2483

Dash Cap

$

$

Not available

54

MTD 731-2232

Intake Bellow (Intek Single)
(Superseded to 731-2232A)

$

$

Not available

MTD 731-2234

Intake Bellow (Intek Twin)
(Superseded to 731-2234A)

$29.99

$

Usually ships in 3-6 days

0

55

MTD 634-3169

Wheel Assembly, 11 x 4 x 5 (Yellow Rim)

$

$

Not available

56

MTD 725-1716

Electric PTO Switch
(Superseded to 925-1716A)

$73.99

$

In Stock, Qty 13

0

57

MTD 725-1976

Systems Indicator Monitor/Hour Meter
(Superseded to 925-1976)

$

$

Not available

58

MTD 725-1741

Ignition Switch
(Superseded to 925-1741)

$45.99

$

Usually ships in 3-6 days

0

59

MTD 725-1745

Ignition Key w/ Plastic Cover
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

60

MTD 746-1134

Choke Control/Cable

Note: (If so equipped)

$

$

Not available

61

MTD 783-1350

Heat Shield

Variations

MTD 783-1350-0637

No Longer Available SHIELD-HEA - POWDER BLACK (0637)

$

$

Not available

$

$
