13AD624G401 - Yard-Man Lawn Tractor (2001) Control Handle Assembly Parts Diagram

Lawn Tractor

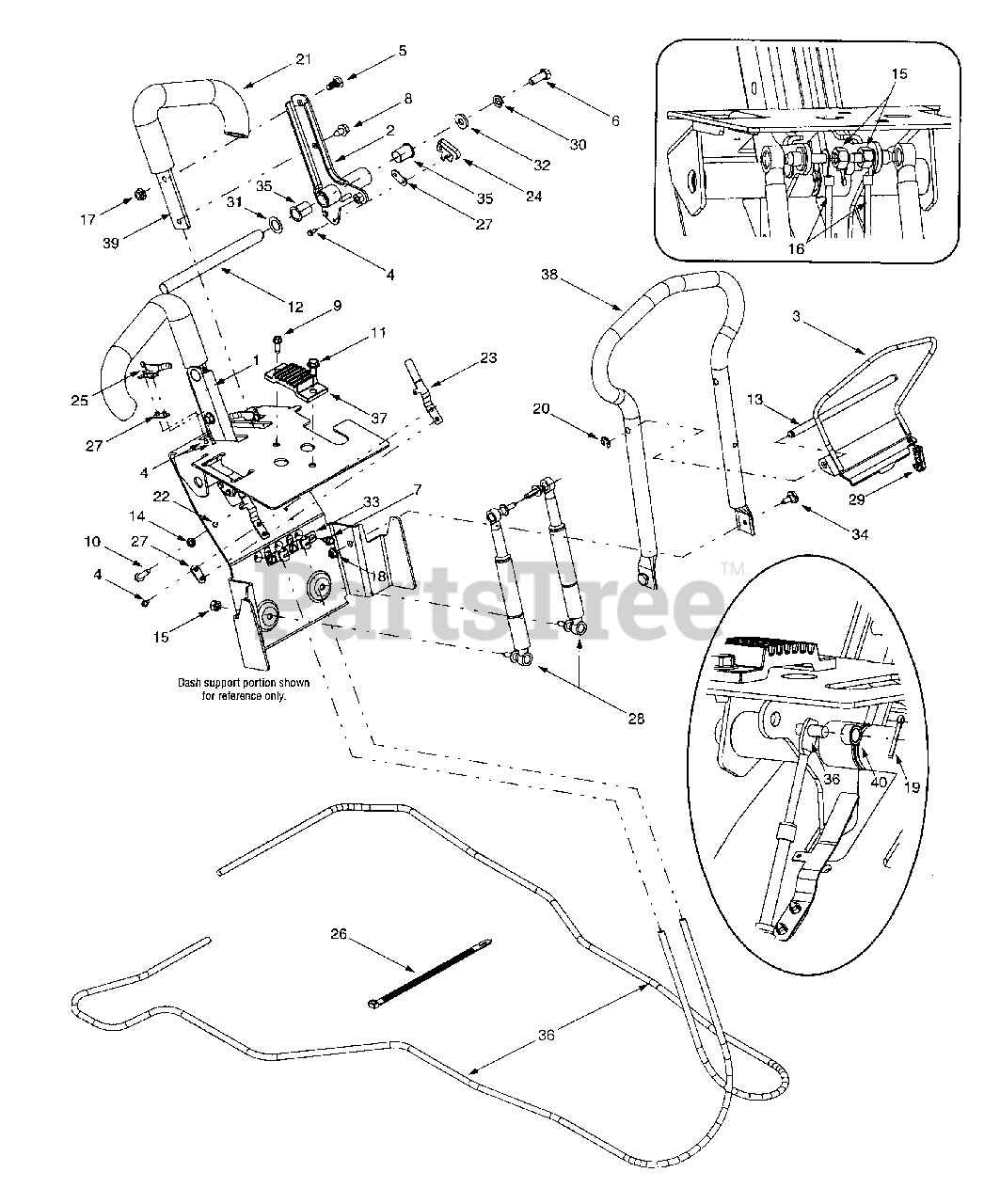

Control Handle Assembly Parts Diagram

  • Title

1

MTD 683-0317

RH Handle Bracket Assembly

Variations

MTD 683-0317-0650

BLCRK ASM-HNDL RH - RED METALLIC (0650)

$

$

Not available

MTD 683-0317-0665

BLCRK ASM-HNDL RH - YARDMAN GREEN (0665)

$

$

Not available

$

$

2

MTD 683-0318

LH Handle Bracket Assembly

Variations

MTD 683-0318-0650

No Longer Available BLCRK ASM- - RED METALLIC (0650)

$

$

Not available

MTD 683-0318-0665

BLCRK ASM-HNDL LH - YARDMAN GREEN (0665)

$

$

Not available

$

$

3

MTD 683-0320

Bail Assembly

$

$

Not available

4

MTD 710-0227

Self-tapping Screw, #8-18 x .5

$4.49

$

In Stock, Qty 15

0

5

MTD 710-0451

Carriage Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0514

Hex Cap Screw, 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0599

Self-tapping Screw, 1/4-20 x.5

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0604A

Self-tapping Screw, 16-18 x .625

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0642

Self-tapping Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0788

Self-tapping Screw, 1/4-20 x 1.0

$7.49

$

In Stock, only 4 left!

0

11

MTD 710-1260A

Self-tapping Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

12

MTD 711-1509

Control Shaft

$

$

Not available

13

MTD 711-1535

Rod, .375 x 8.0

$

$

Not available

14

MTD 712-0298

Jam Nut, 1 /4-20
(Superseded to 912-0298)

$6.49

$

Usually ships in 3-6 days

0

15

MTD 712-0365

Center Lock Hex Nut, M8

$

$

Not available

16

MTD 629-1083

Ground Jumper Wire Assembly

$

$

Not available

17

MTD 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

18

MTD 712-3027

Hex Flange Lock Nut, 114-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

19

MTD 714-0507

Cotter Pin, 3/32 x .75

$4.49

$

In Stock, only 2 left!

0

20

MTD 716-0125

E-Ring, .375
(Superseded to 916-0125)

$

$

Not available

21

MTD 720-0278A

Foam Grip

$22.99

$

In Stock, only 3 left!

0

22

MTD 720-0322

Dipped Cap, .187

$

$

Not available

23

MTD 725-1760

Spring Switch

$

$

Not available

24

MTD 725-1773

Short Spring Switch

$

$

Not available

25

MTD 725-1980

Lever Spring Switch

$

$

Not available

26

MTD 726-0209

Cable Tie
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

27

MTD 726-0320

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 9

0

28

MTD 727-3113

Damper Cylinder

$207.99

$

Usually ships in 3-6 days

0

29

MTD 732-0568

Extension Spring, .50 x 2.54
(Superseded to 932-0568)

$

$

Not available

30

MTD 736-0169

Lock Washer, 3/8

$3.99

$

In Stock, Qty 20+

0

31

MTD 736-0349

Flat Washer, .63 x 1.0 x .020

$4.49

$

In Stock, Qty 20+

0

32

MTD 736-3004

Flat Washer, .406 x .875 x .105

$4.99

$

In Stock, Qty 7

0

33

MTD 783-1265

Clamp Cable Bracket

$

$

Not available

34

MTD 738-0255

Shoulder Screw, .375 x .181
(Superseded to 938-0255)

$5.49

$

In Stock, Qty 8

0

35

MTD 741-0591

Flange Bearing, .630 x .693

$4.49

$

In Stock, Qty 9

0

36

MTD 746-1121

Control Cable, 77.5

$

$

Not available

37

MTD 748-0438

Index Plate

$

$

Not available

38

MTD 749-1236

Hand Rest Tube

Variations

MTD 749-1236-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 749-1236-0665

No Longer Available TUBE-CRUIS - YARDMAN GREEN (0665)

$

$

Not available

$

$

39

MTD 749-1237

Control Handle

Variations

MTD 749-1237-0650

No Longer Available HANDLE-CON - RED METALLIC (0650)

$

$

Not available

MTD 749-1237-0665

No Longer Available HANDLE-CON - YARDMAN GREEN (0665)

$

$

Not available

$

$

40

MTD 750-1298

Spacer, .280 x .437 x .250

$

$

Not available
