13AD604G063 - Troy-Bilt Lawn Tractor (1999) Muffler/Engine Accessories Briggs & Stratton Intek Single Parts Diagram

Lawn Tractor

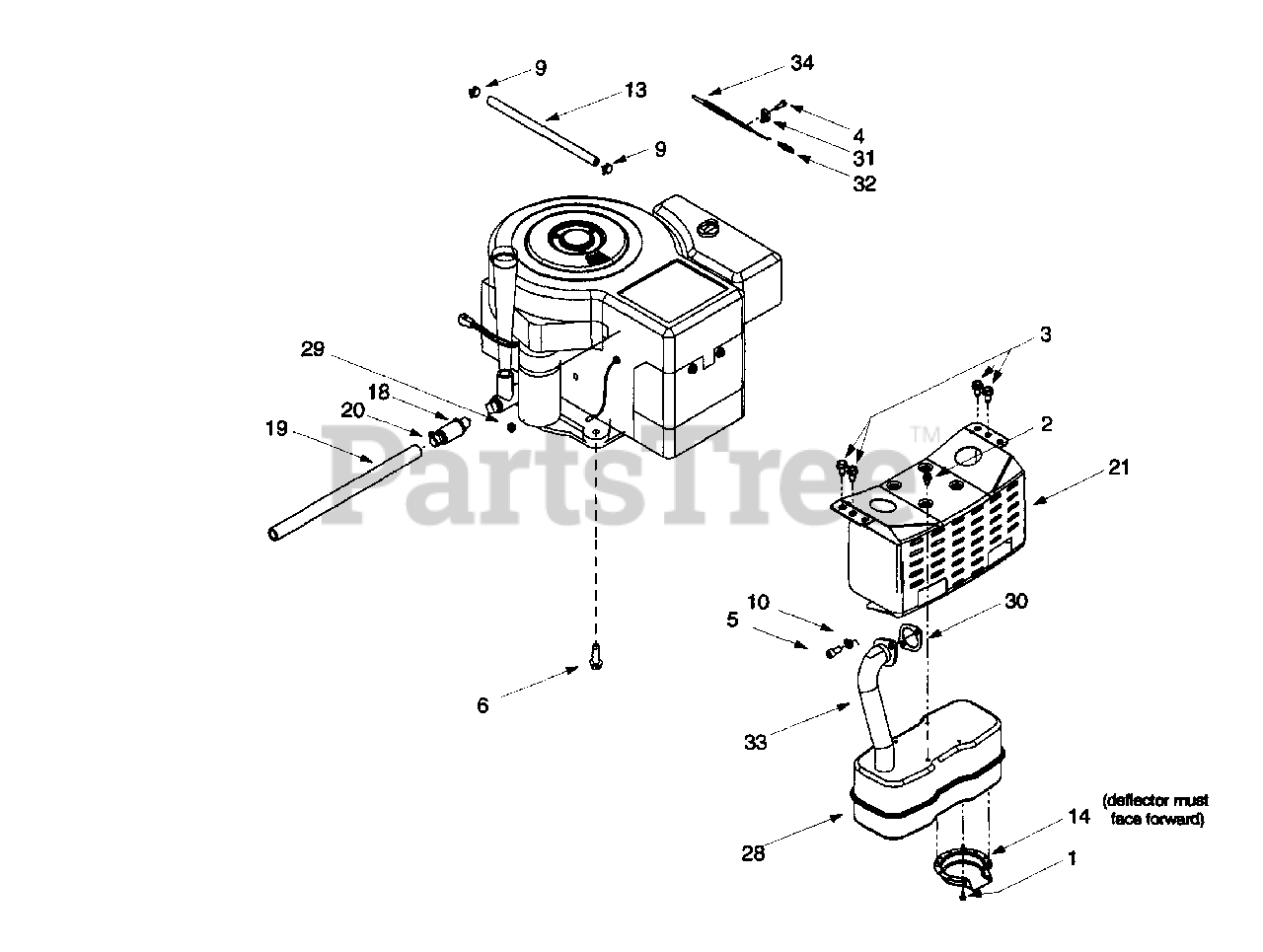

Muffler/Engine Accessories Briggs & Stratton Intek Single Parts Diagram

  • Title

1

Troy-Bilt 710-0148

Self Tapping Screw, #8-32 x .375

$4.49

$

In Stock, Qty 16

0

2

Troy-Bilt 710-0599

Self Tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0604

Self Tapping Screw, 5/16-18 x .625
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-1237

Screw, #10-32 x .625

$4.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 710-1314

Socket Cap Screw, 5/16-18 x .625
(Superseded to 710-1314A)

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-1315

Self Tapping Screw, 3/8-16 x 1.25

$4.49

$

In Stock, Qty 20+

0

?7

Troy-Bilt 712-0798

Hex Nut, 3/8-16

$4.49

$

In Stock, Qty 6

0

?8

Troy-Bilt 721-0460

Exhaust Gasket
(Superseded to 721P0460)

Note: (Intek Twin)

$6.99

$

In Stock, only 2 left!

0

9

Troy-Bilt 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

?11

Troy-Bilt 736-0221

Flat Washer, 3/8 x .56 x .018

$

$

Not available

?12

Troy-Bilt 751B221535

Casing Clamp

$10.99

$

In Stock, Qty 10

0

13

Troy-Bilt 751-0535

Fuel Line Hose

$

$

Currently unavailable

14

Troy-Bilt 751-0564

Muffler Deflector
(Superseded to 751-0564B)

$13.99

$

In Stock, only 3 left!

0

?15

Troy-Bilt 751-0616

Muffler, Twin Inlet
(Superseded to 951-0616B)

$163.99

$

In Stock, Qty 16

0

?16

Troy-Bilt 751-0650

RH Exhaust Pipe
(Superseded to 751-0650B)

Note: (Intek Twin)

$63.99

$

In Stock, only 1 left!

0

?17

Troy-Bilt 751-0651

LH Exhaust Pipe
(Superseded to 751-0651B)

Note: (Intek Twin)

$60.99

$

In Stock, only 1 left!

0

18

Troy-Bilt 751-3140

Oil Drain Valve
(Superseded to 951-10517A)

$24.99

$

In Stock, only 1 left!

0

19

Troy-Bilt 751-3141

Oil Drain Hose
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 7

0

20

Troy-Bilt 751-3142

Oil Drain Cap

$4.49

$

In Stock, Qty 14

0

21

Troy-Bilt 783-0615

Muffler Heat Shield
(Superseded to 783-0615E-0637)

Variations

Troy-Bilt 783-0615-0637

Muffler Bracket - POWDER BLACK (0637)

$64.99

$

In Stock, only 1 left!

0

$64.99

$

In Stock, only 1 left!

0

?22

Troy-Bilt 783-0625A

Engine Heat Shield
(Superseded to 783-0625C)

$111.99

$

Usually ships in 3-6 days

0

?23

Troy-Bilt 710-3206A

Hex Cap Screw, M8-1.25 x 25

$3.99

$

In Stock, Qty 13

0

?24

Troy-Bilt 712-3086

Flange Nut, M8-1.25

$4.49

$

In Stock, only 2 left!

0

?25

Troy-Bilt 721-0375

Exhaust Gasket
(Superseded to KH-12-041-03)

Note: (Kohler)

$

$

Not available

?26

Troy-Bilt 736-0607

External Lock Washer, 5/16

$3.99

$

In Stock, Qty 20+

0

?27

Troy-Bilt 751-0621

Exhaust Pipe
(Superseded to 751-0621A)

Note: (Kohler)

$

$

Not available

28

Troy-Bilt 751-0617

Muffler, Single Inlet
(Superseded to 951-0617C)

$149.99

$

In Stock, Qty 5

0

29

Troy-Bilt 712-0271

Hex Sems Nut, 1/4-20

Note: (For starter cable)

$4.49

$

In Stock, Qty 19

0

30

Troy-Bilt 721-0208

Exhaust Gasket
(Superseded to BS-692236)

Note: (Intek Single)

$5.49

$

In Stock, Qty 20+

0

31

Troy-Bilt 732-0966

Extension Spring, .275 x 1.25

$

$

Not available

32

Troy-Bilt 751B213146

Casing Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

33

Troy-Bilt 751-0619

Exhaust Pipe
(Superseded to 751-0619B)

Note: (Intek Single)

$76.99

$

In Stock, only 2 left!

0

34

Troy-Bilt 746-1084

Throttle/Choke Cable
(Superseded to 946-1084)

Note: (Intek Single)

$32.99

$

Usually ships in 3-6 days

0

?35

Troy-Bilt 746-1086

Throttle Cable
(Superseded to 946-1086)

Note: (Intek Twin)

$33.99

$

In Stock, only 1 left!

0

?36

Troy-Bilt 746-1087

Throttle Cable
(Superseded to 946-1087)

Note: (Kohler)

$35.99

$

In Stock, only 1 left!

0
