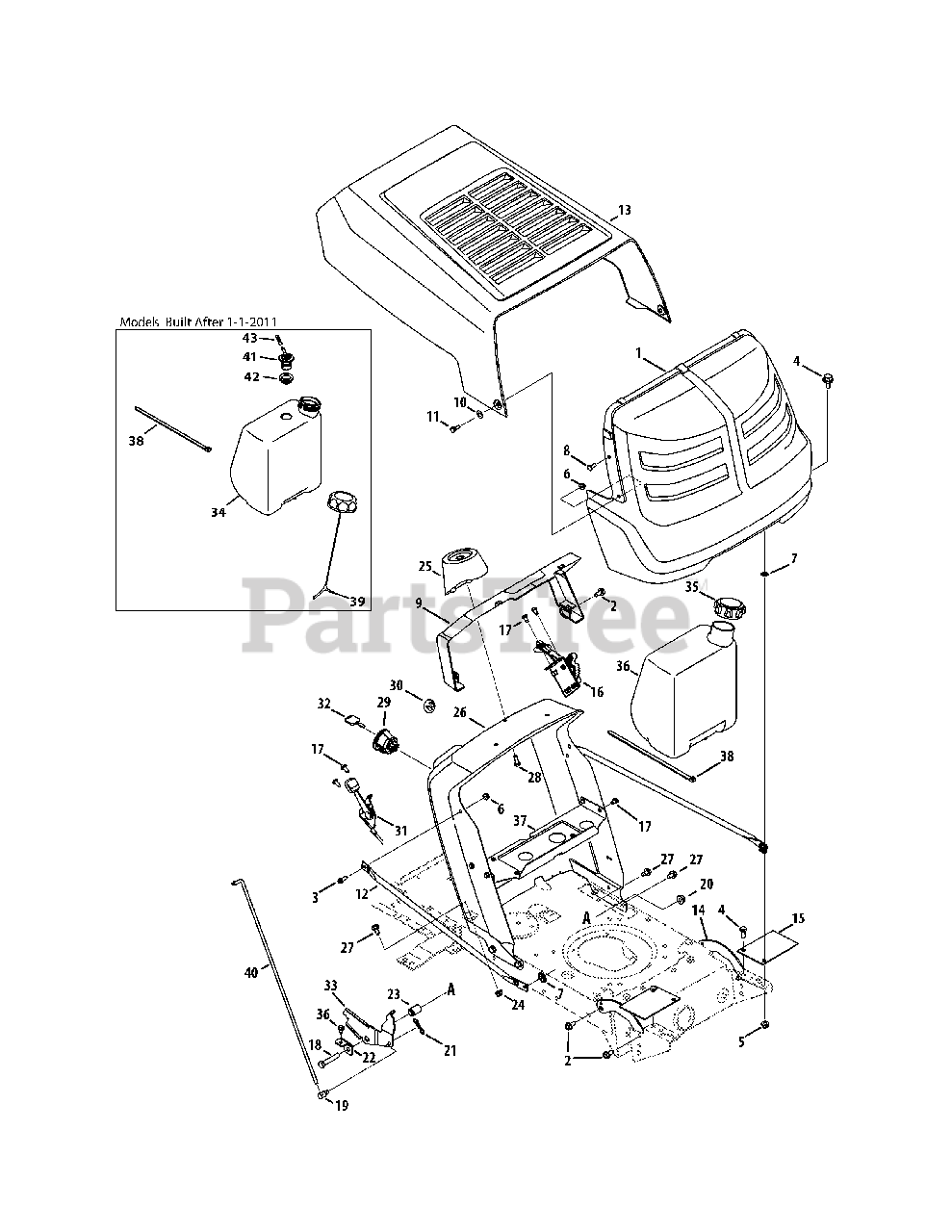

13AC76LF055 - Yard-Man Lawn Tractor (2011) (Walmart) Hood & Dash Parts Diagram

Lawn Tractor

Hood & Dash Parts Diagram

  • Title

1

MTD 931-04472

Grill Assembly
(Superseded to 931-05028)

$

$

Not available

2

MTD 710-04484

Screw, Tap, 5/16-18, .750

$3.99

$

In Stock, Qty 20+

0

3

MTD 710-0642

Screw, Tap, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-3008

Hex Screw, 5/16-18, .75

$4.49

$

In Stock, Qty 20+

0

5

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

6

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

7

MTD 926-04012

Nut, push-On, .25 Dia
(Superseded to 726-04012)

$

$

Not available

8

MTD 728-0162

Rivet, flat Head 1/4"

$4.99

$

Usually ships in 3-6 days

0

9

MTD 731-05012B

Collar, dash, 0/2 Style

$17.99

$

Usually ships in 3-6 days

0

10

MTD 936-0314

Washer, Thrust, .375x.70x.030
(Superseded to 736-0314)

$

$

Not available

11

MTD 938-0952A

Bolt, Shoulder, .375 X .125

$7.49

$

In Stock, Qty 10

0

12

MTD 749-04220-0637

Grill Support Rod

$26.99

$

Usually ships in 3-6 days

0

13

MTD 783-04608-0638

Hood - Red

$274.99

$

Usually ships in 3-6 days

0

13

MTD 783-04608-0662

Hood - Gray

$255.99

$

Usually ships in 3-6 days

0

14

MTD 783-05027-0637

Front Pivot Support Bracket

$20.99

$

Usually ships in 3-6 days

0

15

MTD 783-06682-0637

Support Bracket

$3.99

$

Usually ships in 3-6 days

0

16

MTD 983-04225

6-Speed Control Assembly

$

$

Not available

17

MTD 710-05070

Screw, Tap, 1/4-20, 0.500
(Superseded to 710-05070A)

$6.99

$

In Stock, Qty 7

0

18

MTD 710-3144

Hex Screw, 3/8-16, 2.00, Gr5, Std

$4.49

$

In Stock, Qty 20+

0

19

MTD 711-0736

Adjustable Ferrule, 1/4-20 X 1.00

$13.99

$

In Stock, only 1 left!

0

20

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

21

MTD 714-04040

Bow-Tie Cotter Pin, 72

$1.49

$

In Stock, Qty 20+

0

22

MTD 783-06823

Speed Latch

$17.99

$

In Stock, only 2 left!

0

23

MTD 750-04465B

Flange Spacer, .390 X .671 X 1.095

$4.49

$

In Stock, only 2 left!

0

24

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

25

MTD 731-04945

Steering Support

$18.99

$

In Stock, only 1 left!

0

26

MTD 783-04873B-0637

Dash, lt-5, No RMC

Note: RMC® (Reverse Mowing Control)

$214.99

$

Usually ships in 3-6 days

0

27

MTD 710-0604A

Tap Screw,5/16-18, 0.625

$4.49

$

In Stock, Qty 20+

0

28

MTD 710-05108

Screw, HL, 1/4 Dia. x 0.750

$3.99

$

In Stock, Qty 20+

0

29

MTD 925-04659

Key Switch

$44.99

$

In Stock, Qty 20+

0

30

MTD 731-05265

Choke Plug

$5.99

$

Usually ships in 3-6 days

0

31

MTD 746-04364

Throttle/Choke Cable Assembly

$48.99

$

In Stock, only 3 left!

0

32

MTD 925-1745A

Key

$17.99

$

In Stock, Qty 20+

0

33

MTD 783-04903A

Speed Latch - No RMC
(Superseded to 783-04903)

Note: RMC® (Reverse Mowing Control)

$8.99

$

Usually ships in 3-6 days

0

34

MTD 951-04304

Fuel Tank, 1.36 Gal.
(Superseded to 951-04304B)

$111.99

$

Usually ships in 3-6 days

0

35

MTD 751-0603A

Fuel Cap
(Superseded to 751-0603B)

$23.99

$

In Stock, only 3 left!

0

36

MTD 751-0555B

Fuel Tank, 1.50 Gal.
(Superseded to 751-0555D)

$89.99

$

In Stock, only 1 left!

0

37

MTD 783-04584B-0637

Gas Tank Support Braket

$19.99

$

Usually ships in 3-6 days

0

38

MTD 726-0230

Cable Tie, 36.0 Long

$27.99

$

In Stock, only 1 left!

0

39

MTD 951-12179

Fuel Cap,2.25"
(Superseded to 951-12179C)

$38.99

$

In Stock, only 4 left!

0

40

MTD 747-04430

Speed Selector Control Rod

$21.99

$

Usually ships in 3-6 days

0

41

MTD 751-12118

Rollover Valve

$35.99

$

In Stock, only 2 left!

0

42

MTD 735-04081

Rubber Grommet, 23 x 3.55

$4.99

$

In Stock, Qty 20+

0

43

MTD 751-12089-28

Hose Vent

$8.99

$

In Stock, only 1 left!

0
