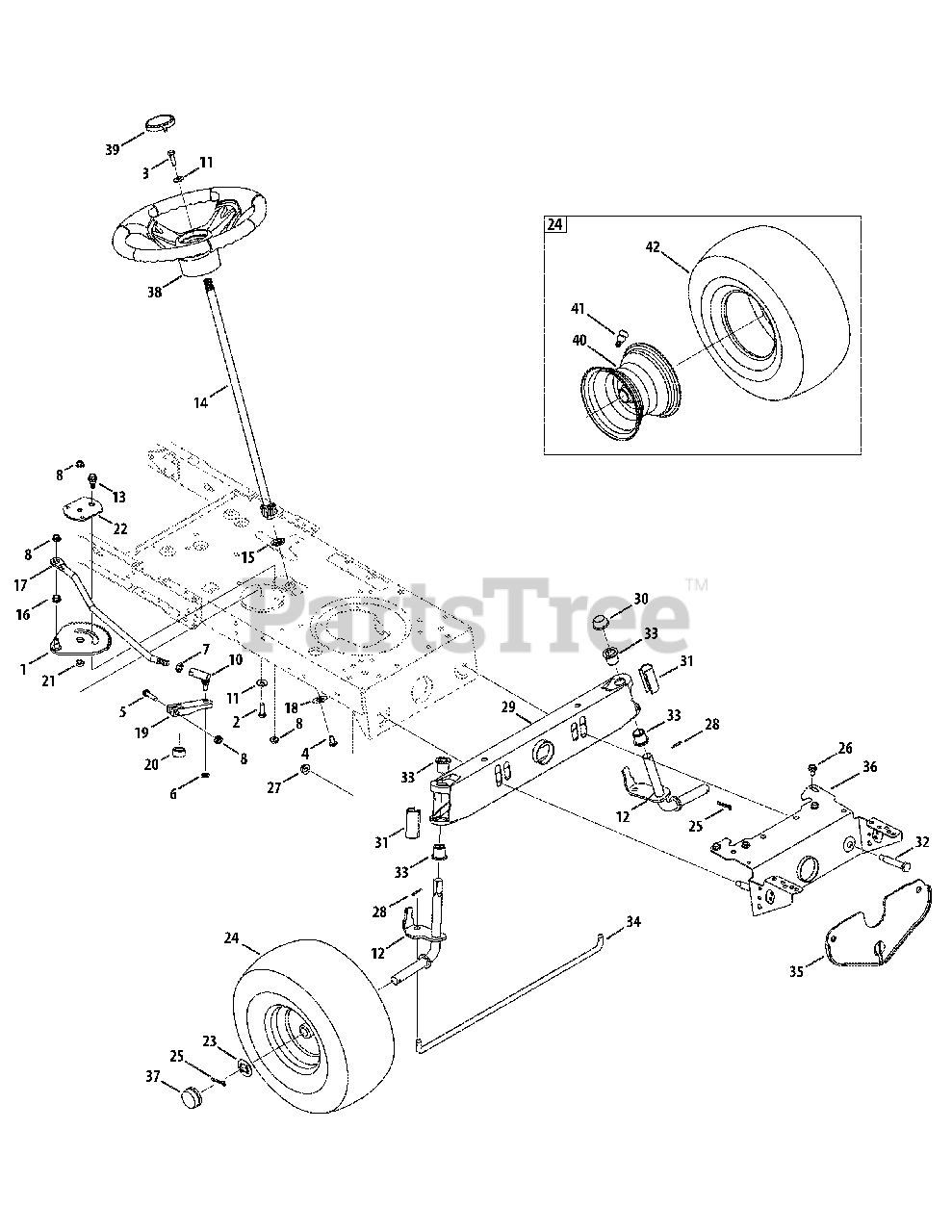

13AC76LF055 - Yard-Man Lawn Tractor (2010) (Walmart) Front End Steering Parts Diagram

Lawn Tractor

Front End Steering Parts Diagram

  • Title

1

MTD 617-04024A

Front Steering Gear Assembly

$53.99

$

In Stock, Qty 11

0

2

MTD 710-0376

Hex Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 5

0

3

MTD 710-0643

Hex Screw, 5/16-18 x 1.00, Lock

$6.99

$

In Stock, Qty 5

0

4

MTD 710-1309

Machine Screw, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-3180

Hex Screw, 5/16-18 x 1.75

$5.49

$

In Stock, Qty 11

0

6

MTD 912-0240

Jam Nut, 7/16-20

$4.49

$

In Stock, Qty 20+

0

7

MTD 912-0214

Jamlock Nut, 3/8-24
(Superseded to 712-0214)

$6.49

$

In Stock, only 3 left!

0

8

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

MTD 938-04013

Front RH Axle

$56.99

$

Usually ships in 3-6 days

0

10

MTD 923-0448A

Ball Joint, 7/16-20

$24.99

$

In Stock, Qty 20+

0

11

MTD 736-0242

Bell Washer, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

12

MTD 938-04014A-0637

Front LH Axle

$56.99

$

Usually ships in 3-6 days

0

12

MTD 938-04013

Front RH Axle

$56.99

$

Usually ships in 3-6 days

0

13

MTD 738-04141

Shoulder Bolt, 5/16-18 x .435 x .350

$5.49

$

In Stock, Qty 20+

0

14

MTD 738-0919A

Steering Shaft, 5/8 x 22.08
(Superseded to 738-0919B)

$59.99

$

In Stock, Qty 20+

0

15

MTD 941-04124

Flange Bearing, 5/8
(Superseded to 741-04124)

$5.49

$

In Stock, Qty 20+

0

16

MTD 941-0475

Plastic Bushing, .380 ID

$4.49

$

In Stock, Qty 20+

0

17

MTD 747-04298

Steering Link
(Superseded to 747-05385A)

$20.99

$

In Stock, Qty 5

0

18

MTD 948-0389

Cap, 1.25 x .16

$5.49

$

In Stock, Qty 20+

0

19

MTD 748-04065-0637

Steering Block
(Superseded to 748-04278-0637)

$21.99

$

In Stock, only 2 left!

0

20

MTD 748-04068

Spacer, .71 x .125 x .56

$4.49

$

In Stock, Qty 20+

0

21

MTD 750-04418

Spacer, .322 x .625 .21

$6.99

$

In Stock, only 2 left!

0

22

MTD 783-04644

Gear Segment Stabilizer Plater
(Superseded to 783P08577A)

$7.49

$

In Stock, Qty 20+

0

23

MTD 736-04228A

Flat Washer, .781 x 1.590
(Superseded to 736-04228B)

$5.49

$

In Stock, Qty 20+

0

24

MTD 634-04519-0911

Wheel Assembly

$118.99

$

Usually ships in 3-6 days

0

25

MTD 714-04039

Cotter Pin, 5/32 x 1.25
(Superseded to 714-0162)

$4.99

$

In Stock, Qty 20+

0

26

MTD 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

27

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

Usually ships in 3-6 days

0

28

MTD 914-0474

Cotter Pin, .125 x .75
(Superseded to 714-0474)

$

$

Not available

29

MTD 683-0128B-0637

Pivot Axle

$97.99

$

In Stock, only 2 left!

0

30

MTD 726-0341

Push Nut, 3/4

$4.99

$

In Stock, Qty 20+

0

31

MTD 731-04057A

Standard Axle Cap

$5.49

$

In Stock, Qty 6

0

32

MTD 738-04128

Shoulder Bolt, 3/8-16 x .500 x 2.38

$7.99

$

Usually ships in 3-6 days

0

33

MTD 741-0660A

Flange Bearing, .760 x .941 x 1.0

$3.49

$

In Stock, Qty 20+

0

34

MTD 747-04299A

Fixed Rod

$30.99

$

Usually ships in 3-6 days

0

35

MTD 783-04568-0637

Front Deck Hanger Bracket

$51.99

$

Usually ships in 3-6 days

0

36

MTD 783-04601C-0637

Pivot Bar Bracket

$56.99

$

Usually ships in 3-6 days

0

37

MTD 931-0484A

Hub Cap

$6.49

$

In Stock, Qty 20+

0

38

MTD 631-04028

Steering Wheel

$69.99

$

In Stock, only 1 left!

0

39

MTD 731-04040

Sprig Cap

$9.99

$

In Stock, only 1 left!

0

40

MTD 634-04098A-0662

Rim Assembly, 6.0 x 4.0

$43.99

$

Usually ships in 3-6 days

0

41

MTD 934-0255

Valve, tubeless Air

$4.49

$

In Stock, Qty 20+

0

42

MTD 734-04372

Tire, 13 X 5 X 6 Round Shoulder

$94.99

$

Usually ships in 3-6 days

0
