13AC762F729 - Yard Machines Lawn Tractor (2006) (Home Depot) Deck Assembly 38 inch Parts Diagram

Lawn Tractor

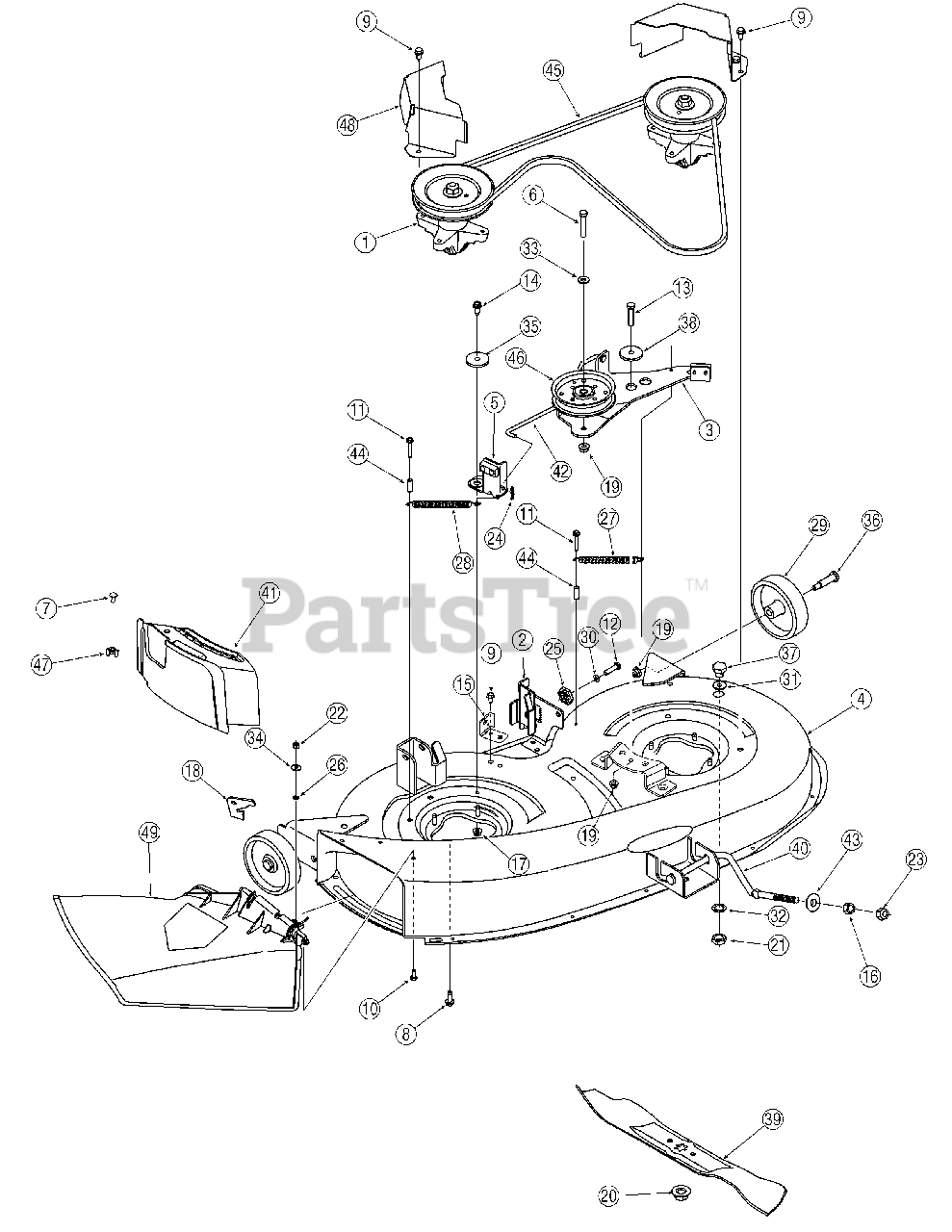

Deck Assembly 38 inch Parts Diagram

  • Title

1

MTD 918-04197A

Spindle Assembly, with Pulley, 5.75"
(Superseded to 918-04197B)

$157.99

$

In Stock, only 2 left!

0

1

MTD 712-0417A

Flange Nut:5/8-18

Note: Not shown

$6.99

$

In Stock, Qty 20+

0

1

MTD 738-1010A

Spindle Shaft:5.75 LG.

Note: Not shown

$46.99

$

In Stock, only 2 left!

0

1

MTD 941-0919

Ball Bearing:20x47x14:62
(Superseded to 941-0919B)

Note: Not shown

$21.99

$

In Stock, Qty 20+

0

1

MTD 748-0433

Pulley Spacer: .820 x 1.150 x .73

Note: Not shown

$5.99

$

In Stock, Qty 5

0

1

MTD 750-1000

Bearing Spacers: .80 x 1.10 x 1.322, 2 used

Note: Not shown

$4.49

$

In Stock, Qty 7

0

1

MTD 756-1188

Pulley 5.75 dia

Note: Not shown

$36.99

$

In Stock, Qty 8

0

2

MTD 683-0254B

Brkt. Assembly, Deck, Hanger LH

Variations

MTD 683-0254B-0498

Deck Bracket Assembly, LH - OLD CUB YELLOW (0498)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0716

Deck Bracket Assembly, LH - CUB YELLOW-99 (0716)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-4021

Deck Bracket Assembly, LH - CUB YELLOW 2 (4021)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-4033

Deck Bracket Assembly, LH - FLINT MICA (4033)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-4044

Deck Bracket Assembly, LH - CRAFTSMAN RED (4044)

$49.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0606

Deck Bracket Assembly, LH - MAJESTIC ORANGE (0606)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0638

Deck Bracket Assembly, LH - MTD/TROY-BILT RED (0638)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0650

BRACKET ASM-DECK LH - RED METALLIC (0650)

$49.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0665

BRACKET ASM-DECK LH - YARDMAN GREEN (0665)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-4008

BRACKET ASM-DECK LH - WINE RED (4008)

$46.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0709

BRACKET ASM-DECK LH - MASTERCRAFT GREEN (0709)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-4028

BRACKET ASM-DECK LH - SEARS YELLOW (4028)

$36.99

$

In Stock, only 1 left!

0

$46.99

$

Usually ships in 3-6 days

0

3

MTD 683-04138B

Brake Assembly, Deck Bracket
(Superseded to 683P04138C)

Variations

MTD 683-04138B-0637

Brake Assembly, 42" Deck - POWDER BLACK (0637)

$117.99

$

Usually ships in 3-6 days

0

MTD 683-04138B-0606

Brake Assembly, 42" Deck - MAJESTIC ORANGE (0606)

$117.99

$

Usually ships in 3-6 days

0

MTD 683-04138B-0691

Brake Assembly, 42" Deck - BLACK JACK (0691)

$117.99

$

Usually ships in 3-6 days

0

MTD 683-04138B-4008

Brake Assembly, 42" Deck - WINE RED (4008)

$117.99

$

Usually ships in 3-6 days

0

MTD 683-04138B-0650

Brake Assembly, 42" Deck - RED METALLIC (0650)

$117.99

$

Usually ships in 3-6 days

0

MTD 683-04138B-0665

Brake Assembly, 42" Deck - YARDMAN GREEN (0665)

$117.99

$

Usually ships in 3-6 days

0

$117.99

$

Usually ships in 3-6 days

0

4

MTD 983-04166A

Deck Shell, 38" (w/o Wheel Bracket)

Variations

MTD 983-04166A-0637

DECK ASM:SD 38" - POWDER BLACK (0637)

$631.99

$

Usually ships in 3-6 days

0

$511.99

$

Usually ships in 3-6 days

0

4

MTD 983-04161A

Deck Shell, 38" (w/ Wheel Bracket)

Variations

MTD 983-04161A-0498

DECK ASM:38" W/WHEEL BRKTS - OLD CUB YELLOW (0498)

$

$

Not available

MTD 983-04161A-0606

DECK ASM:38" W/WHEEL BRKTS - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 983-04161A-0637

DECK ASM:38" W/WHEEL BRKTS - POWDER BLACK (0637)

$

$

Not available

MTD 983-04161A-0650

DECK ASM:38" W/WHEEL BRKTS - RED METALLIC (0650)

$

$

Not available

$

$

5

MTD 983-04167

Brake Assembly, Deck Bracket

$47.99

$

In Stock, only 2 left!

0

6

MTD 710-0347

Screw, 3/8-16, 1.75, Gr5

$5.49

$

In Stock, Qty 20+

0

7

MTD 710-0134

Carriage Screw, , 1/4-20 x .62 (if equipped)

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0650

Screw, 5/16-18, 0.875

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-0726

Screw, 5/16-12, 0.750

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-3015

Screw, 1/4-20, .75, Gr5

$3.99

$

In Stock, Qty 20+

0

11

MTD 710-0778

Screw, 1/4-20, 1.500

$4.49

$

In Stock, only 1 left!

0

12

MTD 710-0528

Screw, 5/16-18, 1.250

$4.49

$

In Stock, Qty 20+

0

13

MTD 710-3005

Screw, 3/8-16, 1.25, Gr5

$3.99

$

In Stock, Qty 10

0

14

MTD 710-3008

Screw, 5/16-18, .75, Gr5

$4.49

$

In Stock, Qty 20+

0

15

MTD 783-04740

Deck Engagement Cable Bracket

Variations

MTD 783-04740-0637

Deck Cable Bracket - POWDER BLACK (0637)

$10.99

$

In Stock, only 2 left!

0

MTD 783-04740-0606

Deck Cable Bracket - MAJESTIC ORANGE (0606)

$10.99

$

Usually ships in 3-6 days

0

MTD 783-04740-0638

BRACKET:CABLE:DECK - MTD/TROY-BILT RED (0638)

$10.99

$

Usually ships in 3-6 days

0

MTD 783-04740-0665

BRACKET:CABLE:DECK - YARDMAN GREEN (0665)

$9.99

$

Usually ships in 3-6 days

0

MTD 783-04740-4008

BRACKET:CABLE:DECK - WINE RED (4008)

$9.99

$

Usually ships in 3-6 days

0

$8.49

$

Usually ships in 3-6 days

0

16

MTD 712-0206

Nut, Hex, 1/2-13, Gr5

$4.49

$

In Stock, Qty 20+

0

17

MTD 712-04063

Nut, Flange Lock, 5/16-18, GrF

$3.99

$

In Stock, Qty 5

0

18

N/A

Chute Stop

$

$

Not available

19

MTD 712-04065

Nut, Flange Lock, 3/8-16, GrF

$3.99

$

In Stock, Qty 20+

0

20

MTD 712-0417A

Nut, Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

21

MTD 712-0641

Nut, Hex, M16-1.5

$6.49

$

In Stock, Qty 7

0

22

MTD 712-3006

Nut, Hex, 1/4-20, Gr5

$4.99

$

In Stock, Qty 19

0

23

MTD 712-3083

Nut, Hex Lock, 1/2-13, Gr8, Nylon

$4.49

$

In Stock, Qty 20+

0

24

MTD 714-0104

Pin, Cot, .072 Dia. x 1.13

$4.49

$

In Stock, Qty 20+

0

25

MTD 717-04074

Gear, Deck Adjustment
(Superseded to 917-04074)

$13.99

$

In Stock, Qty 16

0

26

MTD 726-0233

Nut, Push, .25 ID x .50

$4.49

$

In Stock, Qty 20+

0

27

MTD 732-04280A

Spring, Exten. , .75 Dia. X 6.375
(Superseded to 732-04280B)

$8.49

$

In Stock, only 4 left!

0

28

MTD 732-04287

Spring, Exten. , .50 Dia. X 6.375

$15.99

$

In Stock, only 1 left!

0

29

MTD 734-0973

Wheel, Deck 5.0 x 1.38 (if equipped)

$12.99

$

In Stock, Qty 20+

0

30

MTD 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

31

MTD 736-0187

Washer, Flat, .64 x 1.24 x .06

$4.49

$

In Stock, Qty 20+

0

32

MTD 736-0225

Washer, Lock, 5/8, Internal

$4.49

$

In Stock, only 2 left!

0

33

MTD 736-0267

Washer, Flat, .385 x .87 x .06

$4.49

$

In Stock, Qty 20+

0

34

MTD 736-0270

Washer, Bell, .265 x.75 x .062

$3.99

$

In Stock, Qty 20+

0

35

MTD 738-04166

Spacer, Shoulder, .5000 x .1475

$6.49

$

In Stock, Qty 8

0

36

MTD 738-0373

Screw, Shldr, .498 x 1.53, 3/8-16 (if equipped)
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

37

MTD 738-04146

Plug, Screw, M16 x 1.5

$9.49

$

Usually ships in 3-6 days

0

38

MTD 738-04162A

Spacer, Shoulder, .8840 x .190
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

39

MTD 942-0610A

Blade, 19.38", Star 3-in-1

$26.99

$

In Stock, Qty 20+

0

40

MTD 747-04322

Deck Rod, Front Adjustable

$35.99

$

In Stock, only 1 left!

0

41

MTD 731-2363

Mulch Plug (if equipped)

$29.99

$

In Stock, only 4 left!

0

42

MTD 747-04381

Control Rod, Brake

$20.99

$

Usually ships in 3-6 days

0

43

MTD 748-04069

Pivot Cup, Deck Lift
(Superseded to 748-04069A)

$5.99

$

In Stock, Qty 11

0

44

MTD 750-0566A

Spacer, .260 x .372 x 1.030

$9.99

$

In Stock, only 1 left!

0

45

MTD 954-04062

Belt, V-Type

$47.99

$

In Stock, Qty 13

0

46

MTD 756-04129B

Idler Pulley, 4.25" Dia.
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

47

MTD 712-3087

Wing Nut, 1/4-20 (if equipped)

$3.99

$

In Stock, Qty 20+

0

48

MTD 783-04602A

Cover, Belt, 5.66 Dia.

Variations

MTD 783-04602A-0637

Belt Cover, 5.66 Dia Black - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

MTD 783-04602A-0606

Belt Cover, 5.66 Dia Orange - MAJESTIC ORANGE (0606)

$30.99

$

Usually ships in 3-6 days

0

MTD 783-04602A-0638

COVER-BELT 5.66 DI - MTD/TROY-BILT RED (0638)

$32.99

$

Usually ships in 3-6 days

0

MTD 783-04602A-0709

Belt Cover, 5.66 Dia Dark Green - MASTERCRAFT GREEN (0709)

$32.99

$

In Stock, only 1 left!

0

$26.99

$

Usually ships in 3-6 days

0

49

MTD 931-1032B

Chute Assembly, Discharge
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 6

0
