13AC26JD000 - Yard Machines Lawn Tractor (2017) Fender Parts Diagram

Lawn Tractor

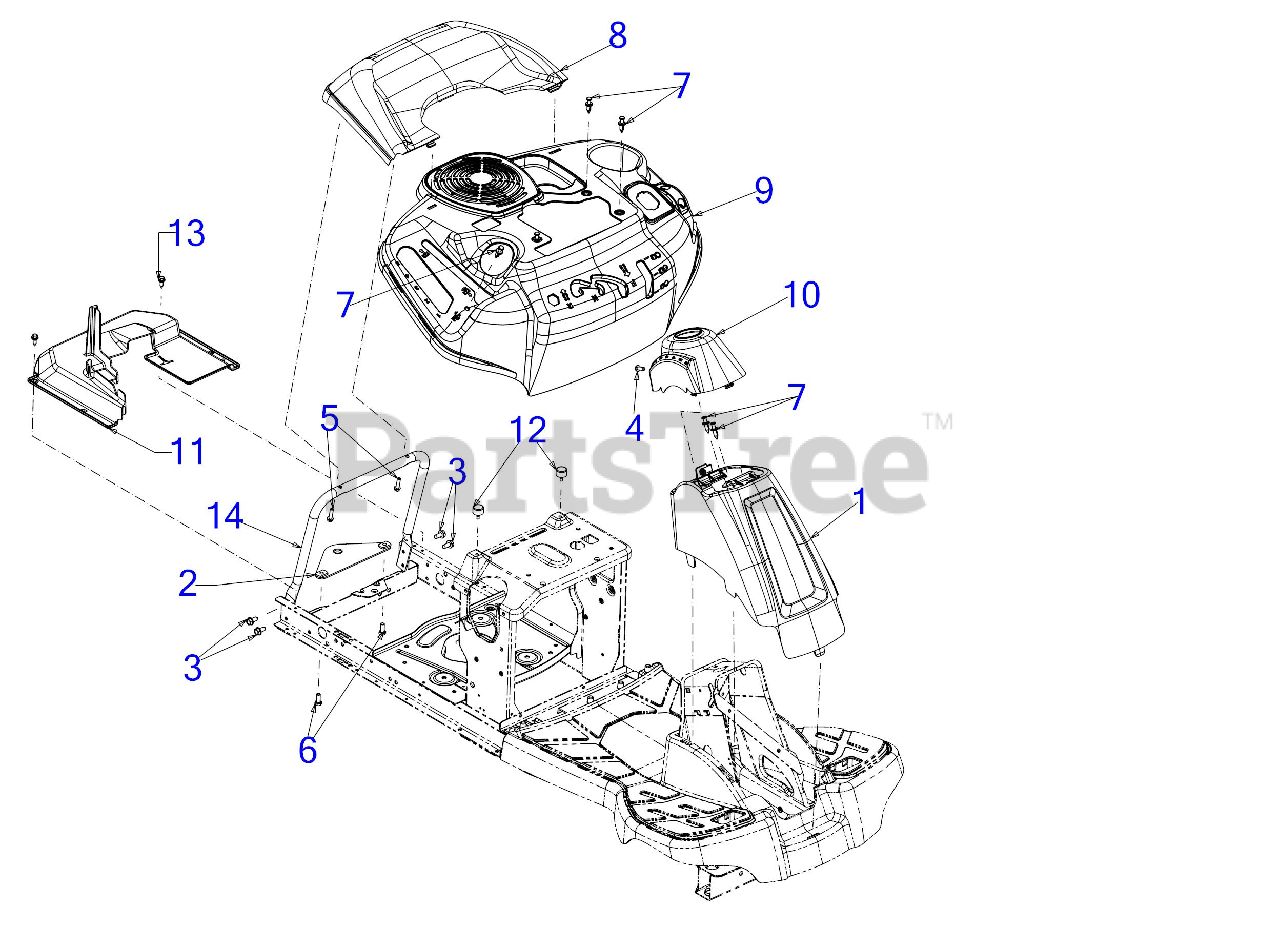

Fender Parts Diagram

  • Title

1

MTD 631-05038

COLUMN COVER ASSEMBLY (MTD RED)

$33.99

$

Usually ships in 3-6 days

0

1

MTD 712-04092

U NUT

Note: (Not Shown)

$5.99

$

In Stock, only 2 left!

0

2

MTD 683-05377

HITCH PLATE ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 683-05377-0637

PLATE ASM-HITCH - POWDER BLACK (0637)

$24.99

$

In Stock, only 3 left!

0

$22.99

$

Usually ships in 3-6 days

0

2

MTD 783-07208A

HITCH PLATE

Note: *CHOOSE COLOR WHEN ORDERING*(Not Shown)

Variations

MTD 783-07208A-0637

Hitch Plate - POWDER BLACK (0637)

$8.49

$

Usually ships in 3-6 days

0

$7.99

$

Usually ships in 3-6 days

0

3

MTD 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-0924

SCREW 1/4-20X.75

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-1241

SCREW 1/4-15 x 1.00

$6.99

$

In Stock, Qty 19

0

6

MTD 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

7

MTD 728-0199

PLASTIC RIVET

$4.49

$

In Stock, Qty 15

0

8

MTD 731-08620A

REAR COVER

$33.99

$

Usually ships in 3-6 days

0

9

MTD 731-08827A

FENDER

$74.99

$

Usually ships in 3-6 days

0

10

MTD 731-09382

COLUMN STEERING CAP

$14.99

$

In Stock, only 1 left!

0

11

MTD 731-10504

DRIVE OVER REAR

$50.99

$

Usually ships in 3-6 days

0

12

MTD 735-05006

BUMPER .62 DIA x .50

$4.49

$

In Stock, only 2 left!

0

13

MTD 738-04184A

SHOULDER SCREW

$6.99

$

In Stock, Qty 15

0

14

MTD 749-04932

REAR SUPPORT TUBE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 749-04932-0637

Support Tube, Rear - POWDER BLACK (0637)

$33.99

$

Usually ships in 3-6 days

0

$27.99

$

Usually ships in 3-6 days

0
