13AB560B000 - Yard Machines Lawn Tractor (1997) Steering Assembly/Wheel, Front/Battery/Front Axle Parts Diagram

Lawn Tractor

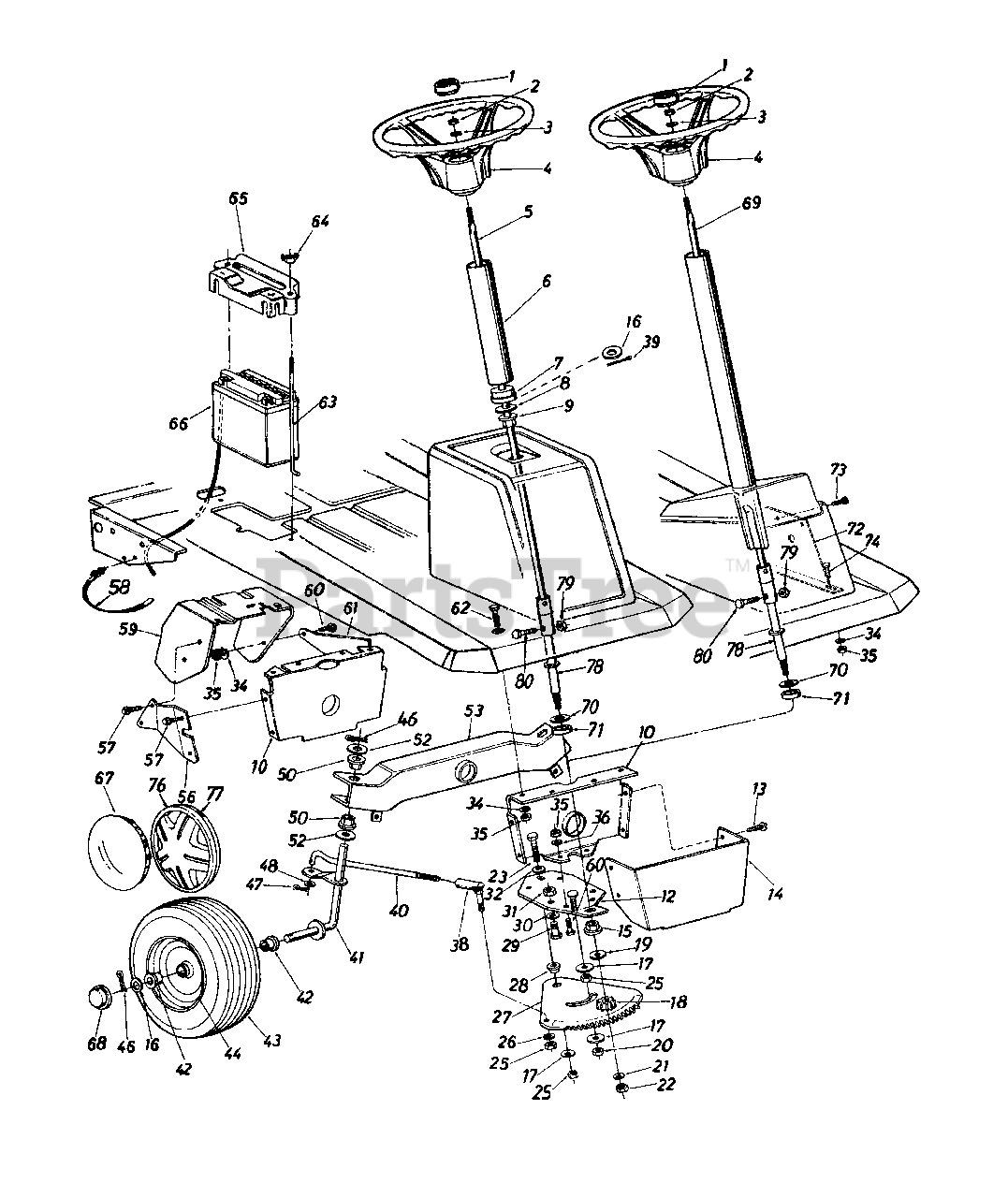

Steering Assembly/Wheel, Front/Battery/Front Axle Parts Diagram

  • Title

1

MTD 731-0220

Steering Wheel Cap
(Superseded to 931-0220)

$9.49

$

In Stock, only 2 left!

0

2

MTD 712-0237

Hex L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

3

MTD 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

4

MTD 731-0805

Steering Wheel Ass'y. (3 Spoke)
(Superseded to 931-0806A)

$

$

Not available

MTD 731-0806A

Steering Wheel Ass'y. (4 Spoke)
(Superseded to 931-0806A)

$

$

Not available

5

MTD 683-0035

Steering Shaft Ass'y.

Note: For model 560

$

$

Not available

6

MTD 750-0568

Steering Tube Spacer

Note: For model 560

Variations

MTD 750-0568-0637

No Longer Available SPACER-STE - POWDER BLACK (0637)

$

$

Not available

$

$

7

MTD 731-0651

Steering Tube Spacer
(Superseded to 931-0651)

Note: For model 560

$

$

Not available

8

MTD 736-0187

Fl-Wash. .635" I.D. x 1.24" O.D,

$4.49

$

In Stock, Qty 20+

0

9

MTD 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

Note: For model 560

$7.49

$

In Stock, Qty 20+

0

10

MTD 15613B

Pivot Bar Bracket

Note: New Part

Variations

MTD 15613B-0637

No Longer Available BRACKET-PI - POWDER BLACK (0637)

$

$

Not available

$

$

12

MTD 683-0045

Steering Gear Support Brkt.

$

$

Not available

13

MTD 710-0776A

Hex Wash. Hd. AB-Tap Scr. 1/4 x .62" L
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

14

MTD 15608

Steering Gear Cover

Variations

MTD 15608-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 15608-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 15608-0637

No Longer Available COVER-STEE - POWDER BLACK (0637)

$

$

Not available

MTD 15608-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 15608-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 15608-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

$

$

15

MTD 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

16

MTD 736-0285

Fl-Wash. .640" I.D. x 1.5" O.D.

$4.49

$

In Stock, Qty 9

0

17

MTD 736-0320

Fl-Washer 3/8" I.D. x 1.37" O.D.

$6.99

$

In Stock, Qty 7

0

18

MTD 748-0290

Steering Pinion Gear
(Superseded to 948-0290)

$

$

Not available

19

MTD 736-0272

Fl-Wash. .510" I.D. x 1" O.D.

$4.99

$

In Stock, Qty 20+

0

20

MTD 712-0116

Hex L-Nut 3/8-24

$4.99

$

In Stock, Qty 6

0

21

MTD 736-0275

Fl-Wash. .34" I.D. x .68" O.D.

$6.99

$

Usually ships in 3-6 days

0

22

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

23

MTD 710-0459

Hex Bolt 3/8-24 x 1.5" Lg. (Grade 5)
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

25

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

26

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

27

MTD 717-0472A

Steering Gear Segment
(Superseded to 917-0472A)

$

$

Not available

28

MTD 738-0541

Shoulder Spacer .622" Dia. x .218

$

$

Not available

29

MTD 710-0689

Hex Bolt (Nylon) 1/2-13 x .75"

$6.99

$

Usually ships in 3-6 days

0

30

MTD 736-0160

Fl-Wash. .530" I.D. x .930"

$4.49

$

In Stock, only 2 left!

0

31

MTD 712-0206

Hex Nut 1/2-13 Thd.

$4.49

$

In Stock, Qty 20+

0

32

MTD 736-0105

Bell-Wash. .385" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

34

MTD 736-0119

L-Wash, 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

35

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

36

MTD 736-0271

Spr. Wash. .32" I.D. x .62" O.D.
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

38

MTD 723-0156

Ball Joint Ass'y. 3/8-24 Thd.
(Superseded to 923-0156)

$16.99

$

In Stock, Qty 20+

0

39

MTD 714-0115

Cotter Pin 1/8" Dia. x 1.00" Lg.

Note: For model 560

$3.99

$

Usually ships in 3-6 days

0

40

MTD 747-0417

Steering Tie Rod

$

$

Not available

41

MTD 683-0012

Front Axle Ass'y.-R.H.
(Superseded to 983-0012)

$141.99

$

Usually ships in 3-6 days

0

MTD 683-0011

Front Axle Ass'y.-L.H.
(Superseded to 983-0011)

Note: (Not Shown)

$

$

Not available

42

Flange Bearing

Note: See Front Wheel Chart below

$

$

Not available

43

Front Wheel Ass'y. Comp.

Note: See Front Wheel Chart below

$

$

Not available

44

Front Wheel Rim Only

Note: See Front Wheel Chart below

$

$

Not available

46

MTD 714-0470

Cotter Pin 1/8" Dia. x 1.25"

$4.49

$

In Stock, Qty 20+

0

47

MTD 714-0115

Cotter Pin 1/8" Dia. x 1.00"

$3.99

$

Usually ships in 3-6 days

0

48

MTD 736-0300

Fl-Wash. .385" I.D. x .87"

$4.49

$

In Stock, Qty 20+

0

50

MTD 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

52

MTD 736-0156

Fl-Wash. .635" I.D. x 1.12"

$4.49

$

In Stock, Qty 12

0

53

MTD 15610C

Pivot Bar Ass'y.
(Superseded to 15610C-0637)

Note: New Part

Variations

MTD 15610C-0637

BAR ASSM. PIVOT - POWDER BLACK (0637)

$224.99

$

Usually ships in 3-6 days

0

$224.99

$

Usually ships in 3-6 days

0

56

MTD 15694A

Bracket Reinforcement-R.H.

Variations

MTD 15694A-0637

No Longer Available BRACKET-RE - POWDER BLACK (0637)

$

$

Not available

$

$

57

MTD 710-0776A

Hex Wash. Hd. AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

58

MTD 726-0154

Cable Tie
(Superseded to 926-0154)

Note: See Front Wheel Chart below

$6.49

$

Usually ships in 3-6 days

0

59

MTD 17677

Clutch-Brake Pedal Ass'y.

$

$

Not available

60

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

61

MTD 15699A

Bracket Reinforcement-L.H.

Variations

MTD 15699A-0637

No Longer Available BRACKET-RE - POWDER BLACK (0637)

$

$

Not available

$

$

62

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

63

MTD 711-0222

Battery Hold Down Rod
(Superseded to 911-0222A)

$11.99

$

In Stock, only 1 left!

0

64

MTD 712-0113

Wing Nut Solid 1/4-20 Thd.
(Superseded to 912-0113)

$6.99

$

In Stock, only 2 left!

0

65

MTD 731-0708

Battery Hold Down Cover

$

$

Not available

66

MTD 725-1633

12V Battery
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

67

MTD 734-1219

Chrome Hub Cap

Note: (Optional)

$

$

Not available

68

MTD 731-0484A

Plastic Hub Cap
(Superseded to 931-0484A)

Note: (Optional)

$6.49

$

In Stock, Qty 20+

0

69

MTD 683-0034

Steering Shaft Ass'y.

Note: For model 561

$

$

Not available

70

MTD 736-0187

Fl-Wash. .635" I.D. x 1.24" O.D.

$4.49

$

In Stock, Qty 20+

0

71

MTD 750-0532

Spacer (Plastic)
(Superseded to 950-0532)

$

$

Not available

72

MTD 16069

Reinf. Brkt. Ass'y.

Note: For model 561

Variations

MTD 16069-0637

No Longer Available BRACKET-RE - POWDER BLACK (0637)

$

$

Not available

$

$

73

MTD 710-0323

Truss Mach. Scr. 5/16-18

Note: For model 561

$4.99

$

In Stock, only 2 left!

0

74

MTD 710-0116

Hex Bolt 5/16-18 x 2.00" Lg.
(Superseded to 710-3103)

Note: For model 561

$4.49

$

In Stock, only 4 left!

0

76

MTD 734-1610

Hub Cap-Beige
(Superseded to 931-1850)

Note: (Optional)

$

$

Not available

MTD 734-1502

Hub Cap-Grey

Note: (Optional)

$

$

Not available

77

MTD 727-0425A

Spring Clip
(Superseded to 927-0425A)

Note: (Used w/Ref. 76)

$

$

Not available

78

MTD 738-3089A

Steering End Adapter

$

$

Not available

79

MTD 712-0324

Hex Nylon L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

80

MTD 710-0958

Hex Bolt 1/4-20 x 1.31" Lg.
(Superseded to 710-0106)

$3.99

$

In Stock, only 2 left!

0

MTD 734-1454A

Wheel Assembly Comp
(Superseded to 634-0147)

Note: Front Wheel Chart; 11 x 4.0 Nylon Brg.

Variations

MTD 734-1454A-0911

Wheel Assembly, Complete - Carlisle Gray (0911)

$

$

Not available

MTD 734-1454A-0912

Wheel Assembly, Complete - Dico Gray (0912)

$

$

Not available

MTD 734-1454A-0915

Wheel Assembly, Complete - Duro Gray (0915)

$

$

Not available

MTD 734-1454A-0931

Wheel Assembly, Complete - Carlisle Beige (0931)

$

$

Not available

MTD 734-1454A-0941

Wheel Assembly, Complete - Carlisle Yellow (0941)

$

$

Not available

MTD 734-1454A-0942

Wheel Assembly, Complete - Dico Yellow (0942)

$

$

Not available

MTD 734-1454A-0945

Wheel Assembly, Complete - Duro Yellow (0945)

$

$

Not available

$

$

MTD 734-1382

Tire Only
(Superseded to 734-1382-0901)

Note: Front Wheel Chart; 11 x 4.0 Nylon Brg.

Variations

MTD 734-1382-0901

Tire, 11 X 4 X 4 - Carlisle (0901)

$32.99

$

Usually ships in 3-6 days

0

MTD 734-1382-0902

Tire, 11 X 4 X 4 - Dico (0902)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

MTD 734-1455A

Rim Only

Note: Front Wheel Chart; 11 x 4.0 Nylon Brg.

Variations

MTD 734-1455A-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 734-1455A-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 734-1455A-0662

No Longer Available RIM - OYSTER GRAY (0662)

$

$

Not available

MTD 734-1455A-0674

No Longer Available RIM - YARDMAN YELLOW (0674)

$

$

Not available

$

$

MTD 734-0487A

Bearing

Note: Front Wheel Chart; 11 x 4.0 Nylon Brg.

$

$

Currently unavailable

MTD 734-0255

Air Valve
(Superseded to 934-0255)

Note: Front Wheel Chart; 11 x 4.0 Nylon Brg.

$4.49

$

In Stock, Qty 20+

0

MTD 737-0211A

Grease Fitting

Note: Front Wheel Chart; 11 x 4.0 Nylon Brg.

$10.99

$

Usually ships in 3-6 days

0

MTD 734-1686

Wheel Assembly Comp
(Superseded to 634-0147)

Note: Front Wheel Chart; 11 x 4.0 Ball Brg.

Variations

MTD 734-1686-0911

Wheel Assembly, Complete - Carlisle Gray (0911)

$

$

Not available

MTD 734-1686-0912

Wheel Assembly, Complete - Dico Gray (0912)

$

$

Not available

MTD 734-1686-0915

Wheel Assembly, Complete - Duro Gray (0915)

$

$

Not available

MTD 734-1686-0931

No Longer Available WHEEL ASM - Carlisle Beige (0931)

$

$

Not available

$

$

MTD 734-1382

Tire Only
(Superseded to 734-1382-0901)

Note: Front Wheel Chart; 11 x 4.0 Ball Brg.

Variations

MTD 734-1382-0901

Tire, 11 X 4 X 4 - Carlisle (0901)

$32.99

$

Usually ships in 3-6 days

0

MTD 734-1382-0902

Tire, 11 X 4 X 4 - Dico (0902)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

MTD 734-1683

Rim Only

Note: Front Wheel Chart; 11 x 4.0 Ball Brg.

Variations

MTD 734-1683-0662

No Longer Available WHEEL RIM - OYSTER GRAY (0662)

$

$

Not available

MTD 734-1683-0674

No Longer Available WHEEL RIM - YARDMAN YELLOW (0674)

$

$

Not available

$

$

MTD 741-0569

Bearing
(Superseded to 941-0569)

Note: Front Wheel Chart; 11 x 4.0 Ball Brg.

$34.99

$

In Stock, only 1 left!

0

MTD 734-0255

Air Valve
(Superseded to 934-0255)

Note: Front Wheel Chart; 11 x 4.0 Ball Brg.

$4.49

$

In Stock, Qty 20+

0
