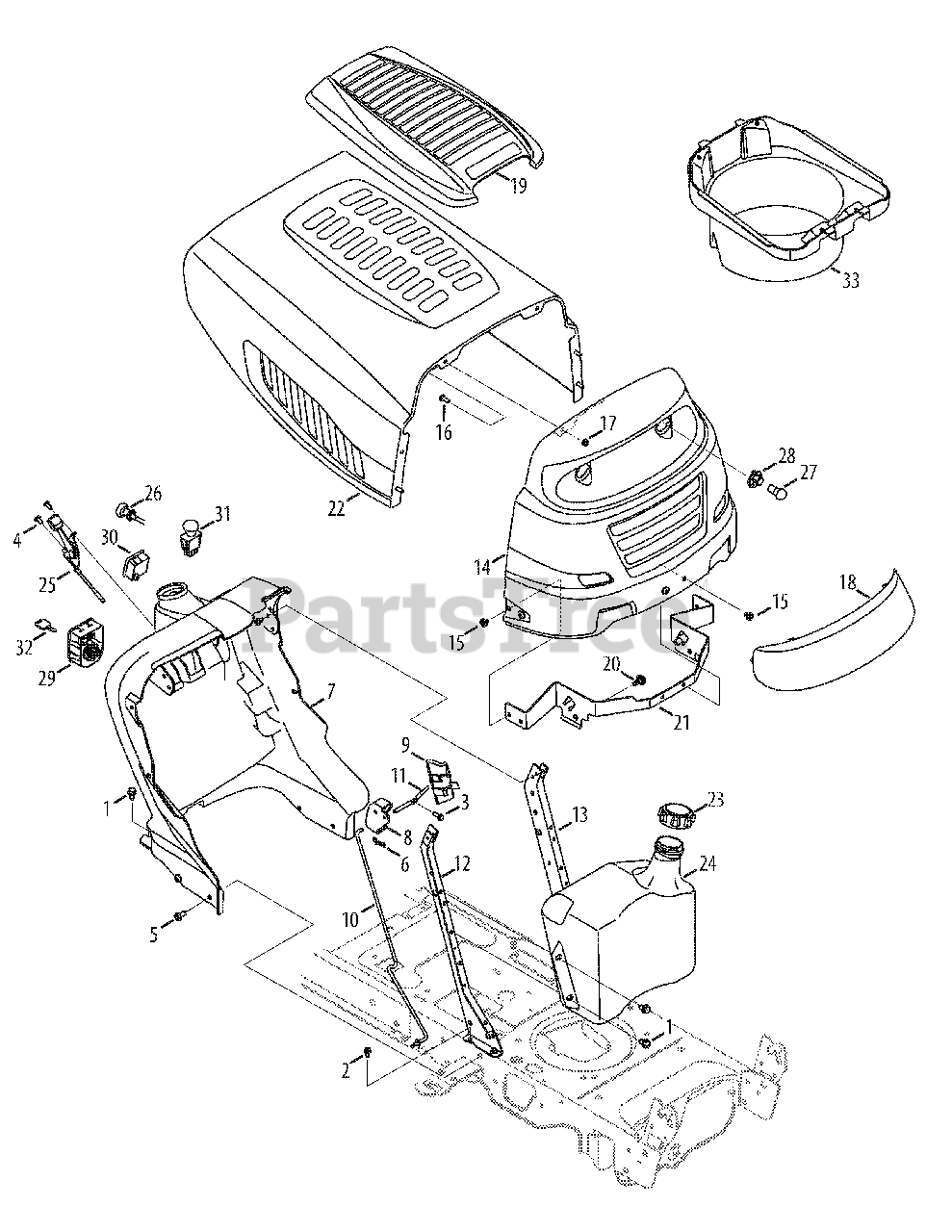

13AA925P004 - MTD Gold Lawn Tractor (2010) Hood & Dash Parts Diagram

Gold Lawn Tractor

Hood & Dash Parts Diagram

  • Title
1

MTD 710-04484

Taptite Screw ,5/16-18:.750

$3.99

$

In Stock, Qty 20+

0

2

MTD 710-0599

Taptite Screw ,1/4-20:0.500

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0895

Hi-Lo Screw, 1/4-15:0.750

$6.49

$

Usually ships in 3-6 days

0

4

MTD 710-1017

Screw, 1/4-14:0.625

$8.49

$

In Stock, Qty 9

0

5

MTD 710-1611B

Taptite Screw ,5/16-18:0.750

$6.99

$

In Stock, only 2 left!

0

6

MTD 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

7

MTD 731-06169

Dash Panel

$

$

Not available

8

MTD 731-06639

Dash Lever

$

$

Not available

9

MTD 731-06642

Cruise Cover

$5.99

$

Usually ships in 3-6 days

0

10

MTD 747-05008B

Control Rod
(Superseded to 747-05008)

$16.99

$

Usually ships in 3-6 days

0

11

MTD 747-1196

Lever

$15.99

$

Usually ships in 3-6 days

0

12

MTD 783-04285F-0637

RH Support Plate

$

$

Not available

13

MTD 783-04323F-0637

LH Support Plate

$34.99

$

Usually ships in 3-6 days

0

14

MTD 783-05685-0662

Grill
(Superseded to 783-05685A-0662)

$140.99

$

Usually ships in 3-6 days

0

15

MTD 710-04593

Taptite Screw ,5/16-18:0.375

$4.49

$

In Stock, only 3 left!

0

16

MTD 710-0751

Hex Screw, 1/4-20:.620

$3.99

$

In Stock, Qty 20+

0

17

MTD 712-04064

Flangelock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

18

MTD 731-04949A

Grill Lens

$26.99

$

In Stock, only 1 left!

0

19

MTD 731-05522A

Hood Scoop

$49.99

$

Usually ships in 3-6 days

0

20

MTD 738-04091A

Shoulder Screw, .43X.29:5/16-18

$3.99

$

In Stock, Qty 20+

0

21

MTD 783-05454-0637

Hood Pivot Bracket

$31.99

$

Usually ships in 3-6 days

0

$171.99

$

Usually ships in 3-6 days

0

23

MTD 751-0603A

Fuel Cap
(Superseded to 751-0603B)

$23.99

$

Usually ships in 3-6 days

0

24

MTD 751-0658E

Fuel Tank

$115.99

$

In Stock, only 3 left!

0

25

MTD 946-04541

Throttle Cable

$

$

Not available

26

MTD 946-04132

Choke Cable

$35.99

$

Usually ships in 3-6 days

0

27

$7.49

$

In Stock, only 1 left!

0

28

MTD 925-1649

Lamp Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

29

MTD 925-04227B

Key Switch
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

30

MTD 925-04036C

Hour Meter
(Superseded to 925-06170B)

$70.99

$

Usually ships in 3-6 days

0

31

MTD 925-04174

Electric PTO Switch
(Superseded to 925-04174A)

$70.99

$

In Stock, only 2 left!

0

32

$17.99

$

In Stock, Qty 20+

0

33

$47.99

$

Usually ships in 3-6 days

0
