13AA625P004 - MTD Gold Lawn Tractor (2009) Steering & Front Axle Assembly Parts Diagram

Gold Lawn Tractor

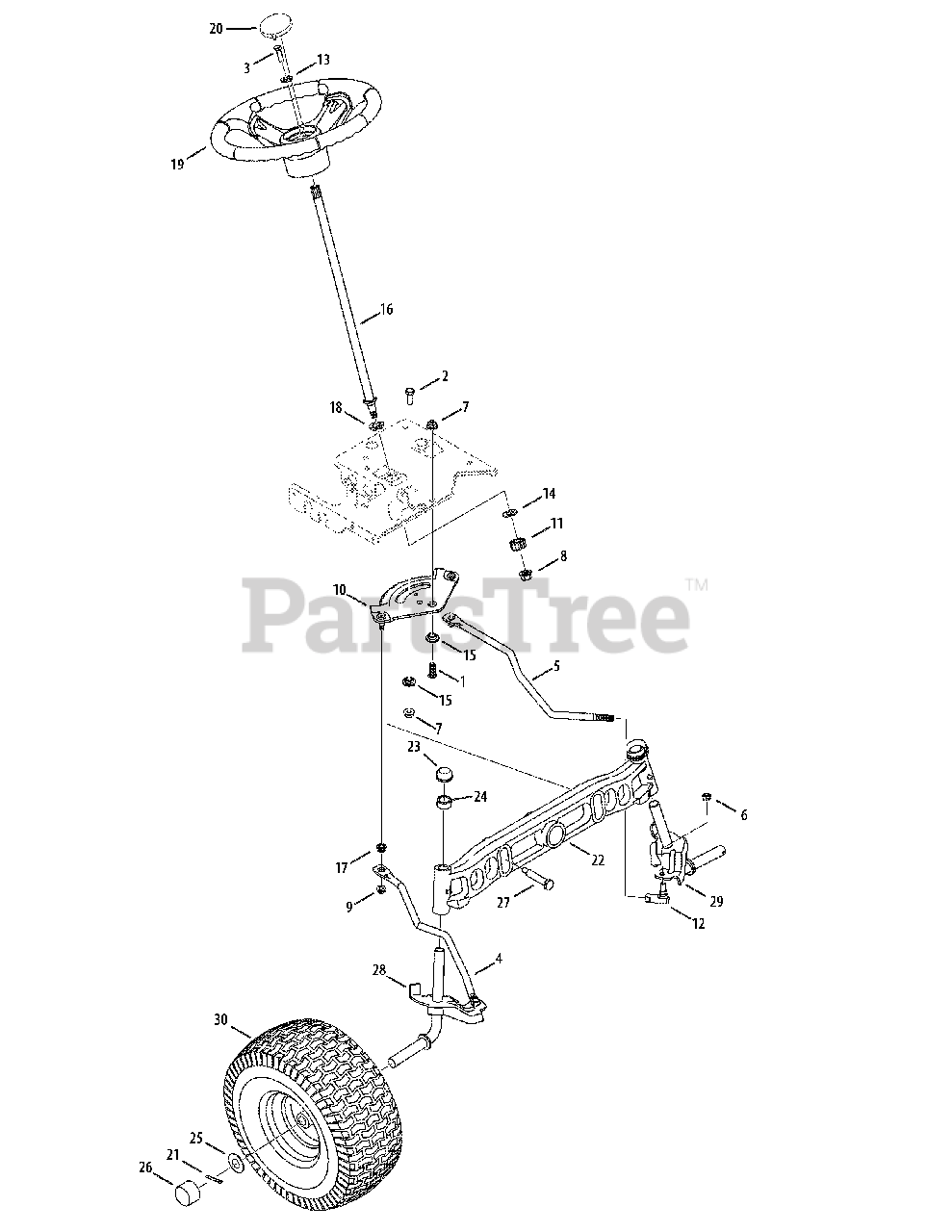

Steering & Front Axle Assembly Parts Diagram

  • Title

1

MTD 710-04095

Hex Screw, 3/8-16, 1.00, Gr5

$5.49

$

In Stock, Qty 20+

0

2

MTD 710-0514

Hex Screw, 3/8-16, 1.00, Gr5

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0643

Hex Screw, 5/16-18, 1.00, Gr5

$6.99

$

In Stock, Qty 5

0

4

MTD 711-1408

Link, Drag, RH

$

$

Not available

5

MTD 711-1409A

Link, Drag, LH

$

$

Not available

6

MTD 912-0214

Nut, Hex Lock, 3/8-24
(Superseded to 712-0214)

$6.49

$

In Stock, only 2 left!

0

7

MTD 712-04065

Nut, Flange Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

8

MTD 712-0459

Nut, Flange Lock, 7/16-20

$4.99

$

In Stock, Qty 20+

0

9

MTD 712-3004A

Nut, Flange Lock, 5/16-18, Gr5

$3.99

$

In Stock, Qty 20+

0

10

MTD 717-1550F

Gear, Steering, 11/90 Ratio

$70.99

$

In Stock, Qty 20+

0

11

MTD 717-1554

Gear, Pinion, Steering

$10.99

$

In Stock, Qty 20+

0

12

MTD 923-0448A

Ball Joint, 7/16-20, Lock

$24.99

$

In Stock, Qty 20+

0

13

MTD 936-3004

Washer, Flat,.406 x .875 x .105
(Superseded to 736-3004)

$

$

Not available

14

MTD 736-3084

Washer, Flat,.51 x 1.12 x.06

$4.99

$

In Stock, Qty 20+

0

15

MTD 738-04154

Spacer, Shoulder,.38 x 1.00 x .31

$5.49

$

In Stock, Qty 11

0

16

MTD 738-04263

Shaft, Steering, .625 OD x 24.25

$68.99

$

In Stock, Qty 7

0

17

MTD 941-0475

Plastic Bushing.380 ID

$4.49

$

In Stock, Qty 20+

0

18

MTD 741-04237

Hex Flange Bearing 5/8 PM
(Superseded to 741-04237B)

$6.99

$

In Stock, Qty 15

0

19

MTD 631-04028

Steering Wheel, 13.25

$69.99

$

In Stock, only 1 left!

0

20

MTD 731-04040

Steering Wheel Cover, w/ Logo

$9.99

$

In Stock, only 1 left!

0

21

MTD 714-0162

Cotter Pin, 5/32 x 1.25

$4.99

$

In Stock, Qty 20+

0

22

MTD 719-04177A

Pivot Bar Axle
(Superseded to 919-04177E)

$248.99

$

In Stock, only 1 left!

0

23

MTD 726-0341

Small Cap

$4.99

$

In Stock, Qty 20+

0

24

MTD 748-04068

Spacer, .71 x .125 x .56

$4.49

$

In Stock, Qty 20+

0

25

MTD 736-04228A

Flat Washer, .781 x 1.589
(Superseded to 736-04228B)

$5.49

$

In Stock, Qty 20+

0

26

MTD 731-05674

Hub Cap

$5.49

$

In Stock, Qty 20+

0

27

MTD 738-04128

Shoulder Bolt, .500 x 2.38, 3/8-16

$7.99

$

Usually ships in 3-6 days

0

28

MTD 638-04003AP

Axle Assembly (50" Deck Units) RH

$

$

Not available

29

MTD 938-04004A

Axle Assembly (50" Deck Units) LH

$71.99

$

In Stock, only 2 left!

0

30

MTD 734-1731-0901

Tire Only 15 x 6 x 6 Sq. Shldr.

$49.99

$

Usually ships in 3-6 days

0

30

MTD 634-04405-0499

Rim Only w/ Valve Stem

Note: Not shown

$69.99

$

In Stock, only 4 left!

0
