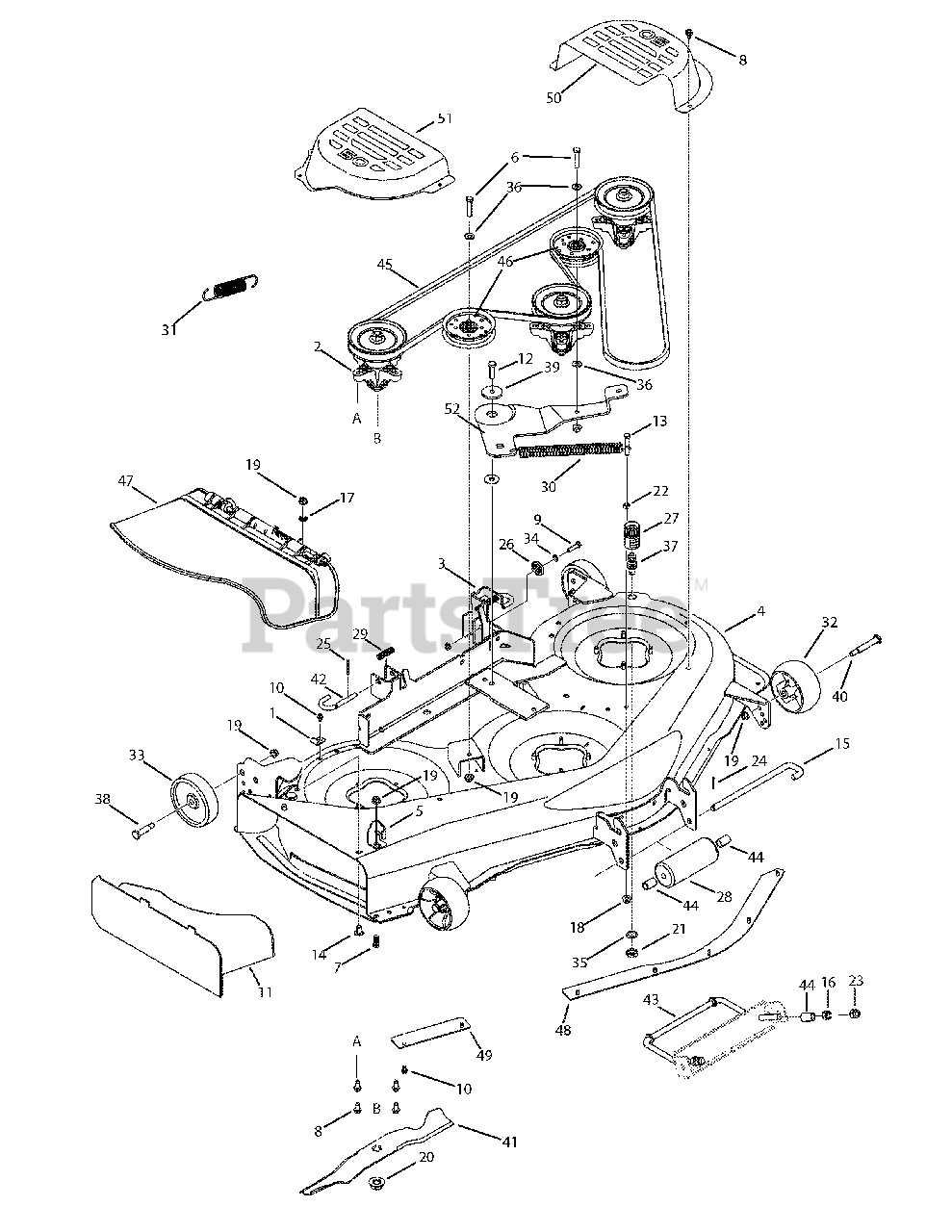

13AA625P004 - MTD Gold Lawn Tractor (2009) Mowing Deck 50 Inch Parts Diagram

Gold Lawn Tractor

Mowing Deck 50 Inch Parts Diagram

  • Title

1

MTD 96606

Hook, Retainer

$7.49

$

In Stock, Qty 7

0

2

MTD 918-04126B

Spindle Assembly
(Superseded to 918-04125C)

$133.99

$

In Stock, Qty 20+

0

2

MTD 712-0417A

Flange Nut:5/8-18

Note: Not shown

$6.99

$

In Stock, Qty 20+

0

2

MTD 736-0315

Flat Washer:.760 x 1.50 x .120

Note: Not shown

$6.99

$

In Stock, Qty 6

0

2

MTD 937-3000

Grease Fitting:3/16:LNC #70:DRI

Note: Not shown

$4.99

$

In Stock, Qty 20+

0

2

MTD 738-1010A

Spindle Shaft:5.75 LG.

Note: Not shown

$46.99

$

In Stock, only 2 left!

0

2

MTD 941-0919

Ball Bearing:20x47x14:62
(Superseded to 941-0919B)

Note: Not shown

$21.99

$

In Stock, Qty 20+

0

2

MTD 748-0160A

Spacer:.790 ID x 1.25 x .175

Note: Not shown

$6.99

$

In Stock, only 3 left!

0

2

MTD 750-1000

Spacer:.80 x 1.10 x 1.322

Note: Not shown

$4.49

$

In Stock, Qty 7

0

2

MTD 750-1349A

Spacer:.79 x 1.82 x .55

Note: Not shown

$13.99

$

In Stock, only 3 left!

0

2

MTD 756-04216

Pulley:V 5.39 Dia

Note: Not shown

$33.99

$

In Stock, only 1 left!

0

3

MTD 683-0254B-0691

Hanger Bracket Assembly
(Superseded to 683-06474-0637)

$36.99

$

Usually ships in 3-6 days

0

4

MTD 683-04075B-0691

Weldment, 50-inch Deck
(Superseded to 983-04075B-0691)

$1181.99

$

Usually ships in 3-6 days

0

5

MTD 703-3279-0691

Chute Stop
(Superseded to 703-3279)

$40.99

$

Usually ships in 3-6 days

0

6

MTD 710-0347

Screw, 3/8-16, 1.75

$5.49

$

In Stock, Qty 20+

0

7

MTD 710-04095

Screw, 3/8-16 x 1.0

$5.49

$

In Stock, Qty 20+

0

8

MTD 710-04484

Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-0528

Screw, 5/16-18, 1.25, Gr5

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0599

Screw, 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0

11

MTD 731-04651

Mulch Plug

$78.99

$

In Stock, only 3 left!

0

12

MTD 710-3005

Screw, 3/8-16, 1.25

$3.99

$

In Stock, Qty 20+

0

13

MTD 710-3103

Screw, 5/16-18 x 2.00

$4.49

$

In Stock, Qty 20+

0

14

MTD 710-3178

Screw, Carriage, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

15

MTD 711-1737

Roller Pin

$25.99

$

In Stock, Qty 6

0

16

MTD 912-0206

Hex Nut, 1/2-13
(Superseded to 712-0206)

$4.49

$

In Stock, Qty 20+

0

17

MTD 712-0229

Push Nut Retainer

$3.99

$

In Stock, Qty 20+

0

18

MTD 712-04063

Nut, Nylon Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

19

MTD 712-04065

Nut, Nylon Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

20

MTD 712-0417A

Nut, Hex, Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

21

MTD 912-0641

Nut, Hex, M16-1.5
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

22

MTD 912-3010

Nut, Hex, 5/16-18, Gr5
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

23

MTD 712-3083

Hex Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

24

MTD 914-0111

Pin, Cotter, 3/32 x 1.00
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

25

MTD 914-0470

Pin, Cotter, 1/8 x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

26

MTD 917-04074

Deck Adjustment Gear

$13.99

$

In Stock, Qty 14

0

27

MTD 921-04041

Coupler, Hose

$23.99

$

In Stock, Qty 20+

0

28

MTD 731-05679

Roller
(Superseded to 731-05679B)

$18.99

$

In Stock, Qty 20+

0

29

MTD 932-0306A

Spring, Compression, .531 x 1.75

$8.49

$

In Stock, only 4 left!

0

30

MTD 732-0459C

Spring, Extension, .94 x 6.74

$18.99

$

In Stock, only 3 left!

0

31

MTD 732-0934

Spring, Lift Assist

$11.99

$

In Stock, only 1 left!

0

32

MTD 734-04155

Deck Wheel, 5.0

$20.99

$

In Stock, Qty 20+

0

33

MTD 734-0973

Deck Wheel, 5.0

$12.99

$

In Stock, Qty 20+

0

34

MTD 936-0119

Washer, Lock, 5/16

$4.99

$

In Stock, Qty 20+

0

35

MTD 736-0225

Lock Washer, 5/8"

$4.49

$

In Stock, only 2 left!

0

36

MTD 936-0300

Washer, Flat, .406 x .875 x .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

37

MTD 737-04003D

Port, Water

$23.99

$

In Stock, Qty 6

0

38

MTD 938-0373

Shoulder Screw

$9.49

$

In Stock, Qty 20+

0

39

MTD 738-04162A

Spacer, Shoulder, .884 x .190
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

40

MTD 938-3056

Shoulder Screw

$9.49

$

In Stock, Qty 20+

0

41

MTD 942-04053C

Blade, 17.90

$28.99

$

In Stock, Qty 20+

0

42

MTD 747-1116

Rod, Deck Release .375 Dia.

$12.99

$

In Stock, Qty 6

0

43

MTD 747-1324

Rod, Deck Adjust

$58.99

$

In Stock, only 3 left!

0

44

MTD 950-0151

Spacer, .550 x .750 x 1.125

$10.99

$

In Stock, Qty 20+

0

45

MTD 954-04164

Belt, V-Type

$80.99

$

In Stock, Qty 5

0

46

MTD 756-04129B

Pulley, Idler, 4.25"
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

47

MTD 631-04070A

Chute Assembly, Side Discharge
(Superseded to 631-04070C)

$122.99

$

In Stock, only 4 left!

0

48

MTD 783-04414A-0637

Deck Skirt, Center
(Superseded to 783-04414A)

$35.99

$

Usually ships in 3-6 days

0

49

MTD 783-04415-0637

Deck Skirt, RH

$30.99

$

In Stock, only 3 left!

0

50

MTD 783-05280-0691

LH Belt Cover

$76.99

$

Usually ships in 3-6 days

0

51

MTD 783-05281-0691

RH Belt Cover

$73.99

$

Usually ships in 3-6 days

0

52

MTD 783-05303-0637

Idler Bracket
