13AA625P004 - MTD Gold Lawn Tractor (2009) Frame, PTO Clutch & Battery Parts Diagram

Gold Lawn Tractor

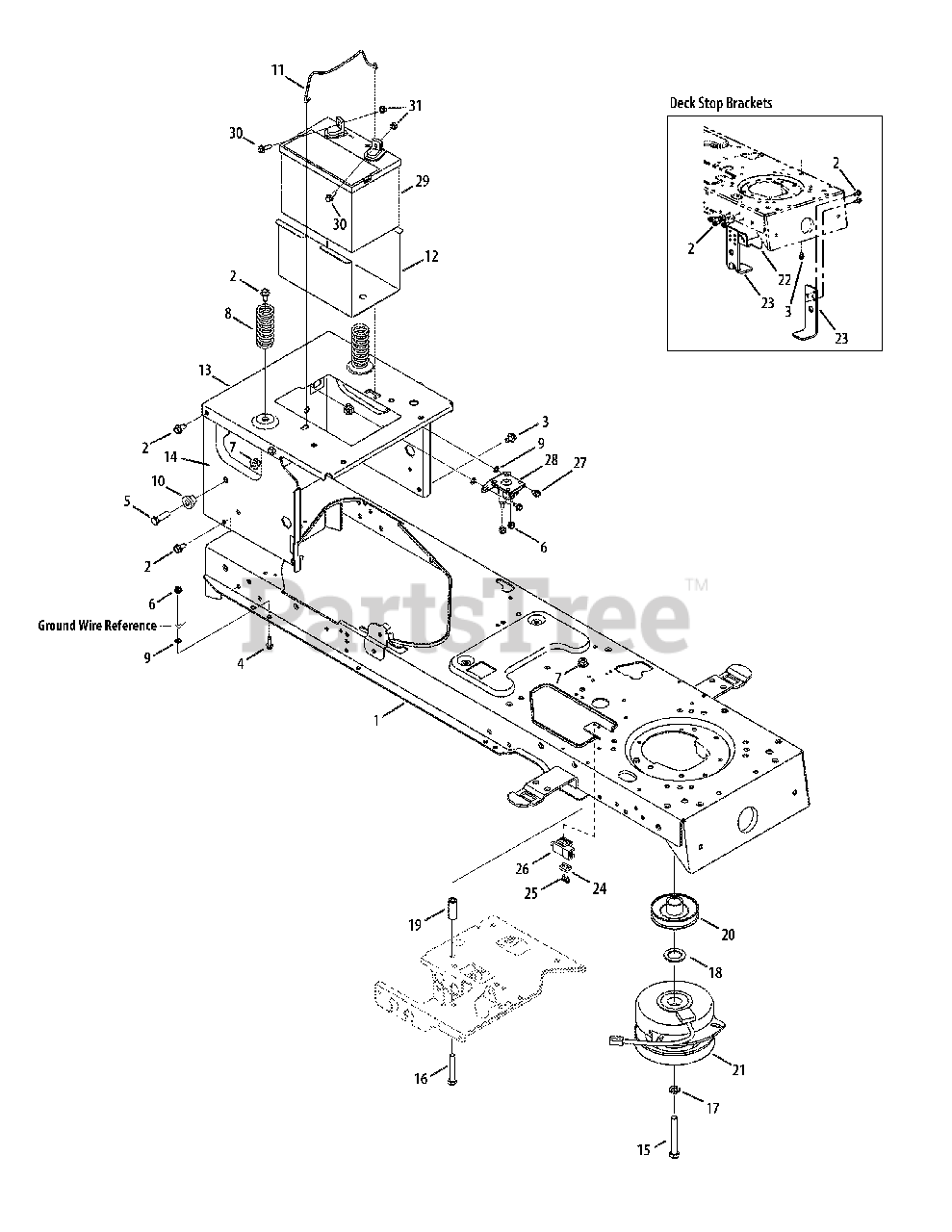

Frame, PTO Clutch & Battery Parts Diagram

  • Title
1

MTD 683-04173B-0691

Frame Assembly, Lower
(Superseded to 683-04173B-0637)

$

$

Not available

2

MTD 710-04484

Screw, 5/16-18 x 0.75

$3.99

$

In Stock, Qty 20+

0

3

MTD 710-0607

Screw, 5/16-18, 0.500

$6.99

$

In Stock, Qty 11

0

4

MTD 710-0642

Screw, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-3005

Screw, 3/8-16, 1.25, Gr5

$3.99

$

In Stock, Qty 10

0

6

MTD 712-04064

Nut, Flange Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

7

MTD 712-04065

Nut, Flange Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

8

MTD 732-04561

Spring, Compress., 1.28 x 3.125

$16.99

$

Usually ships in 3-6 days

0

9

MTD 936-0222

Washer, Lock, 1/4, External
(Superseded to 736-0222)

$

$

Not available

10

MTD 738-04058

Spacer, Shoulder,.38 x 1.0 x.70

$4.49

$

In Stock, only 3 left!

0

11

MTD 747-04121A

Hold Rod, Battery

$6.49

$

In Stock, Qty 20+

0

12

MTD 783-0349-0637

Battery Tray

$

$

Not available

13

MTD 783-06089-0637

Seat Bracket, Frame

$57.99

$

In Stock, only 1 left!

0

14

MTD 783-04809C-0637

Frame, Upper

$

$

Not available

15

MTD 710-04379A

Screw, 7/16-20, 3.50, Gr5, Lock

$6.49

$

In Stock, only 2 left!

0

16

MTD 710-3011

Screw, 3/8-16, 2.25, Gr5

$6.99

$

In Stock, Qty 20+

0

17

MTD 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

18

MTD 736-0277

Washer, Flat, 1.031 x 1.620 x.095

$4.49

$

In Stock, Qty 20+

0

19

MTD 748-0415B

Spacer,.385 ID x.635 OD x 1.54

$7.49

$

In Stock, Qty 10

0

20

MTD 756-0978B

Pulley, Engine, 3.56 Diameter

$66.99

$

In Stock, Qty 13

0

21

MTD 917-04174A

PTO Clutch, Electric (50" Deck Units)

$679.99

$

Usually ships in 3-6 days

0

22

MTD 783-04419B-0637

Clutch Bracket

$14.99

$

In Stock, only 4 left!

0

23

MTD 783-04975-0637

Deck Bracket, Up-Stop (50" Deck)

$

$

Not available

24

MTD 17962

Switch Plate

$4.99

$

In Stock, only 3 left!

0

25

MTD 910-0224

AB Screw, #10-16 x.500

$3.99

$

In Stock, Qty 20+

0

26

MTD 925-04039

Switch

$24.99

$

In Stock, Qty 8

0

27

MTD 710-0599

Screw, 1/4-20, 0.50

$4.49

$

In Stock, Qty 20+

0

28

MTD 725-04439

Solenoid, 12V, 100 Amp
(Superseded to 725-04439B)

$39.99

$

In Stock, Qty 20+

0

29

MTD 925-1707D

Battery, 245 CCA

$

$

Not available

30

MTD 710-04666

Hex Flange Bolt, 1/4-20,.75

$6.99

$

In Stock, only 3 left!

0

31

MTD 712-0271

Nut, Sems, 1/4-20

$4.49

$

In Stock, Qty 20+

0
