13AA625P004 - MTD Gold Lawn Tractor (2009) Engine Accessories Parts Diagram

Gold Lawn Tractor

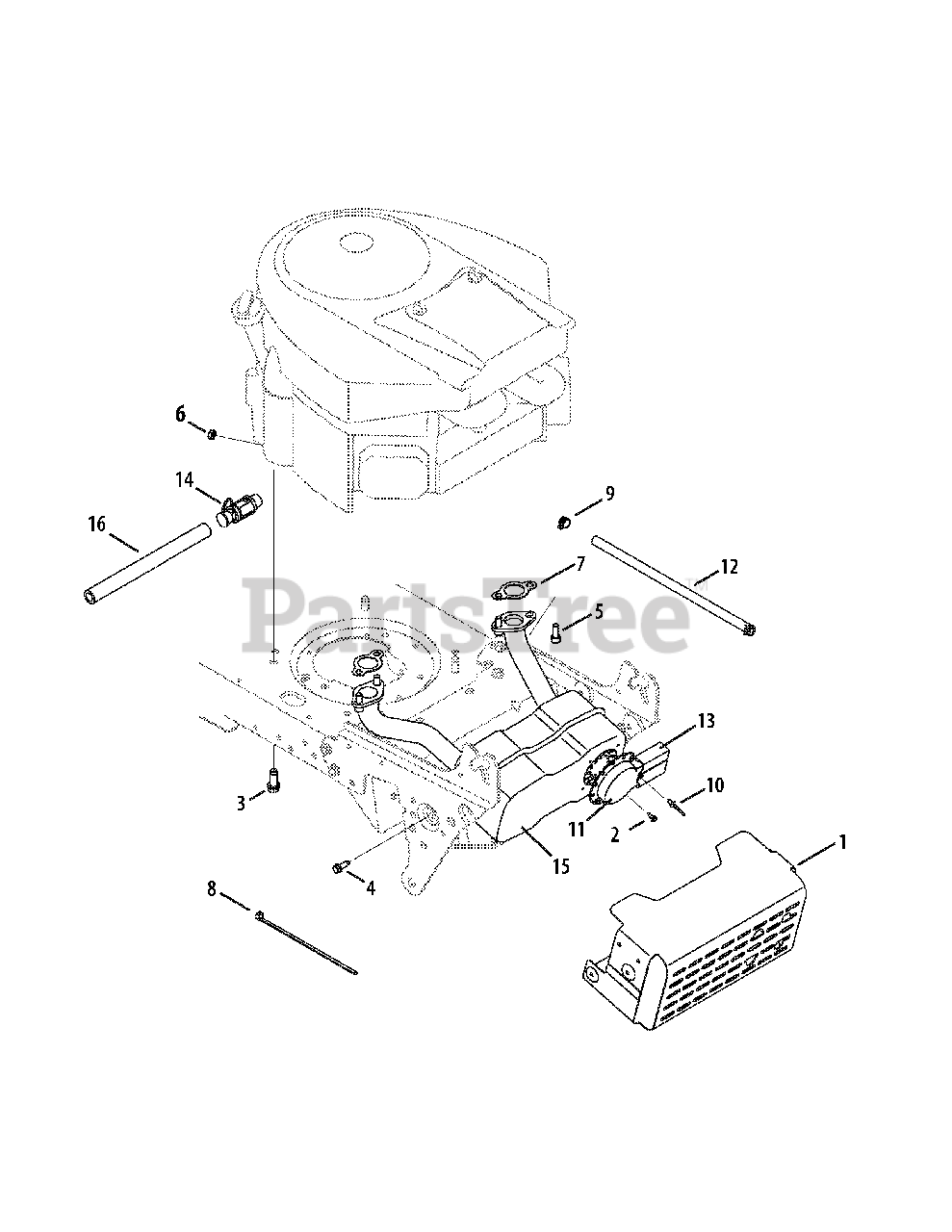

Engine Accessories Parts Diagram

  • Title

1

MTD 683-04549-0637

Muffler Shield Assembly
(Superseded to 683-05460A-0637)

$80.99

$

Usually ships in 3-6 days

0

2

MTD 710-0227

Screw, #8-18, 0.500

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-04683

Screw, Hex, 3/8-16 x 1.00
(Superseded to 710-04683C)

$6.49

$

In Stock, only 4 left!

0

4

MTD 710-0642

Screw, Hex, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-1314A

Screw, 5/16-18, 0.75

$4.49

$

In Stock, Qty 20+

0

6

MTD 712-0271

Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 19

0

7

MTD 721-0460

Exhaust Gasket, B&S Twin
(Superseded to 721P0460)

$6.99

$

In Stock, only 2 left!

0

8

MTD 725-0157

Cable, Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

9

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

10

MTD 728-04000

Rivet, Pop, .188 x .325

$6.99

$

In Stock, Qty 7

0

11

MTD 751-0564B

Deflector, Muffler

$13.99

$

In Stock, only 3 left!

0

12

MTD 751-10349

Fuel Line, Low Permeation

$9.49

$

Usually ships in 3-6 days

0

13

MTD 751-10353

Extension, Deflector
(Superseded to 751-11053B)

$5.49

$

In Stock, Qty 20+

0

14

MTD 951-10517A

Drain, Oil

$24.99

$

Usually ships in 3-6 days

0

15

MTD 751-10542

Muffler, Dual Inlet, B&S
(Superseded to 951-10542E)

$142.99

$

In Stock, only 2 left!

0

16

MTD 751-3141-14

Extension Hose, Oil Drain

$11.99

$

In Stock, Qty 6

0
